Plan 83923JW Modern Farmhouse Plan with Bonus Room Above 3-Car Garage

2,465 3-4 2.5 - 3.5 1-2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Farmhouse Plan with Bonus Room Above 3-Car Garage

Plan 83923JW

  • 2,465

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This modern farmhouse plan includes timeless features inside and out, and the livable floor plan provides a comfortable space for everyday living.

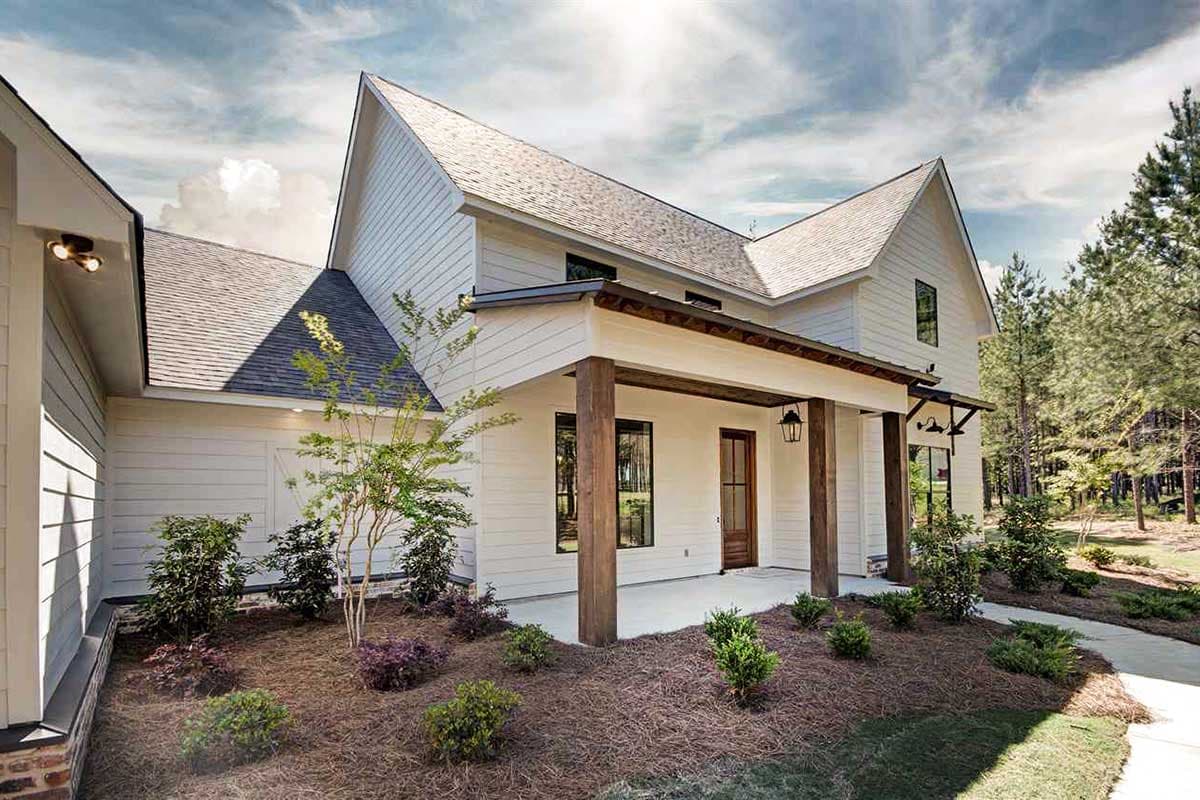

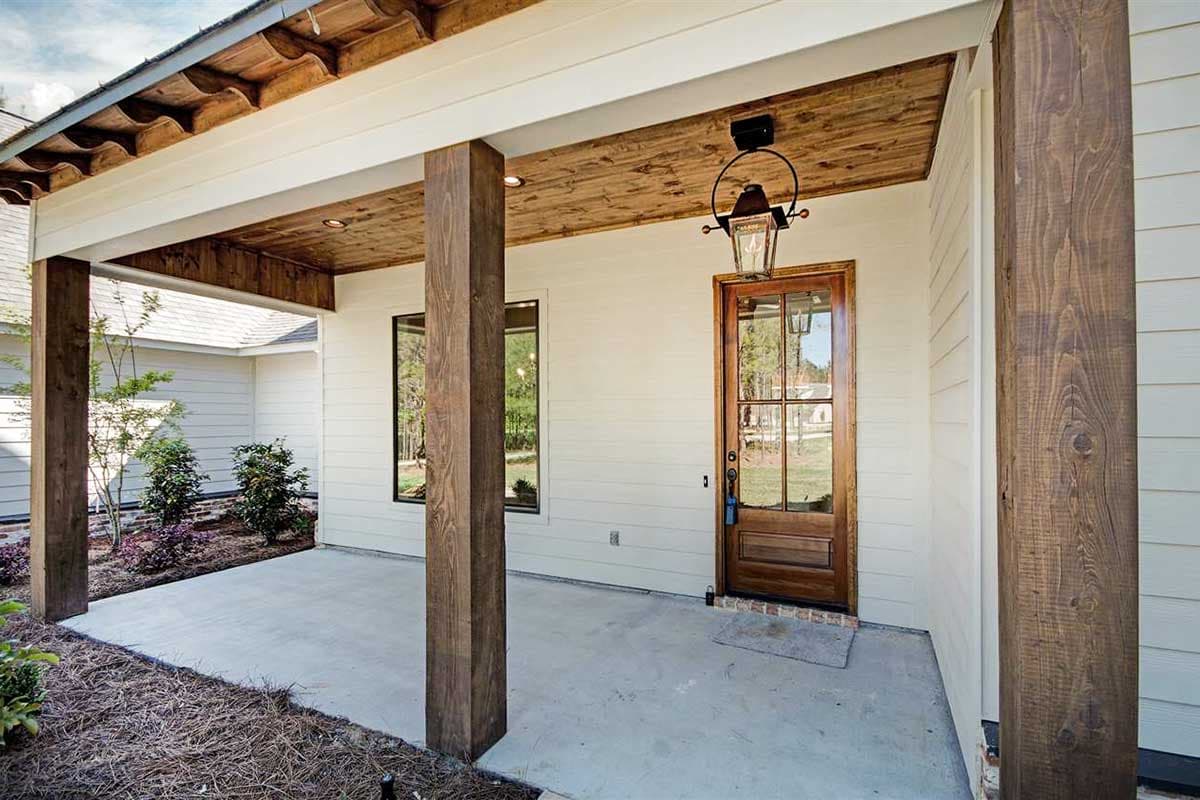

  • The 8' deep front porch welcomes guests and invites you to enjoy a refreshing beverage. Once inside, the dining room with 12' ceiling sits to the left of the foyer, with unobstructed views into the light-filled family room. The windows above the dining room are there for aesthetic purposes only.

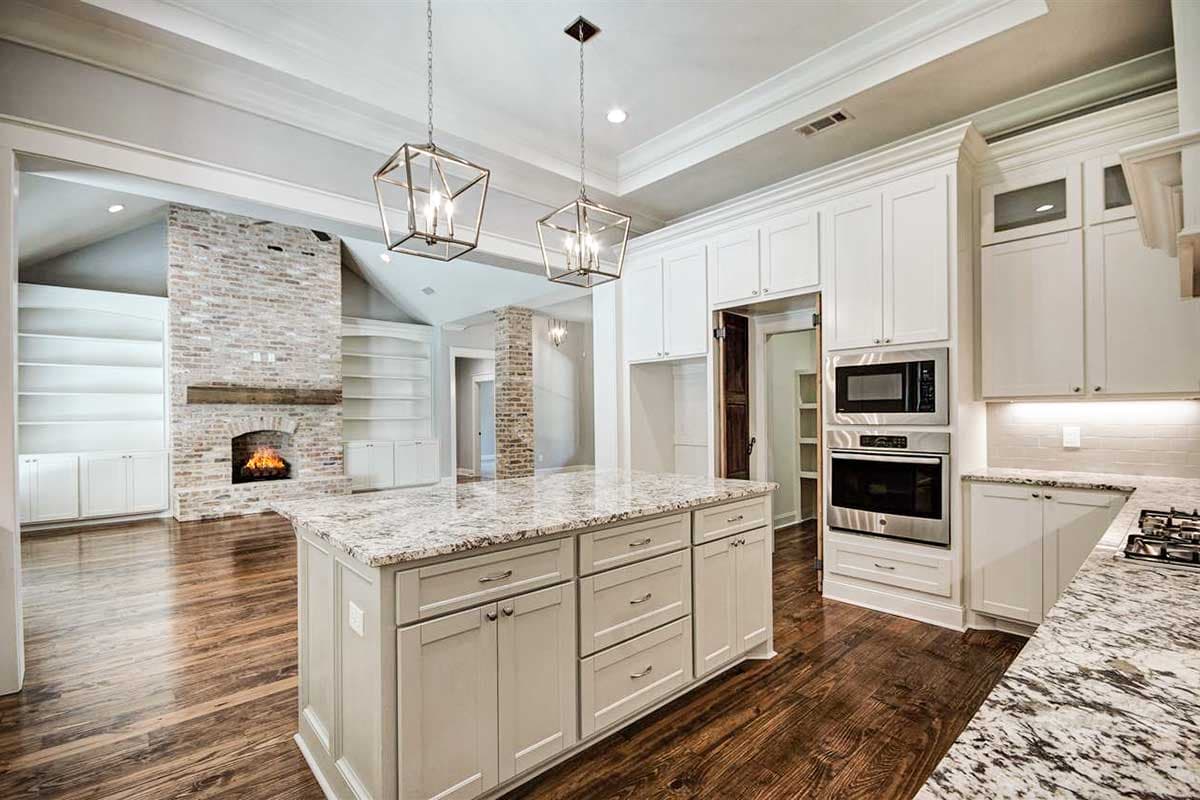

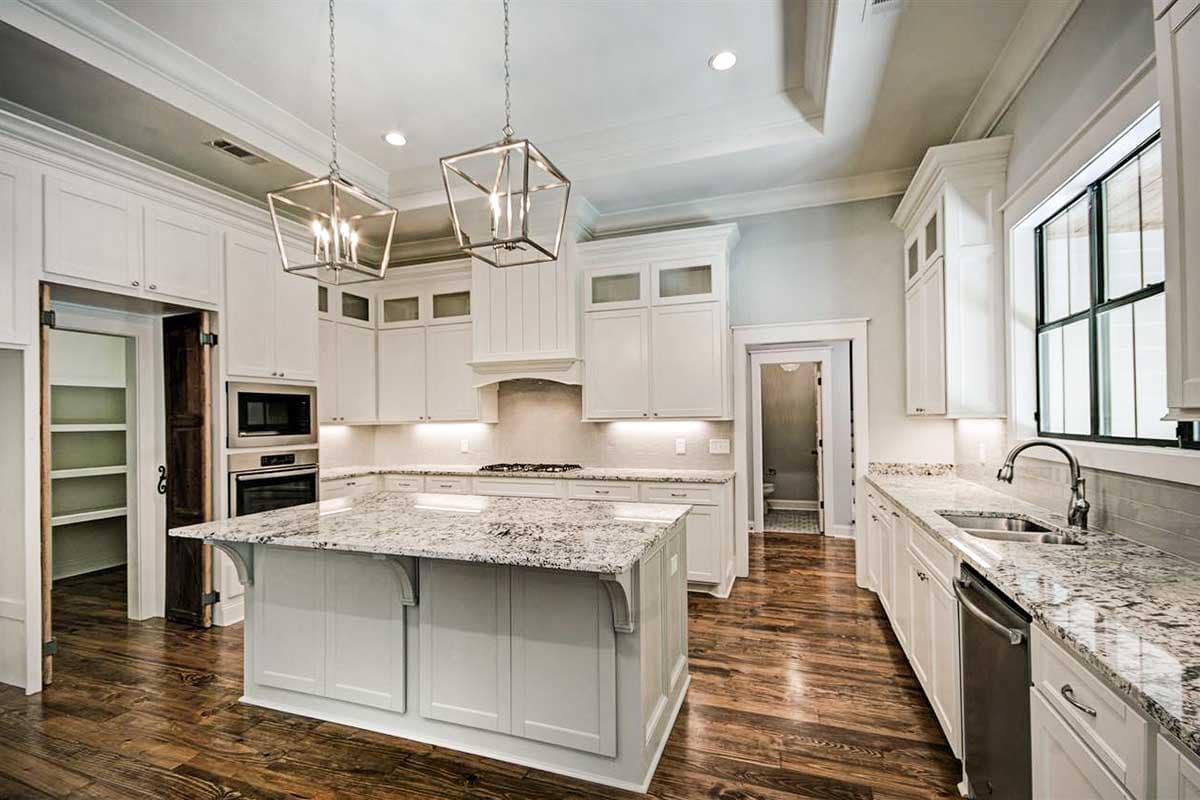

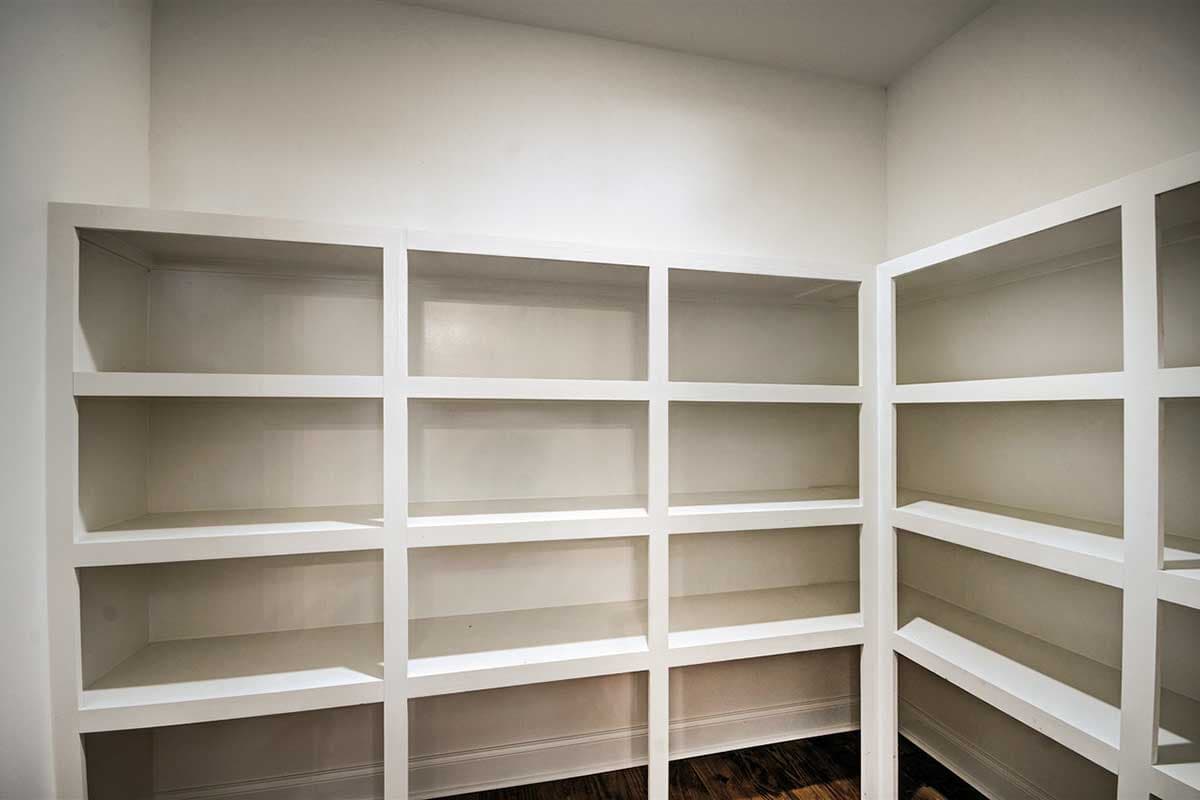

  • The chef's kitchen boasts a large island to maximize workspace, and the nearby prep pantry assists when entertaining and includes a second dishwasher.
  • A spacious rear porch encourages outdoor living and includes a fireplace for year-round enjoyment.

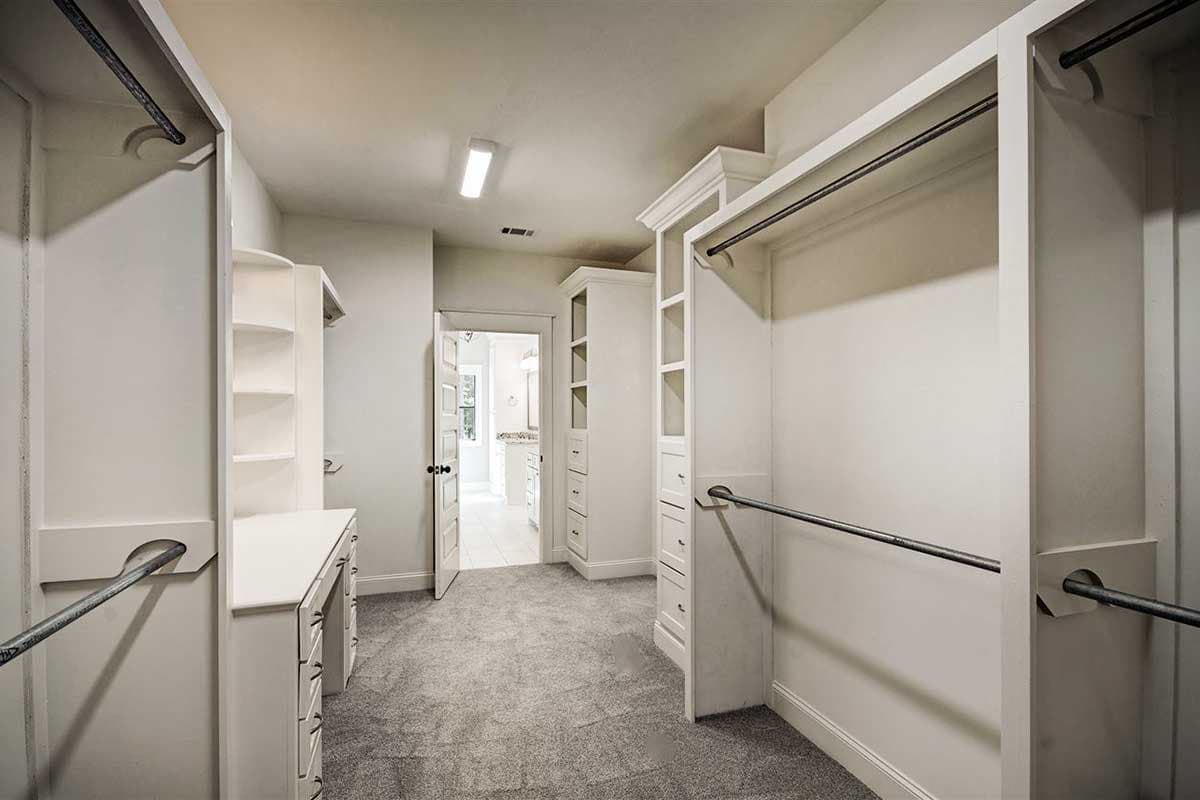

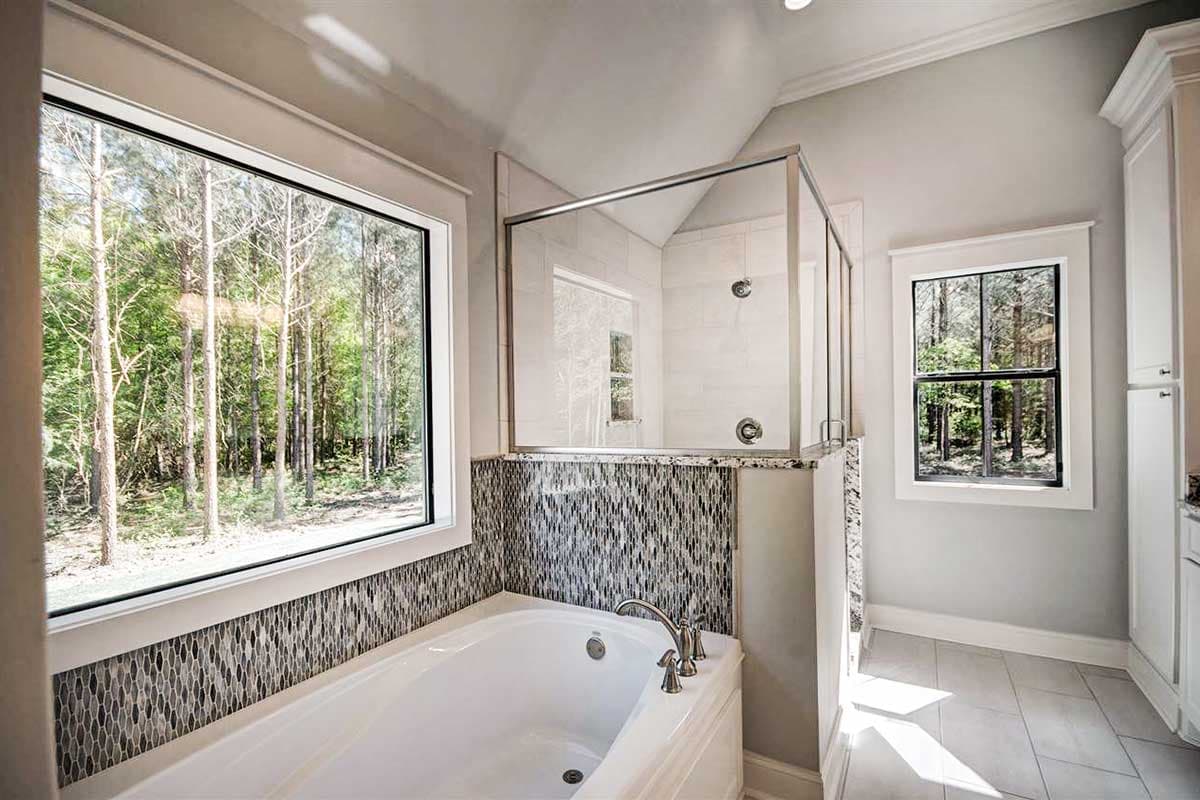

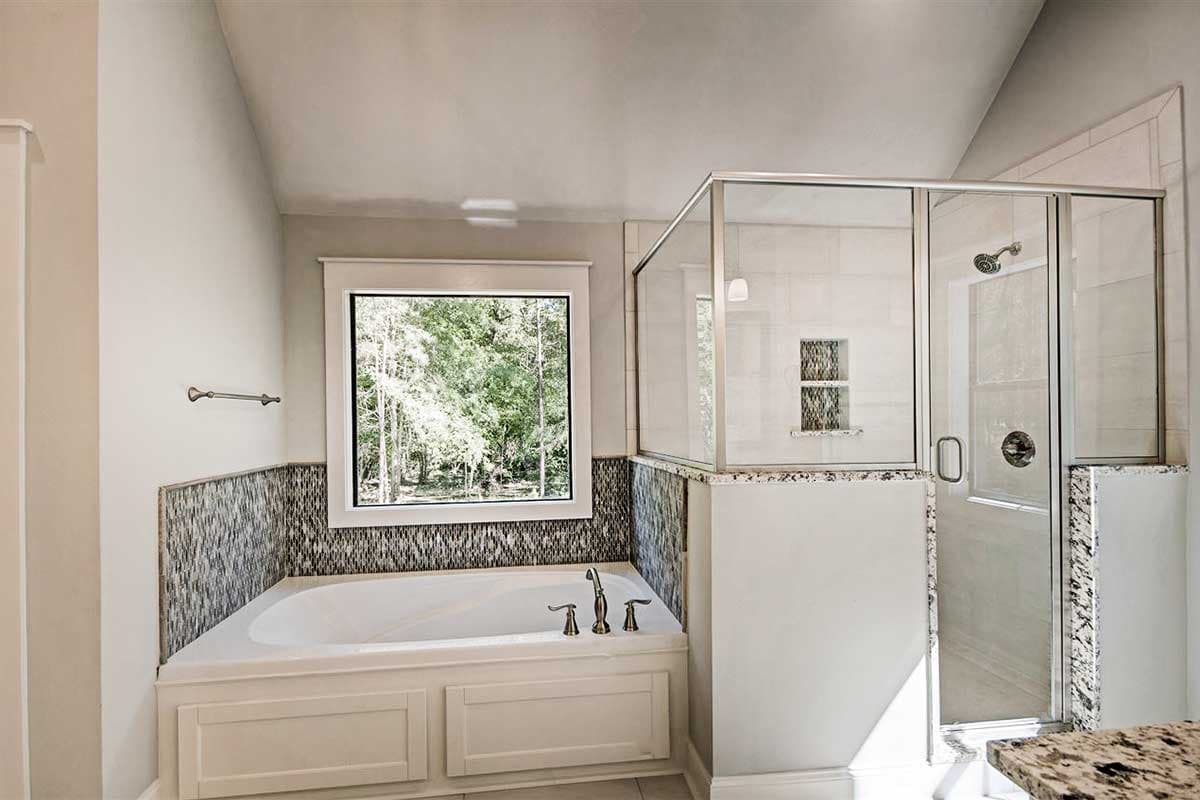

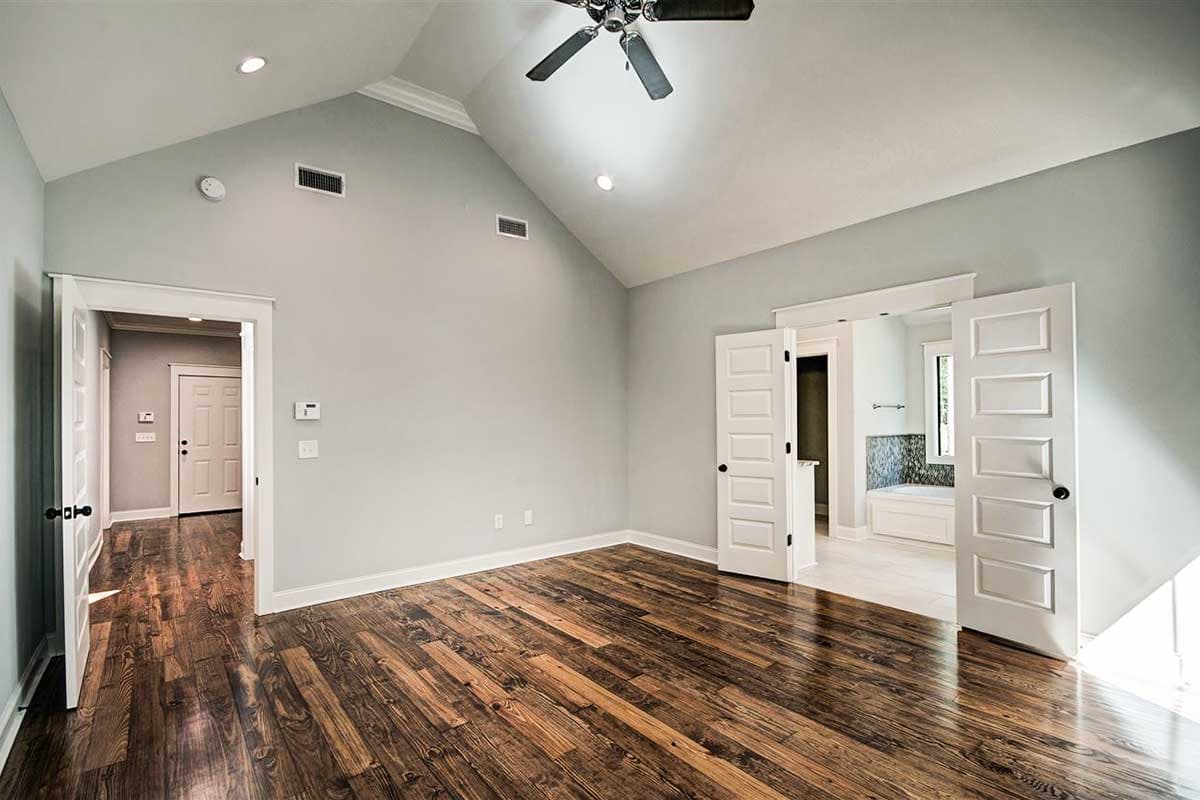

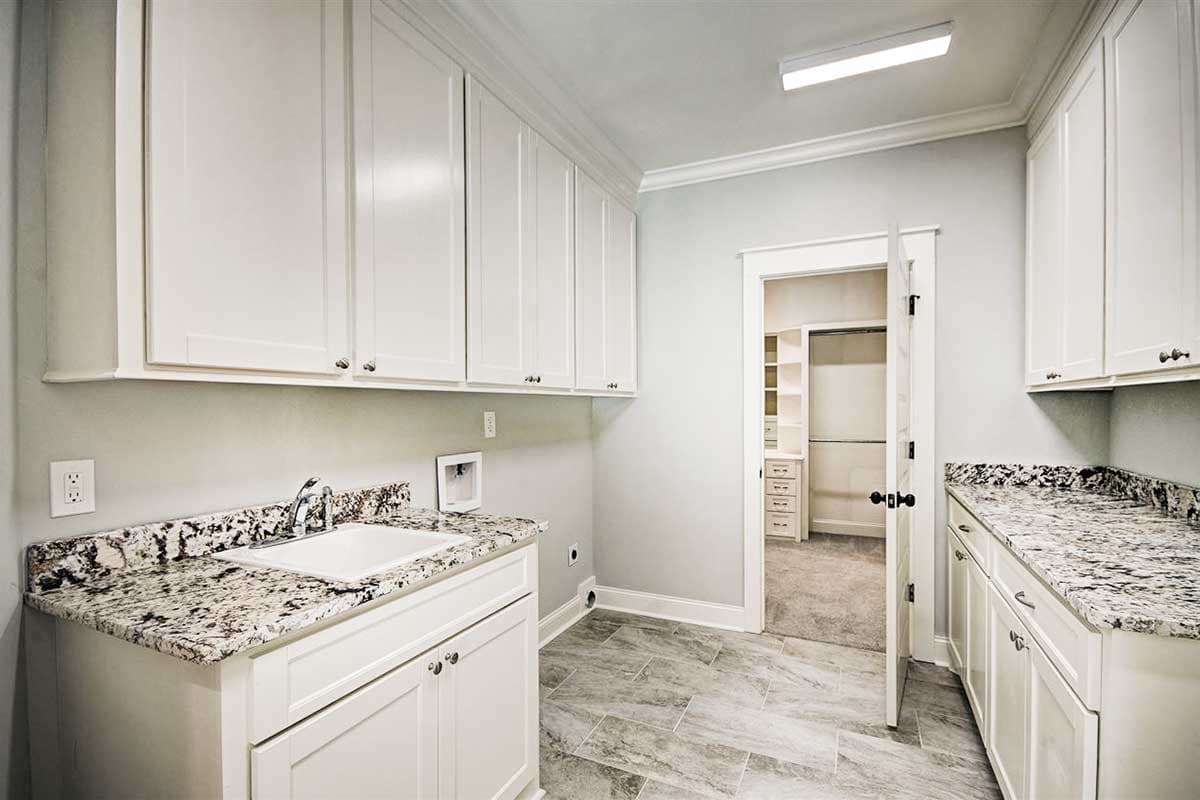

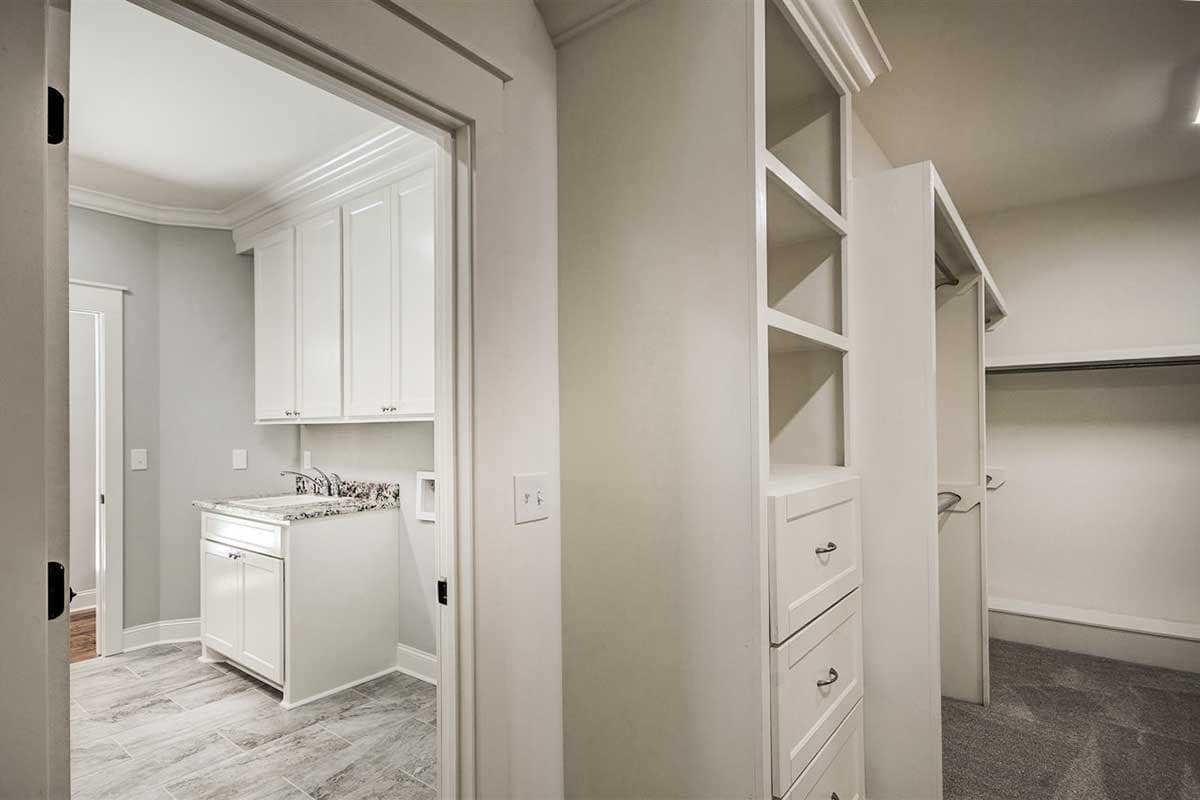

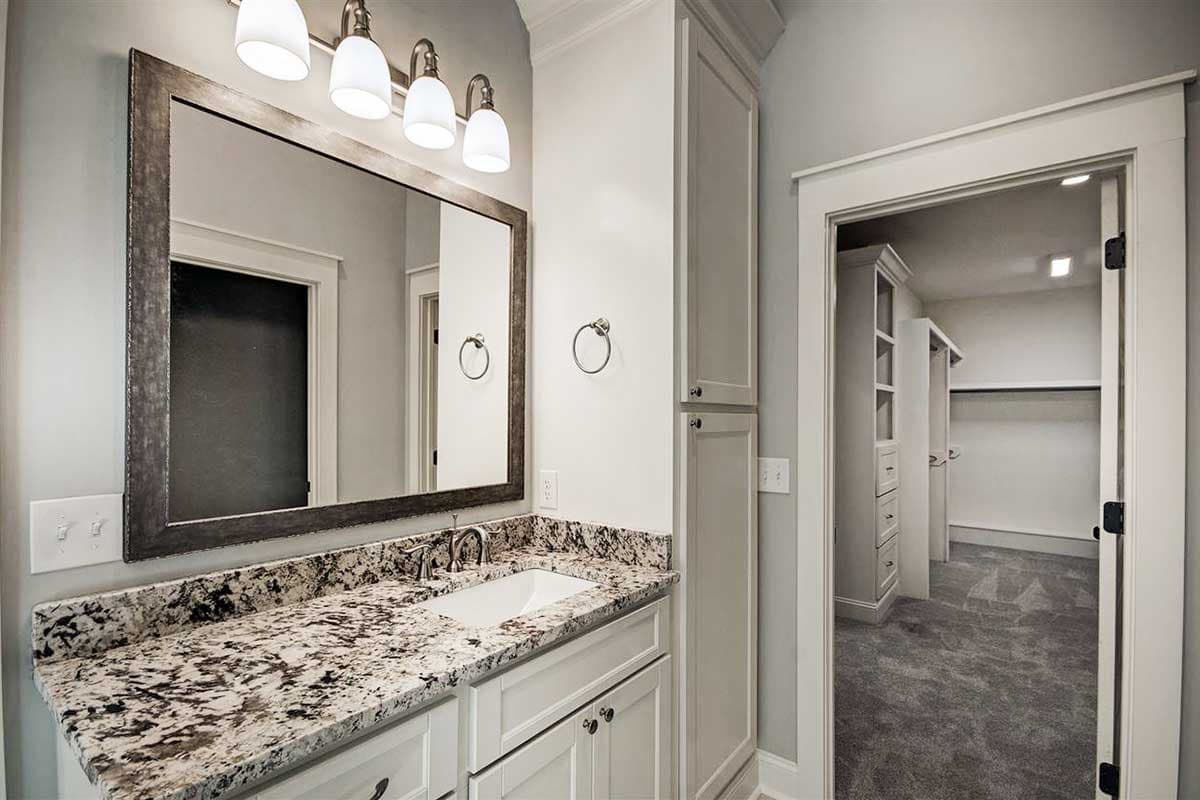

  • The master bedroom resides behind the 3-car garage and presents a 5-fixture en suite with a private toilet room. The pass-thru master closet provides access to the laundry room for added convenience.

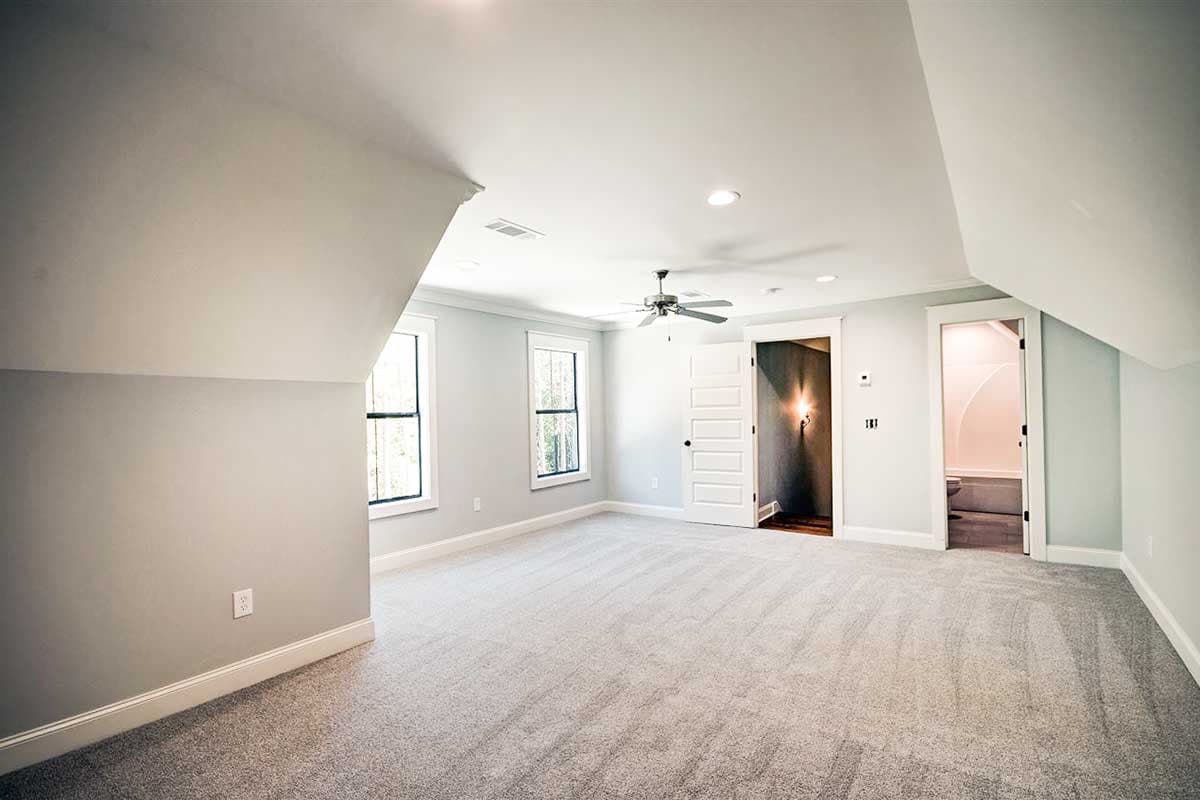

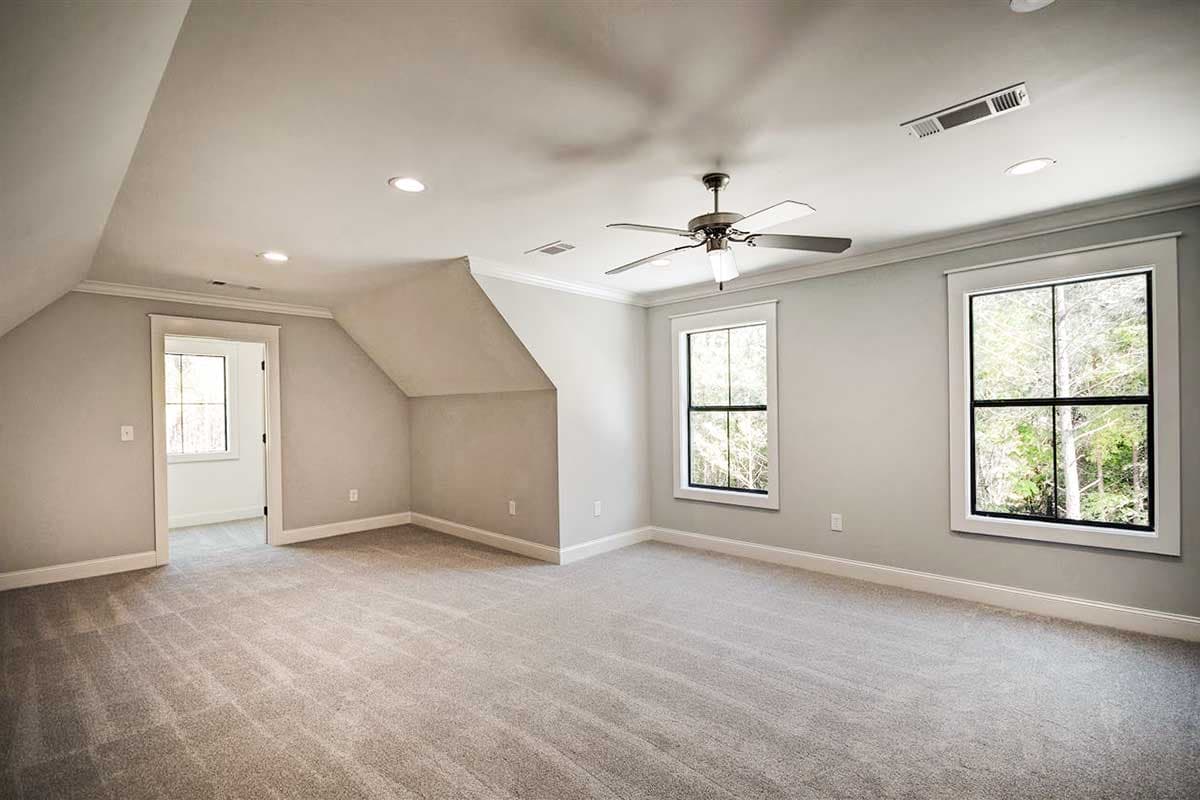

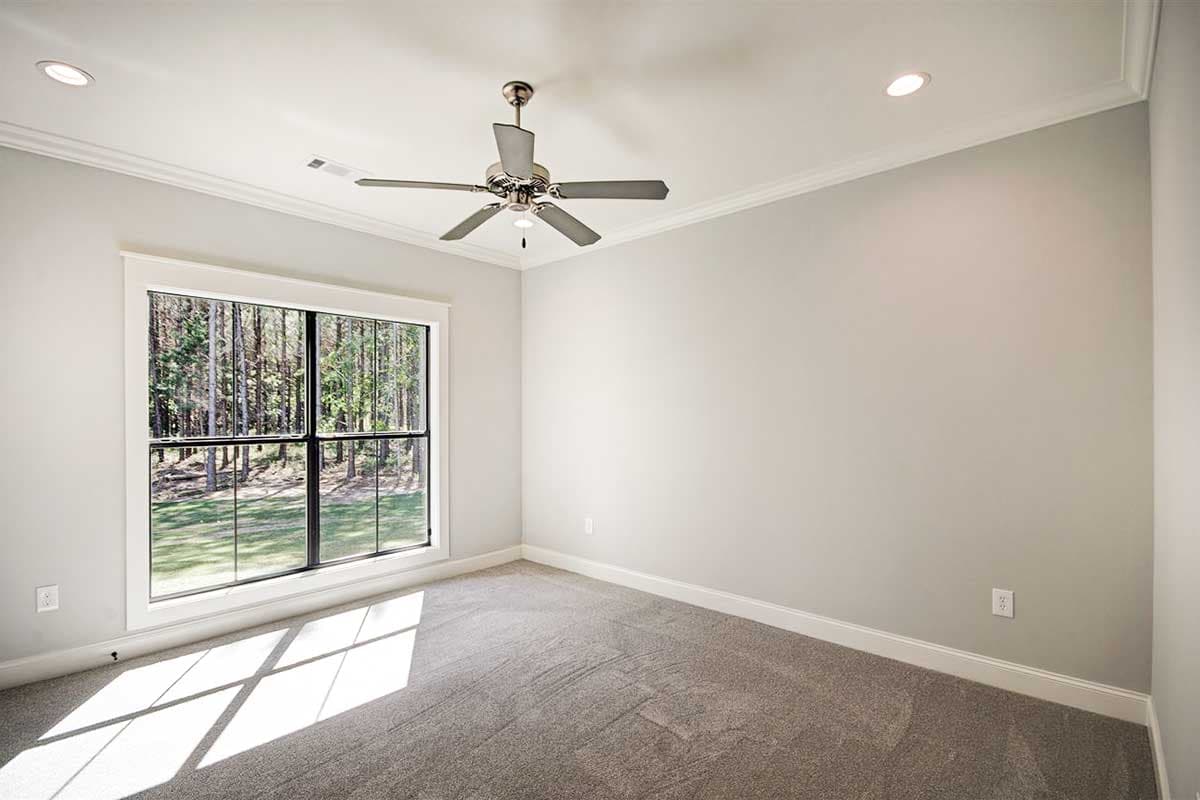

  • Bedrooms 2 and 3, located on the other side of the home, share a bath and have 9' ceilings. The window above Bed 2 is there for aesthetics and opens to the attic. A bonus room above the garage includes a full bath and could serve as a fourth bedroom, home office, or play room.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

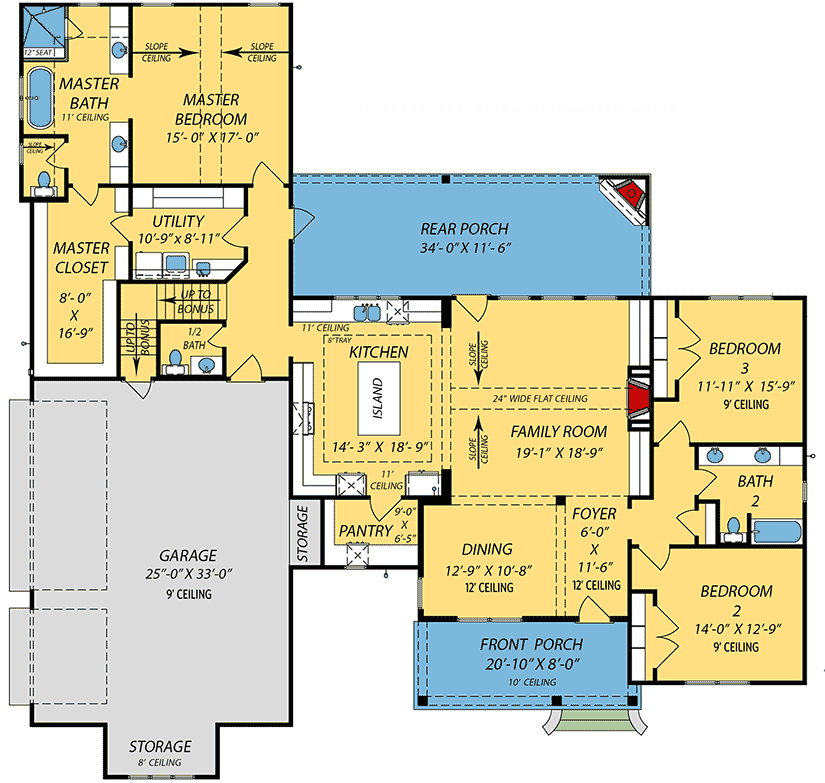

Modern Farmhouse Plan with Bonus Room Above 3-Car Garage - 83923JW floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

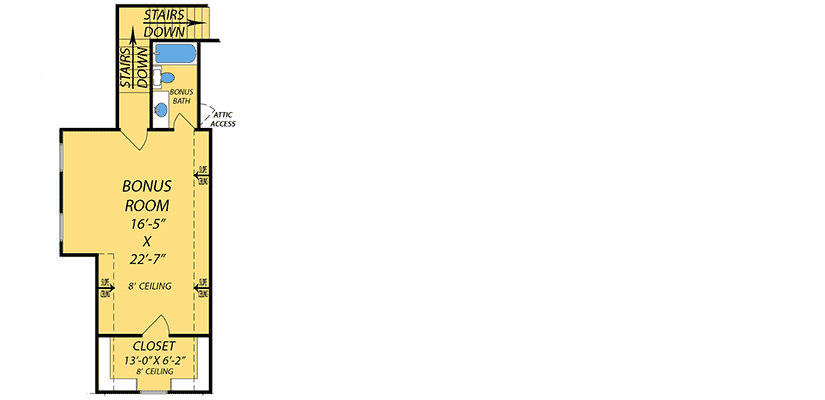

Modern Farmhouse Plan with Bonus Room Above 3-Car Garage - 83923JW floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,465 sq. ft.
  • 1st Floor: 2,465 sq. ft.
  • Porch, Combined: 511 sq. ft.
  • Bonus: 528 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 74' 0"

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Modern Farmhouse Plan with Bonus Room Above 3-Car Garage

  • 2,465

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $945
  • 5 Sets $995
  • 5 Sets + PDF $1,095
  • 8 Sets $1,095
  • PDF - Unlimited Build $1,595
  • CAD - Single-Build $1,795
  • CAD Unlimited + PDF $2,295
  • View all purchase option online

About This Plan

  • This modern farmhouse plan includes timeless features inside and out, and the livable floor plan provides a comfortable space for everyday living.
  • The 8' deep front porch welcomes guests and invites you to enjoy a refreshing beverage. Once inside, the dining room with 12' ceiling sits to the left of the foyer, with unobstructed views into the light-filled family room. The windows above the dining room are there for aesthetic purposes only.
  • The chef's kitchen boasts a large island to maximize workspace, and the nearby prep pantry assists when entertaining and includes a second dishwasher.
  • A spacious rear porch encourages outdoor living and includes a fireplace for year-round enjoyment.
  • The master bedroom resides behind the 3-car garage and presents a 5-fixture en suite with a private toilet room. The pass-thru master closet provides access to the laundry room for added convenience.
  • Bedrooms 2 and 3, located on the other side of the home, share a bath and have 9' ceilings. The window above Bed 2 is there for aesthetics and opens to the attic. A bonus room above the garage includes a full bath and could serve as a fourth bedroom, home office, or play room.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,465 sq. ft.
  • 1st Floor: 2,465 sq. ft.
  • Porch, Combined: 511 sq. ft.
  • Bonus: 528 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 74' 0"

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Plan 83923JW
View this and more for this plan by visiting www.architechtecturaldesigns.com/83923JW
|
Need Help? 800-854-7852
|
Plan 83923JW
