Plan 16901WG

Modern Farmhouse Plan with Wraparound Porch and Bonus Room

Modern Farmhouse Plan with Wraparound Porch and Bonus Room

Plan 16901WG

  • 2,748

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This modern farmhouse plan with a full wraparound porch gives you 2 bedrooms with an optional third bedroom if you use the study as a bedroom and a fourth bedroom if you build out the bonus room and use that as a bedroom.
  • The master suite has French doors that open to the porch in back and has a large walk-in closet.
  • The country kitchen has a large pantry and lots of counterspace. There is access to the utility room and the back door as well as to the side door that leads to the detached garage.
  • The living room is open to the dining room and has a 3-sided fireplace.

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

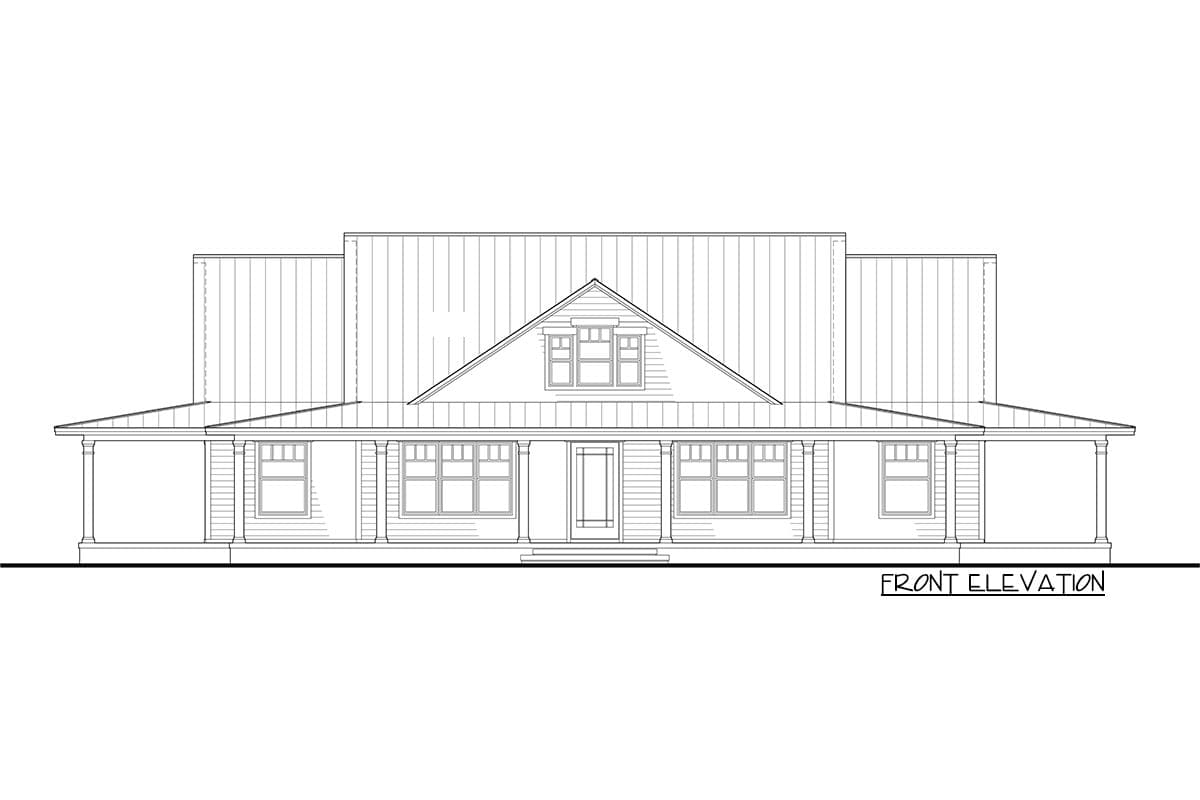

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.


Floor Plan

Detached Garage

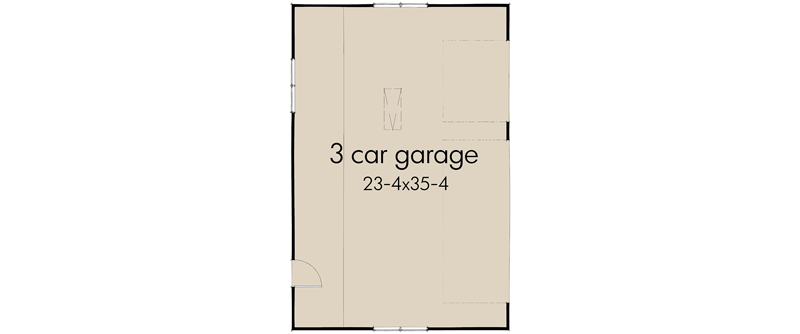

Modern Farmhouse Plan with Wraparound Porch and Bonus Room - 16901WG floor plan - Detached Garage

Plan details



Modern Farmhouse Plan with Wraparound Porch and Bonus Room

  • 2,748

    Heated s.f.

  • 2 - 4

    Beds

  • 2 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $795
  • 5 Sets $995
  • 8 Sets $1,145
  • Reproducible Set $1,245
  • PDF - single-use $1,245
  • CAD $1,995
  • View all purchase option online

About This Plan

  • This modern farmhouse plan with a full wraparound porch gives you 2 bedrooms with an optional third bedroom if you use the study as a bedroom and a fourth bedroom if you build out the bonus room and use that as a bedroom.
  • The master suite has French doors that open to the porch in back and has a large walk-in closet.
  • The country kitchen has a large pantry and lots of counterspace. There is access to the utility room and the back door as well as to the side door that leads to the detached garage.
  • The living room is open to the dining room and has a 3-sided fireplace.

Floor Plans

  • Main Level

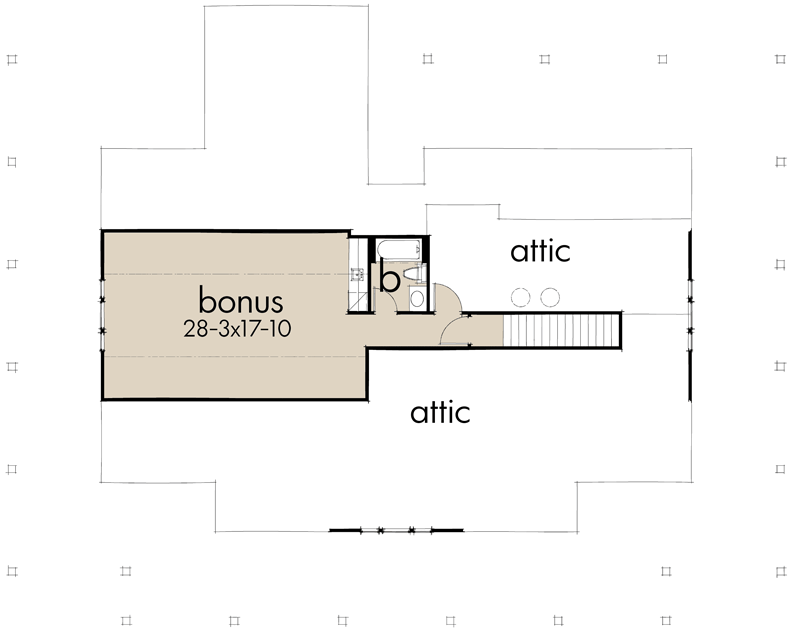

  • 2nd Floor

  • Detached Garage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,748 sq. ft.
  • 1st Floor: 2,748 sq. ft.
  • Bonus: 645 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 4"
  • Depth: 67' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Detached
  • Area: 864 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Stick
