Modern Farmhouse Rambler House Plan Under 2800 Square Feet with Vaulted Family Room

Plan 490094NAH

  • 2,783

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This rambler, modern farmhouse-style house plan offers covered porch in the front and a patio with pergola in the rear. Metal roofs, dormers, horizontal siding and wood columns give the home great curb appeal.
  • Upon entering, you'll be welcomed to the family room with vaulted ceiling and a fireplace with cabinetry on either side and a large sliding door that look out to the backyard.
  • The kitchen has a large island with casual seating and shares the vaulted ceiling with the family room, with the dining room off to the side.
  • Further into the home, you'll find the master bedroom, with it's accompanying bathroom and walk-in closet, with standing shower, double vanities, and full-size tub.
  • This home offers basement expansion (when finished as shown, you get an additional 2,344 square feet of heated living area) with a living room, game room with toy closet, 3 more bedrooms, and plenty of storage space.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

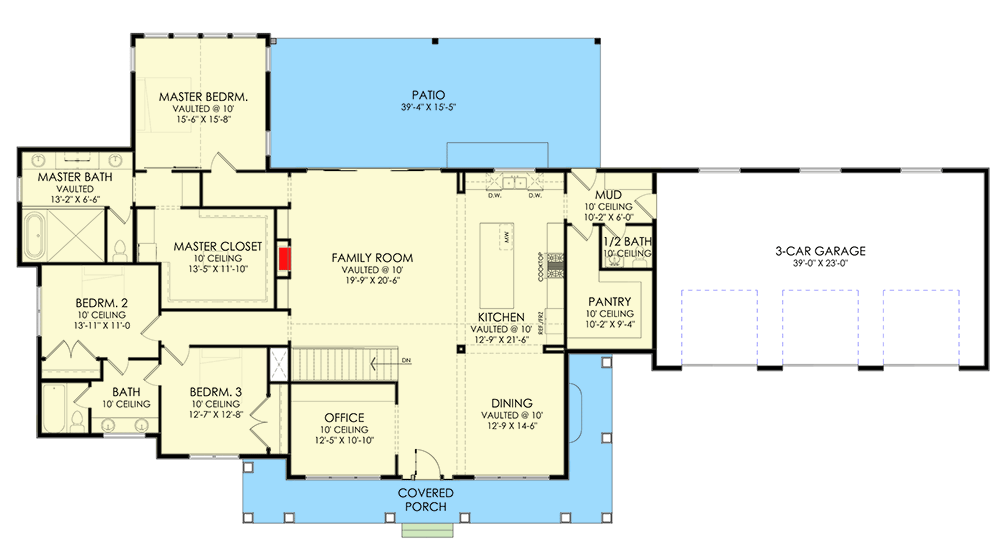

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Rambler House Plan Under 2800 Square Feet with Vaulted Family Room - 490094NAH floor plan - Main Level

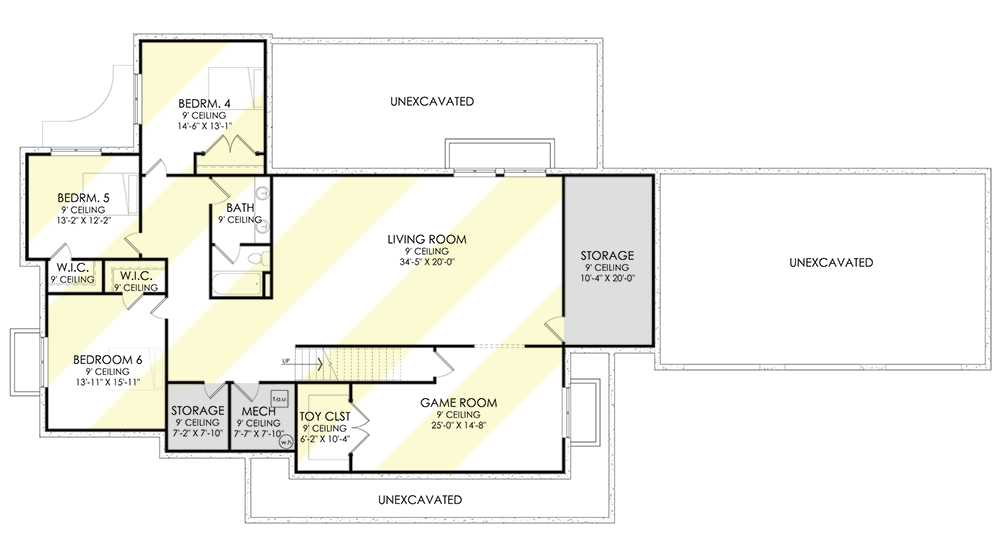

Optional Basement Foundation

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Rambler House Plan Under 2800 Square Feet with Vaulted Family Room - 490094NAH floor plan - Optional Basement Foundation

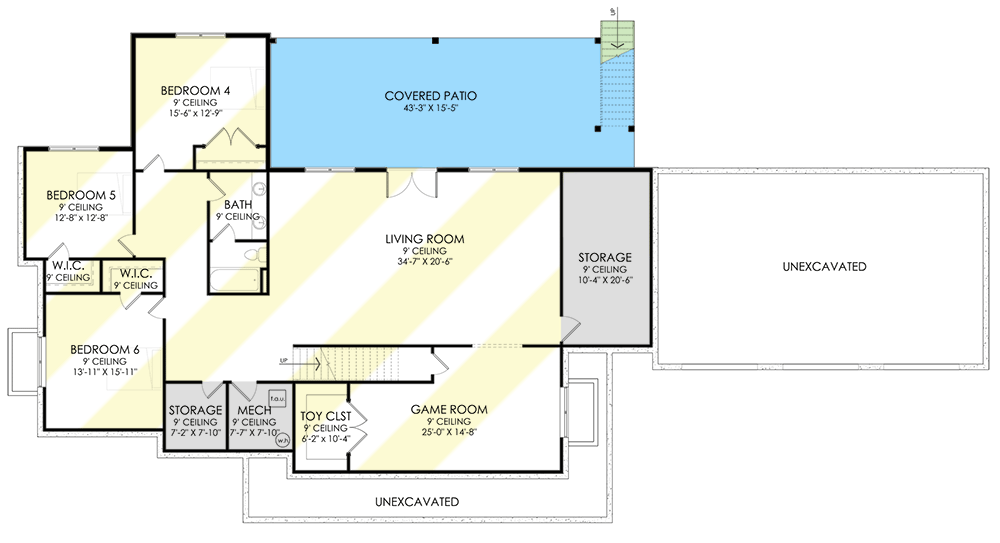

Optional Walkout Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Rambler House Plan Under 2800 Square Feet with Vaulted Family Room - 490094NAH floor plan - Optional Walkout Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,783 sq. ft.
  • 1st Floor: 2,783 sq. ft.
  • Porch, Rear: 610 sq. ft.
  • Porch, Front: 321 sq. ft.
  • Optional Lower Level: 2,344 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 115' 6"
  • Depth: 58' 3"

Garage

  • Type: Attached
  • Area: 897 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Modern Farmhouse Rambler House Plan Under 2800 Square Feet with Vaulted Family Room

  • 2,783

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,800
  • PDF - Unlimited Build $2,500
  • CAD Unlimited + PDF $2,800
  • View all purchase option online

About This Plan

  • This rambler, modern farmhouse-style house plan offers covered porch in the front and a patio with pergola in the rear. Metal roofs, dormers, horizontal siding and wood columns give the home great curb appeal.
  • Upon entering, you'll be welcomed to the family room with vaulted ceiling and a fireplace with cabinetry on either side and a large sliding door that look out to the backyard.
  • The kitchen has a large island with casual seating and shares the vaulted ceiling with the family room, with the dining room off to the side.
  • Further into the home, you'll find the master bedroom, with it's accompanying bathroom and walk-in closet, with standing shower, double vanities, and full-size tub.
  • This home offers basement expansion (when finished as shown, you get an additional 2,344 square feet of heated living area) with a living room, game room with toy closet, 3 more bedrooms, and plenty of storage space.

Floor Plans

  • Main Level

  • Optional Basement Foundation

  • Optional Walkout Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,783 sq. ft.
  • 1st Floor: 2,783 sq. ft.
  • Porch, Rear: 610 sq. ft.
  • Porch, Front: 321 sq. ft.
  • Optional Lower Level: 2,344 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 115' 6"
  • Depth: 58' 3"

Garage

  • Type: Attached
  • Area: 897 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"
Plan 490094NAH
View this and more for this plan by visiting www.architechtecturaldesigns.com/490094NAH
|
Need Help? 800-854-7852
|
