Plan 52040HZ

Modern Farmhouse RV Garage Plan with 3-Car Bay and 10-Foot Ceilings

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

Floor Plan

Plan 52040HZ

Main Level
Main Level

Plan 52040HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

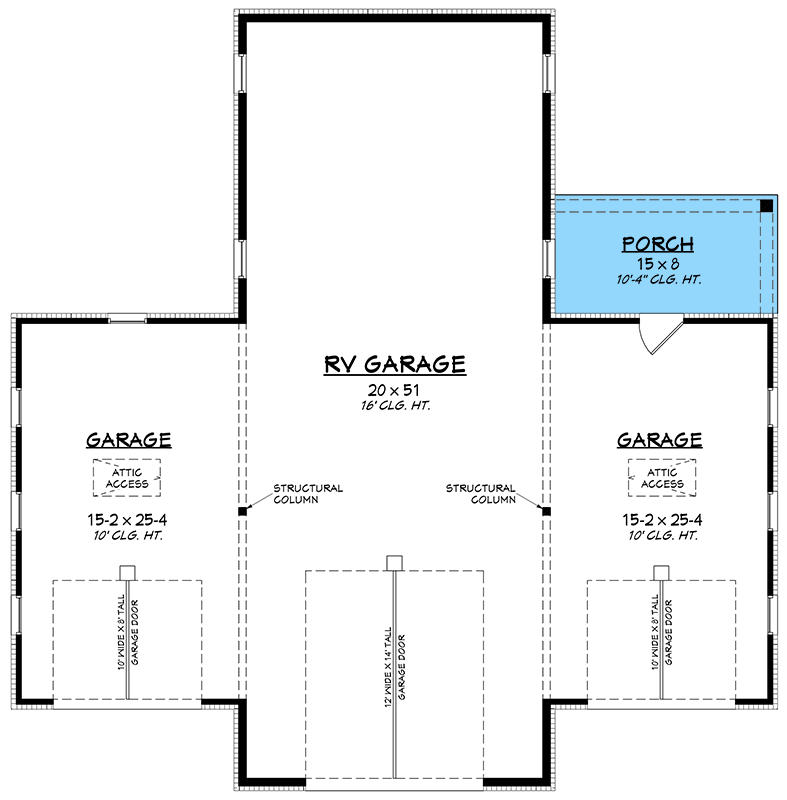

Plan 52040HZ: Modern Farmhouse RV Garage Plan with 3-Car Bay and 10-Foot Ceilings - Floor Plan - Main Level - Country, Modern Farmhouse, Southern

Plan Details

  • This modern farmhouse-style garage plan features a spacious 3-car garage layout designed for versatility and storage.
  • The centerpiece is an oversized RV garage measuring 20' x 51' with a 16' ceiling height, providing ample room for recreational vehicles, large equipment, or a workshop area.
  • Flanking the RV bay are two standard garages, each approximately 15'2" x 25'4" with 10' ceiling heights, offering additional parking and attic access for storage.
  • A 15' x 8' covered porch with a 10'-4" ceiling height is located to one side, adding a functional and inviting outdoor space.
  • This plan is dedicated entirely to garage and storage use, making it ideal for vehicle storage, hobbies, or workshop needs.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation and roof plan
  • Detailed floor plan and electrical (includes window sizes, ceiling joist directions and plumbing fixture locations, etc.)

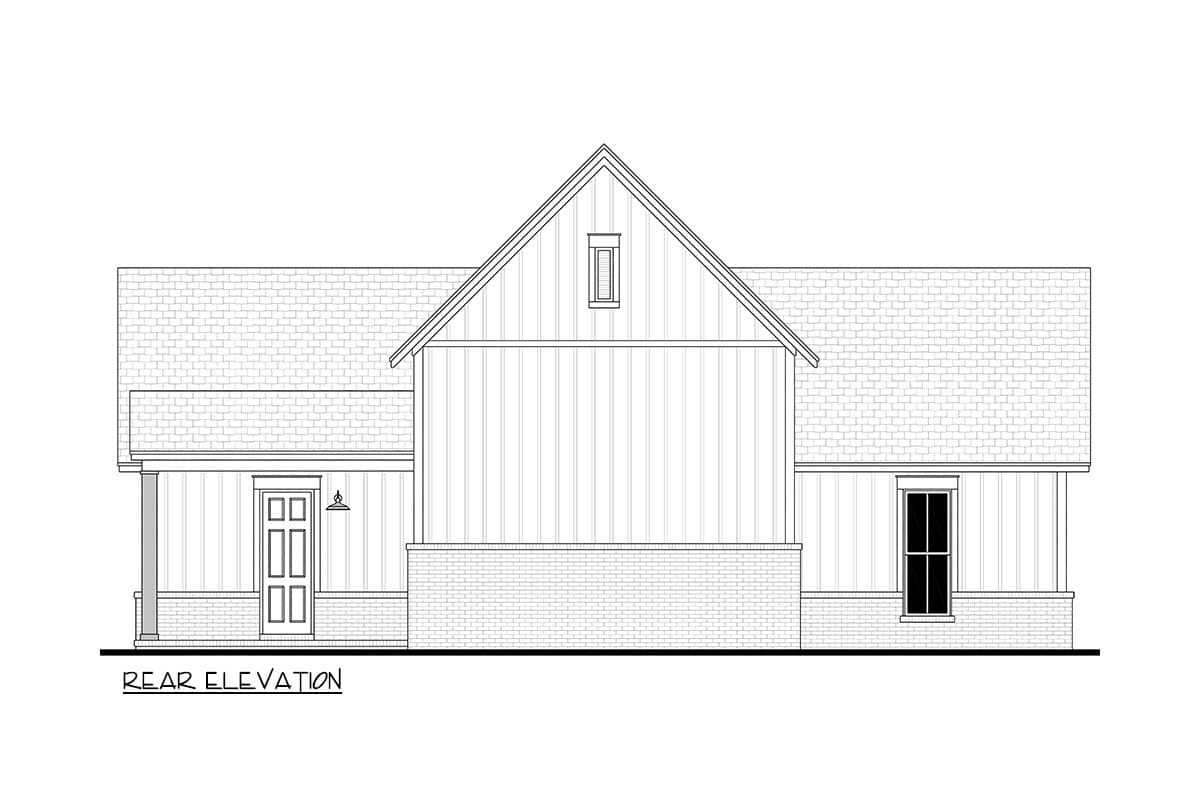

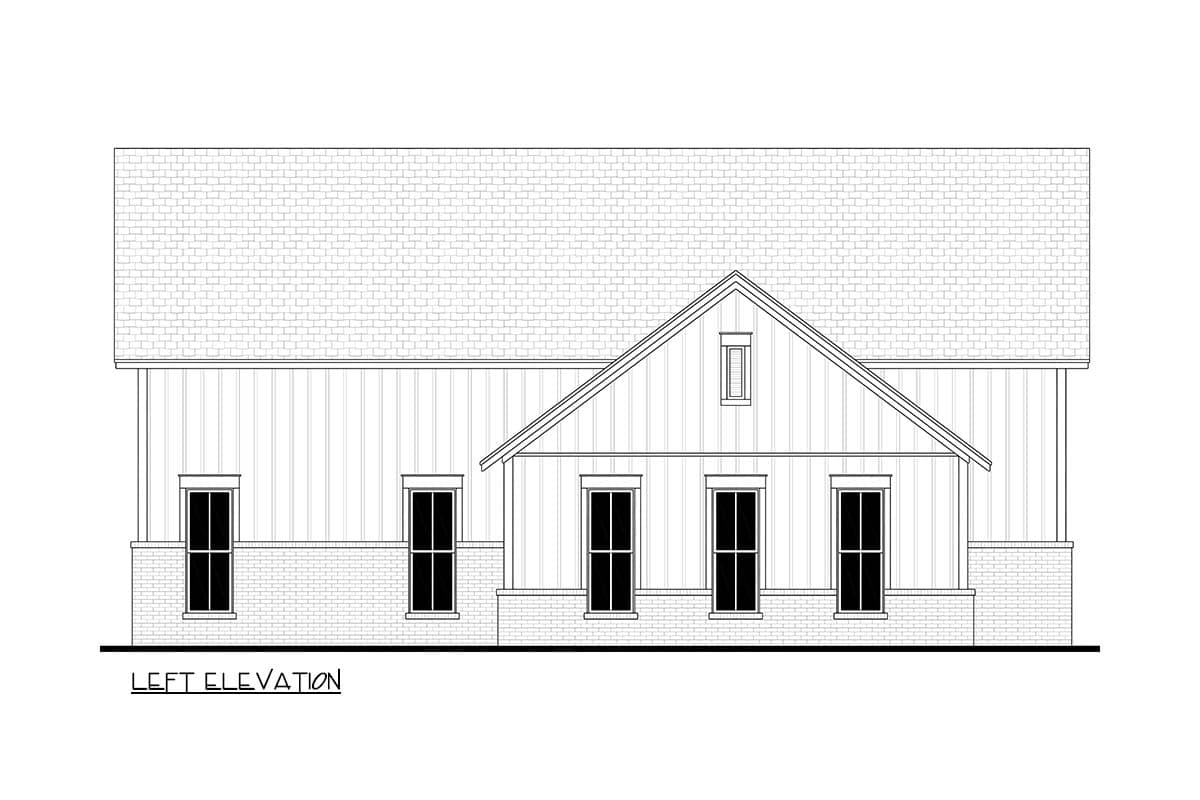

  •  Exterior views with additional details
  • Cross section
  • Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Rear

120 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

51' 0"

Depth

52' 0"

Max Ridge Height

27' 0"

Garage

Type

RV Garage

Area

1872 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Modern Farmhouse

Southern

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Rear

120 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

51' 0"

Depth

52' 0"

Max Ridge Height

27' 0"

Garage

Type

RV Garage

Area

1872 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Modern Farmhouse

Southern
