Plan 720165DA

Modern Farmhouse Style 2-Car Vaulted Carport Plan with Storage

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 720165DA

Main Level
Main Level

Plan 720165DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

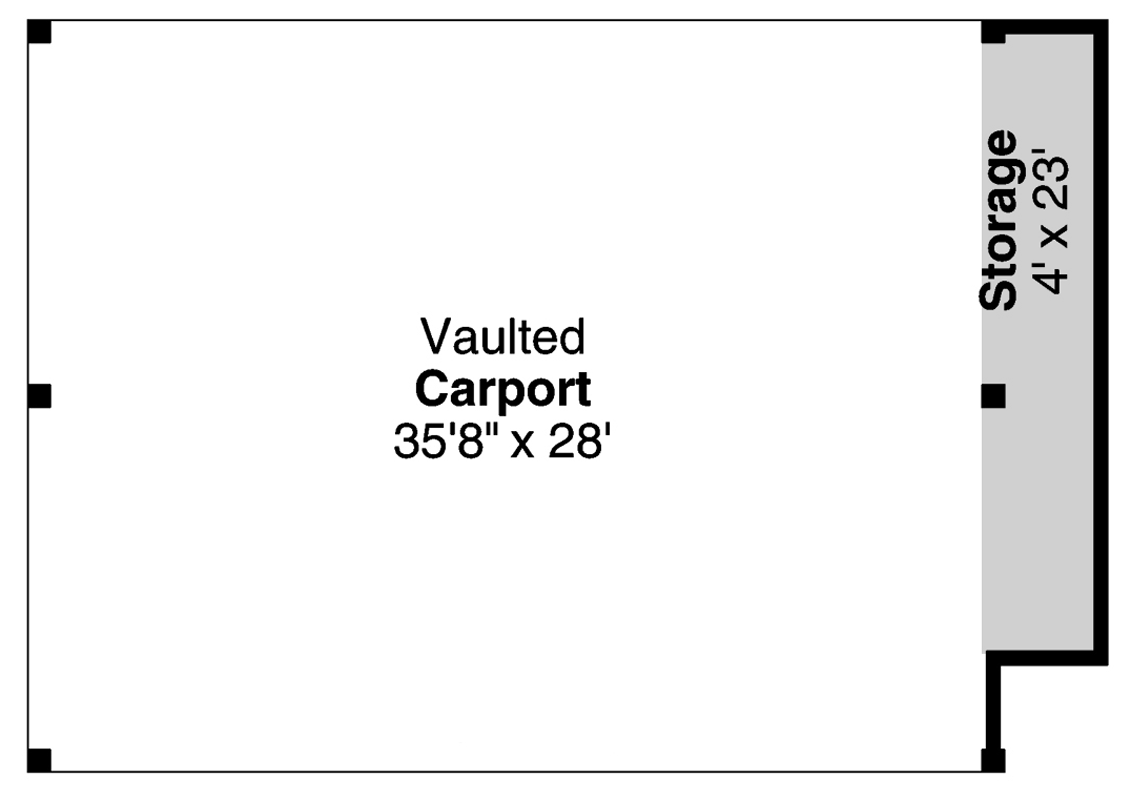

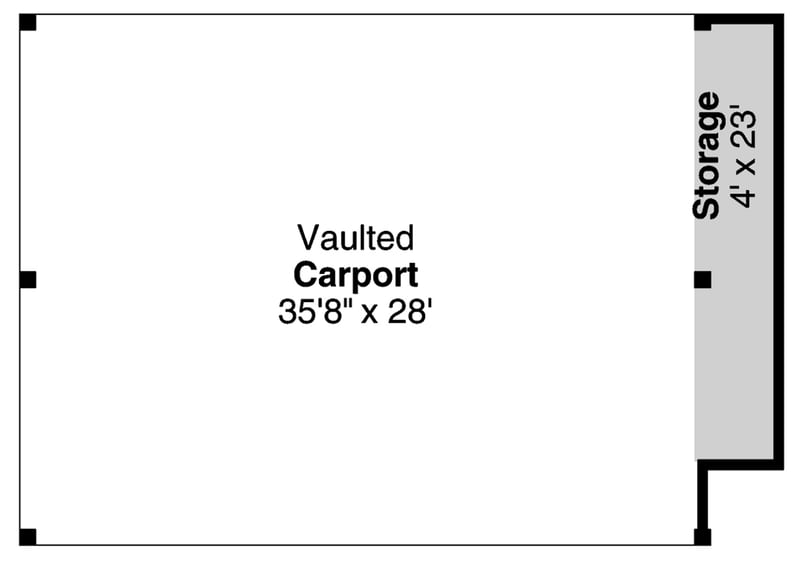

Plan 720165DA: Modern Farmhouse Style 2-Car Vaulted Carport Plan with Storage - Floor Plan - Main Level

Plan Details

  • This accessory structure plan provides a generous 1104 sq ft of covered area for 2-cars with a vaulted ceiling, complemented by a 108 sq ft nook for dedicated storage, all wrapped in a versatile modern farmhouse-style exterior.
  • Upon arrival, the impressive vaulted ceiling of the carport creates an immediate sense of spaciousness, offering sheltered parking for two vehicles with a clear, open span that could be utilized for additional storage above.
  • This carport design includes a practical 108 sq ft storage nook seamlessly integrated into the structure, providing essential space for garden tools, recreational equipment, garbage and recycling totes or bins, even household overflow, keeping the carport clear and functional.
  • Constructed with durable 2x6 exterior walls and resting on a sturdy slab foundation, this structure is built to last, offering reliable protection and a secure storage solution.
  • The classic gabled roof, with a 6 on 12 pitch, not only enhances the structure's curb appeal but also offers superior protection from the elements, ensuring vehicles and stored items remain safe and dry.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

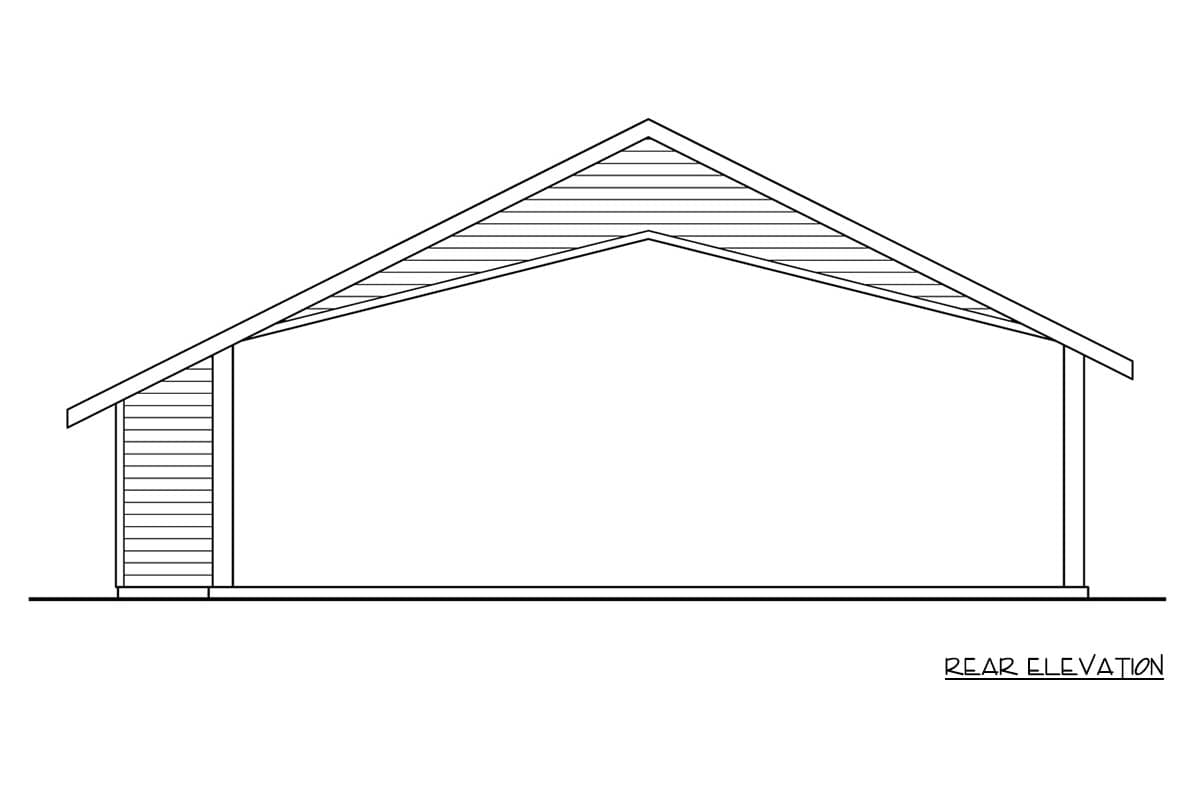

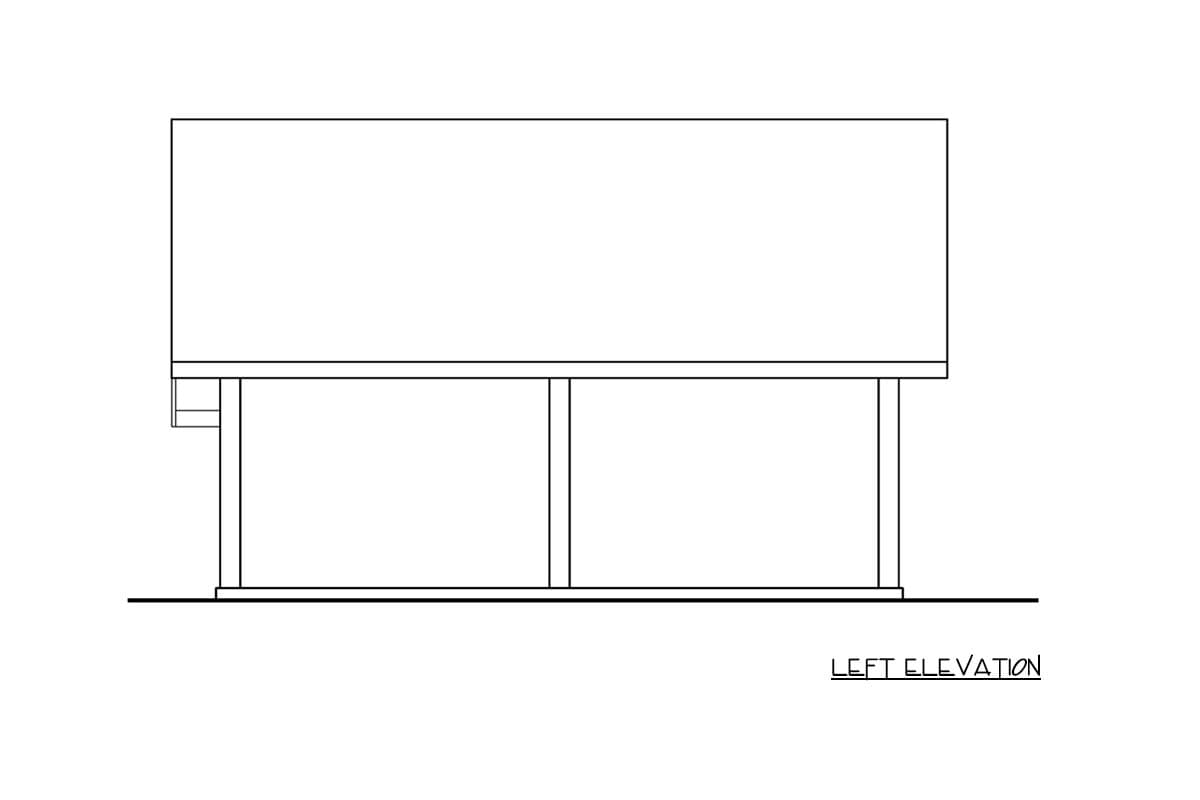

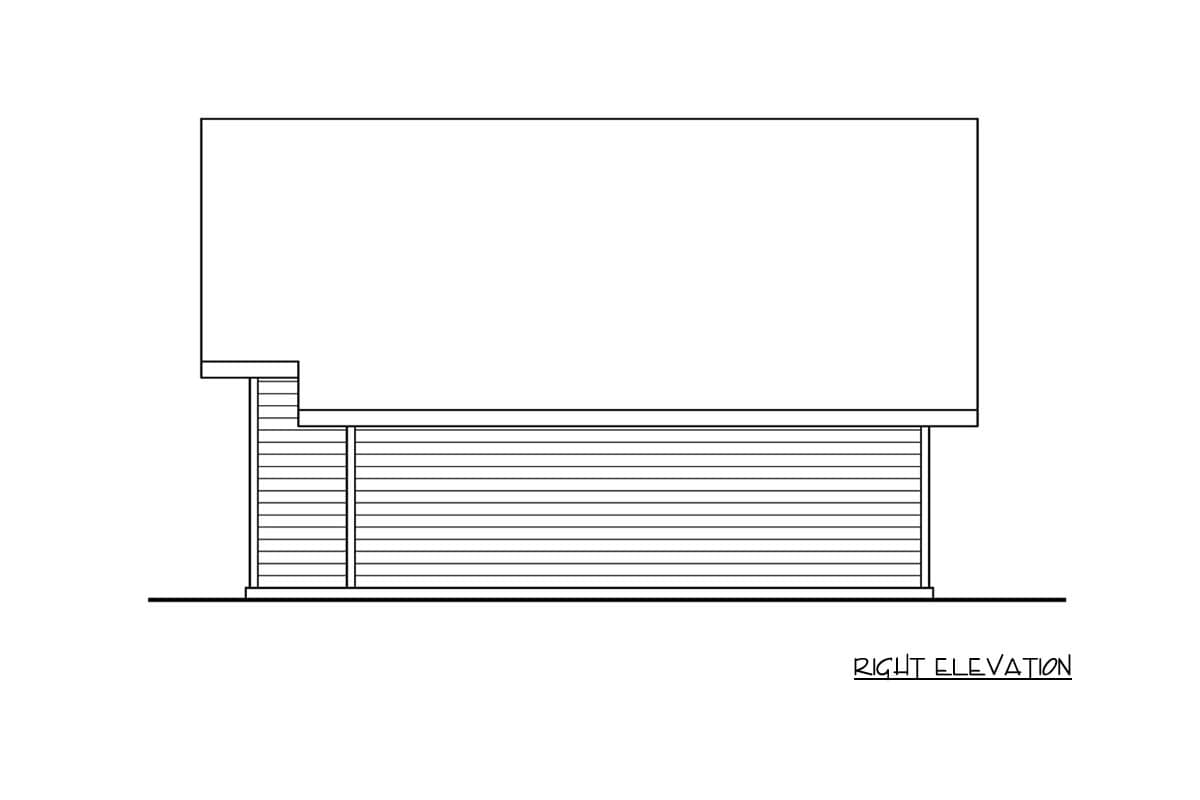

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Loading...

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?
Loading...

Modify this Plan

Receive a free modification quote within 3 business days.

Loading...

Start with a Cost Report

Calculate the cost to build & furnish your home.

Loading...
Loading...

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Carport

996 sq. ft.

Storage

108 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 2"

Depth

28' 0"

Max Ridge Height

20' 0"

Garage

Type

Carport

Area

1104 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Carport

996 sq. ft.

Storage

108 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 2"

Depth

28' 0"

Max Ridge Height

20' 0"

Garage

Type

Carport

Area

1104 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss
