Modern Farmhouse Triplex House Plan with 3-Bed Units Under 1800 Square Feet

Plan 623200DJ

  • 5,133

    Heated s.f.

  • 3

    Units

  • 76' 0"

    Width

  • 43' 0"

    Depth

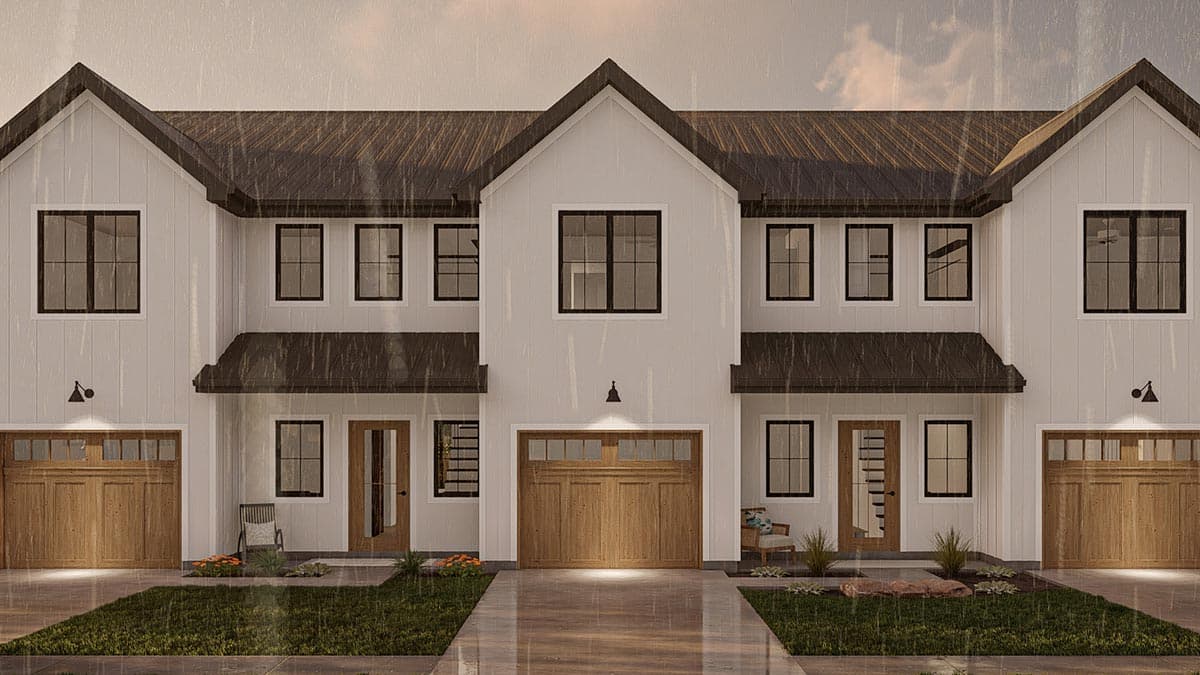

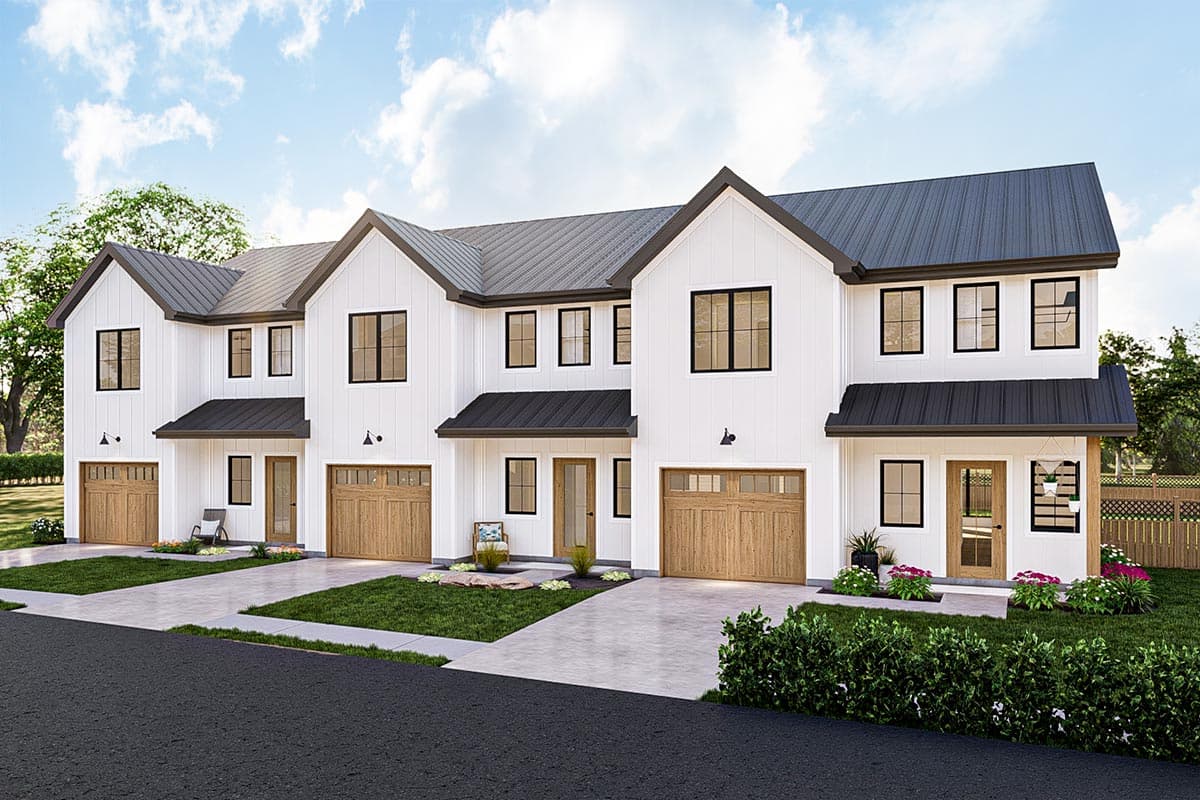

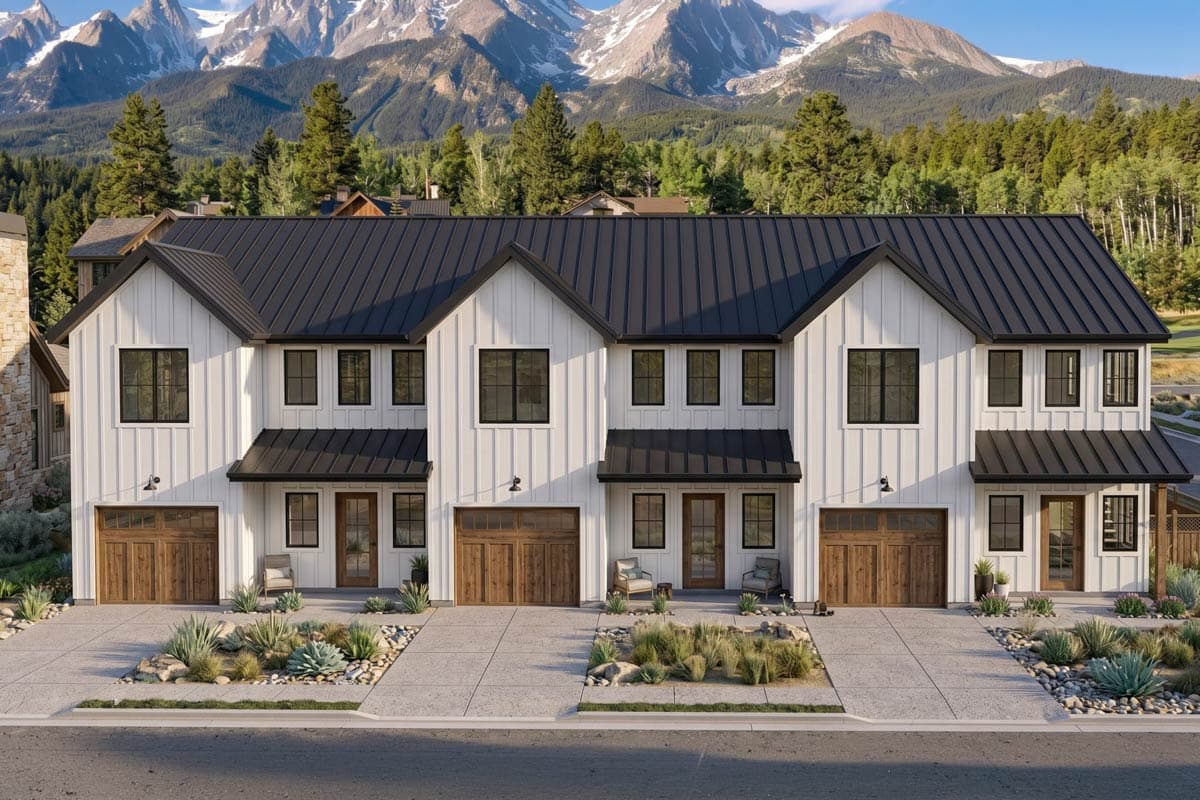

  • This triplex house plan has a modern farmhouse exterior and gives you three matching 3 bed, 3 bath units, each with 1,711 square feet of heated living (744 sq. ft. on the main floor and 967 sq. ft. on the second floor) and a 1-car 247 square foot garage. The exterior of this home with board and batten siding, wood accents, metal roofing, and dark windows gives this plan a traditional modern farmhouse feel with uniqueness still throughout.

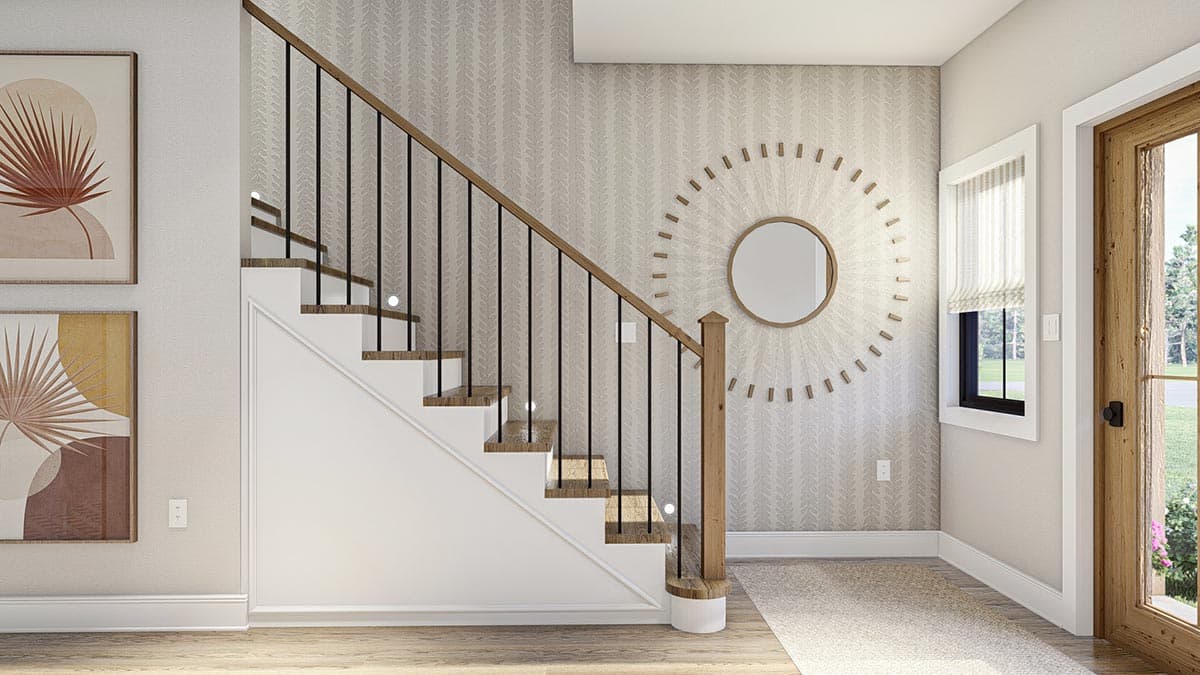

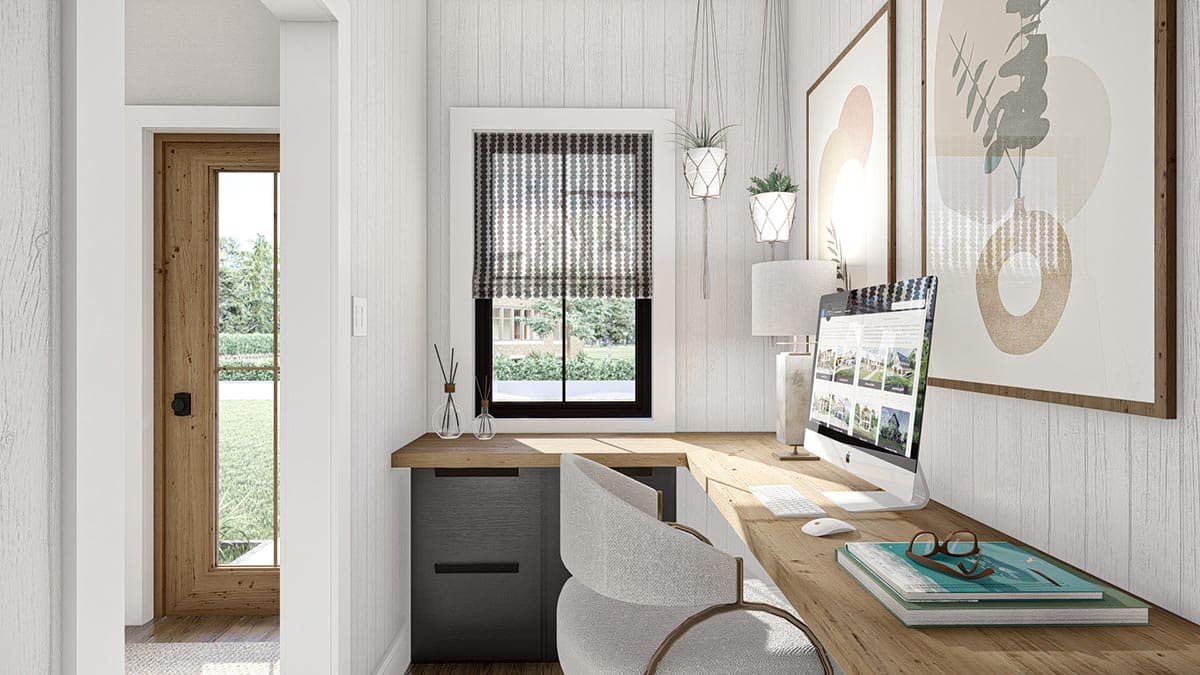

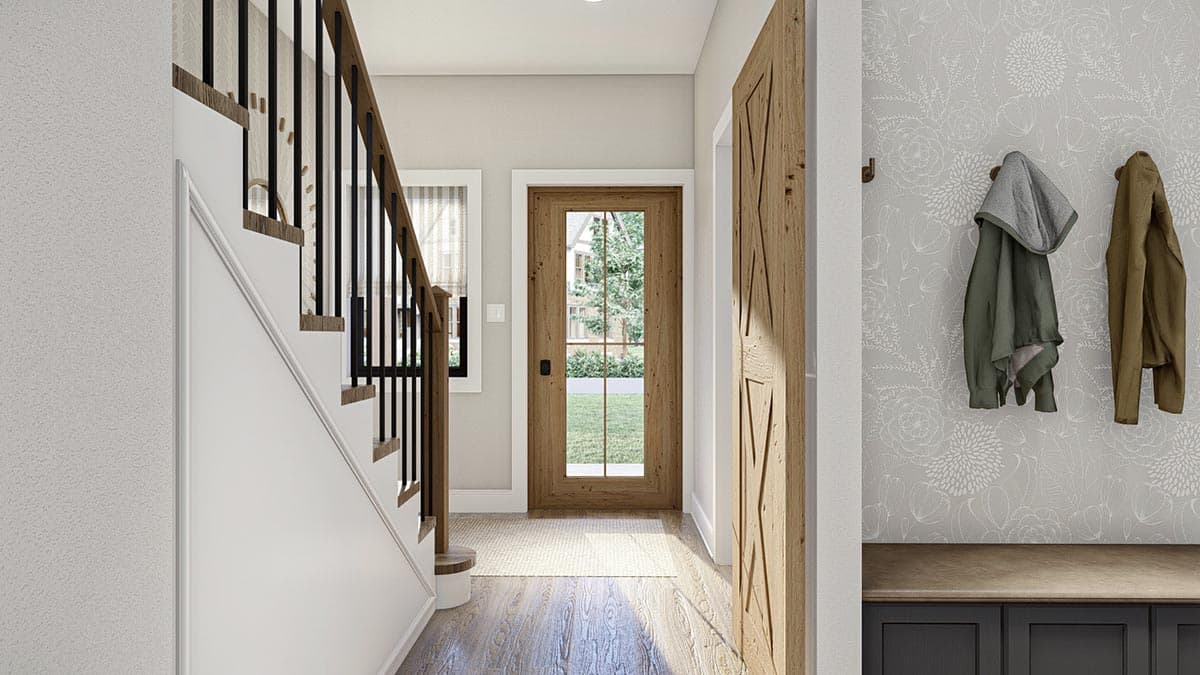

  • Walking in through the front door just under the covered patio walks you straight into a gorgeous entryway, met with a lovely staircase on the right or office space with a built-in desk on the left. A mudroom with access to the 1-car garage can also be found here, also including a built-in bench with hooks for coats and bags.

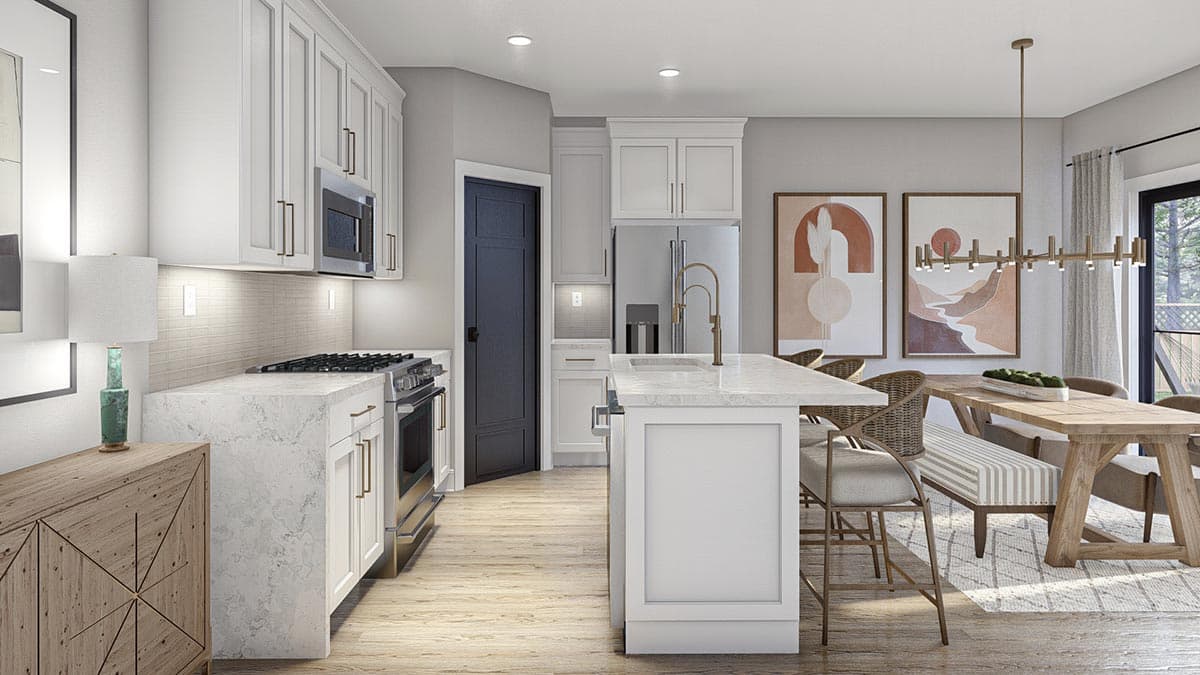

  • Continuing throughout the house is when you will find a powder bath, just before stepping into a spacious open concept room, containing the great room with built-in shelving and a fireplace, a dining room, and a kitchen with a walk-in pantry and large kitchen island.

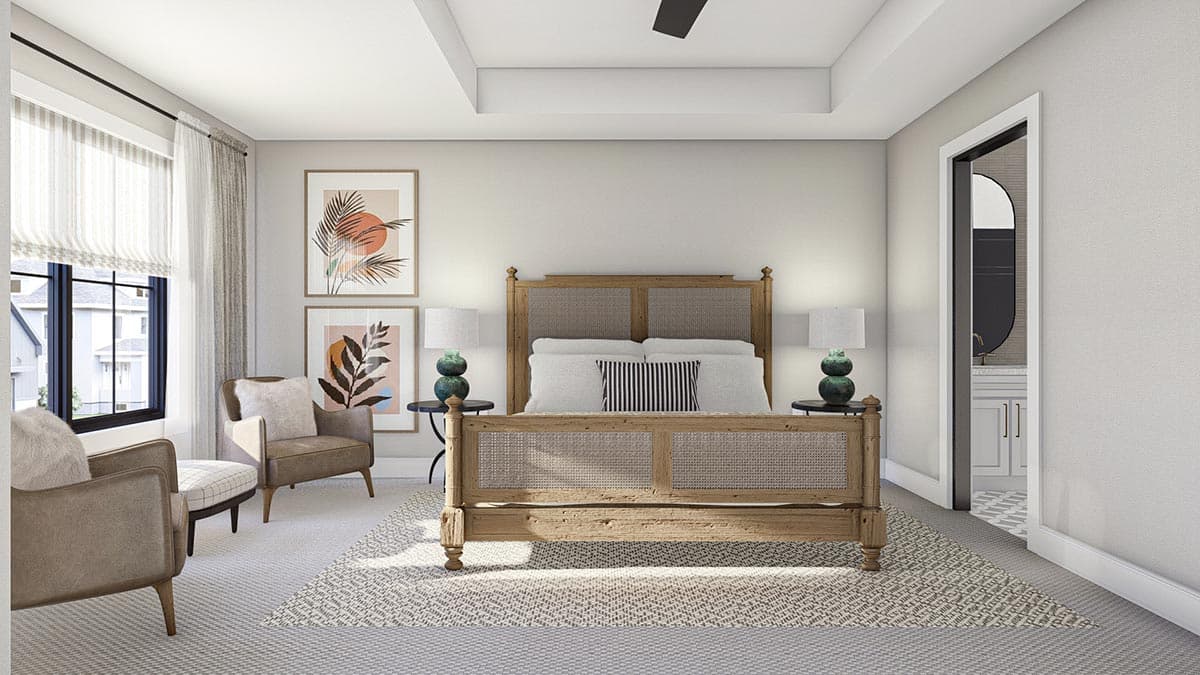

  • Heading upstairs is where all of the bedrooms can be found. The master is complete with a 9’ ceiling, walk-in closet, private Hollywood bath with a double vanity, and access to the laundry room. Bedrooms 2 and 3 can also be found here, which share a hallway bath.
  • Related Plans: Get alternate plans with house plan 623181DJ (single family), 623190DJ (duplex) and 623050DJ (triplex).

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

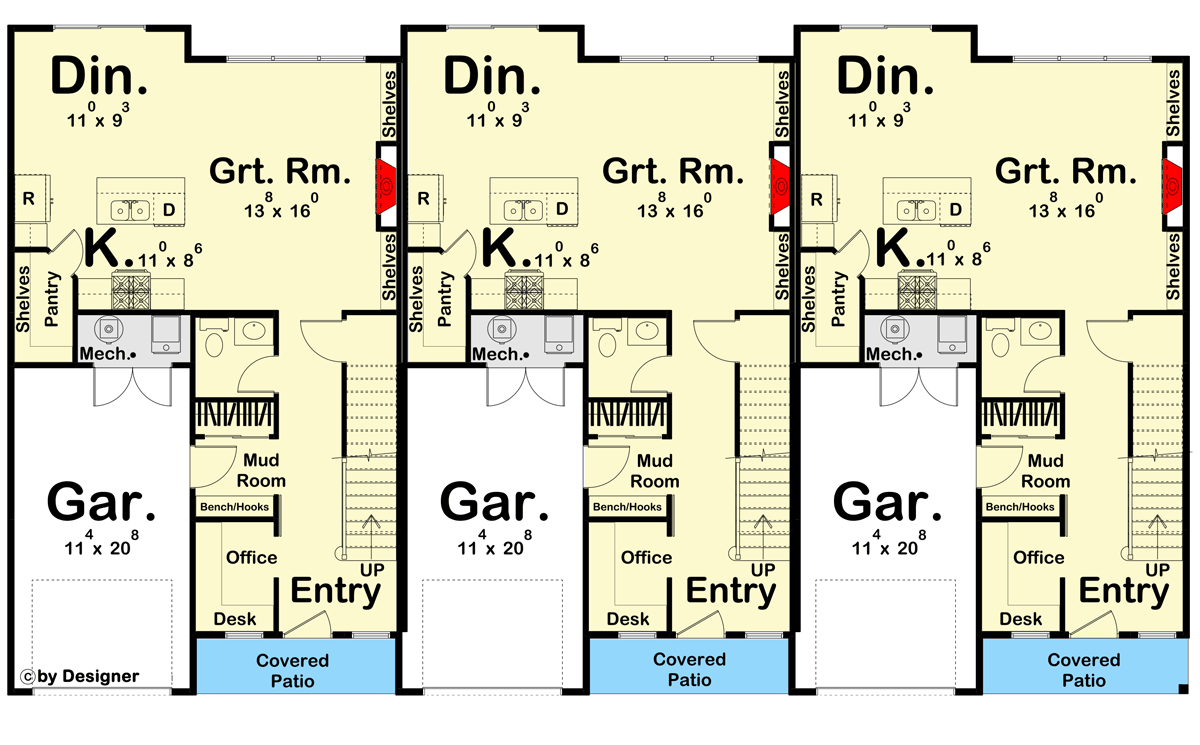

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Triplex House Plan with 3-Bed Units Under 1800 Square Feet - 623200DJ floor plan - Main Level

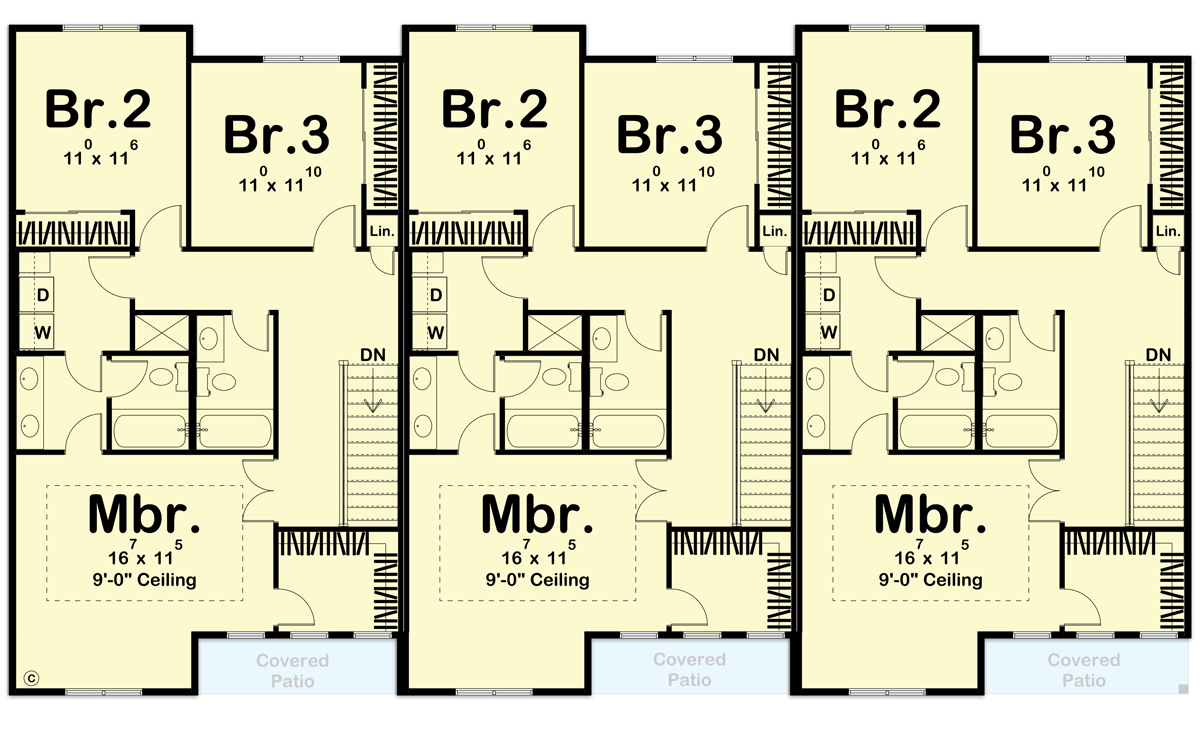

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Triplex House Plan with 3-Bed Units Under 1800 Square Feet - 623200DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,133 sq. ft.
  • 1st Floor: 2,232 sq. ft.
  • 2nd Floor: 2,901 sq. ft.
  • Porch, Combined: 147 sq. ft.

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 6
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 43' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 741 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12

Architectural Style

Special features

Modern Farmhouse Triplex House Plan with 3-Bed Units Under 1800 Square Feet

  • 5,133

    Heated s.f.

  • 3

    Units

  • 76' 0"

    Width

  • 43' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $2,500
  • 5 Sets + PDF $2,750
  • PDF - Unlimited Build $3,000
  • CAD + PDF - Single-Build $3,000
  • CAD - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • This triplex house plan has a modern farmhouse exterior and gives you three matching 3 bed, 3 bath units, each with 1,711 square feet of heated living (744 sq. ft. on the main floor and 967 sq. ft. on the second floor) and a 1-car 247 square foot garage. The exterior of this home with board and batten siding, wood accents, metal roofing, and dark windows gives this plan a traditional modern farmhouse feel with uniqueness still throughout.
  • Walking in through the front door just under the covered patio walks you straight into a gorgeous entryway, met with a lovely staircase on the right or office space with a built-in desk on the left. A mudroom with access to the 1-car garage can also be found here, also including a built-in bench with hooks for coats and bags.
  • Continuing throughout the house is when you will find a powder bath, just before stepping into a spacious open concept room, containing the great room with built-in shelving and a fireplace, a dining room, and a kitchen with a walk-in pantry and large kitchen island.
  • Heading upstairs is where all of the bedrooms can be found. The master is complete with a 9’ ceiling, walk-in closet, private Hollywood bath with a double vanity, and access to the laundry room. Bedrooms 2 and 3 can also be found here, which share a hallway bath.
  • Related Plans: Get alternate plans with house plan 623181DJ (single family), 623190DJ (duplex) and 623050DJ (triplex).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,133 sq. ft.
  • 1st Floor: 2,232 sq. ft.
  • 2nd Floor: 2,901 sq. ft.
  • Porch, Combined: 147 sq. ft.

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 6
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 43' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 741 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
