Modern Four Bedroom House Plan with Expansive Lanai and Courtyard Entry

Name: Plan 65779BS: Modern Four Bedroom House Plan with Expansive Lanai and Courtyard Entry
Brand: Architectural Designs
SKU: 65779BS
Price: 2401.59 USD
Availability: InStock

Heated S.F.

3,324

Beds

Baths

Stories

Cars

Floor Plan

Plan Details

This sleek modern house plan offers 3,324 square feet of heated living space with four bedrooms, four full baths, and a spacious three-car garage.
The home features a striking courtyard entry that creates a private and welcoming transition into the interior.
A sophisticated open-concept layout anchors the main living area, seamlessly integrating the kitchen, a formal dining space, and a bright breakfast nook.
The primary suite is thoughtfully positioned in a split-bedroom configuration to ensure maximum privacy, while the additional three bedrooms provide comfortable accommodations for family or guests.
A dedicated library or study offers a quiet retreat, complemented by a large walk-in pantry that adds functional convenience to the kitchen area.
The massive 960-square-foot lanai serves as an extension of the living space, complete with an outdoor kitchen and fireplace for seamless indoor-outdoor entertaining.

What's Included

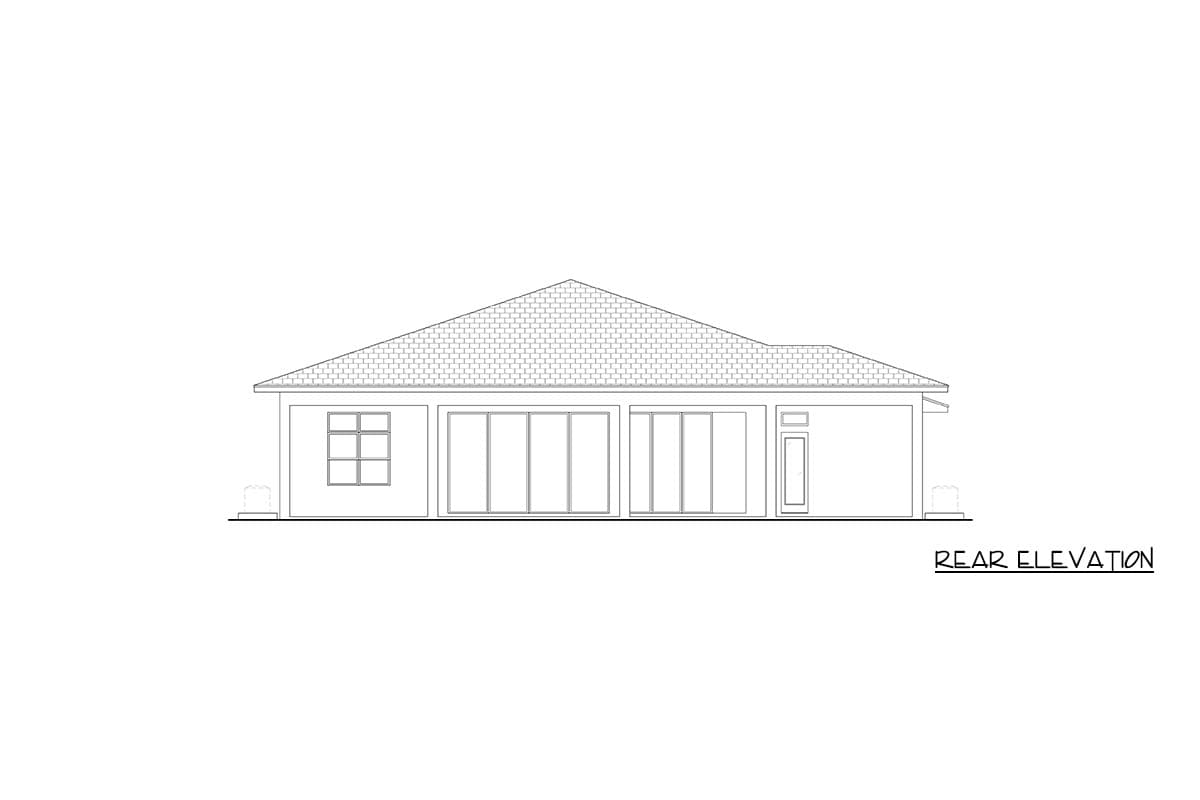

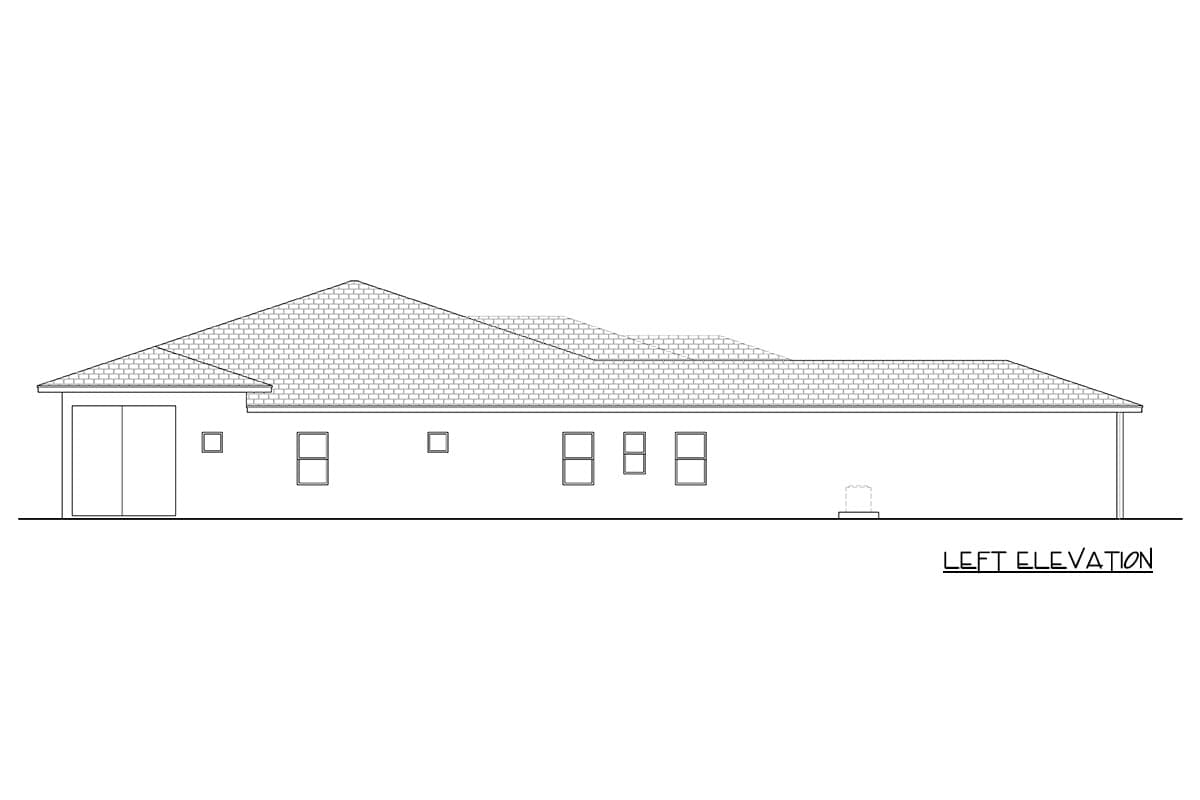

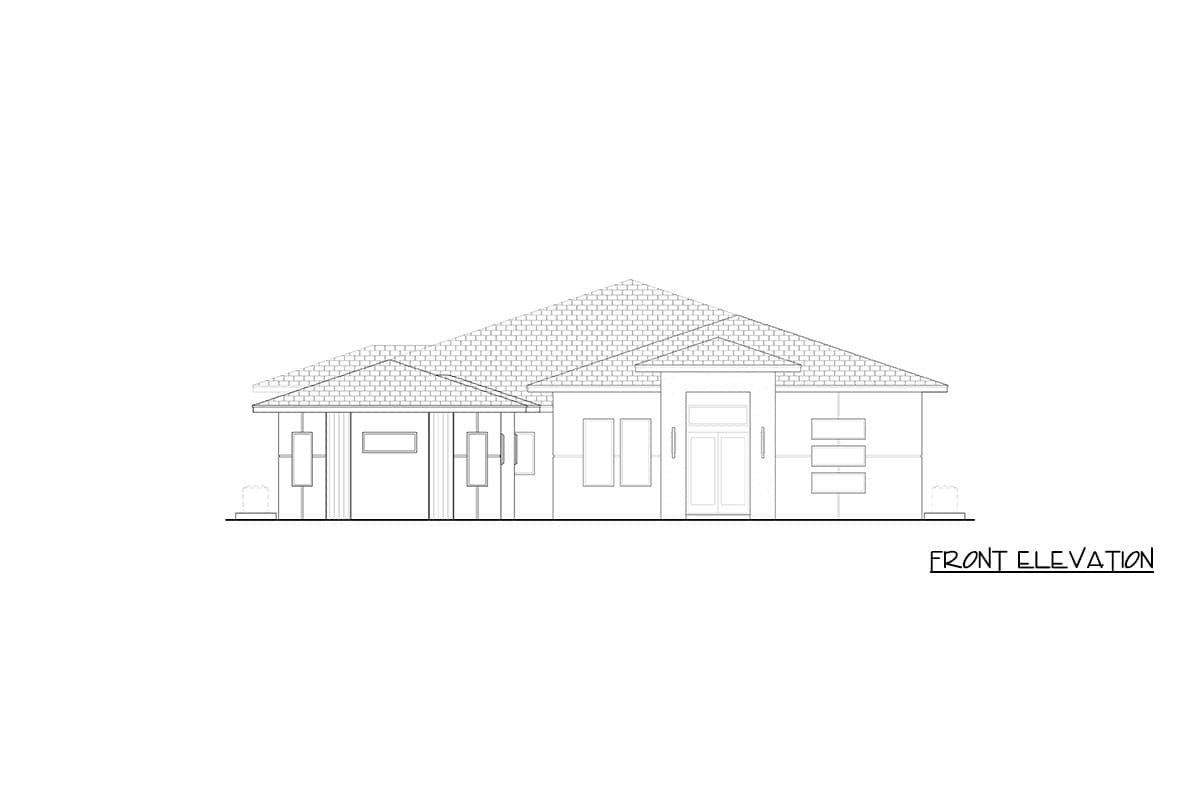

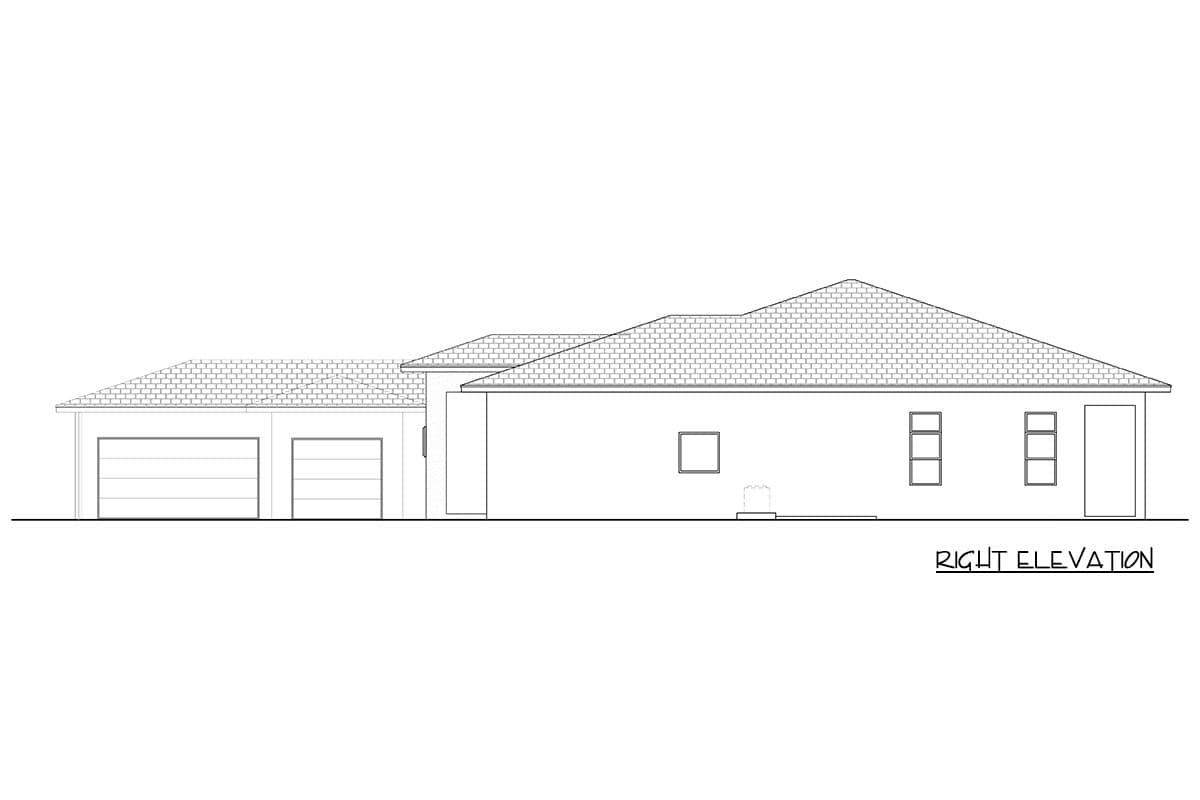

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
