Modern Garage Apartment with Loft - 397 Sq Ft Garage and 800 Sq Ft Apartment

Heated S.F.
864
Beds
1
Baths
1
Stories
3
Cars
2

Floor Plan

Plan 100321GHR

Garage Level
Garage Level
Main Level
Main Level
Loft Level
Loft Level

Plan 100321GHR

M-F 9am-5pm EST |

1-203-761-8500

Garage Level

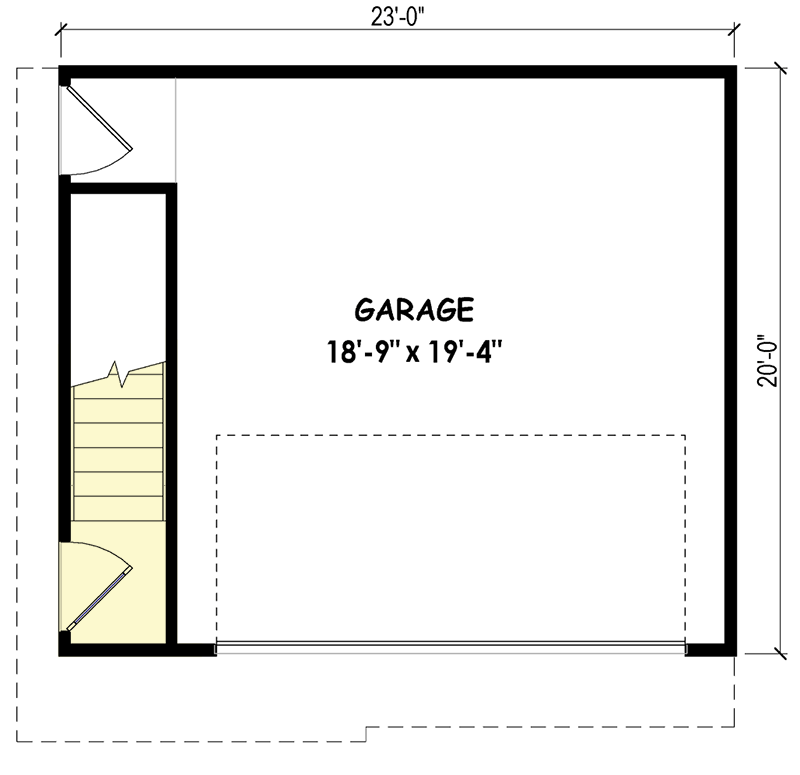

Plan 100321GHR: Modern Garage Apartment with Loft - 397 Sq Ft Garage and 800 Sq Ft Apartment - Floor Plan - Garage Level

Main Level

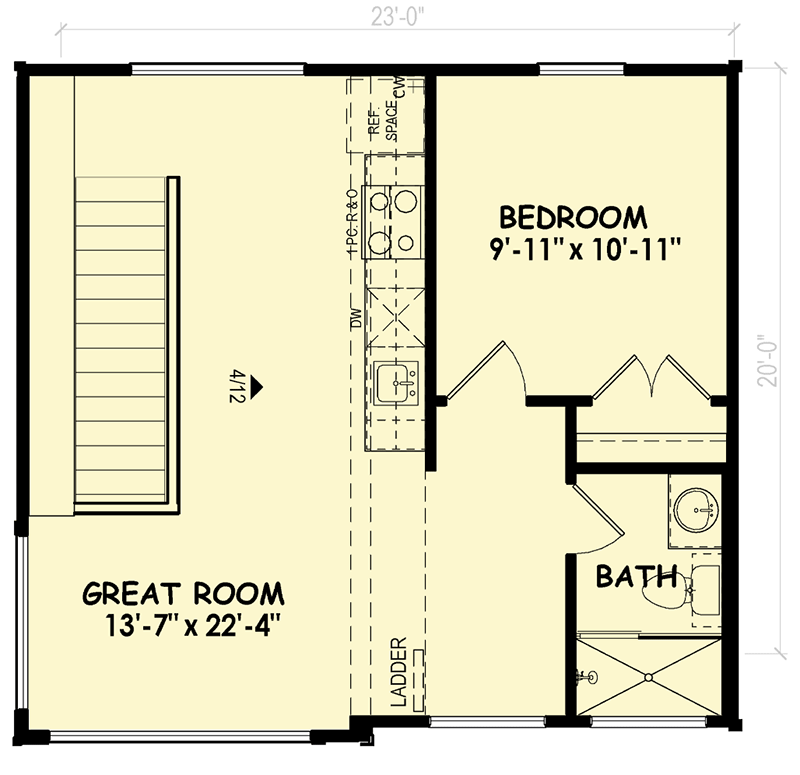

Plan 100321GHR: Modern Garage Apartment with Loft - 397 Sq Ft Garage and 800 Sq Ft Apartment - Floor Plan - Main Level

Loft Level

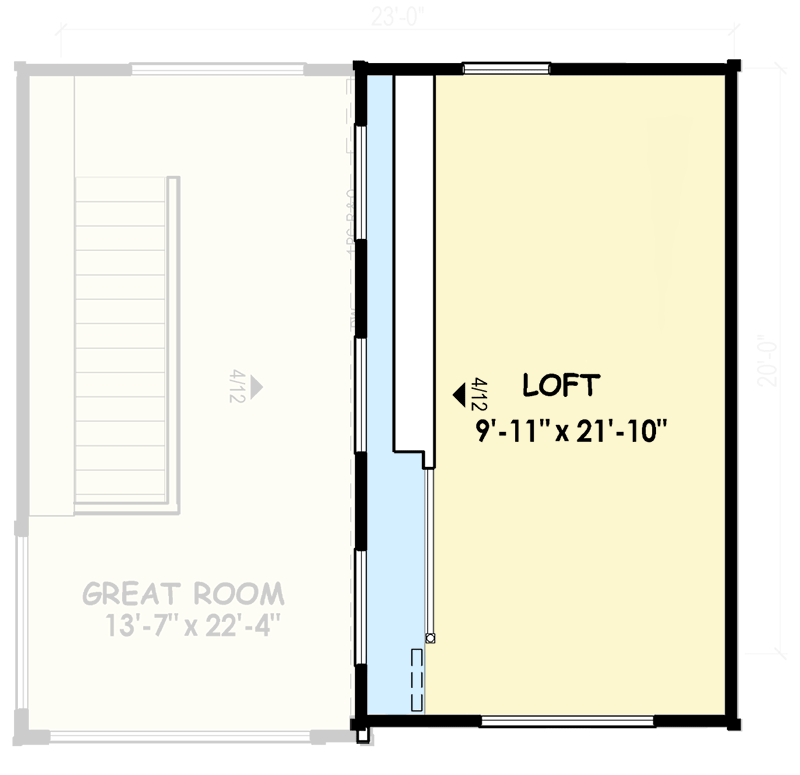

Plan 100321GHR: Modern Garage Apartment with Loft - 397 Sq Ft Garage and 800 Sq Ft Apartment - Floor Plan - Loft Level

Plan Details

  • This modern residence boasts an efficient 864 sq. ft. of living space, complete with 1 bedroom, 1 full bath, and a 2-car detached garage. The sleek exterior enhances its contemporary appeal.
  • Upon entering, you're welcomed by an open-concept great room on the second floor, seamlessly connected to the kitchen, perfect for relaxed living.
  • The main living area on the second floor offers a spacious great room, allowing for flexible arrangements and dining near the kitchen, with a ladder leading to a cozy loft.
  • The single bedroom, conveniently located on the second floor, provides tranquility, adjacent to a fully appointed bathroom.
  • A versatile loft on the third floor offers additional space for a home office or reading nook, maximizing vertical living.
  • The absence of direct exterior porches focuses living inward, with optional extensions or outdoor setups available through the detached garage space.
