Plan 490159NAH

Modern Garage Design Plan with Expansive Sports Court

Heated S.F.
1,137
Beds
0
Baths
1
Stories
1
Cars
3

Floor Plan

Plan 490159NAH

Lower Level
Lower Level
2nd Floor
2nd Floor

Plan 490159NAH

M-F 9am-5pm EST |

1-203-761-8500

Lower Level

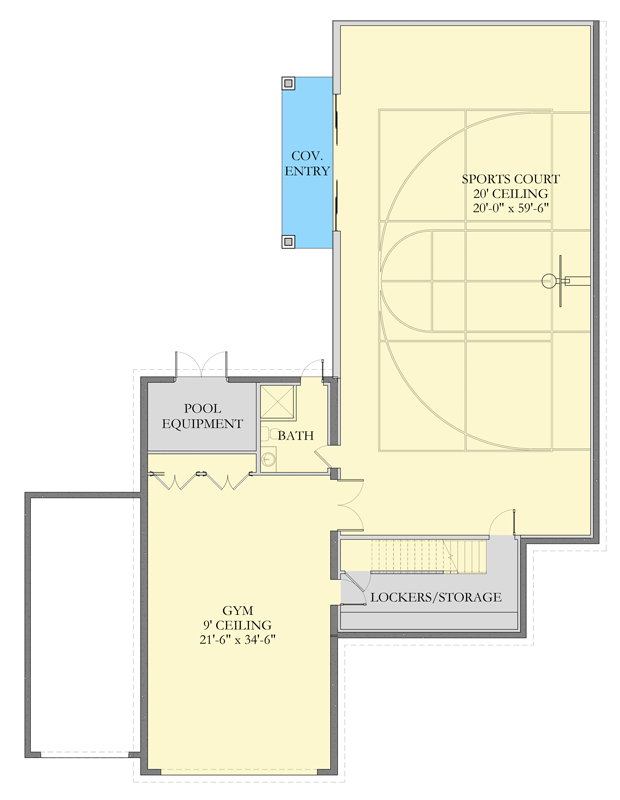

Plan 490159NAH: Modern Garage Design Plan with Expansive Sports Court - Floor Plan - Lower Level - Modern

2nd Floor

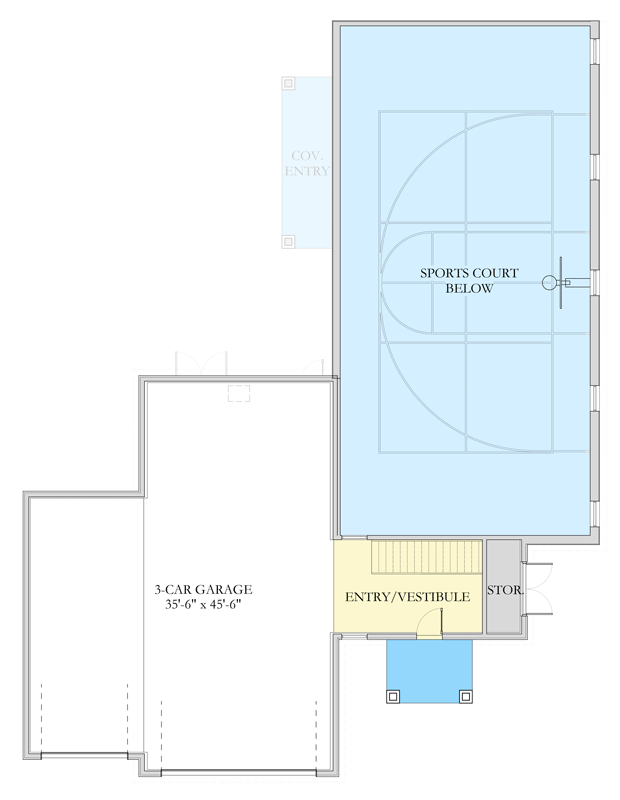

Plan 490159NAH: Modern Garage Design Plan with Expansive Sports Court - Floor Plan - 2nd Floor - Modern

Plan Details

  • This modern design plan offers 1,137 sq. ft. of finished space with impressive amenities, including a massive 1,824 sq. ft. sports court.
  • Features a gym, full bathroom, and plenty of storage, providing functional living spaces in a sleek package.
  • The main entrance welcomes you into a spacious vestibule that seamlessly connects with the open areas below.
  • This layout centers on recreational and fitness features, offering a gym adjacent to the large sports court for versatility.
  • The lower level includes essential amenities like pool equipment storage and lockers, ensuring convenience and organization.
  • Outdoor living is enhanced by a 74 sq. ft. covered entry, ideal for enjoying the surrounding views.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,137 sq. ft.

Lower Level

878 sq. ft.

1st Floor

259 sq. ft.

Porch, Front

74 sq. ft.

Sports Court

1,824 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 0"

Depth

88' 0"

Max Ridge Height

20' 9"

Garage

Type

Detached

Area

1482 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Modern

Special Features

Game/Rec Room

Mudroom

Sport Court

Square Footage Breakdown

Total Heated Area

1,137 sq. ft.

Lower Level

878 sq. ft.

1st Floor

259 sq. ft.

Porch, Front

74 sq. ft.

Sports Court

1,824 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 0"

Depth

88' 0"

Max Ridge Height

20' 9"

Garage

Type

Detached

Area

1482 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Modern

Special Features

Game/Rec Room

Mudroom

Sport Court
