Plan 144109UPR

Modern House Plan for a Rear Sloping Lot with Covered Deck and Patio - 3767 Sq Ft

Heated S.F.
3,767
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 144109UPR

Main Level
Main Level
Lower Level
Lower Level

Plan 144109UPR

M-F 9am-5pm EST |

1-203-761-8500

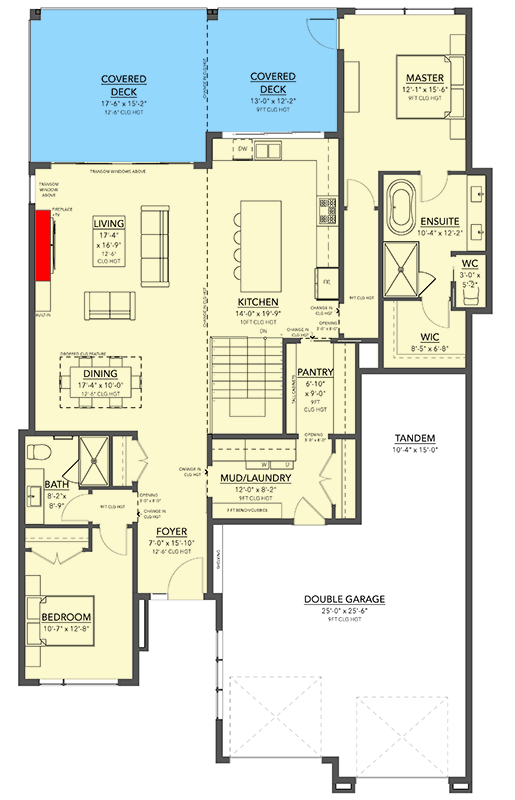

Main Level

Plan 144109UPR: Modern House Plan for a Rear Sloping Lot with Covered Deck and Patio - 3767 Sq Ft - Floor Plan - Main Level - Mid Century Modern, Modern, Mountain

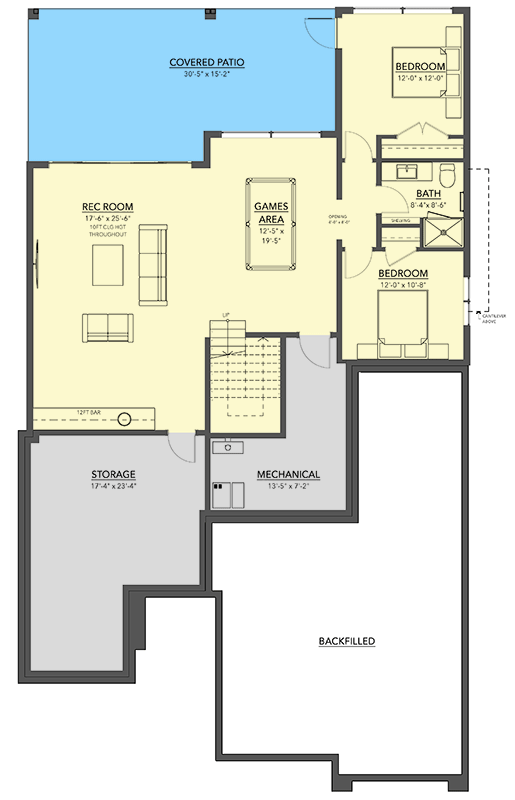

Lower Level

Plan 144109UPR: Modern House Plan for a Rear Sloping Lot with Covered Deck and Patio - 3767 Sq Ft - Floor Plan - Lower Level - Mid Century Modern, Modern, Mountain

Plan Details

  • This two-level modern house plan - one at grade and the other a walkout basement - gives you 4 beds, 3 baths and 3,767 square feet of heated living and is ideally built on a lot that slopes to the rear.
  • Enjoy covered outdoor living on both levels with a 386 square foot covered deck on the main floor and a similar sized covered patio accessible from the lower level rec room.
  • The master suite has outdoor access and is split from the other bedroom on this floor maximizing your privacy.
  • The lower level has a large rec room and games area plus a wet bar in addition to the two bedrooms and shared bath.

What's Included

  • 2 Black and White 3D Exterior Perspectives
  • General Notes
  • Foundation Plan
  • All required floorplans
  • Roof Plan Elevations
  • 2-3 Building cross-sections
  • Typical Construction Details
  • Window and Door Schedule
  • Preliminary Cabinet Elevations
  • Lighting Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,767 sq. ft.

Lower Level

1,870 sq. ft.

1st Floor

1,897 sq. ft.

Porch, Front

67 sq. ft.

Deck

386 sq. ft.

Covered Patio

386 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 6"

Depth

77' 4"

Garage

Type

Attached

Area

779 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10' 3"

First Floor

9' 3"

Room

Ceiling Type

Height

Foyer

Raised

12' 6''

Dining Room

Raised

12' 6''

Living Room

Raised

12' 6''

Kitchen

Raised

10' 3''

Roof Details

Primary Pitch

1/4 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Modern

Mountain

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

3,767 sq. ft.

Lower Level

1,870 sq. ft.

1st Floor

1,897 sq. ft.

Porch, Front

67 sq. ft.

Deck

386 sq. ft.

Covered Patio

386 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 6"

Depth

77' 4"

Garage

Type

Attached

Area

779 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10' 3"

First Floor

9' 3"

Room

Ceiling Type

Height

Foyer

Raised

12' 6''

Dining Room

Raised

12' 6''

Living Room

Raised

12' 6''

Kitchen

Raised

10' 3''

Roof Details

Primary Pitch

1/4 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Modern

Mountain

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
