Plan 267037SPK
EXCLUSIVE
Modern House Plan with RV Garage and Finished Lower Level - 3112 Sq Ft
Heated S.F.
3,112
Beds
4
Baths
3
Stories
1
Cars
3
What's Included
Plan Details
  • This modern house plan gives you 3 beds (4 if you use the flex room as a bedroom instead of an office), 3 beds and 3112 square feet of heated living. A 3-car garage - with one of the bays suitable for an RV or a boat - gives you 1385 square feet of parking space.
  • The master suite is on the main floor while two more bedrooms are on the lower level.
  • The kitchen has a roomy pantry and an island with seating for 3. Sliding doors in the adjacent dining area open to the back patio.
  • In addition to the lower level bedrooms, there is a large living area plus two other spaces - one to either side of the stairs - that can be used as a game area or another use.
What's Included

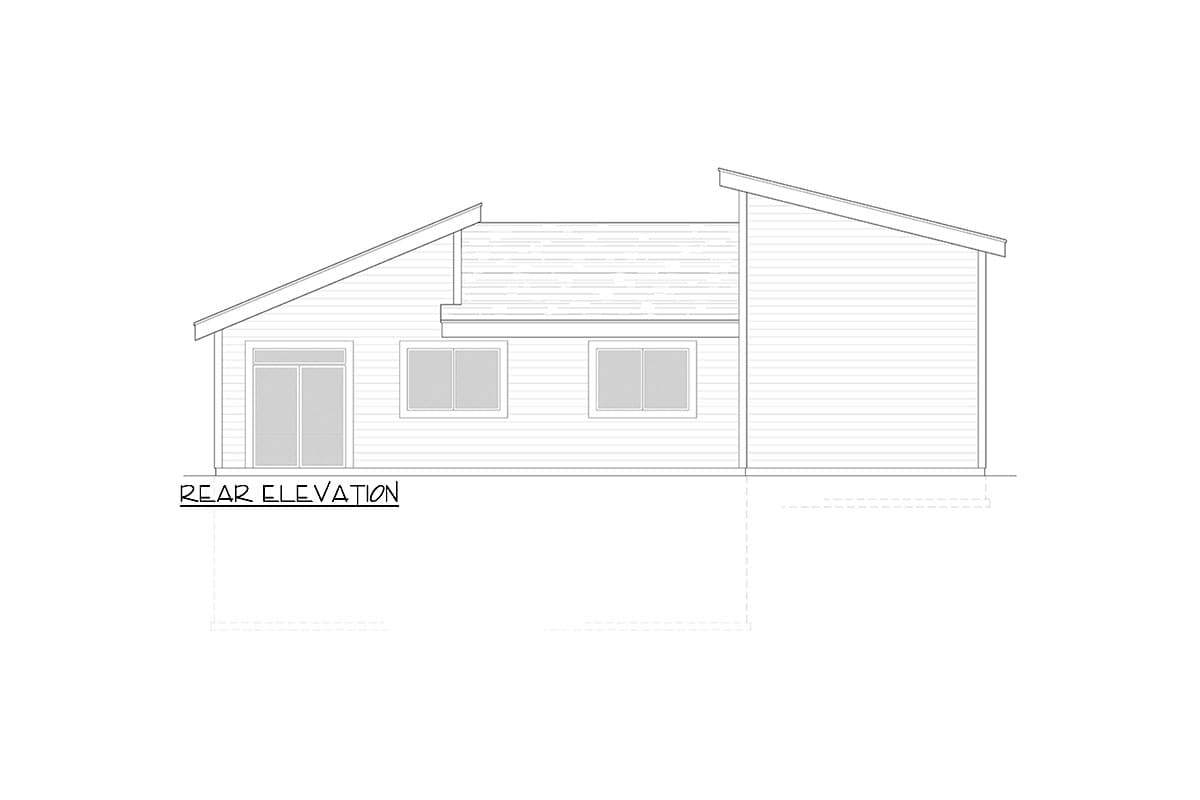

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
What's Not Included
  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern House Plan with RV Garage and Finished Lower Level - 3112 Sq Ft

  • 3,112

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

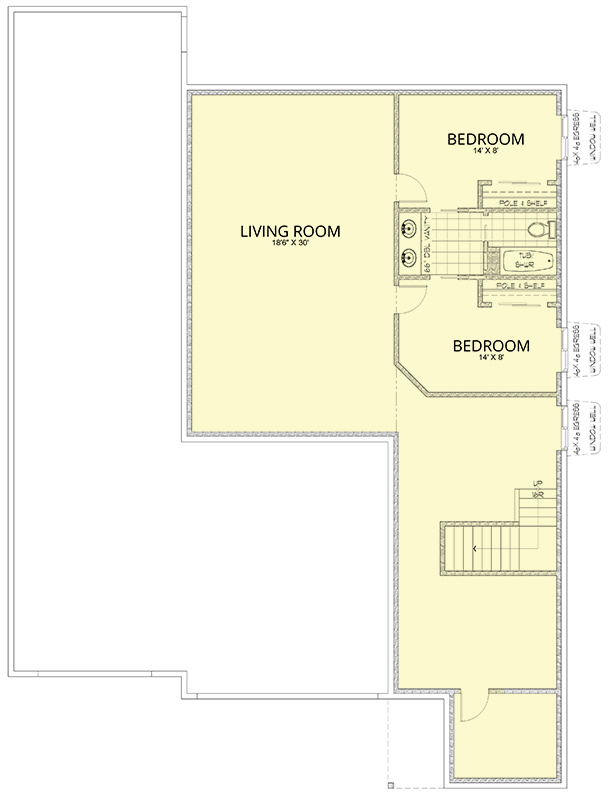

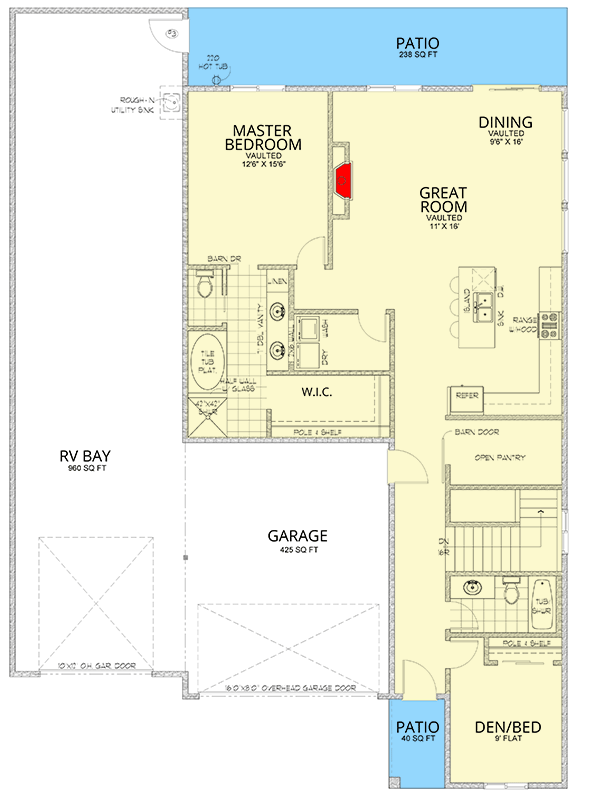

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,112 sq. ft.
  • Lower Level: 1,556 sq. ft.
  • 1st Floor: 1,556 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 70' 0"
  • Max ridge height: 19' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: RV Garage, Attached
  • Area: 1385 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" GREAT ROOM 11' 9"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
