Plan 623646DJ

Modern Lake House Plan with Carport and Walkout Lower Level

Heated S.F.
1,964
Beds
2
Baths
2.5
Stories
1
Cars
2
Tour

Floor Plan

Plan 623646DJ

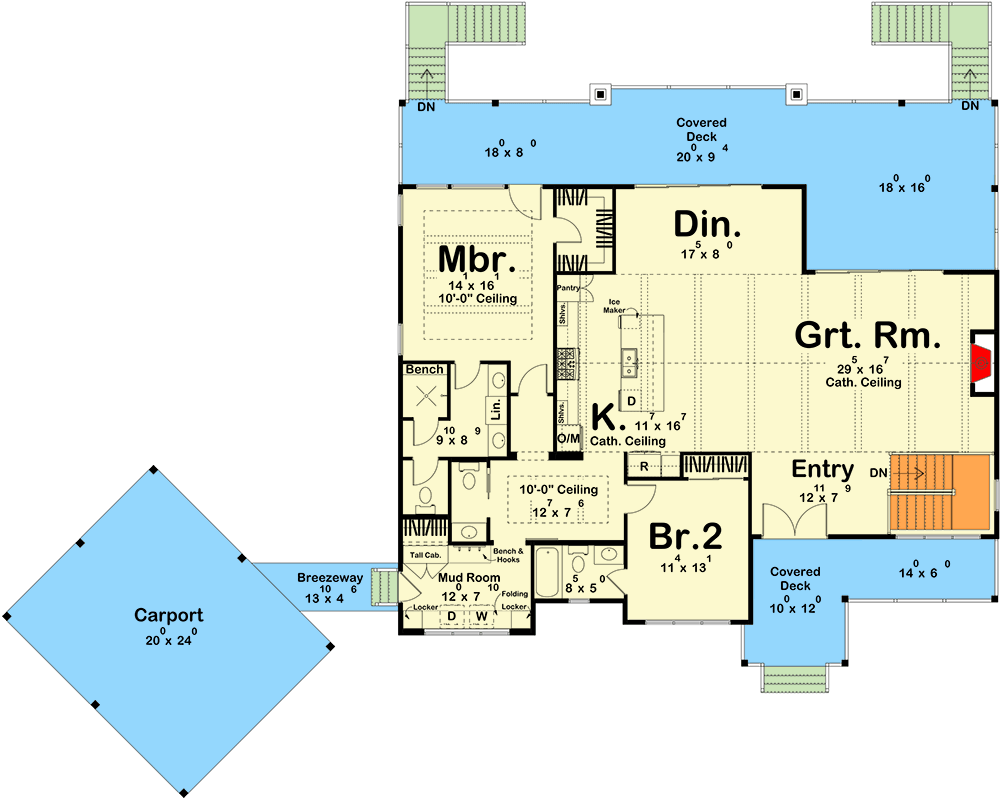

Floor Plan 1
Finished Lower Level Layout Option (+$ Paid Option)
Finished Lower Level Layout Option (+$ Paid Option)
Main Level - Slab Option
Main Level - Slab Option

Plan 623646DJ

M-F 9am-5pm EST |

1-203-761-8500

Plan 623646DJ: Modern Lake House Plan with Carport and Walkout Lower Level - Floor Plan - - Farmhouse

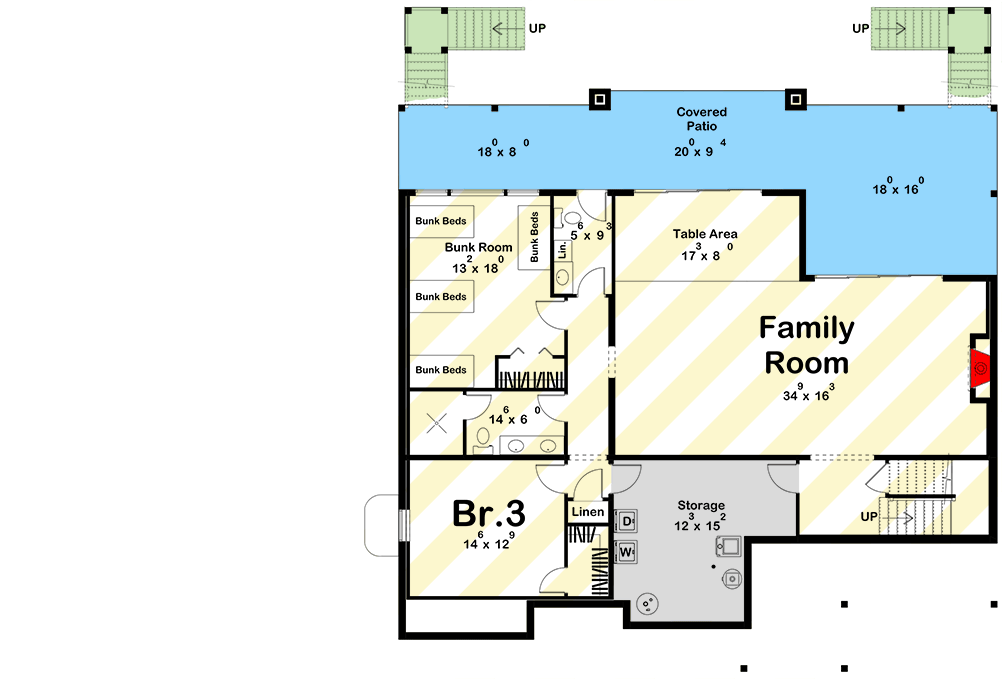

Finished Lower Level Layout Option (+$ Paid Option)

Plan 623646DJ: Modern Lake House Plan with Carport and Walkout Lower Level - Floor Plan - Finished Lower Level Layout Option (+$ Paid Option) - Farmhouse

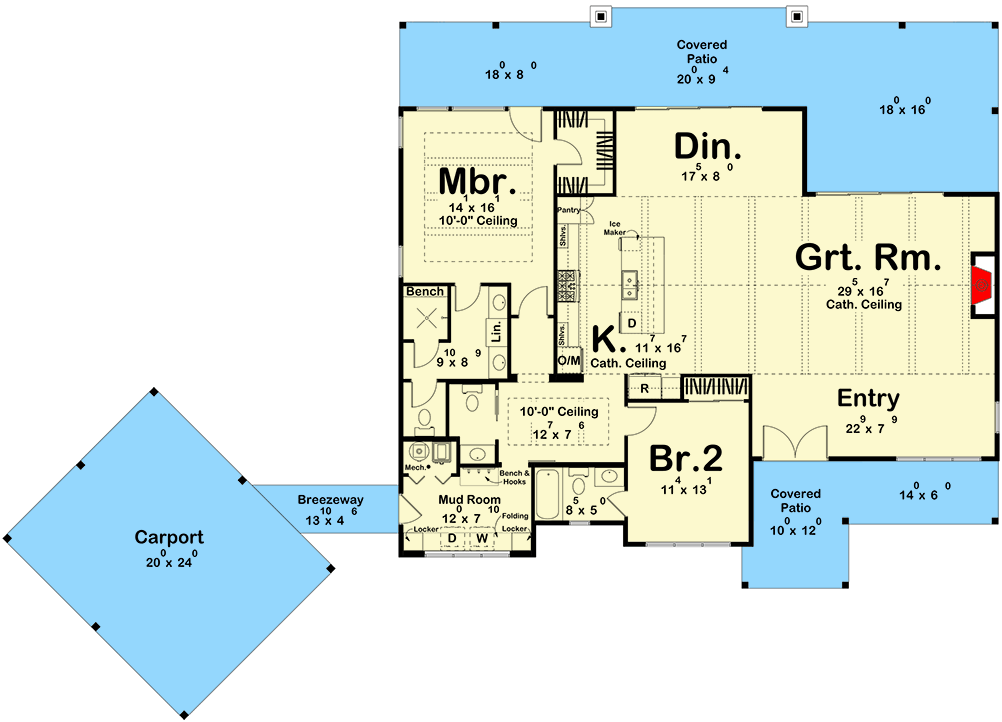

Main Level - Slab Option

Plan 623646DJ: Modern Lake House Plan with Carport and Walkout Lower Level - Floor Plan - Main Level - Slab Option - Farmhouse

Plan Details

  • Boasting 1,964 finished sq ft, 2 bedrooms, 2.5 baths, and a 480 sq ft 2-car carport, this Lake House Plan features a classic gable roof and inviting front porch.

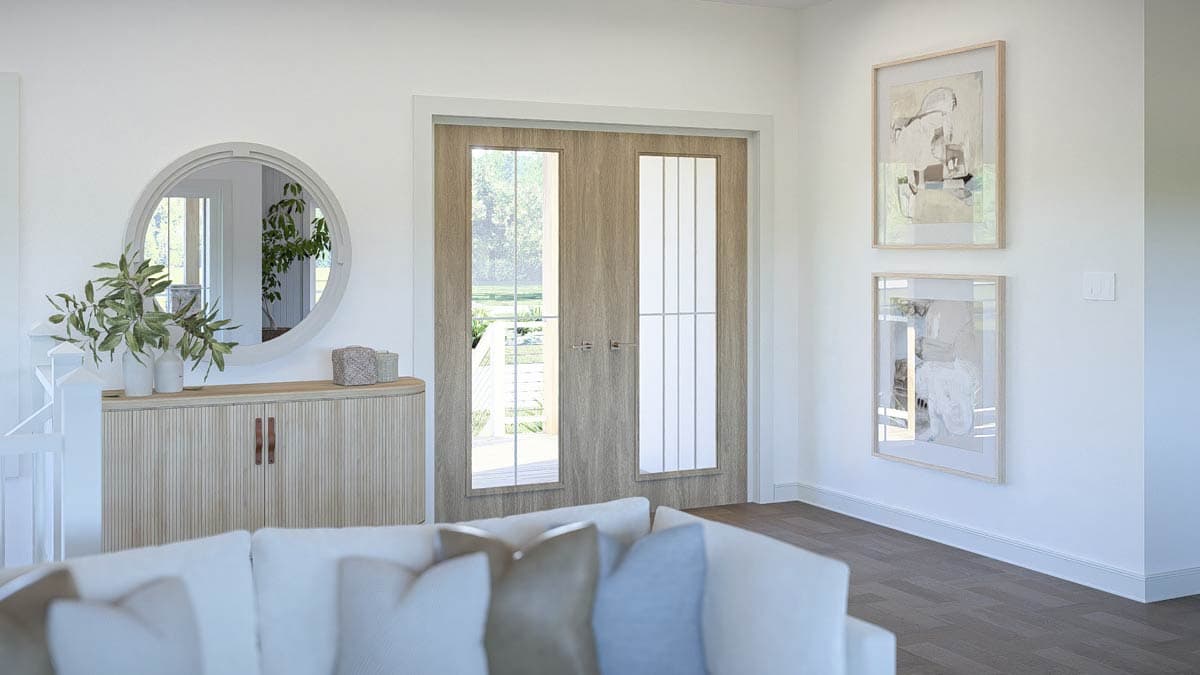

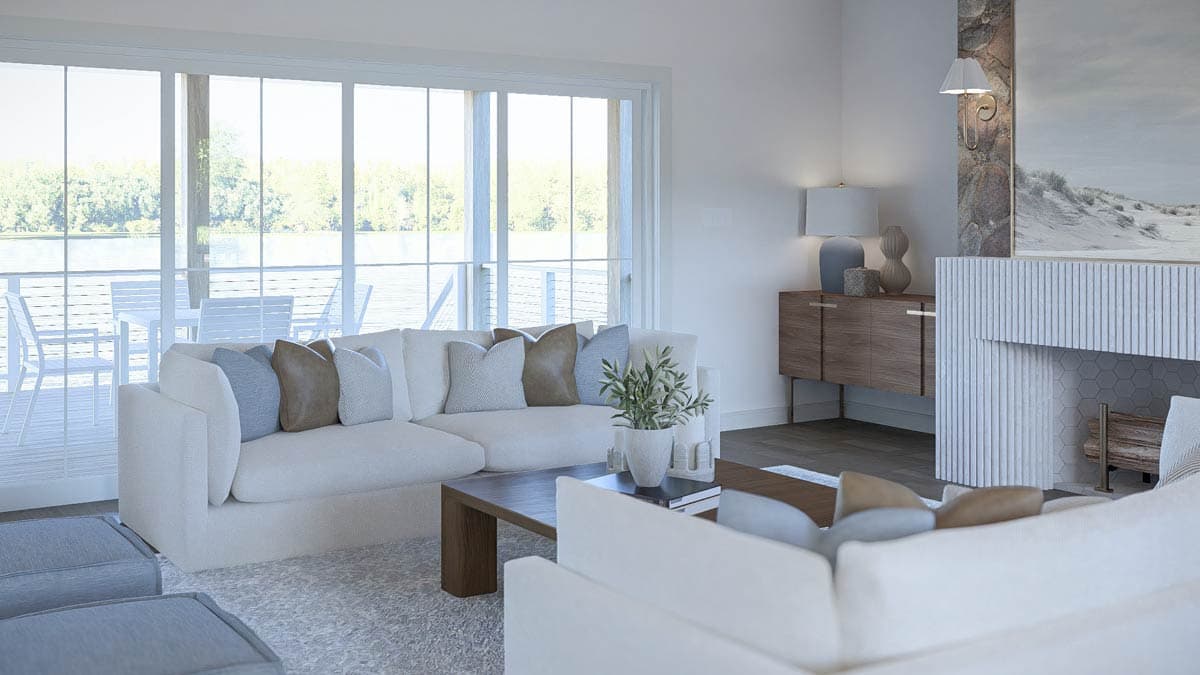

  • Upon arrival, a covered front porch leads to an inviting entry, which opens directly into the expansive great room featuring a soaring cathedral ceiling.

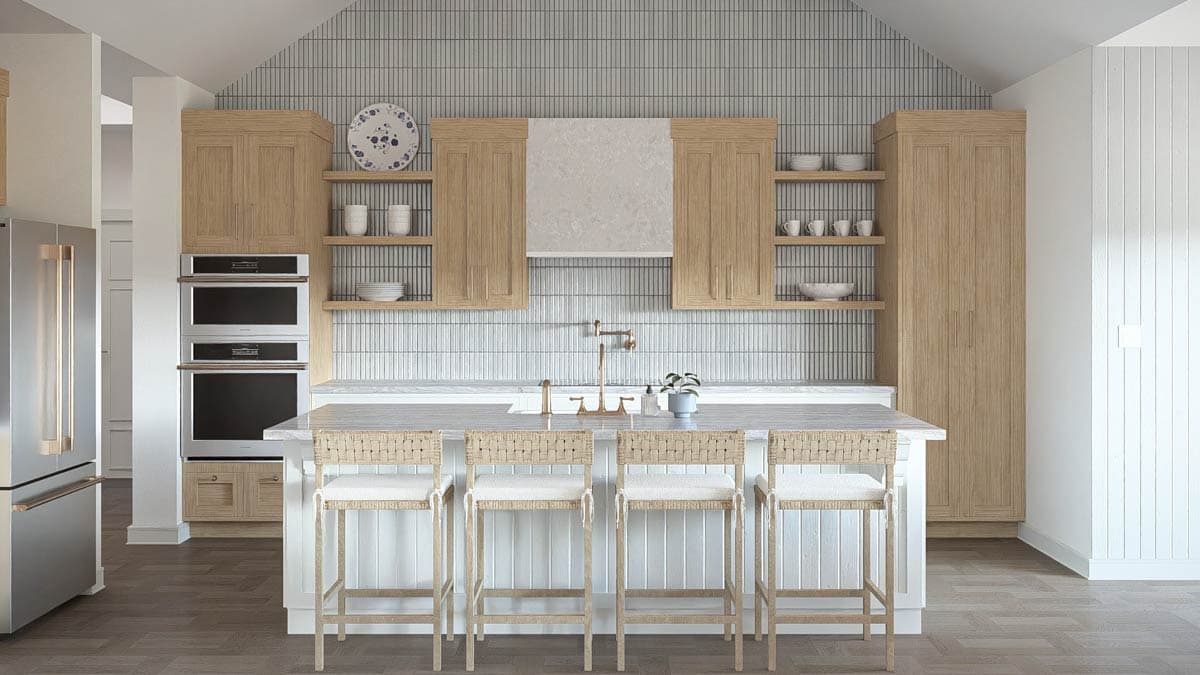

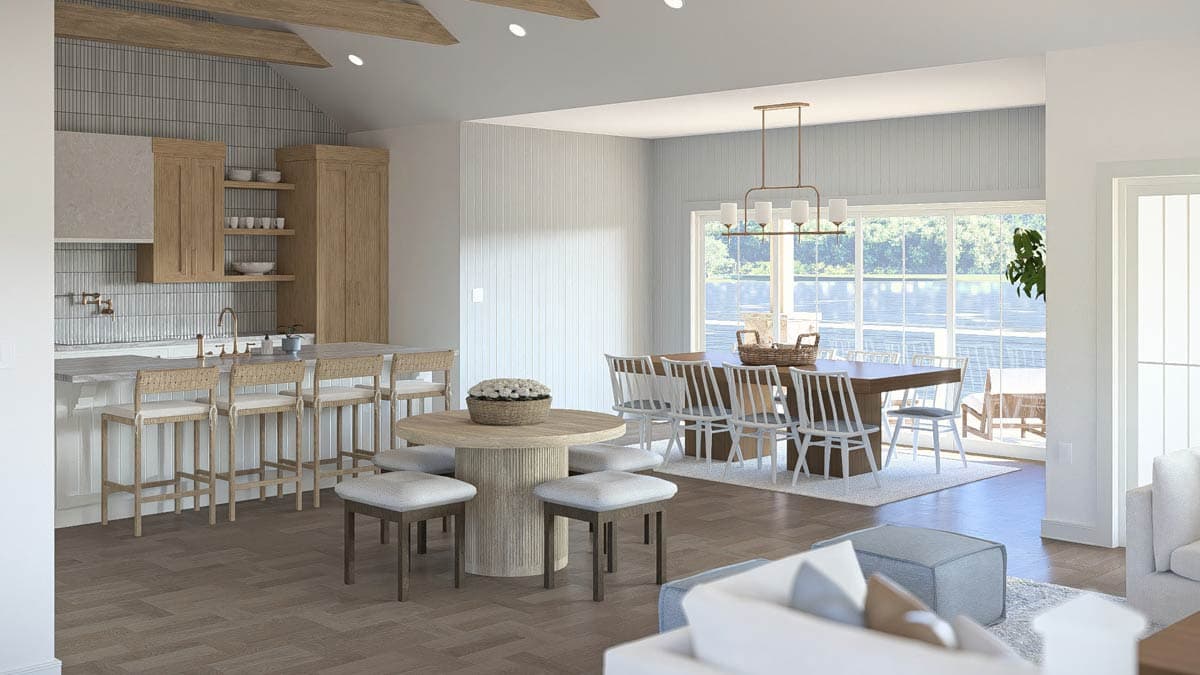

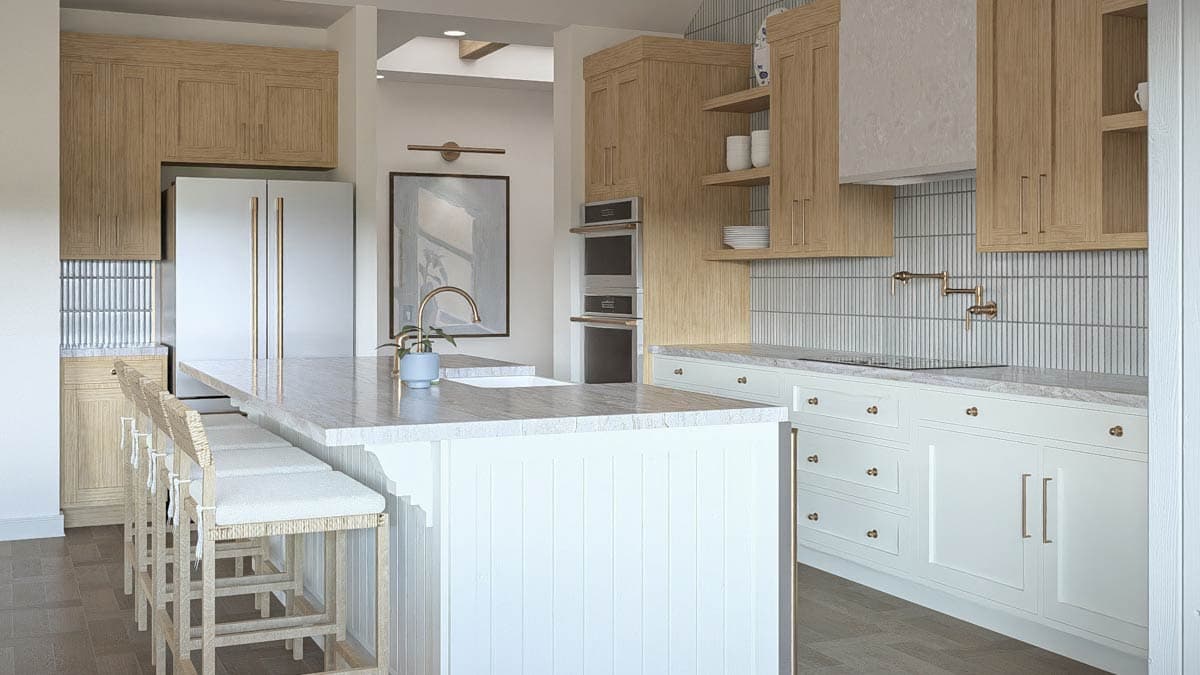

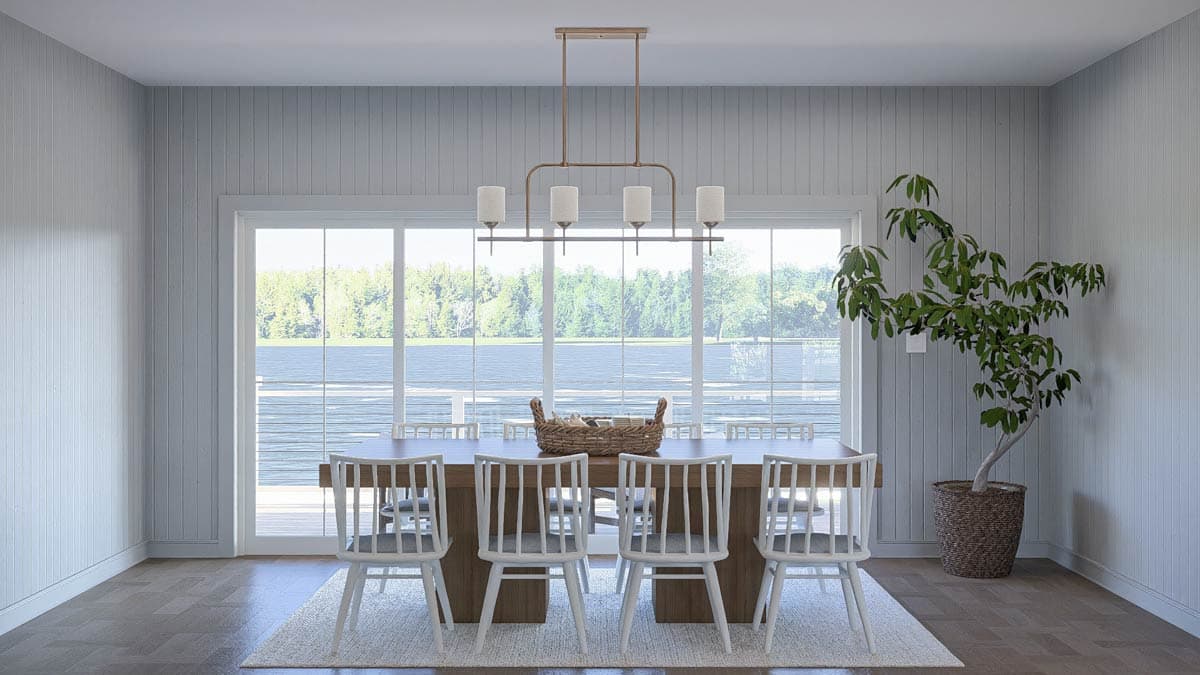

  • The heart of the home is an open-concept layout where the kitchen, complete with a central island, effortlessly connects to the dining area and the great room, ideal for entertaining and family gatherings.

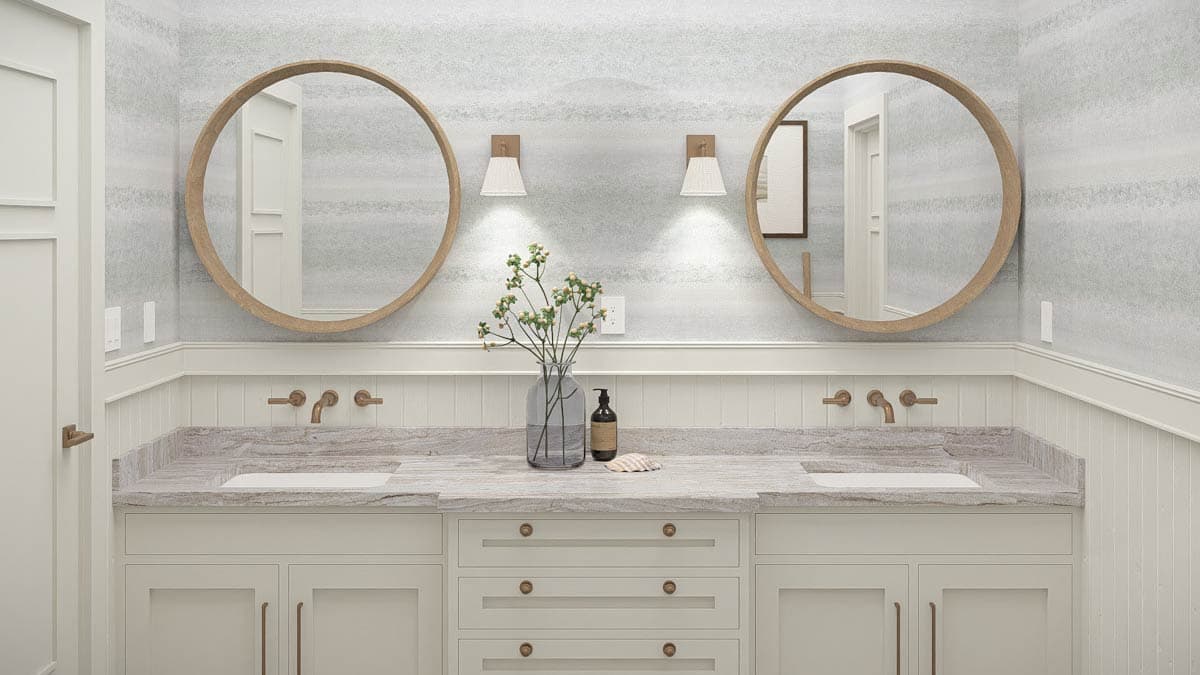

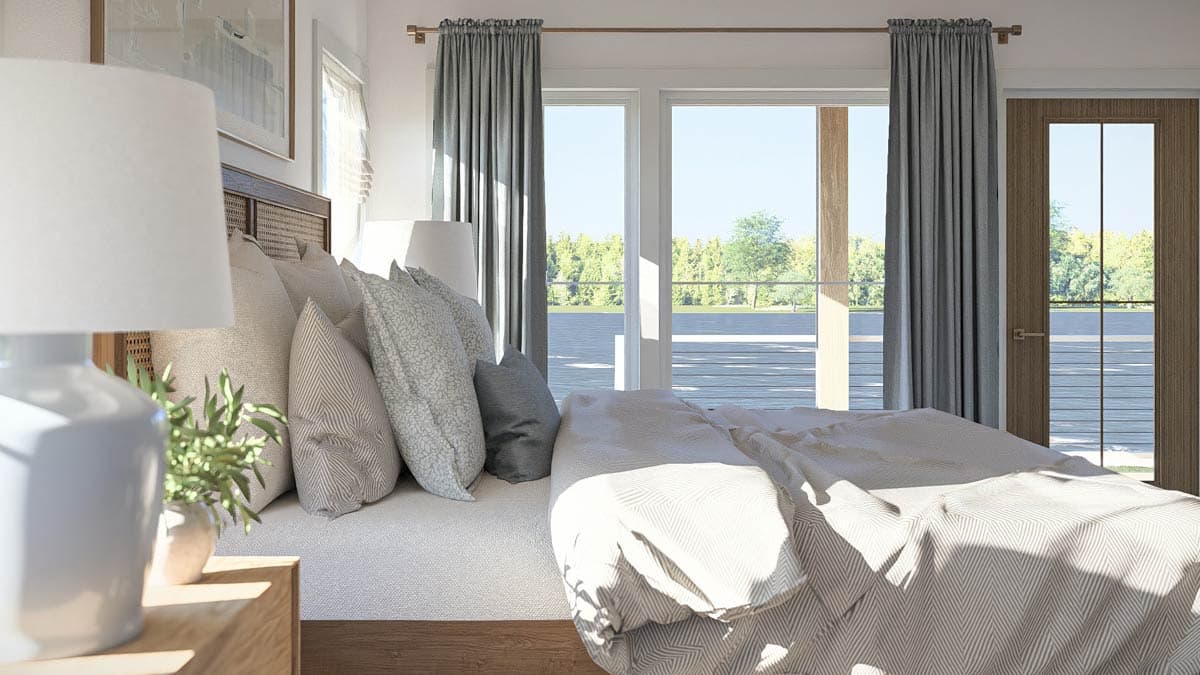

  • The main level hosts a private primary suite with a 10-foot ceiling and an elegant ensuite bath, thoughtfully separated from the second bedroom, which also includes a private full bath.

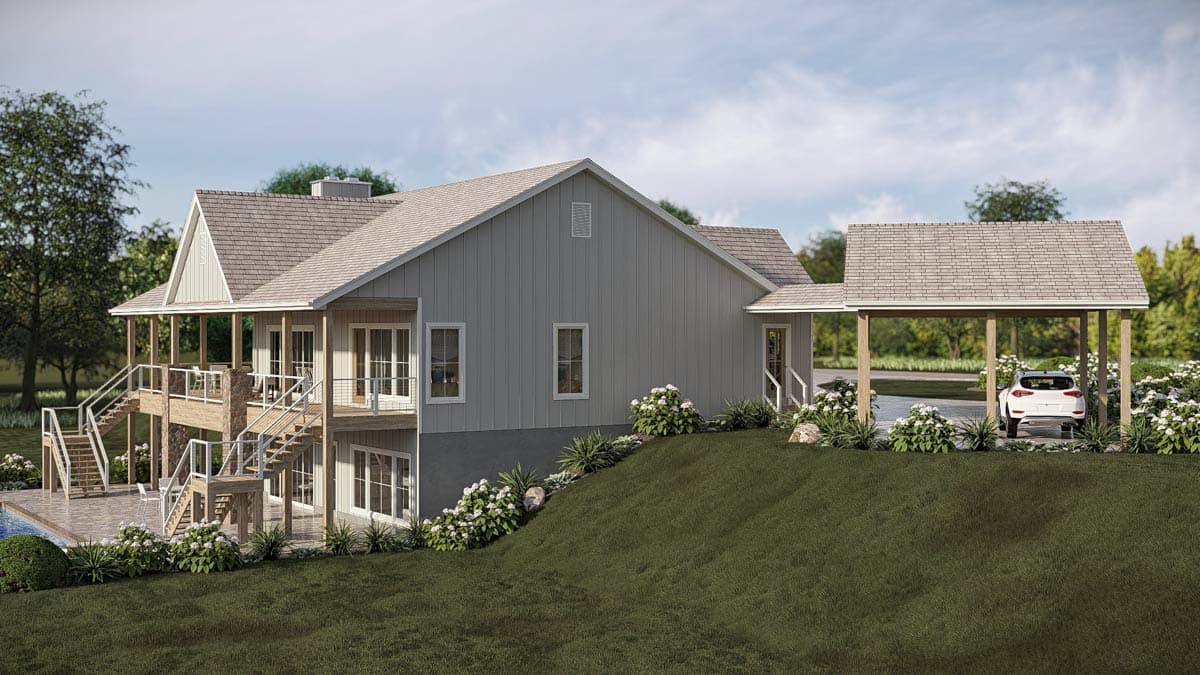

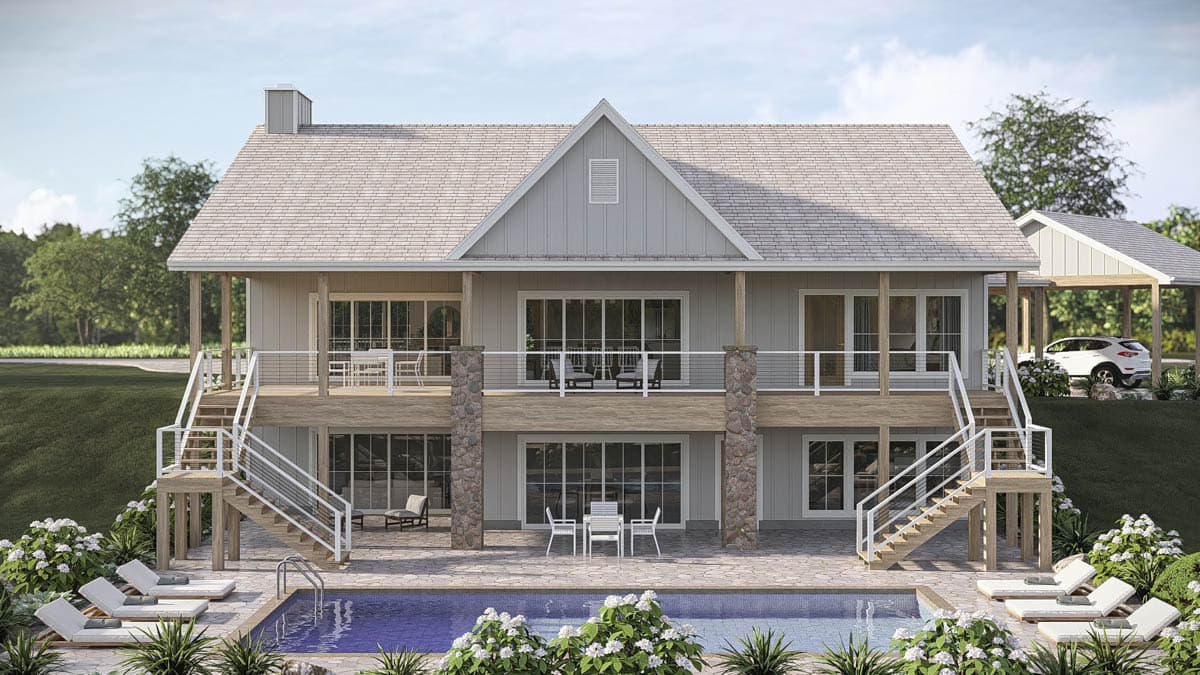

  • Expansive outdoor living is provided by a large covered deck off the dining area and a covered patio on the lower level, perfect for enjoying lakeside views.
  • The optional walkout lower level expands the living area with an additional bedroom, a full bath, a generous family room, and a fun bunk room, providing flexible space for various needs.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,964 sq. ft.

1st Floor

1,964 sq. ft.

Optional Lower Level

1,624 sq. ft.

Porch, Combined

815 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

93' 2"

Depth

74' 5"

Max Ridge Height

20' 9"

Garage

Type

Attached, Carport

Area

480 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Farmhouse

Special Features

Angled Garage

Bedrooms - Clustered

Bunk Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

1,964 sq. ft.

1st Floor

1,964 sq. ft.

Optional Lower Level

1,624 sq. ft.

Porch, Combined

815 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

93' 2"

Depth

74' 5"

Max Ridge Height

20' 9"

Garage

Type

Attached, Carport

Area

480 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Farmhouse

Special Features

Angled Garage

Bedrooms - Clustered

Bunk Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Lake House Plans
