Plan 144102UPR
Modern Lake House Plan with Lower Level Rec Room - 3320 Sq Ft
Heated S.F.
3,320
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • This modern lake house plan gives you 3 beds, 2.5 baths and 3,320 square feet of heated living space. A large covered patio in back gives you 419 square feet of fresh air space to enjoy.
  • The kitchen with large island and walk-in pantry is open to the dining room and living room with 2-sided fireplace.
  • A pair of French doors opens to the den which makes a great work-from-home space.
  • The master suite occupies the entire right side of the home and enjoys covered balcony access (as does the living room). Downstairs, there are two more bedrooms that share a bath.

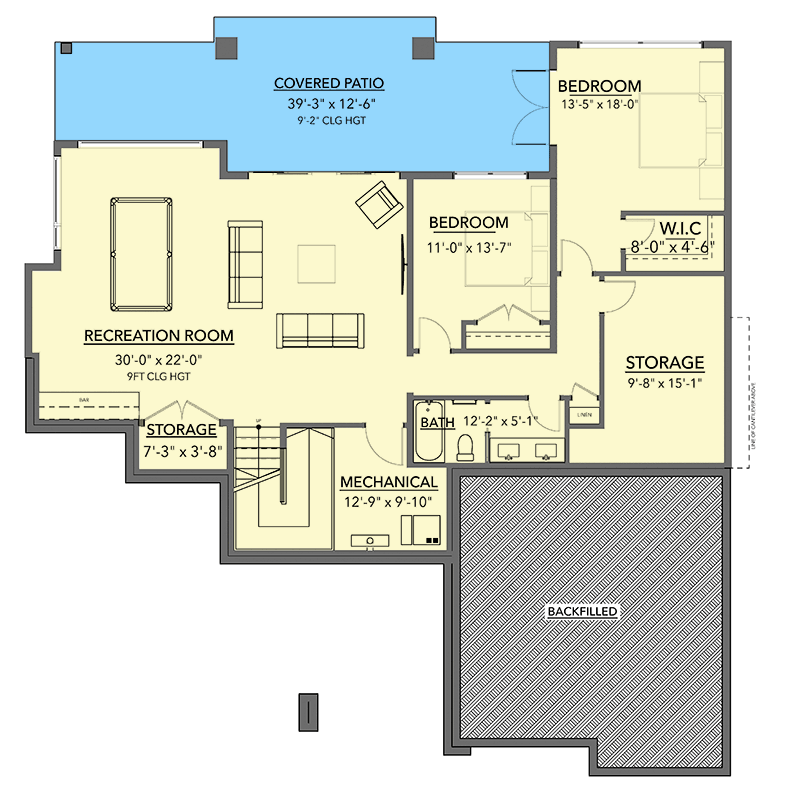

  • A lower level rec room has access to the covered patio in back.
What's Included
  • 2 Black and White 3D Exterior Perspectives
  • General Notes
  • Foundation Plan
  • All required floorplans
  • Roof Plan

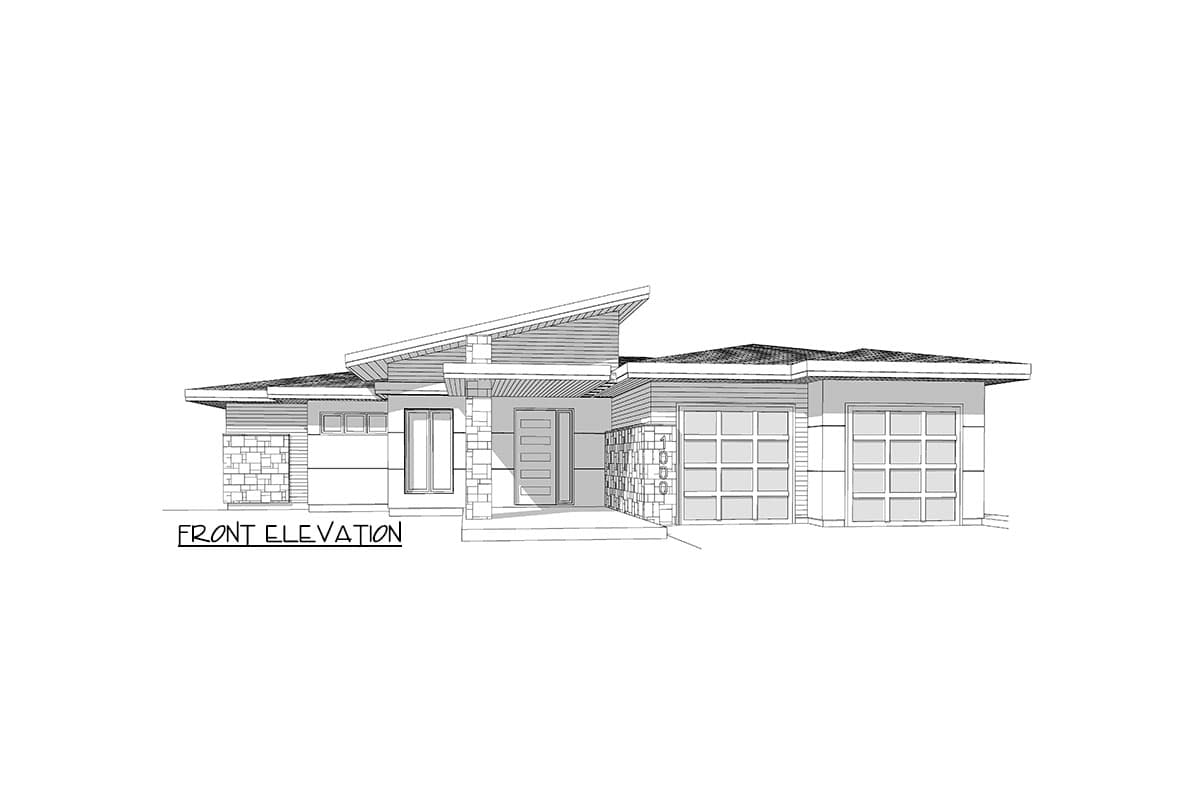

  • Elevations
  • 2-3 Building cross-sections
  • Typical Construction Details
  • Window and Door Schedule
  • Preliminary Cabinet Elevations
  • Lighting Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Lake House Plan with Lower Level Rec Room - 3320 Sq Ft

  • 3,320

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

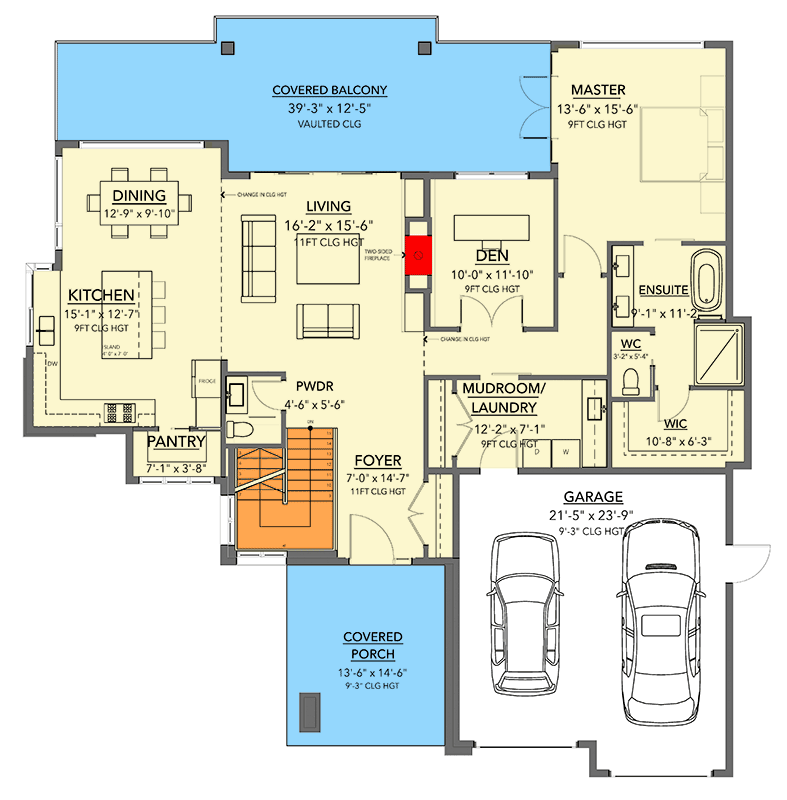

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,320 sq. ft.
  • Lower Level: 1,654 sq. ft.
  • 1st Floor: 1,666 sq. ft.
  • Covered Balcony: 419 sq. ft.

Dimensions

  • Width: 56' 6"
  • Depth: 58' 10"
  • Max ridge height: 18' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 1/4 on 12
  • Framing Type: Truss
