Modern Mountain ADU Home Plan with Front Patio

Plan 680007VR

  • 650

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • The simplicity of the square footprint of this modern mountain home plan keeps budget in mind, but when paired with a sloped roof, a sleek, modern design is the result.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling.
  • The kitchen and living room are open to one another, and extend outdoors onto a spacious balcony.
  • Related Plan: Build over a 2-car garage with house plan 68640VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

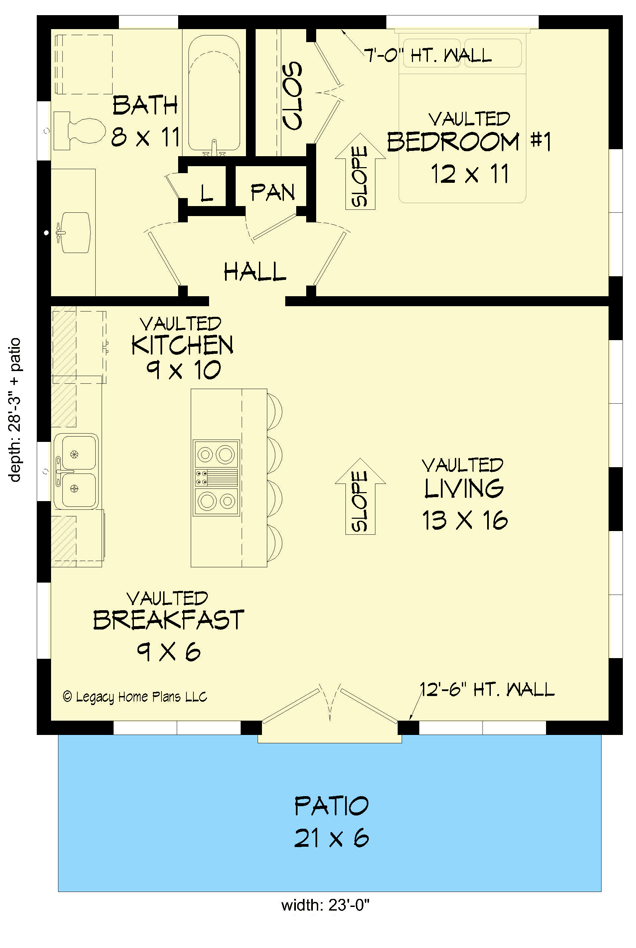

Modern Mountain ADU Home Plan with Front Patio - 680007VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 650 sq. ft.
  • 1st Floor: 650 sq. ft.
  • Patio: 126 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 23' 0"
  • Depth: 29' 0"
  • Max ridge height: 14' 8"

Ceiling Heights

  • Floor / Height: First Floor / 12' 6"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Modern Mountain ADU Home Plan with Front Patio

  • 650

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $875
  • 5 Sets $960
  • 5 Sets + PDF $1,079
  • CAD + PDF - Single-Build $1,175
  • View all purchase option online

About This Plan

  • The simplicity of the square footprint of this modern mountain home plan keeps budget in mind, but when paired with a sloped roof, a sleek, modern design is the result.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling.
  • The kitchen and living room are open to one another, and extend outdoors onto a spacious balcony.
  • Related Plan: Build over a 2-car garage with house plan 68640VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 650 sq. ft.
  • 1st Floor: 650 sq. ft.
  • Patio: 126 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 23' 0"
  • Depth: 29' 0"
  • Max ridge height: 14' 8"

Ceiling Heights

  • Floor / Height: First Floor / 12' 6"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
Plan 680007VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680007VR
|
