Plan 680591VR

Modern Mountain Garage ADU Plan with Studio Apartment Above

Heated S.F.
528
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 680591VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680591VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

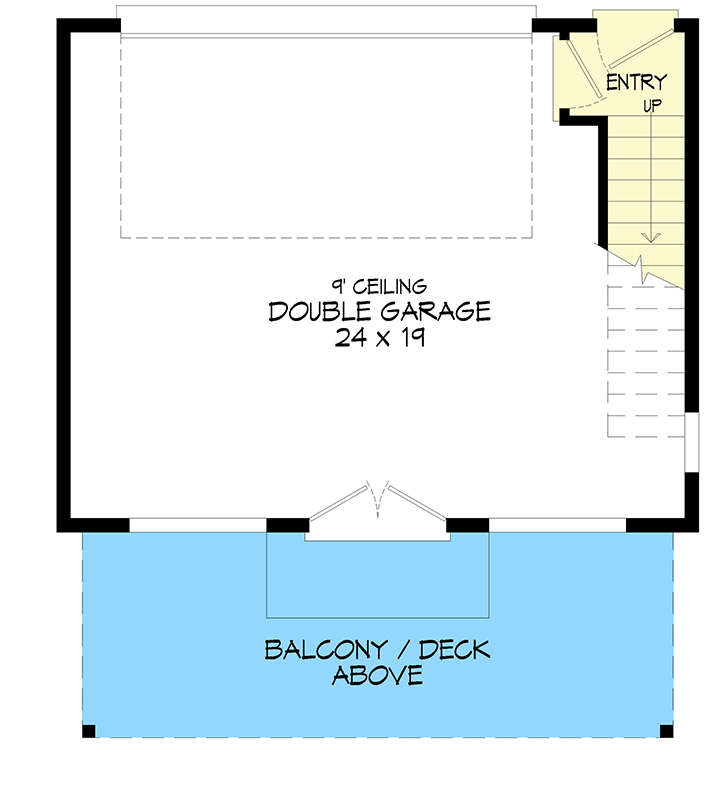

Plan 680591VR: Modern Mountain Garage ADU Plan with Studio Apartment Above - Floor Plan - Main Level - Carriage, Modern, Vacation

2nd Floor

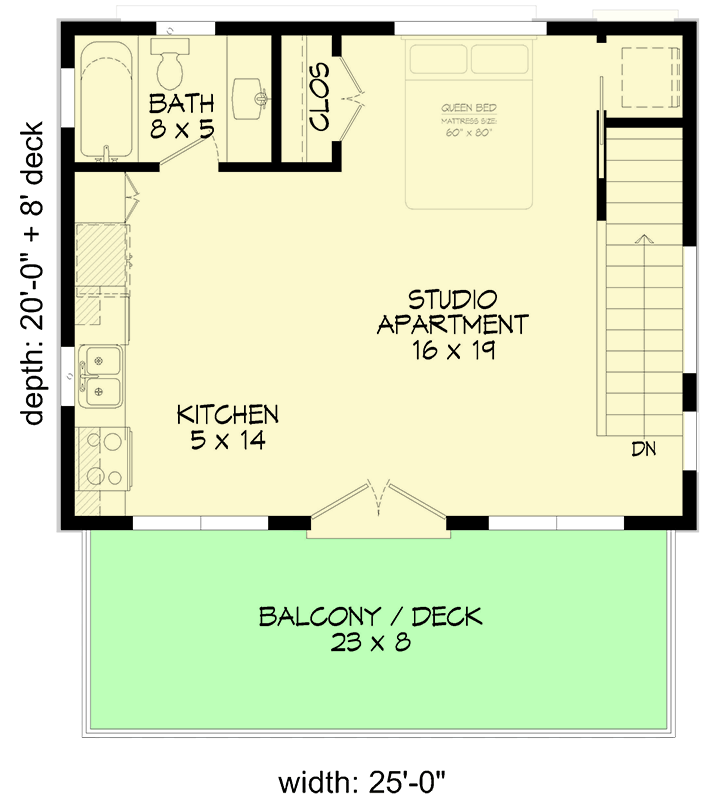

Plan 680591VR: Modern Mountain Garage ADU Plan with Studio Apartment Above - Floor Plan - 2nd Floor - Carriage, Modern, Vacation

Plan Details

  • This sleek 528 sq. ft. Modern Mountain style detached Garage ADU Plan features a studio apartment above a generous 472 sq. ft. detached 2-car garage. The open living space studio apartment on the second floor features a full kitchen, sleeping nook with closet, full bathroom, stacked unit laundry closet.
  • Upon entering the ground level, a dedicated entry foyer vestibule provides access to the garage area and the staircase to the living space above, providing security for tenants and owners if renting the apartment separately from the garage.
  • The entire second floor unfolds as an open-concept studio apartment, where a highly efficient kitchen, complete with essential appliances, seamlessly integrates into the main living and sleeping area, fostering an airy and functional environment.
  • Designed for comfortable living, this versatile space accommodates a queen bed in a nook with a closet for storage, a space for a generous living room area, complemented by a full bathroom featuring a tub/shower combination and an integrated laundry space tucked away behind a pocket door closet.
  • The ground floor is primarily dedicated to the spacious 472 sq. ft. double garage, offering secure parking for two vehicles and ample room for storage or a small bench, making it a highly practical component of this compact design.
  • Accessible directly from the studio, a generous 184 sq. ft. balcony extends the living space outdoors, providing an inviting retreat for enjoying morning coffee or evening breezes with serene views.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

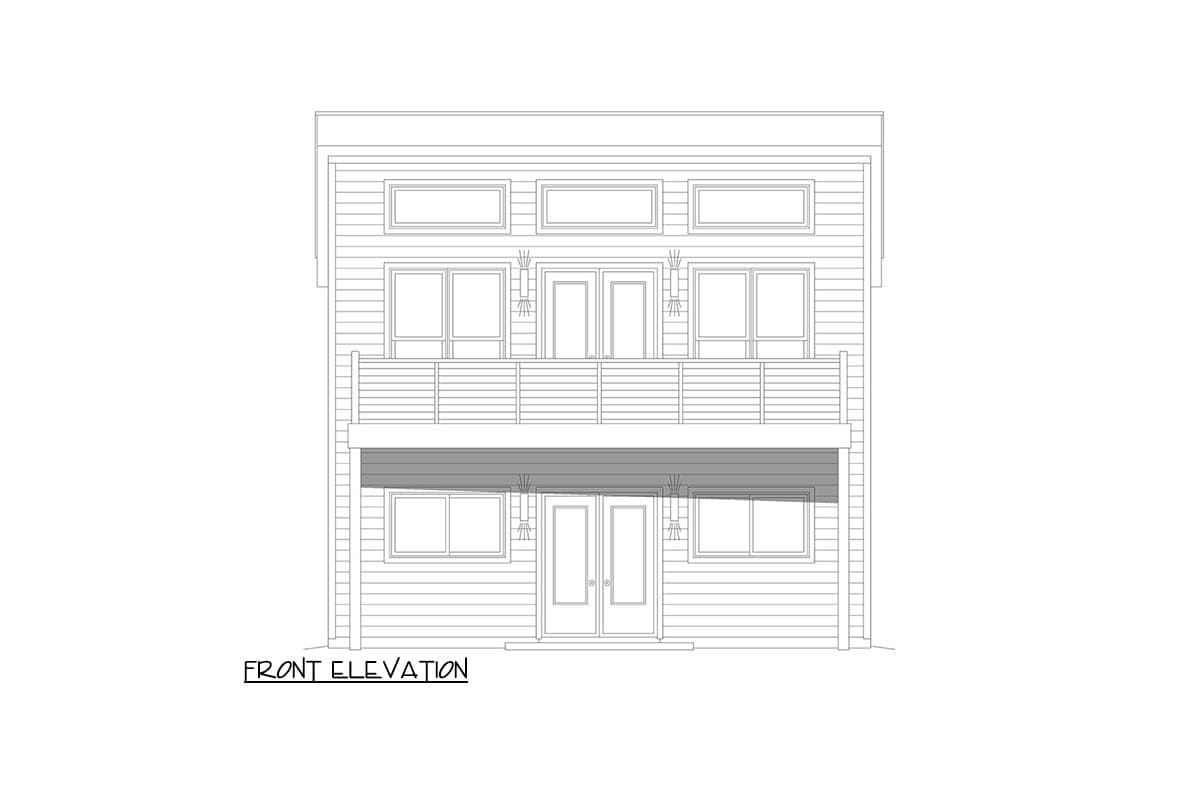

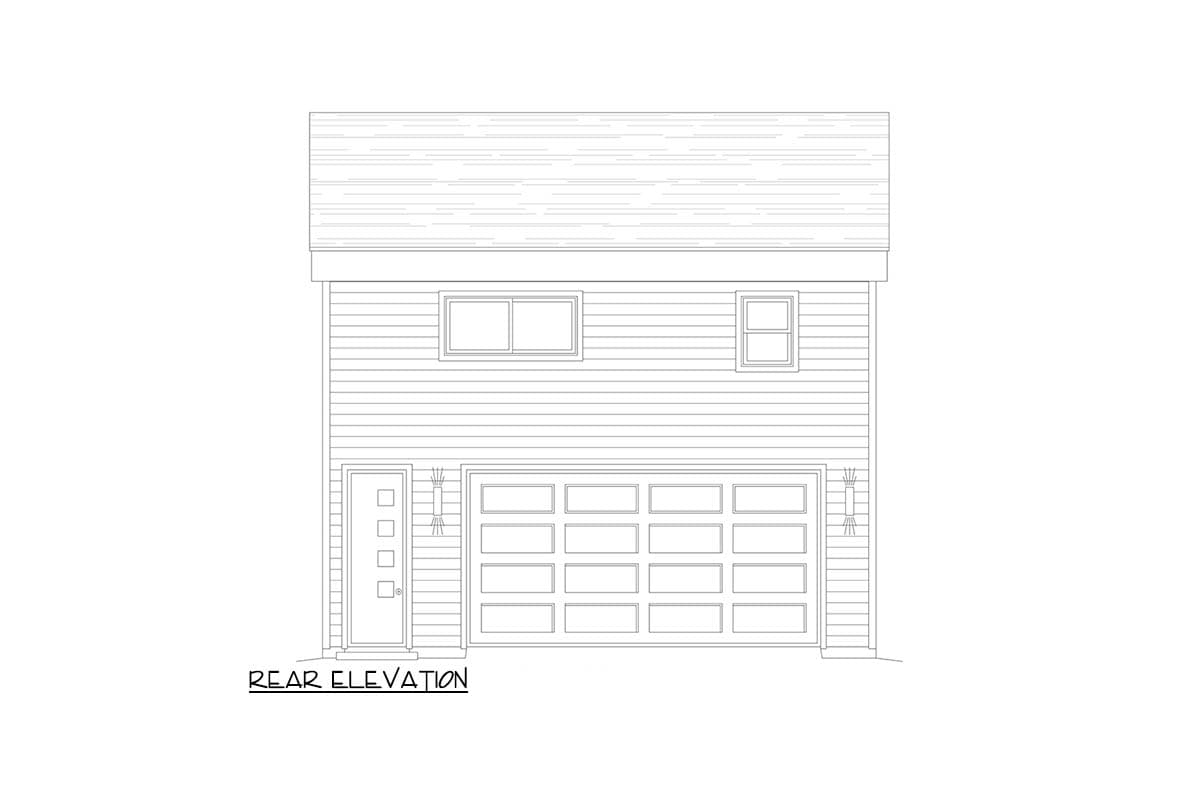

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

528 sq. ft.

1st Floor
