Modern Mountain Home Plan with Light and Airy Floor Plan

Name: Plan 54240HU: Modern Mountain Home Plan with Light and Airy Floor Plan
Brand: Architectural Designs
SKU: 54240HU
Price: 1995.0 USD
Availability: InStock

Heated S.F.

3,837

Beds

4 - 5

Baths

4.5

Stories

Cars

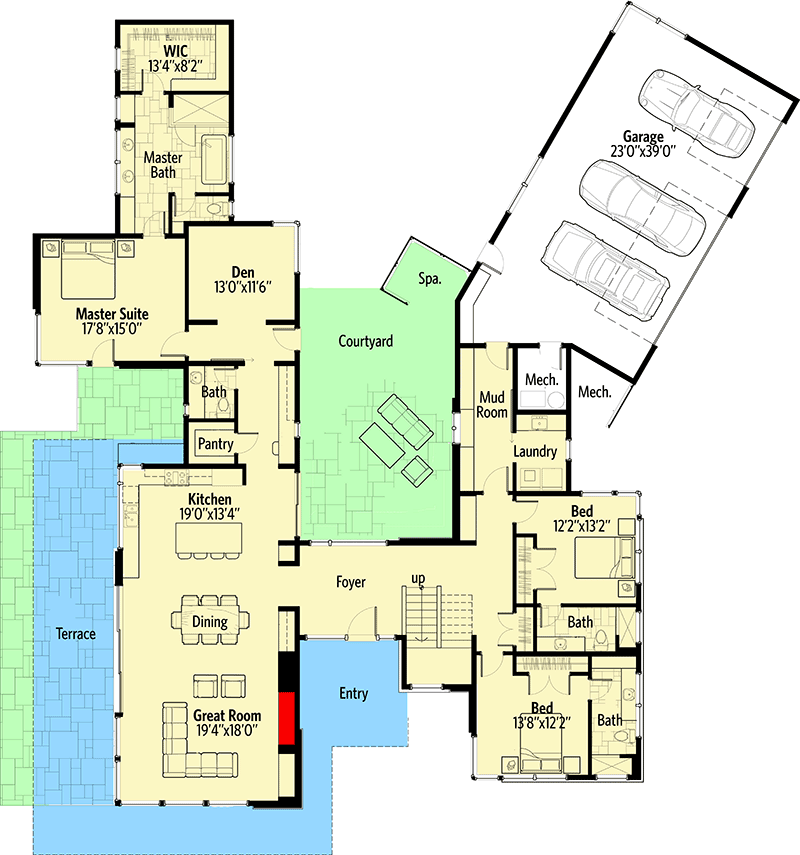

Floor Plan

Main Level

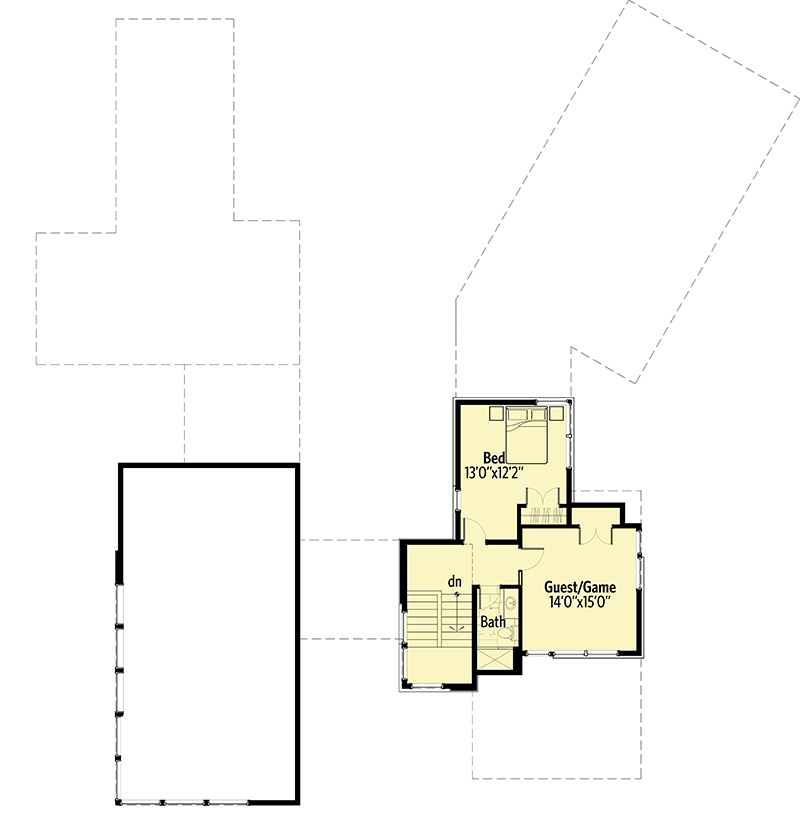

2nd Floor

Plan Details

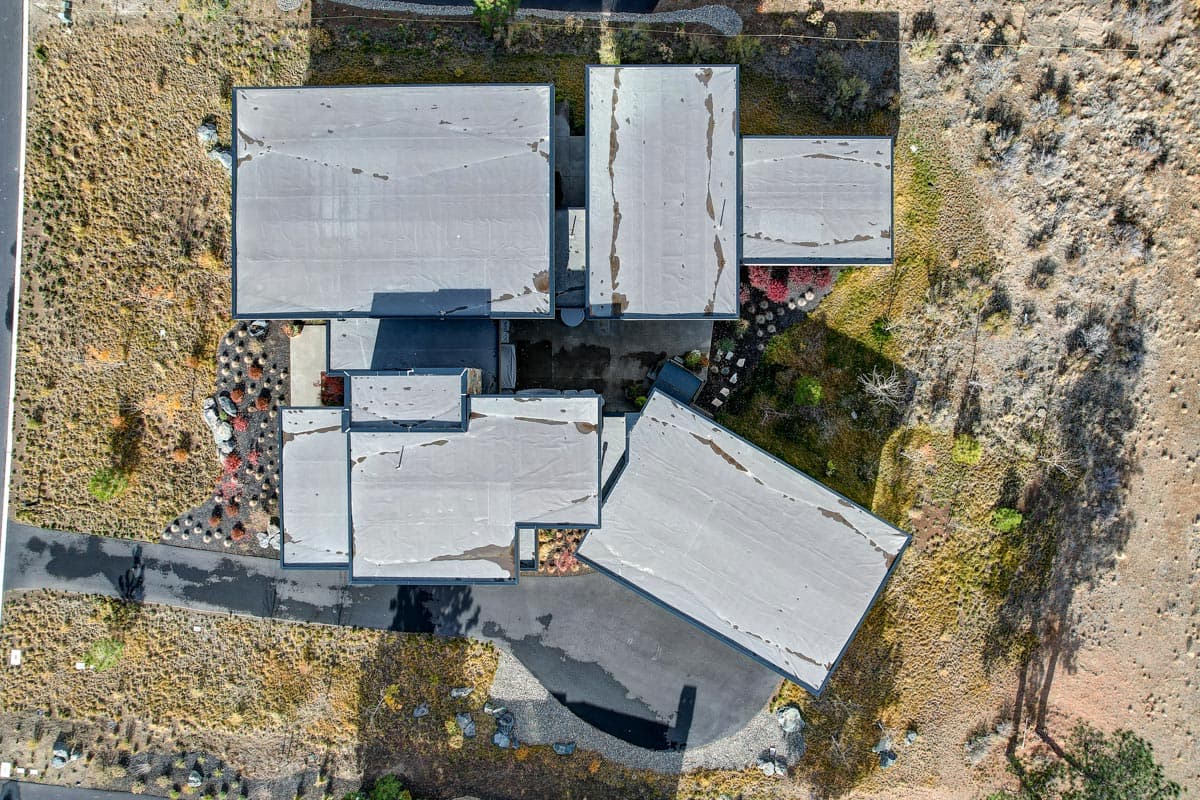

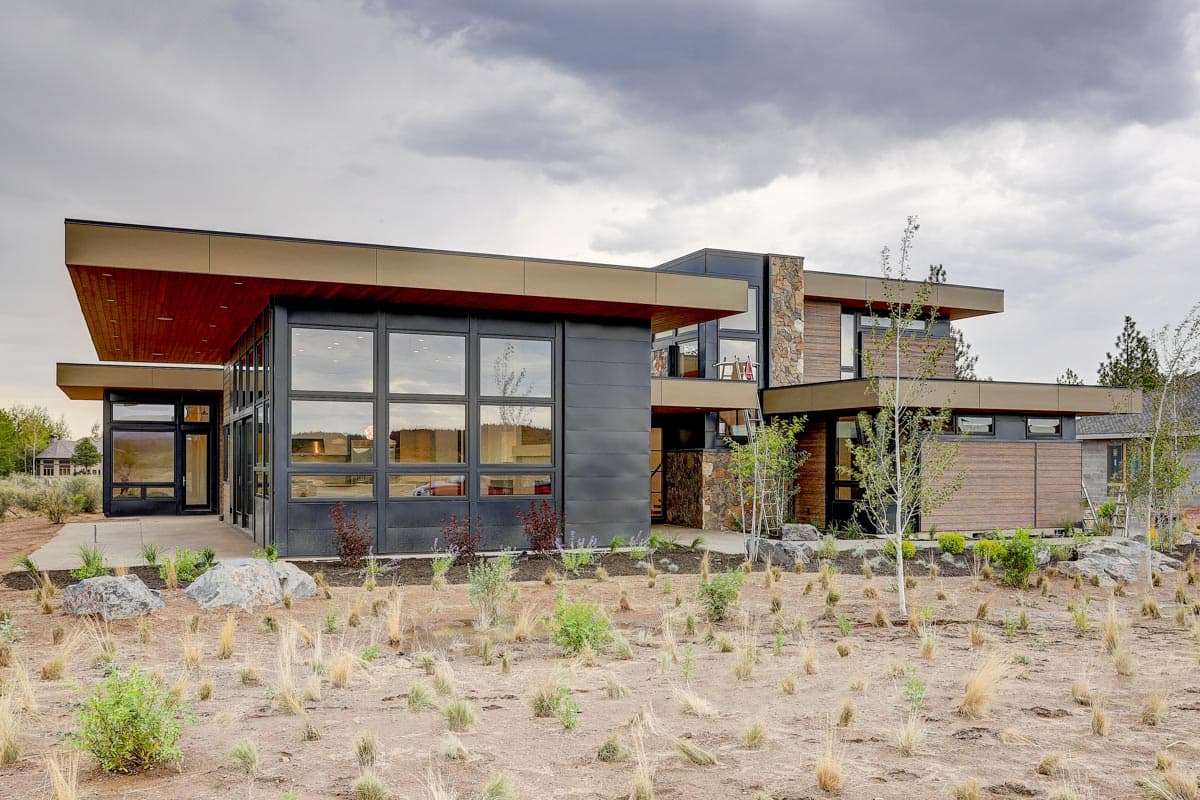

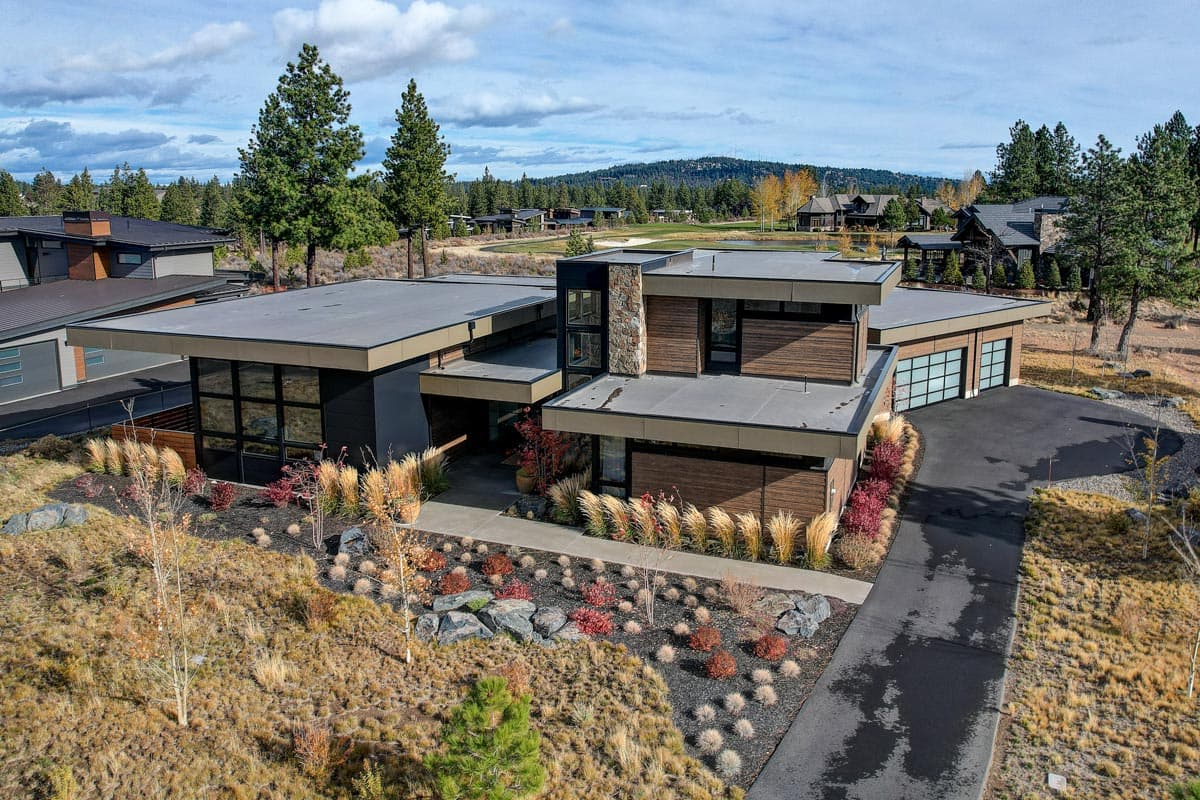

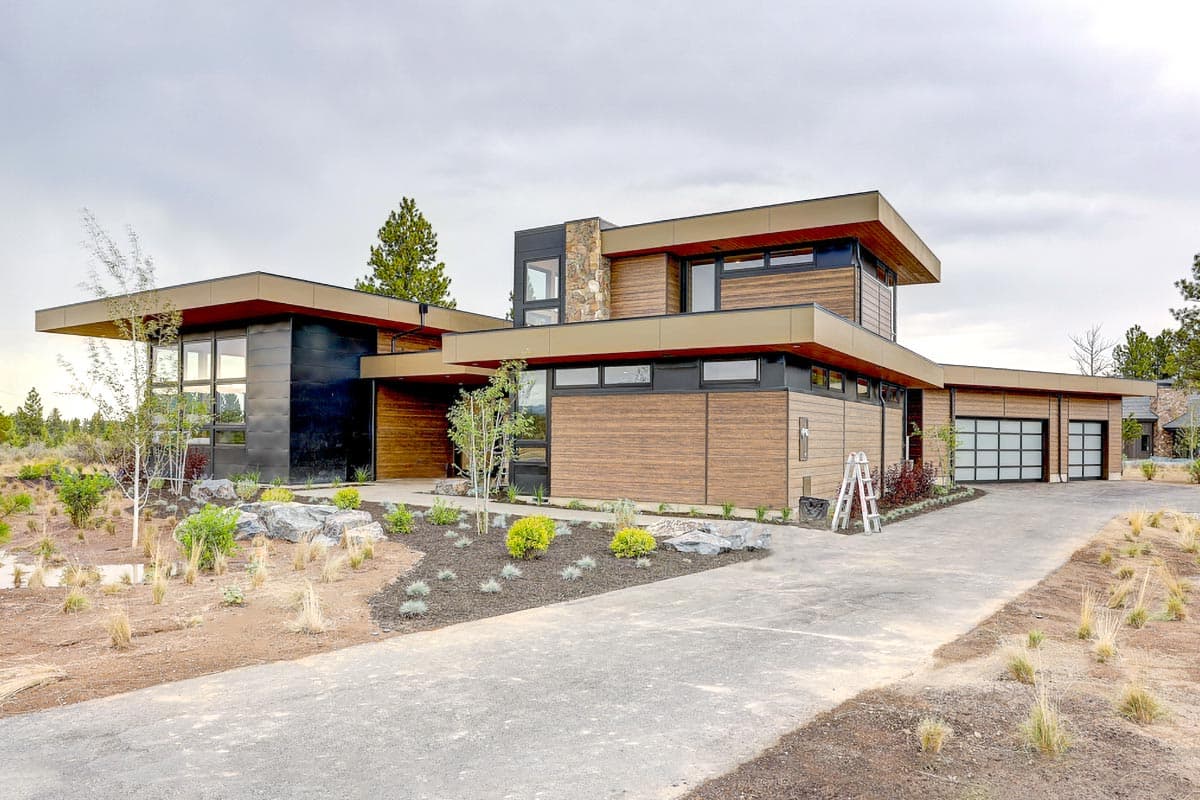

The intricate footprint of this modern, mountain home plan forms two wings, separated by a spacious courtyard that includes an area designated for a spa. The flat roof is set at a variety of heights, only adding to the great curb appeal.

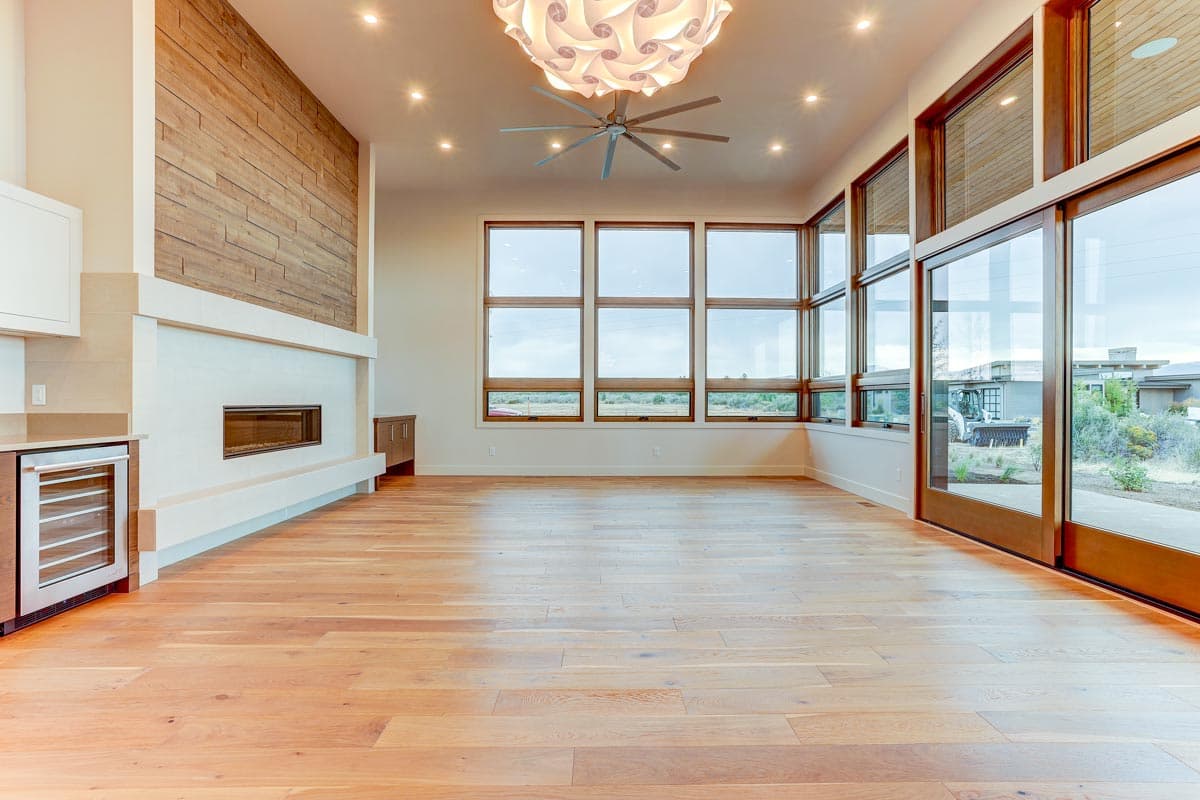

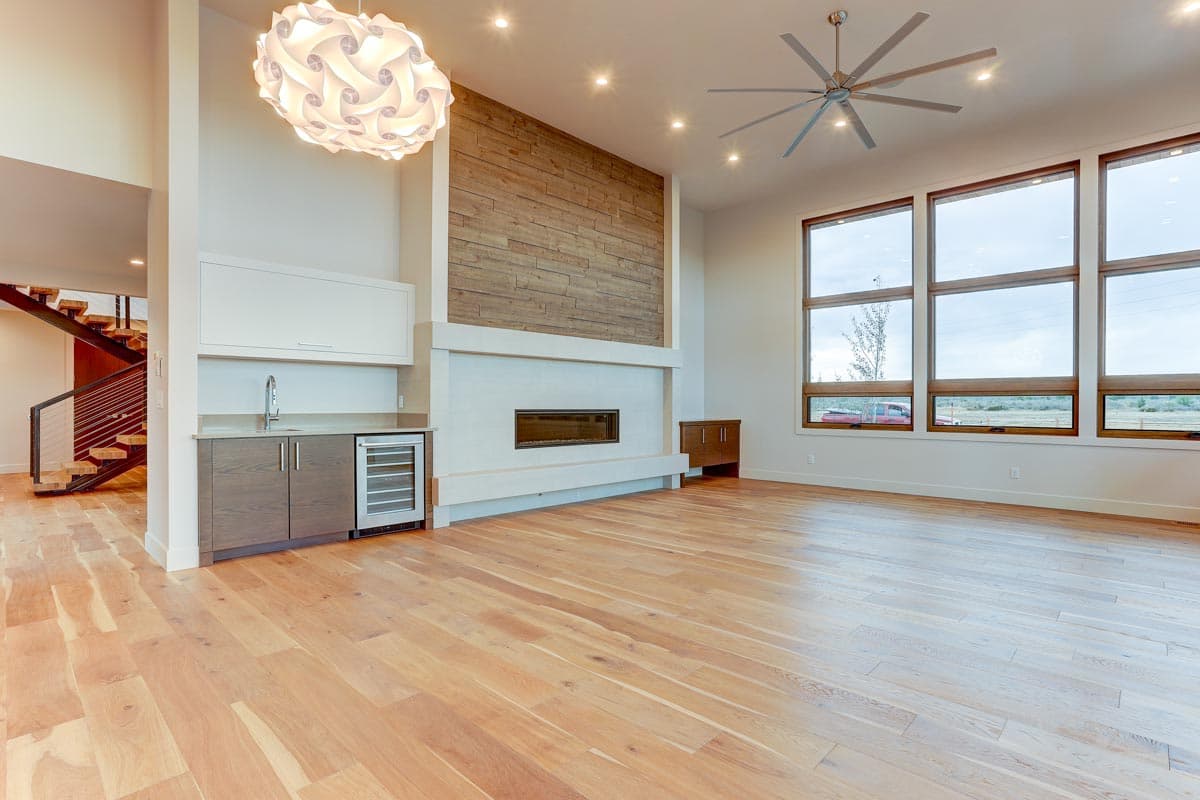

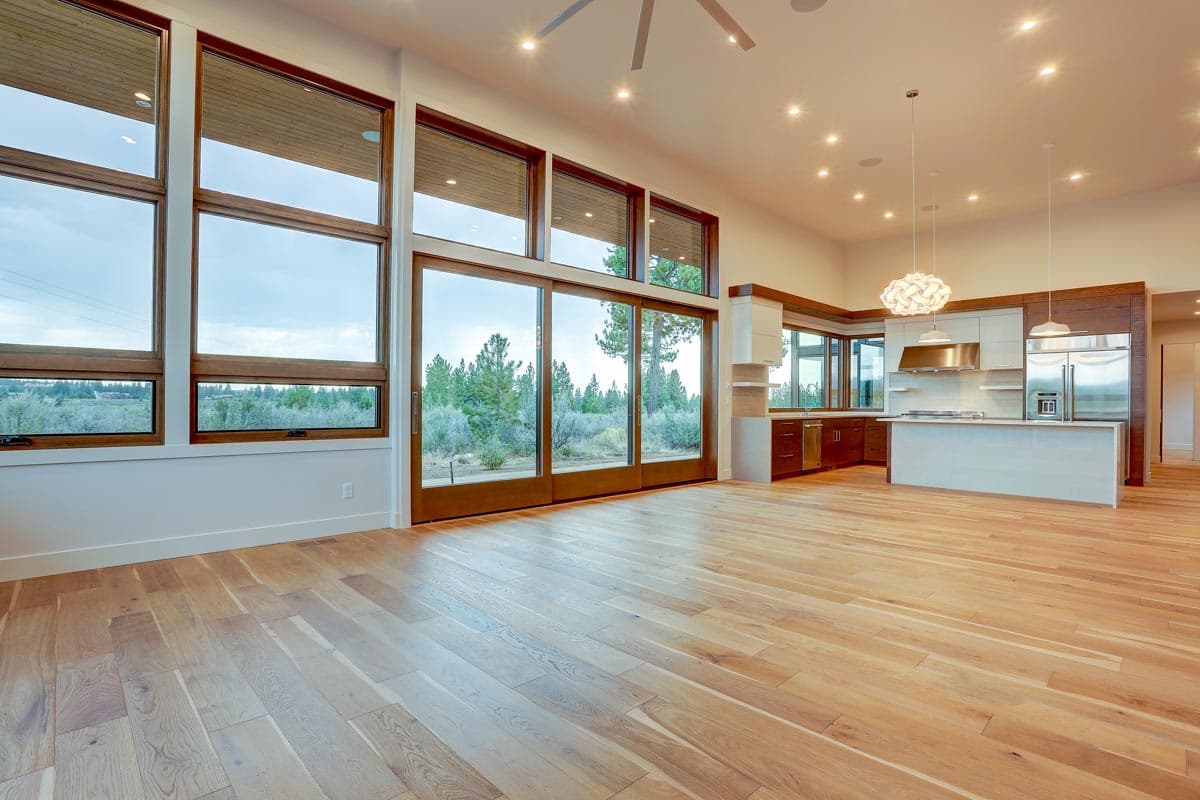

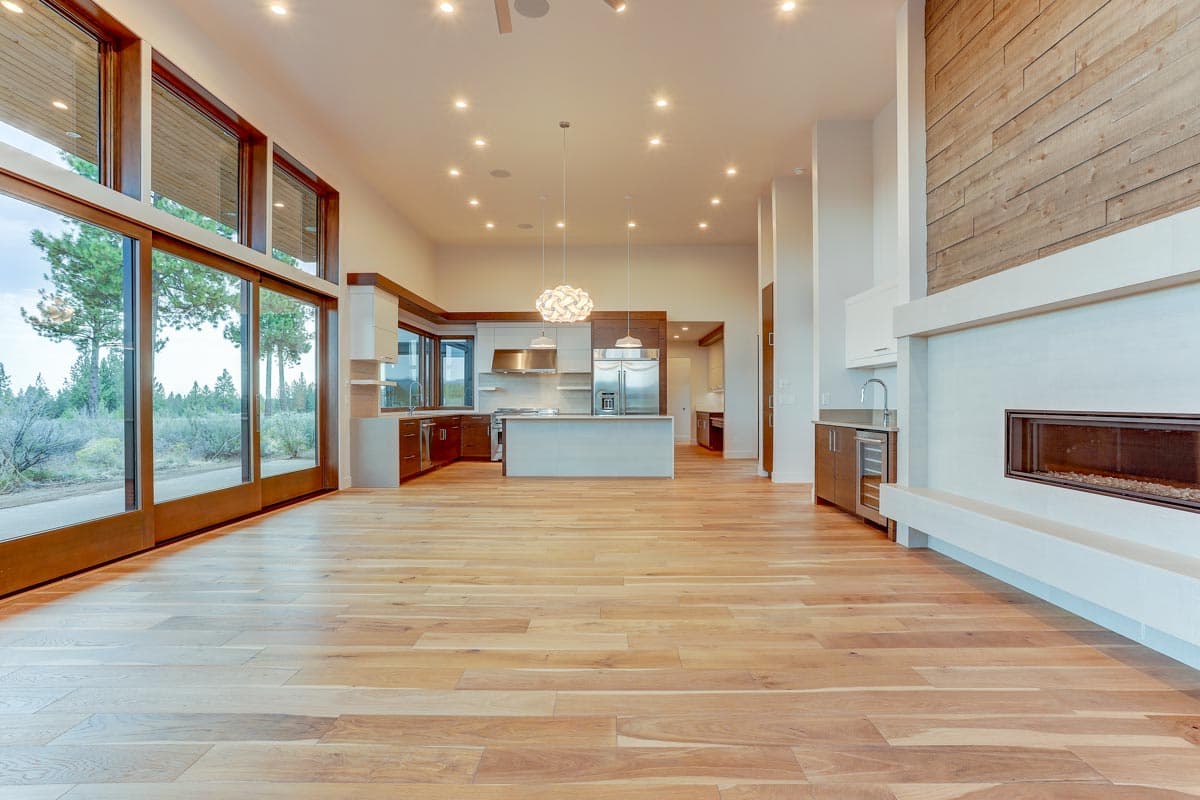

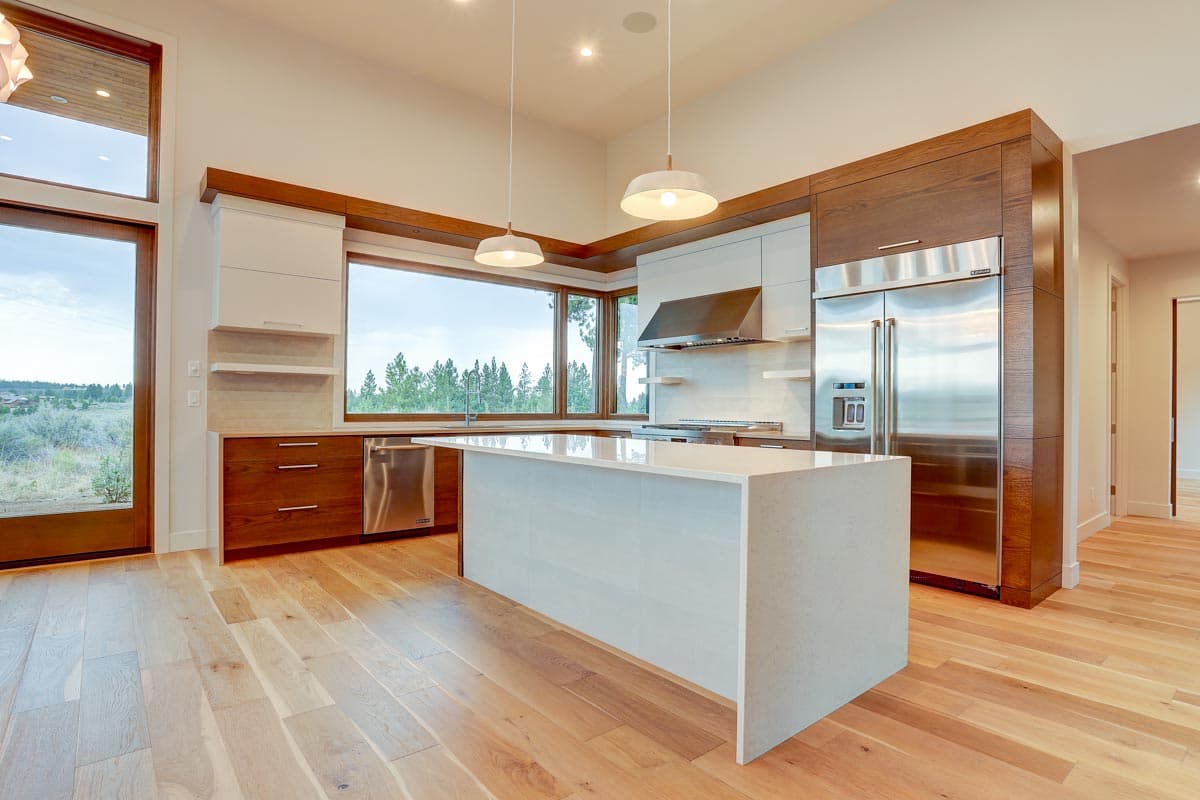

The left wing consists of the open living space, where walls of windows invite the natural light to permeate the interior. Adjacent the kitchen, a built-in desk rests across from the walk-in pantry and powder bath.

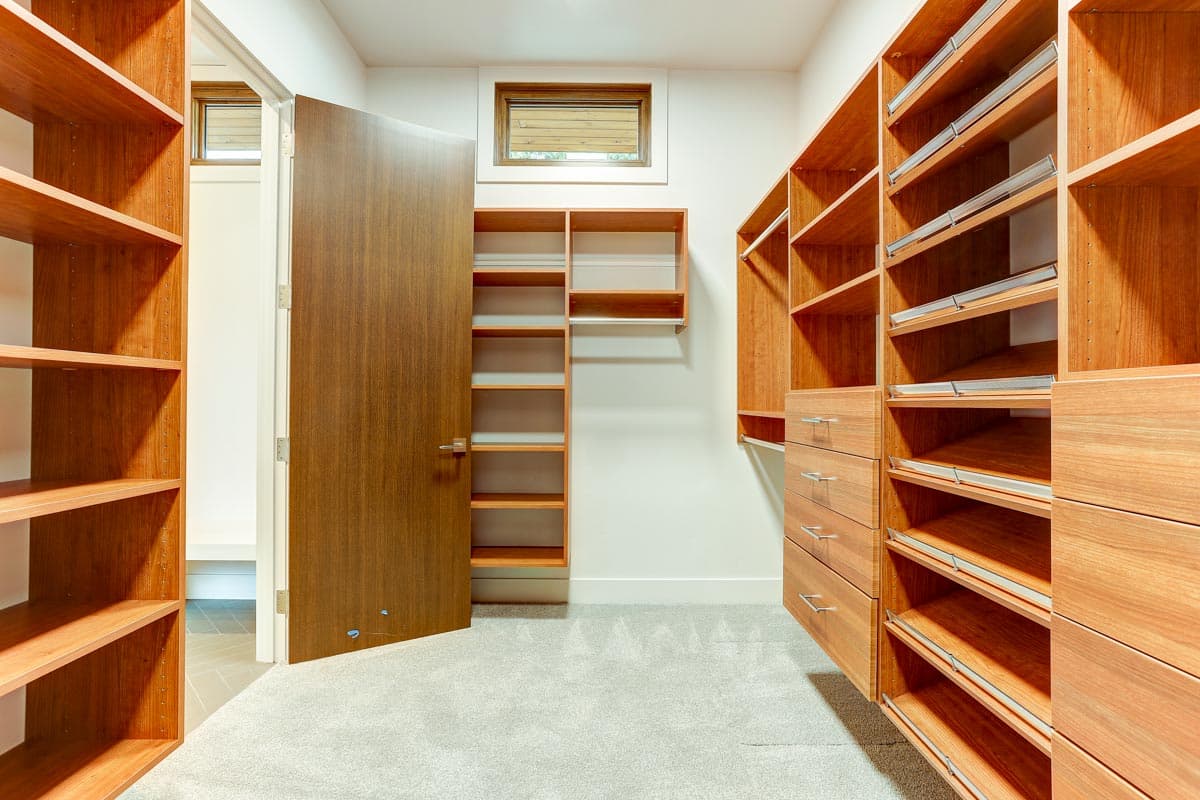

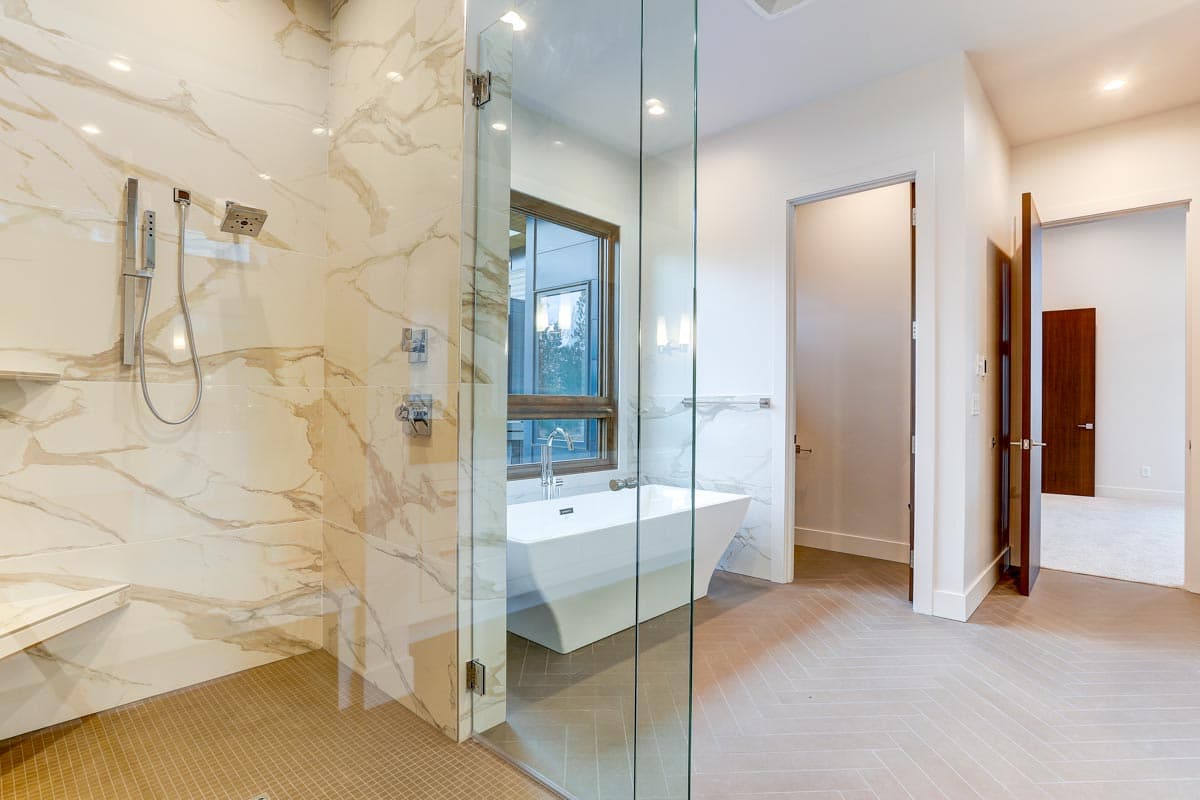

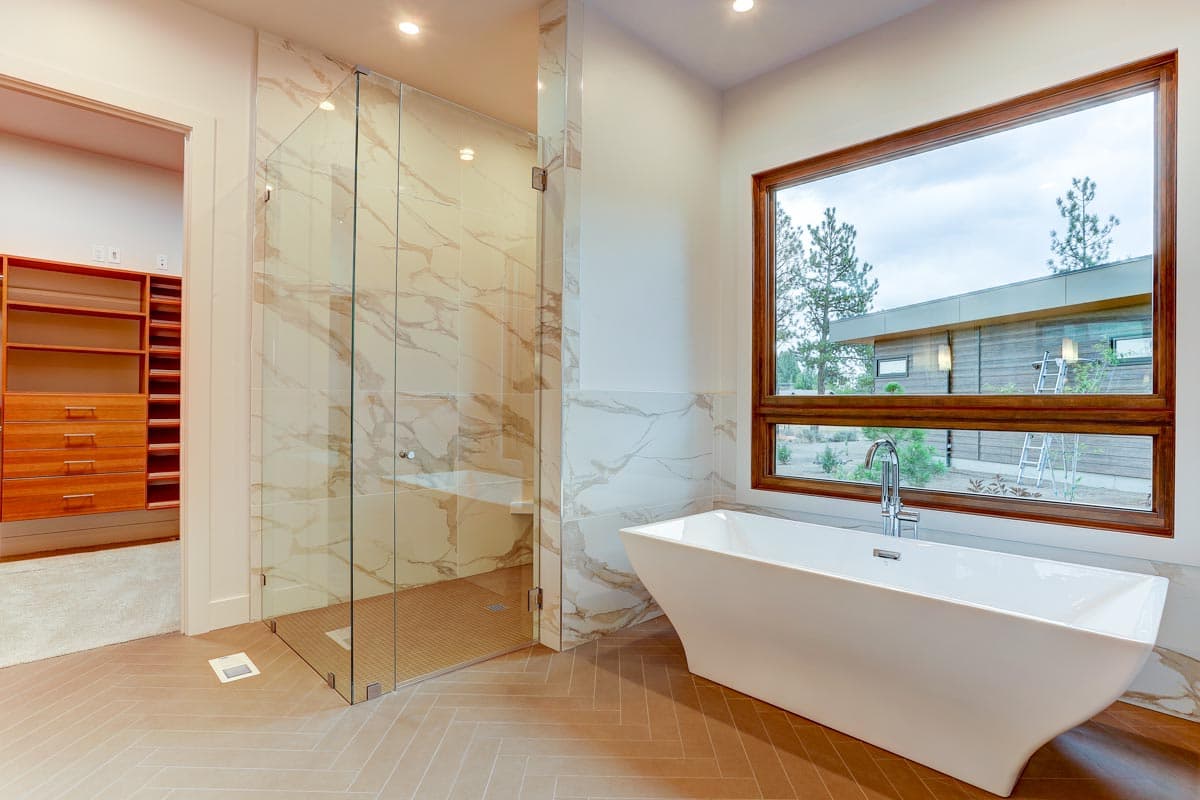

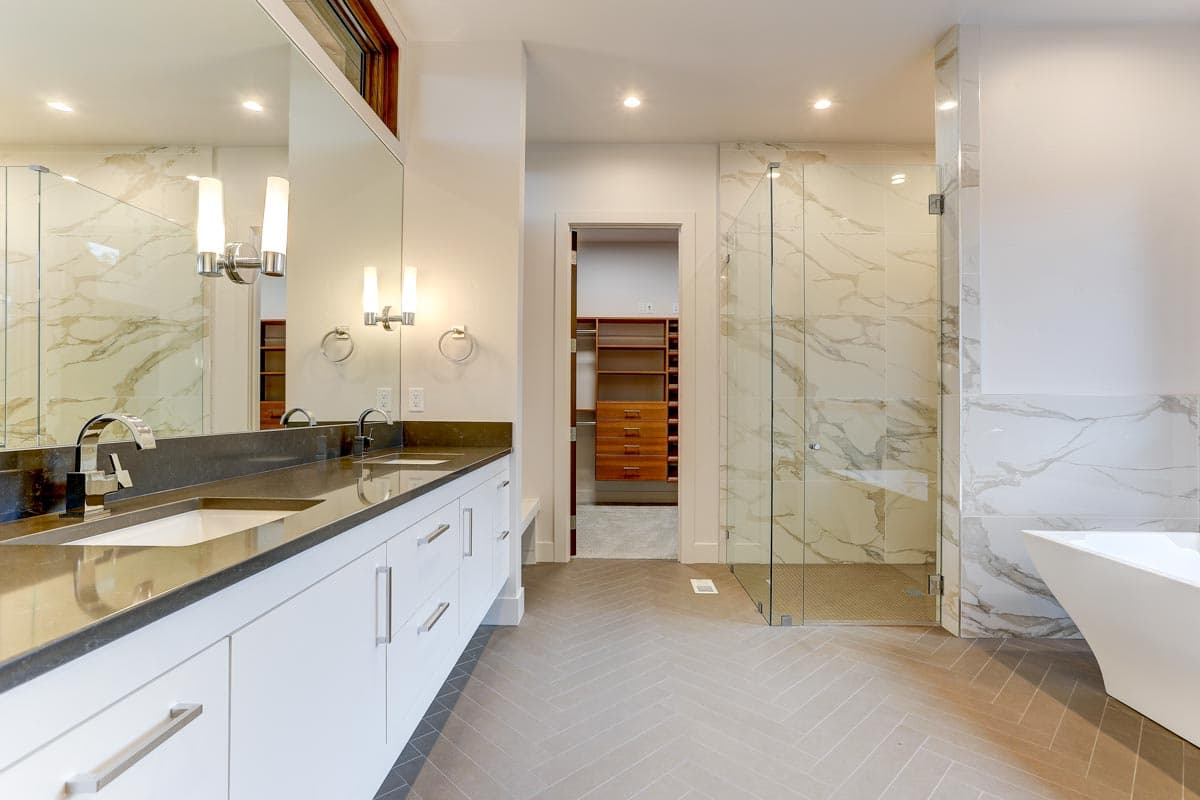

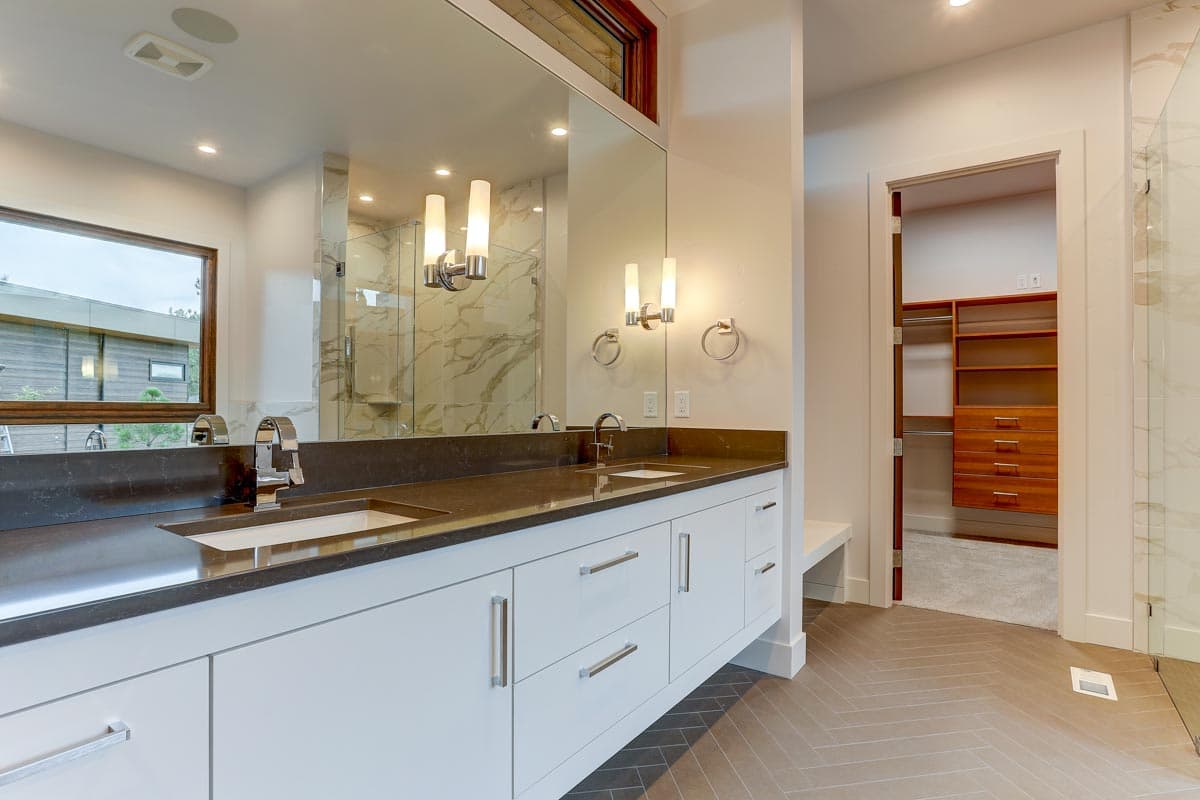

The master suite, also in the left wing, is located just past a quiet den. The luxurious en suite protrudes from the rear of the home, and includes a freestanding tub, toilet room, and roomy walk-in closet.

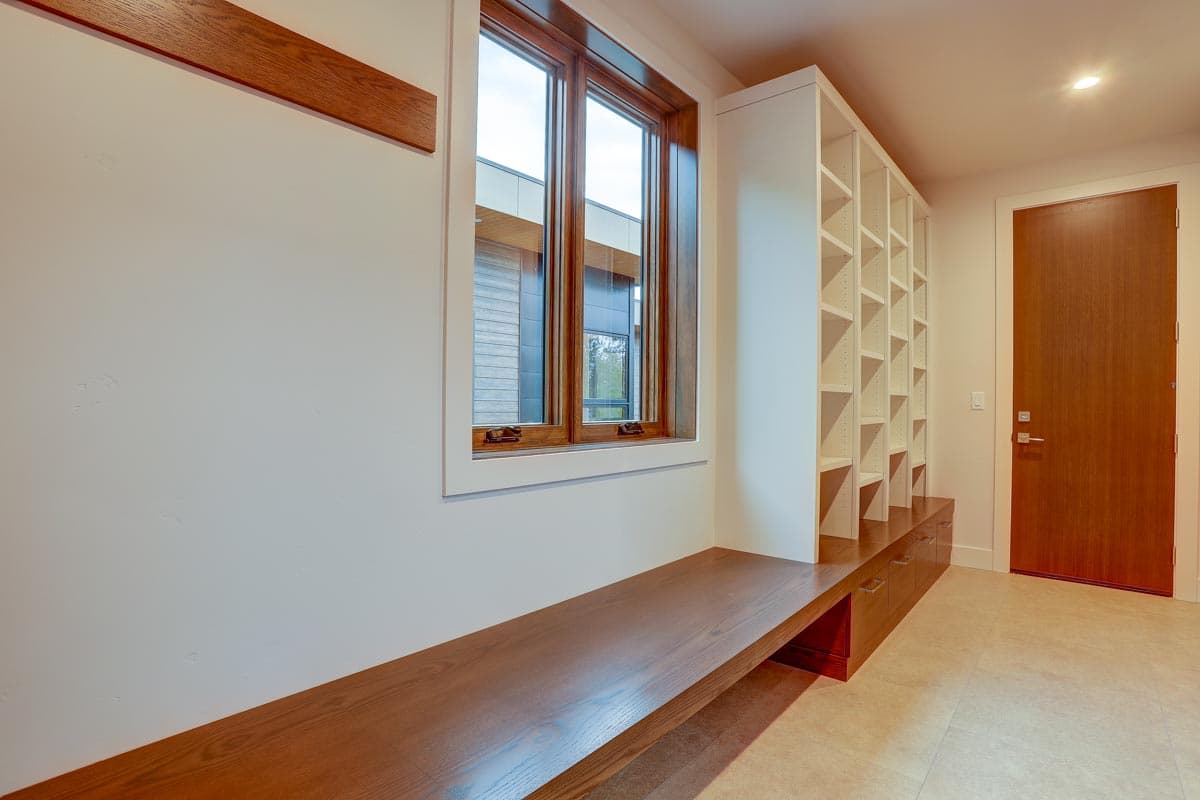

Step over to the opposite side of the home, and discover two bedrooms, each with their own full bath. The 3-car garage sits at a unique angle and opens into a mudroom, which neighbors the laundry room.
Upstairs, two additional bedrooms share the hall bath. Utilize one of the rooms for guests, or convert it into a game room for all to enjoy.

What's Included

Cover sheet with renderings or photos
Site plan from original project for reference, with floor areas and drawing index
Main level architectural plan
Upper level architectural plan

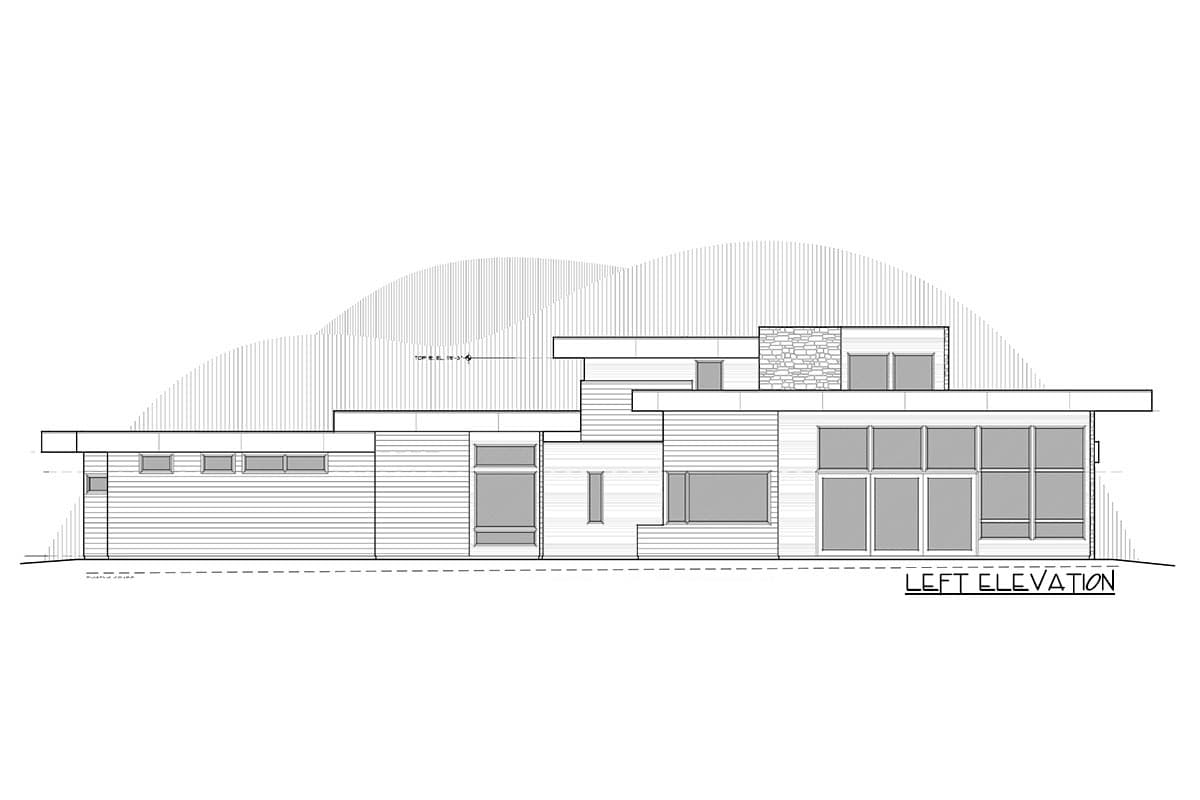

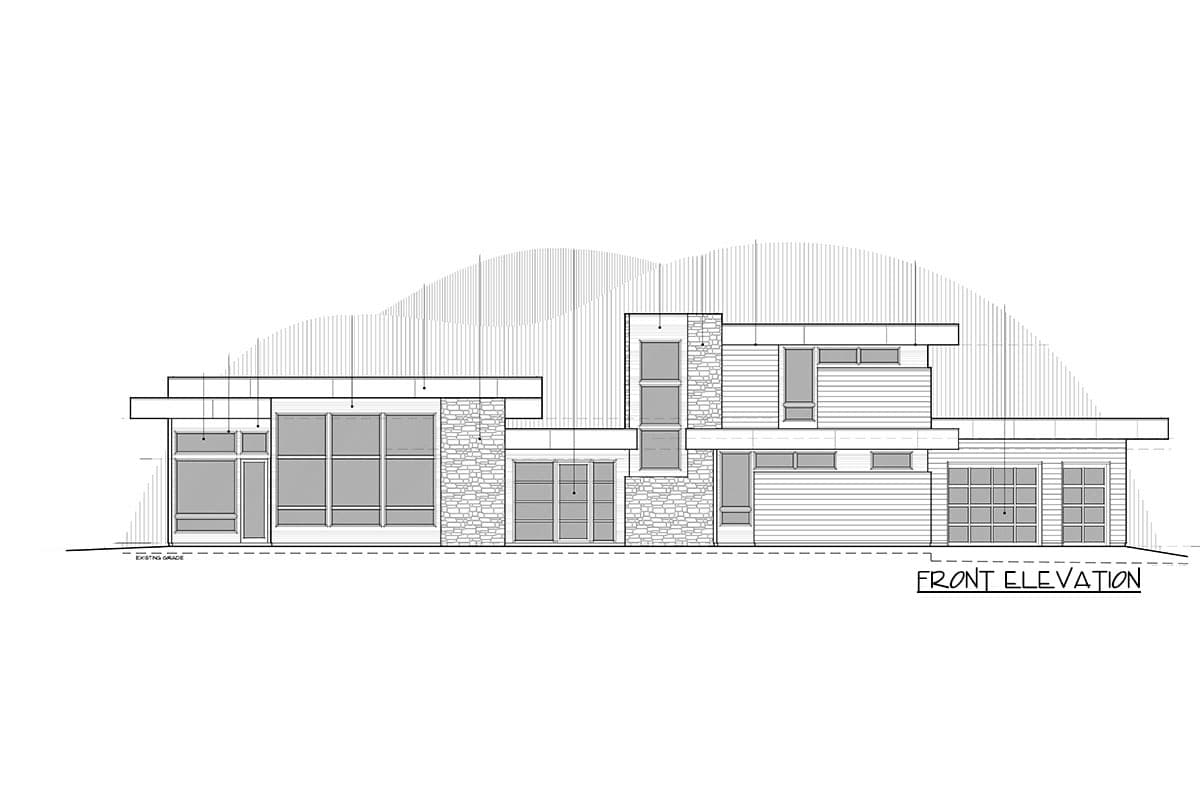

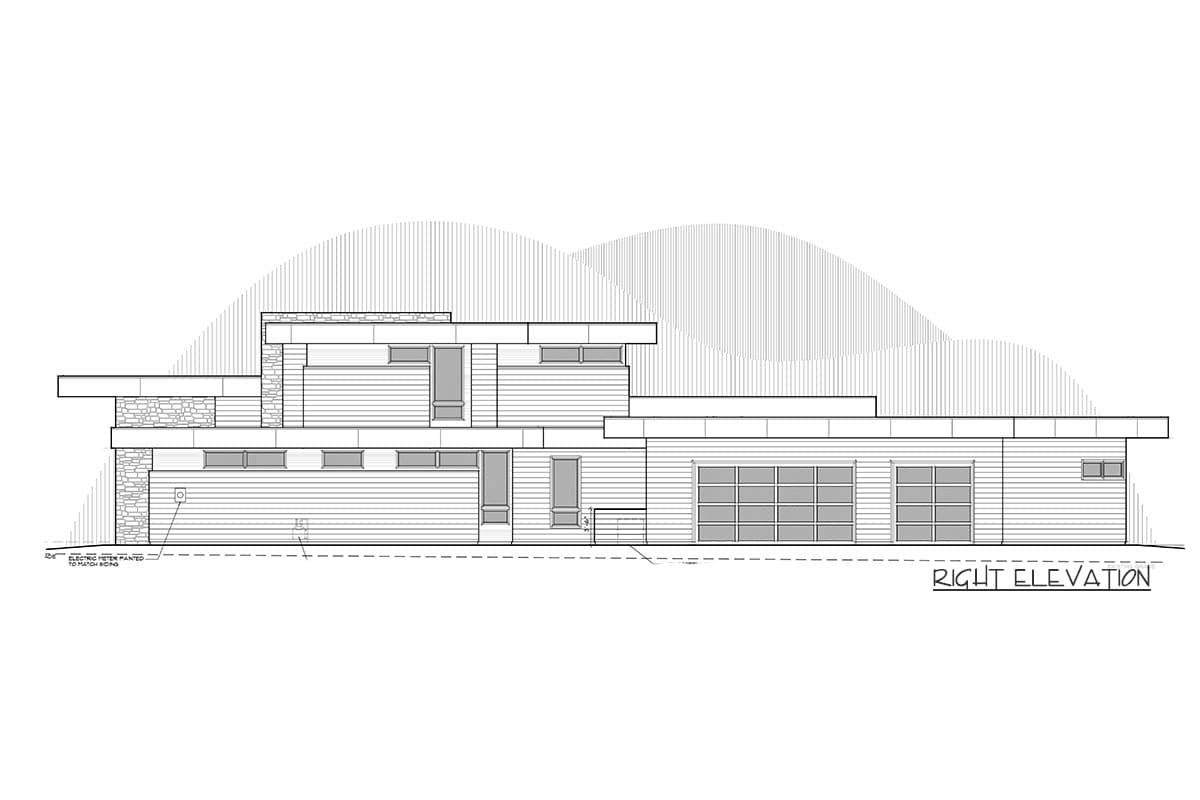

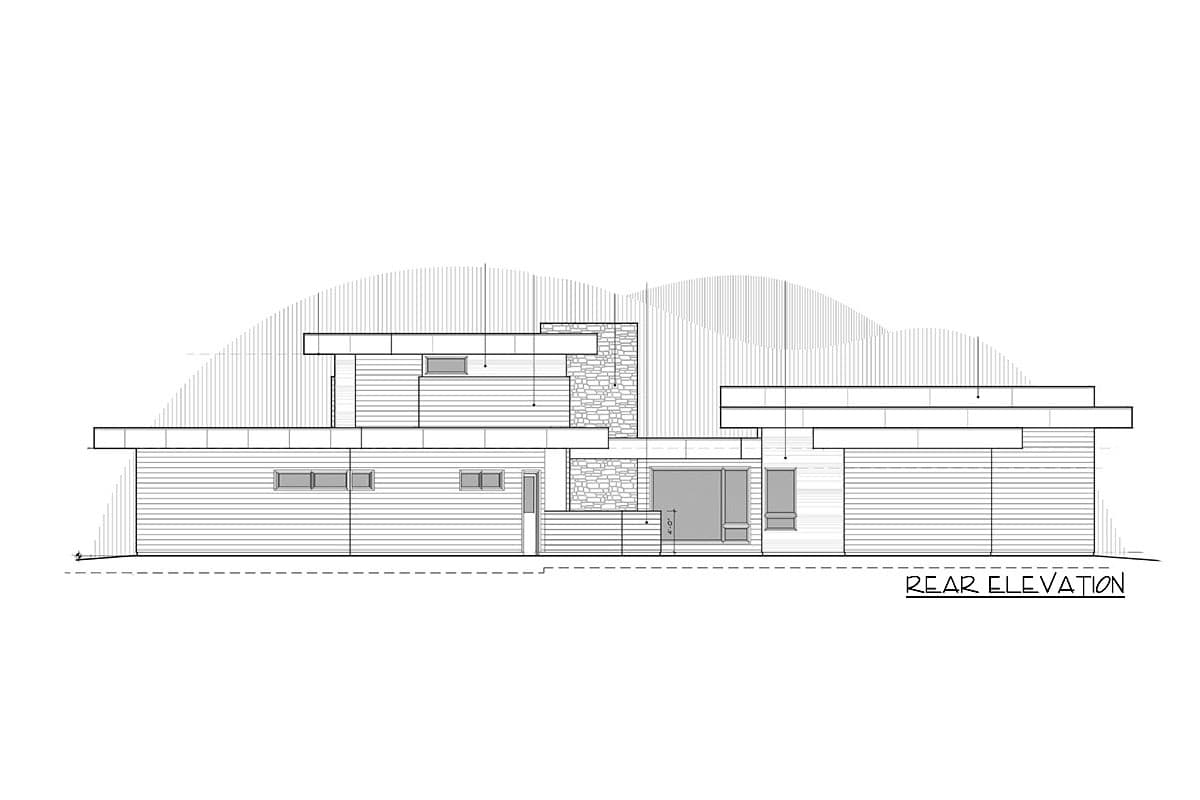

Elevations of four sides
Section drawings at ¼” scale
Typical construction details and framing details
Foundation and floor framing plan
Upper level floor and lower roof framing plan
Upper roof framing plan
Basic lighting plans for main and upper levels available for some plans. Check availability.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
