Plan 147045RML

Modern Multi-Family House Plan with Drive-Under Garage

Heated S.F.
4,281
Units
3
Width
Depth

Floor Plan

Plan 147045RML

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 147045RML

M-F 9am-5pm EST |

1-203-761-8500

Main Level

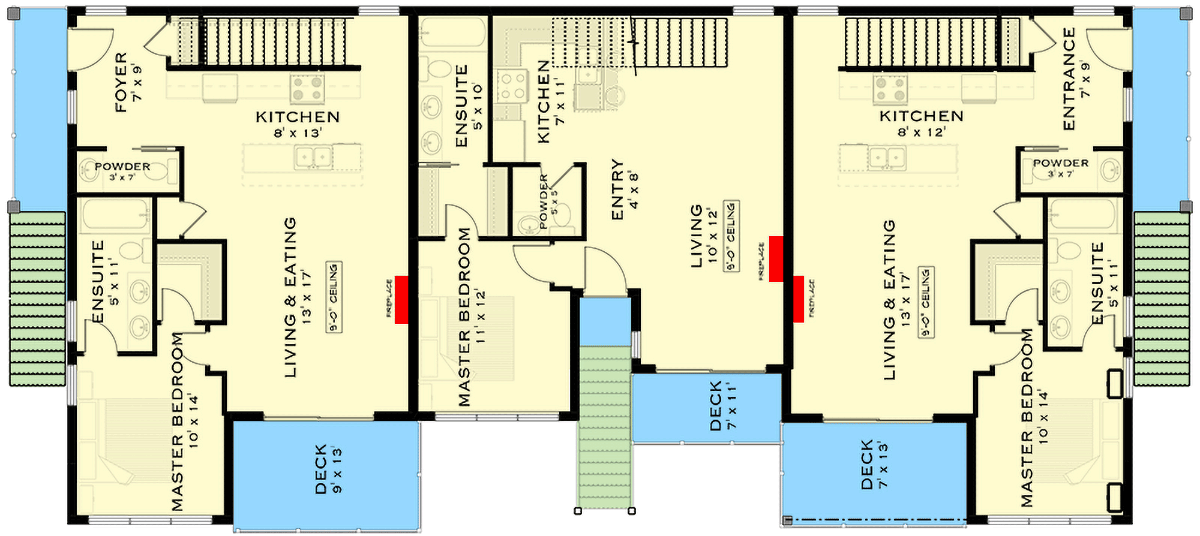

Plan 147045RML: Modern Multi-Family House Plan with Drive-Under Garage - Floor Plan - Main Level - Modern

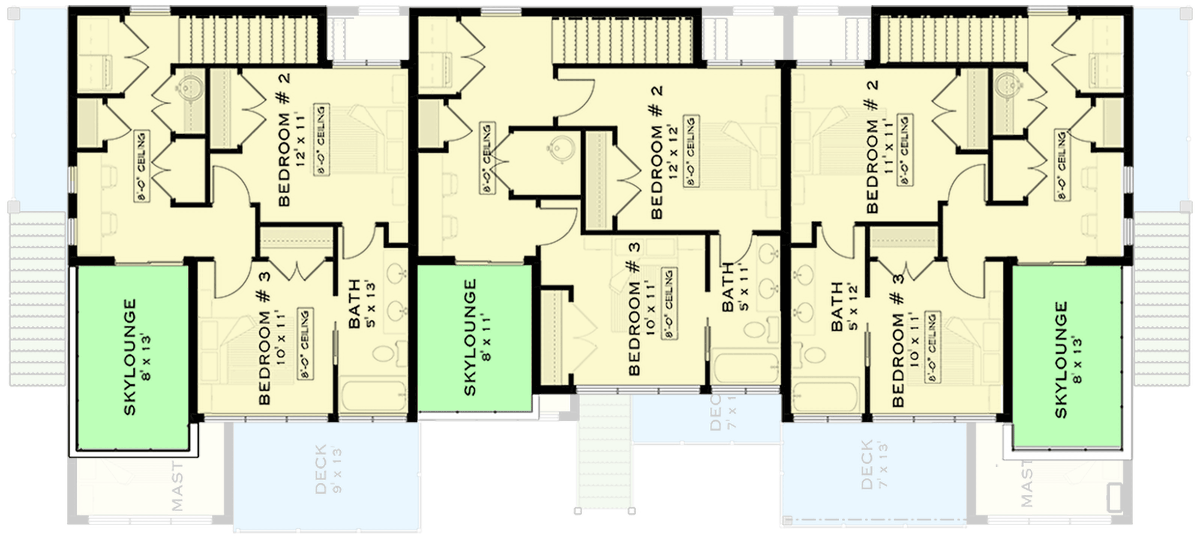

2nd Floor

Plan 147045RML: Modern Multi-Family House Plan with Drive-Under Garage - Floor Plan - 2nd Floor - Modern

3rd Floor

Plan 147045RML: Modern Multi-Family House Plan with Drive-Under Garage - Floor Plan - 3rd Floor - Modern

Plan Details

  • This modern 3-unit multi-family house plan features 4,281 sq. ft. of heated space, with 9 bedrooms, 6 full bathrooms, and 3 half baths, all complemented by an expansive 1,865 sq. ft. drive-under garage for 6 cars.
  • Entering through the front, each unit boasts open living areas on the first floor, where kitchens connect seamlessly to living and eating spaces alongside private decks.
  • The primary suite, located on the first floor of  all the units, ensures convenience with direct proximity to its ensuite bath, while the upper floors feature two additional bedrooms and a deck.
  • A mix of Jack & Jill bathrooms enhances functionality, and the dedicated home office space adds versatility to modern living arrangements.
  • Outdoor living is emphasized with 546 sq. ft. of with each unit getting a deck and porch, ideal for relaxation and social gatherings.
  • Storage needs are met within the design, including a dedicated storage area, supporting the practicality of multi-unit living.
Unit A
Heated Area
1,455Sq. Ft.
829 Sq. Ft. 1st
626 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
620 Sq. Ft.
Dimensions
28'width
37'depth
Unfinished Areas
620 Sq. Ft. Garage
Unit B
Heated Area
1,371Sq. Ft.
724 Sq. Ft. 1st
647 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
600 Sq. Ft.
Dimensions
28'width
37'depth
Unfinished Areas
600 Sq. Ft. Garage
Unit C
Heated Area
1,455Sq. Ft.
829 Sq. Ft. 1st
626 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
645 Sq. Ft.
Dimensions
28'width
37'depth
Unfinished Areas
645 Sq. Ft. Garage

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,281 sq. ft.

1st Floor

2,382 sq. ft.

2nd Floor

1,899 sq. ft.

Deck & Porch

546 sq. ft.

Storage

161 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 10"

Depth

37' 3"

Max Ridge Height

32' 6"

Garage

Type

Attached, Drive Under

Area

1865 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

.25 on 12

Framing Type

Stick

Architectural Style

Modern

Special Features

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

4,281 sq. ft.

1st Floor

2,382 sq. ft.

2nd Floor

1,899 sq. ft.

Deck & Porch

546 sq. ft.

Storage

161 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 10"

Depth

37' 3"

Max Ridge Height

32' 6"

Garage

Type

Attached, Drive Under

Area

1865 sq. ft.

Count

6 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

.25 on 12

Framing Type

Stick

Architectural Style

Modern

Special Features

Bedrooms - Split

Home Office

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 1st Floor
