Modern Northwest Garage Plan with Workshop and Oversized Den
Heated S.F.
760
Baths
0.5
Stories
1
Cars
4
What's Included
Plan Details
  • This oversized garage plan gives you 1,020 square feet of covered space with a drive-through bay with 7' by 8' overhead doors and a second door with 18' by 8' overhead door suitable for your large storage needs. Inside you will find an oversized Den and Kitchen - 760 square feet -  along with a a wrap around deck.
  • Architectural Designs' primary focus is to make the process of finding and buying plans more convenient for those interested in new constructing.
  • Our website offers a vast collection of garage plans, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best garage plans available.
  • We can modify any garage plan you see on our site. Learn more about modifications.
What's Included

  • General notes
  • Floor plans
  • Roof plan
  • Sections
  • Framing detail
  • Foundation plan

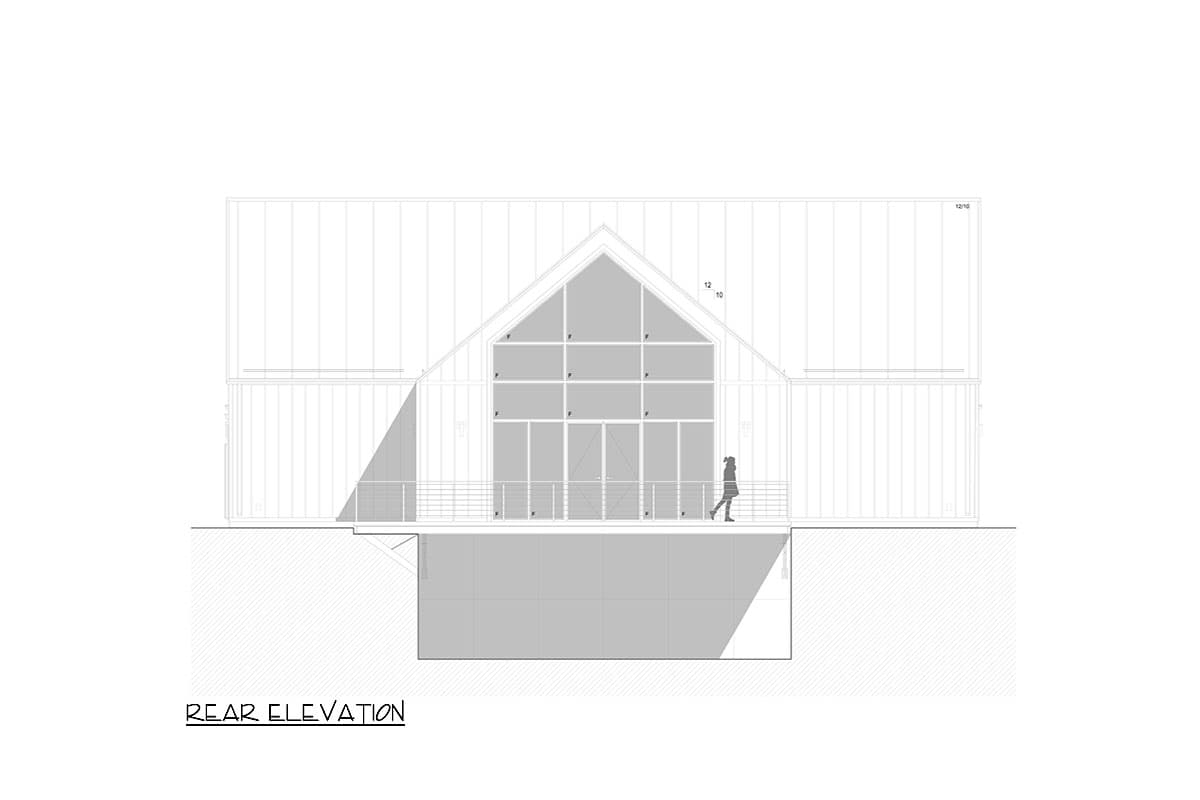

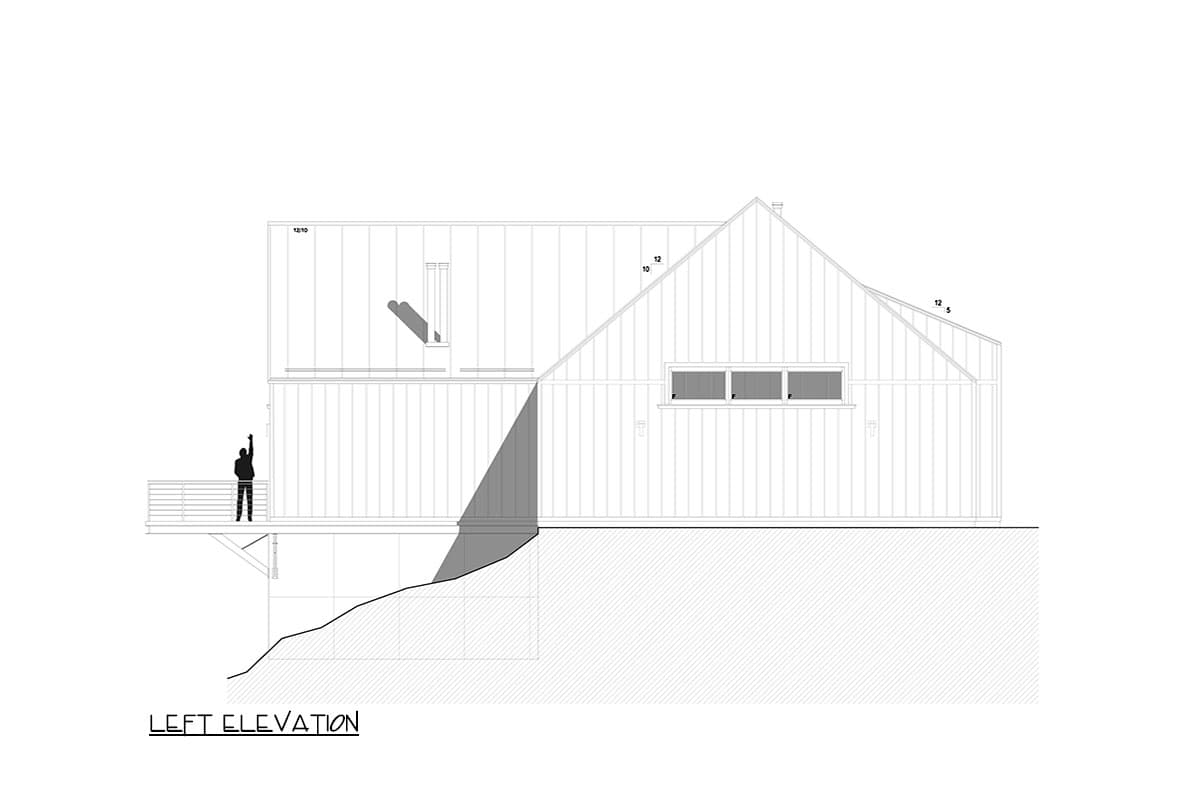

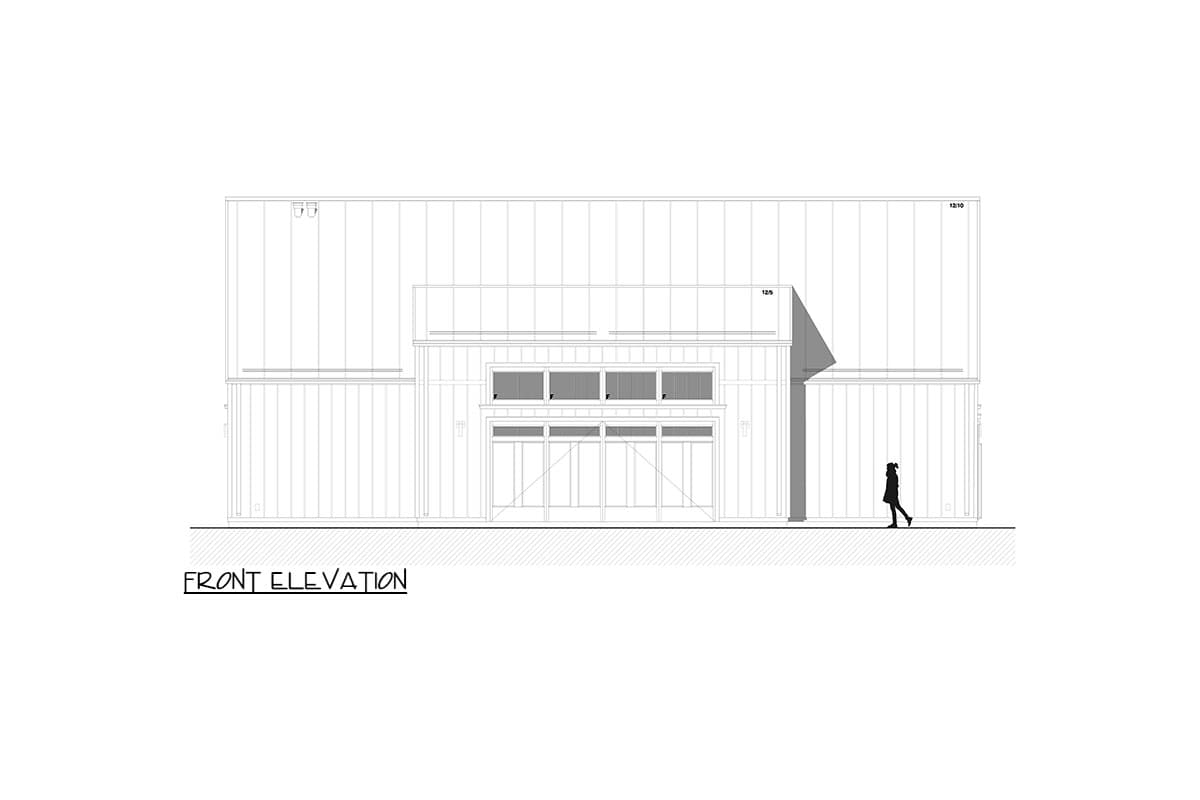

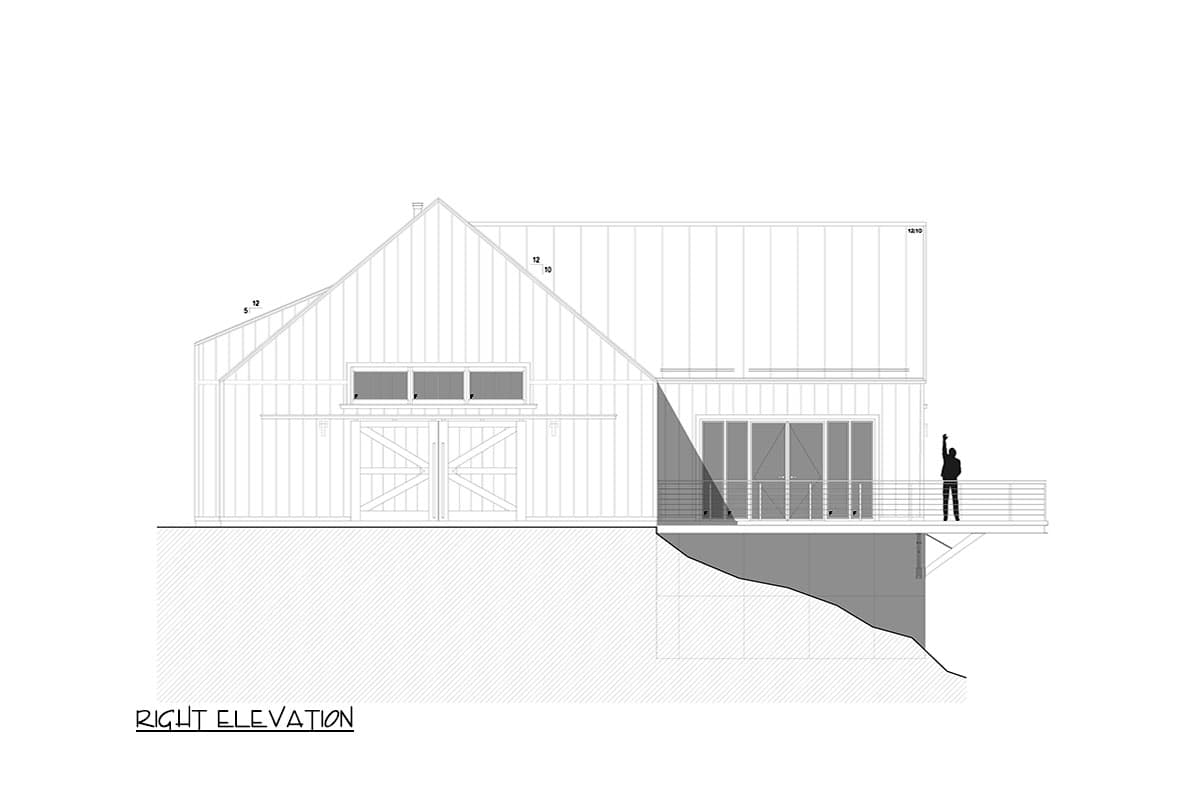

  • Elevations (all four sides)
  • Electrical plans
  • Window and door schedules

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Northwest Garage Plan with Workshop and Oversized Den

  • 760

    Heated s.f.

  • Beds

  • 0.5

    Baths

  • 1

    Floors

  • 4

    Car garage

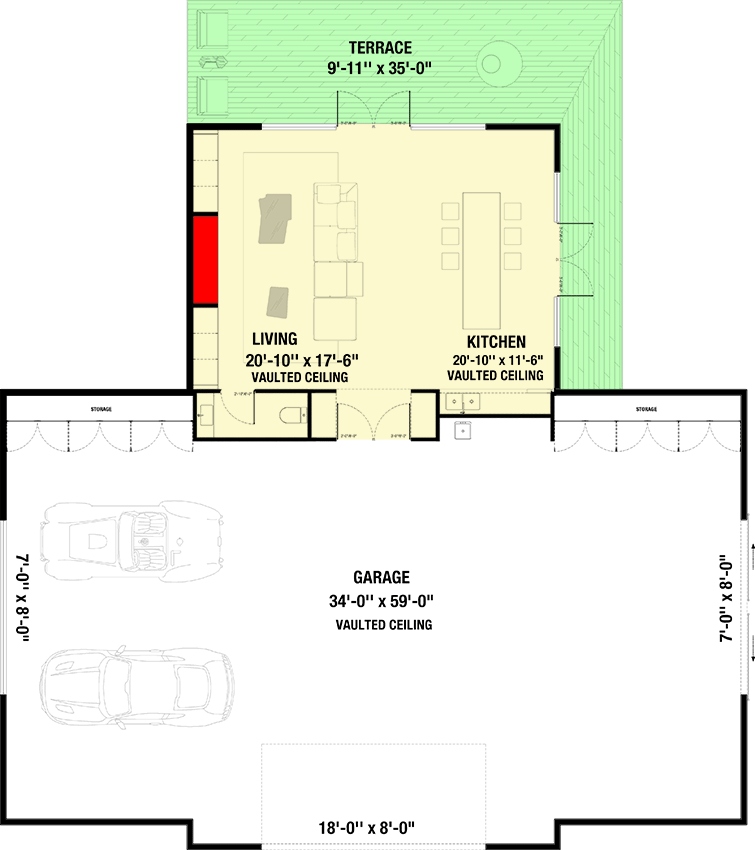

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 760 sq. ft.
  • 1st Floor: 760 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 68' 3"
  • Max ridge height: 25' 11"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Garage

  • Area: 1020 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
