Plan 100317GHR

Exclusive

Modern Style Duplex House Plan with Full-Floor 2-Bed 2-Bath 800 Sq Ft Units

Heated S.F.
1,588
Units
2
Width
Depth

Floor Plan

Plan 100317GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100317GHR

M-F 9am-5pm EST |

1-203-761-8500

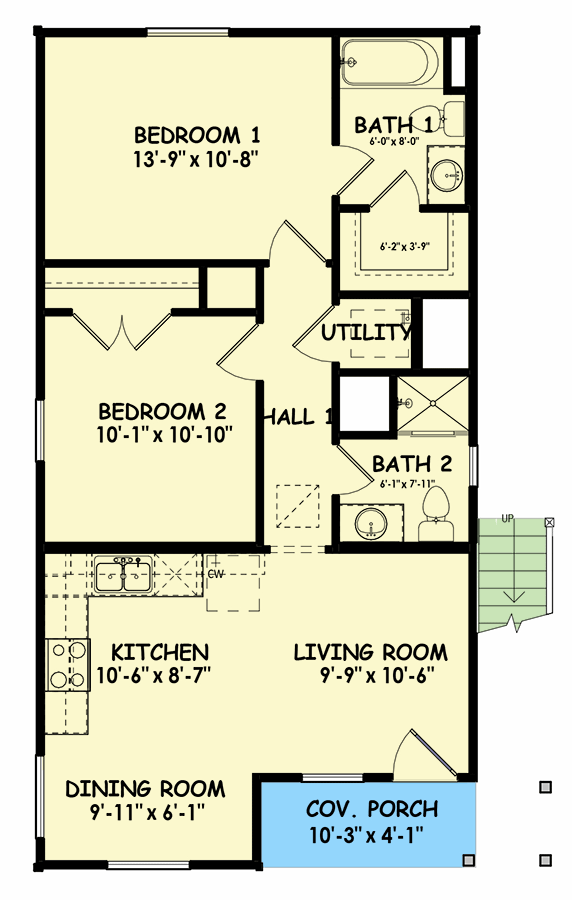

Main Level

Plan 100317GHR: Modern Style Duplex House Plan with Full-Floor 2-Bed 2-Bath 800 Sq Ft Units - Floor Plan - Main Level

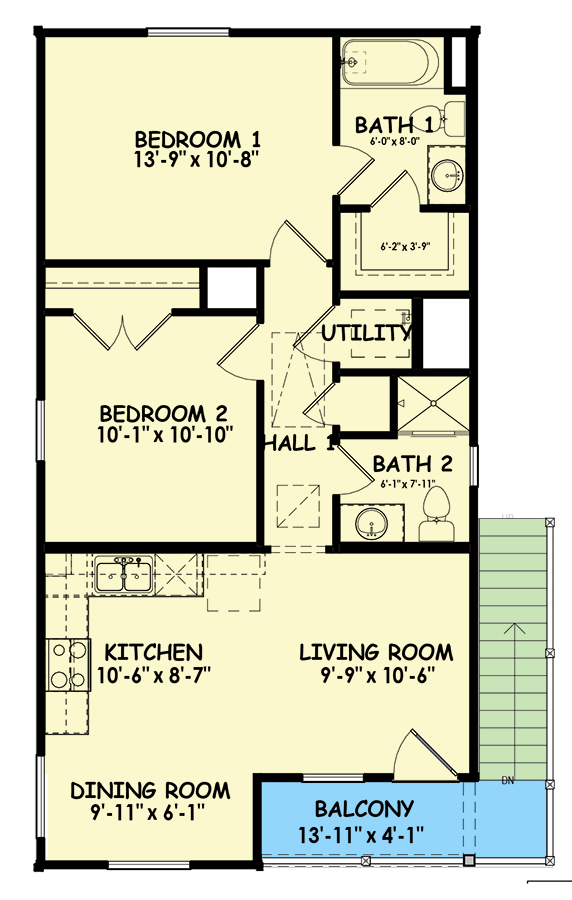

2nd Floor

Plan 100317GHR: Modern Style Duplex House Plan with Full-Floor 2-Bed 2-Bath 800 Sq Ft Units - Floor Plan - 2nd Floor

Plan Details

  • This duplex house plan gives you full-floor units. Each floor gives you 794 square feet of heated living with 2 beds and 2.5 baths.
  • This duplex house plan is a great income-producing plan. Not only are there two full-floor units but there is also the garage apartment.
  • Related Plan: Get a matching detached 2-car garage with 460 sq ft studio apartment above with plan 100345GHR.
Unit Downstairs
Heated Area
794Sq. Ft.
Beds
2Beds
Baths
2Full Baths
Dimensions
20'width
40'depth
27'height
Unit Upstairs
Heated Area
794Sq. Ft.
Beds
2Beds
Baths
2Full Baths
Dimensions
20'width
40'depth
27'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

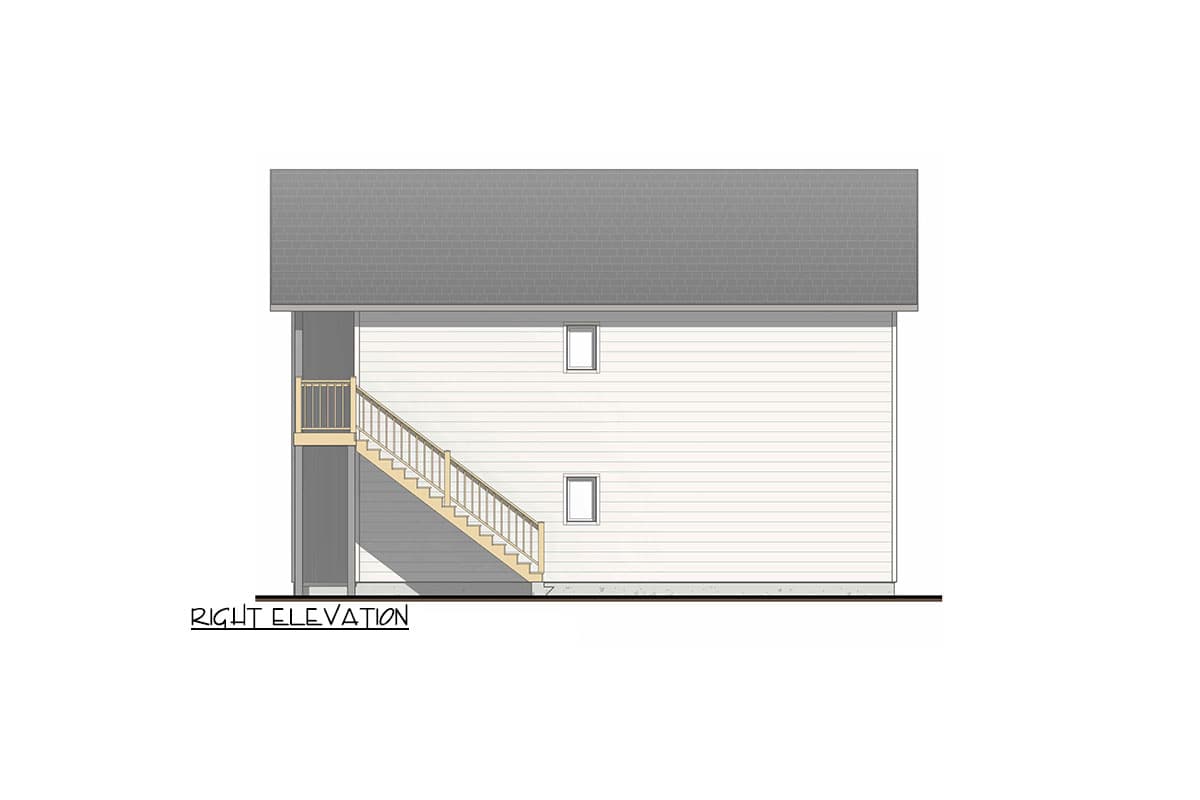

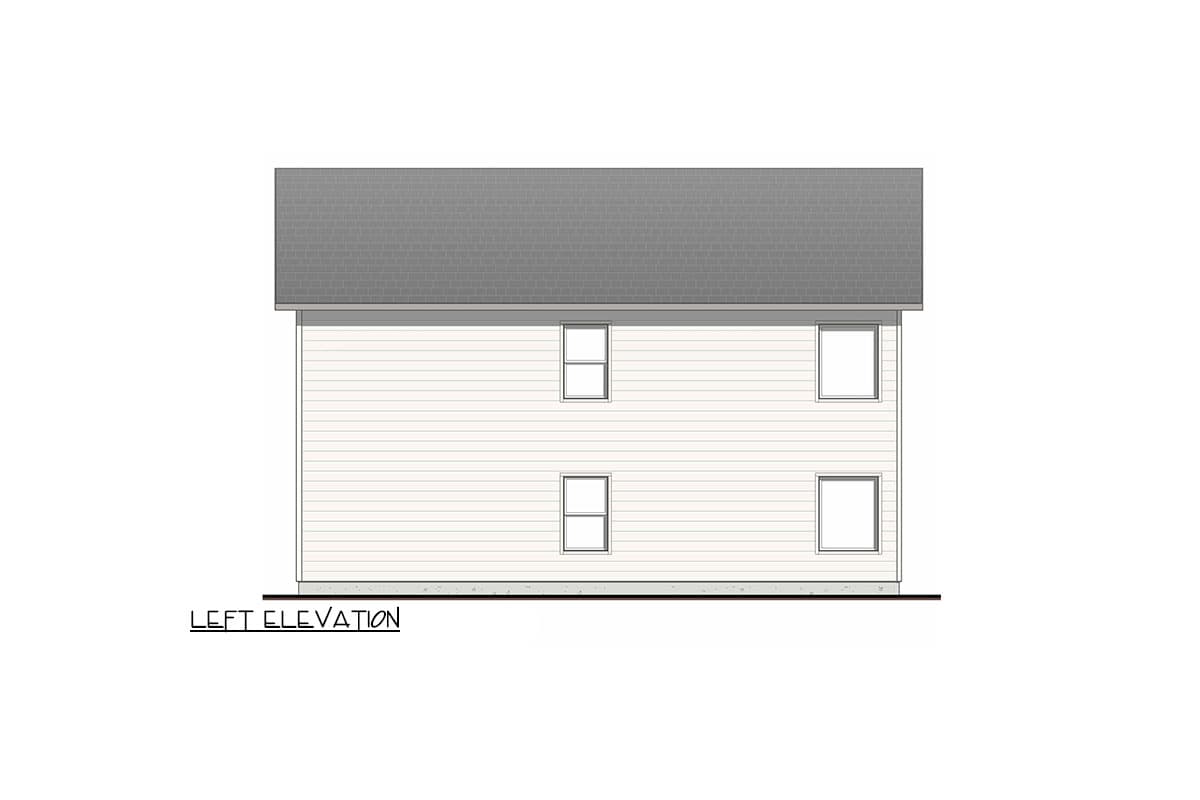

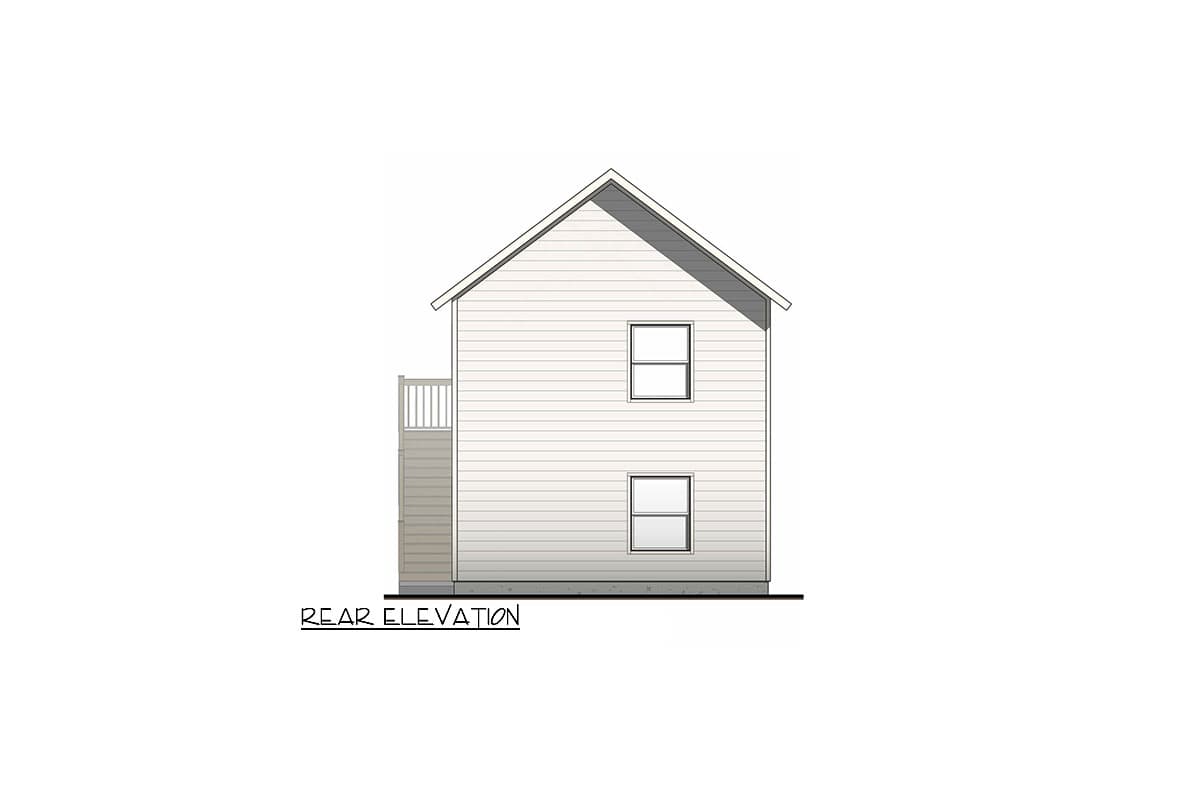

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,588 sq. ft.

1st Floor

794 sq. ft.

2nd Floor

794 sq. ft.

Porch, Front

43 sq. ft.

Balcony / Veranda

58 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 11"

Depth

40' 0"

Max Ridge Height

27' 6"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,588 sq. ft.

1st Floor

794 sq. ft.

2nd Floor

794 sq. ft.

Porch, Front

43 sq. ft.

Balcony / Veranda

58 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

20' 11"

Depth

40' 0"

Max Ridge Height

27' 6"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Plan Collections

Exclusive
