Modern Transitional House Plan with 3 Bedrooms and Courtyard

Name: Plan 623680DJ: Modern Transitional House Plan with 3 Bedrooms and Courtyard
Brand: Architectural Designs
SKU: 623680DJ
Price: 1799.0 USD
Availability: InStock

Heated S.F.

2,665

Beds

Baths

2.5

Stories

Cars

Tour

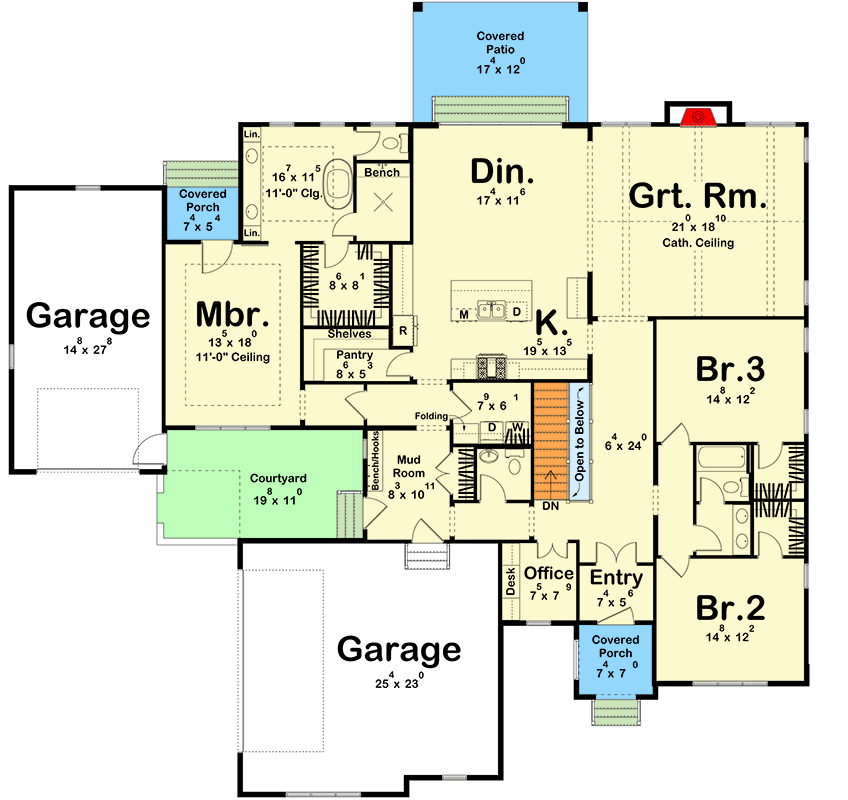

Floor Plan

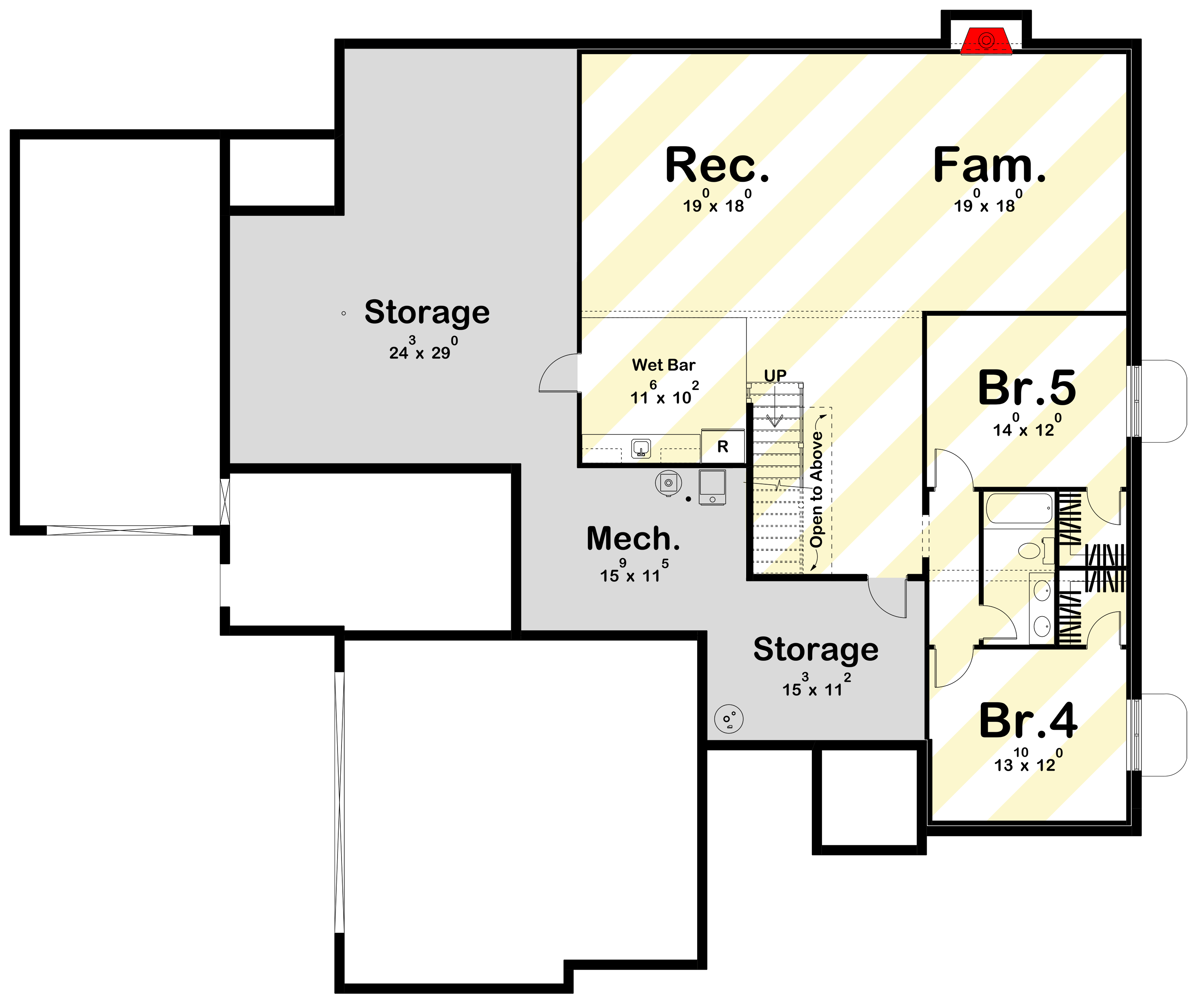

Optional Lower Level Layout ($ Paid Option)

Plan Details

This 2,665 square foot European-inspired modern transitional offers 3 bedrooms, 2.5 baths, and a spacious 1,064 square foot 3-car garage.
The arrival experience is defined by a welcoming front entry that flows into a home office, setting a professional tone right from the start.
The heart of the home features an open-concept layout where the kitchen, dining area, and cathedral-ceiling great room blend seamlessly for effortless daily living.
A private primary suite occupies its own wing for maximum seclusion, while two secondary bedrooms are situated on the opposite side of the home to ensure peace and quiet.
The design centers around a beautiful private courtyard, creating a tranquil outdoor retreat accessible from the main living areas.
An optional lower level provides 1,585 square feet of additional space, complete with a recreation room, a wet bar, and two extra bedrooms for guests or family.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
