Plan 623650DJ

Modern Transitional House Plan with Three Bedrooms and Expansive Finished Potential

Heated S.F.
2,895
Beds
3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 623650DJ

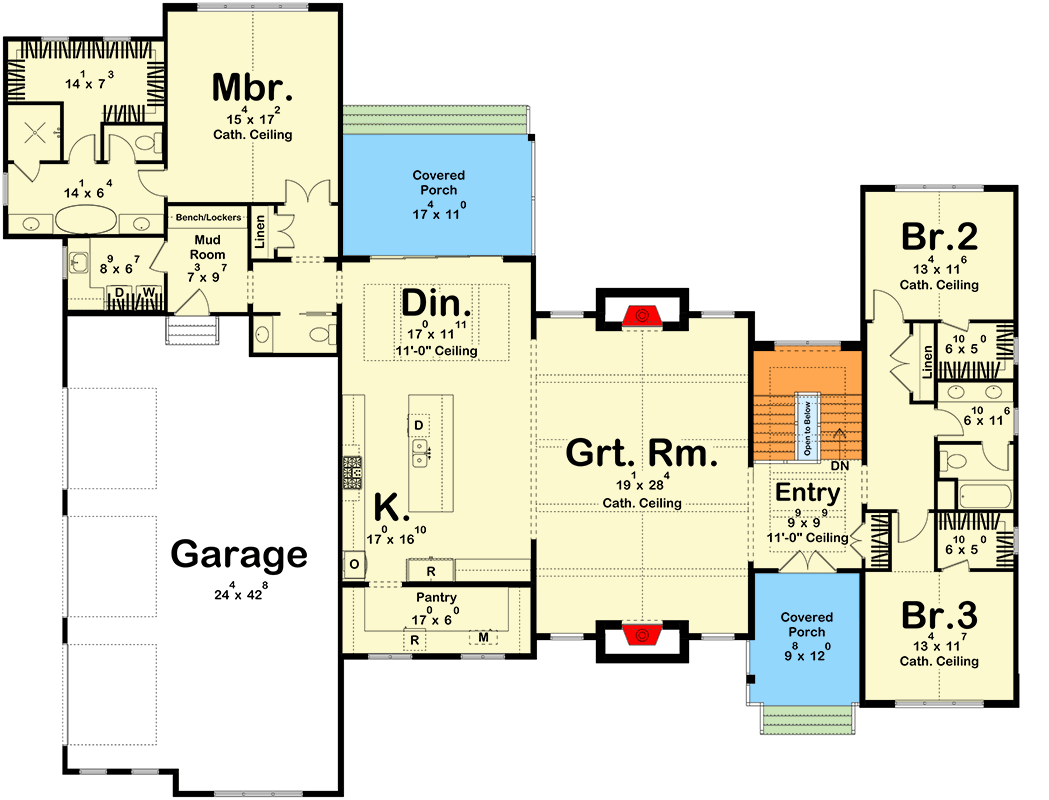

Floor Plan 1

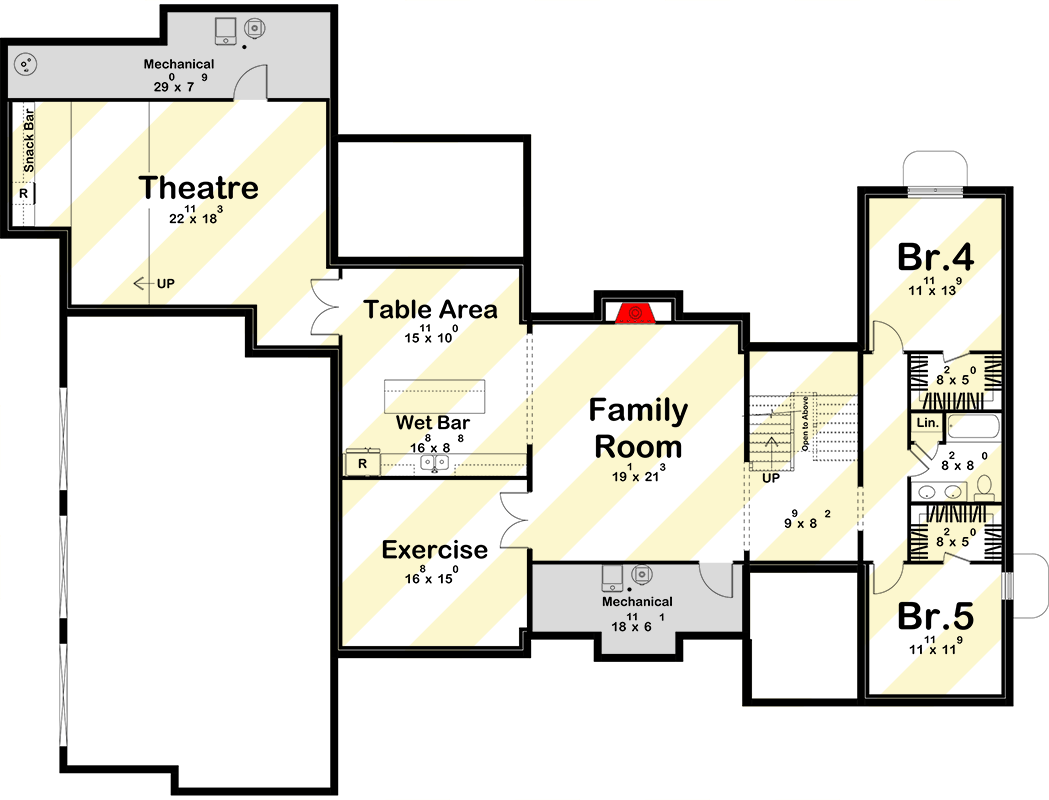

Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)

Plan 623650DJ

M-F 9am-5pm EST |

1-203-761-8500

Plan 623650DJ: Modern Transitional House Plan with Three Bedrooms and Expansive Finished Potential - Floor Plan - - Modern, Transitional

Optional Lower Level Layout ($ Paid Option)

Plan 623650DJ: Modern Transitional House Plan with Three Bedrooms and Expansive Finished Potential - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Modern, Transitional

Plan Details

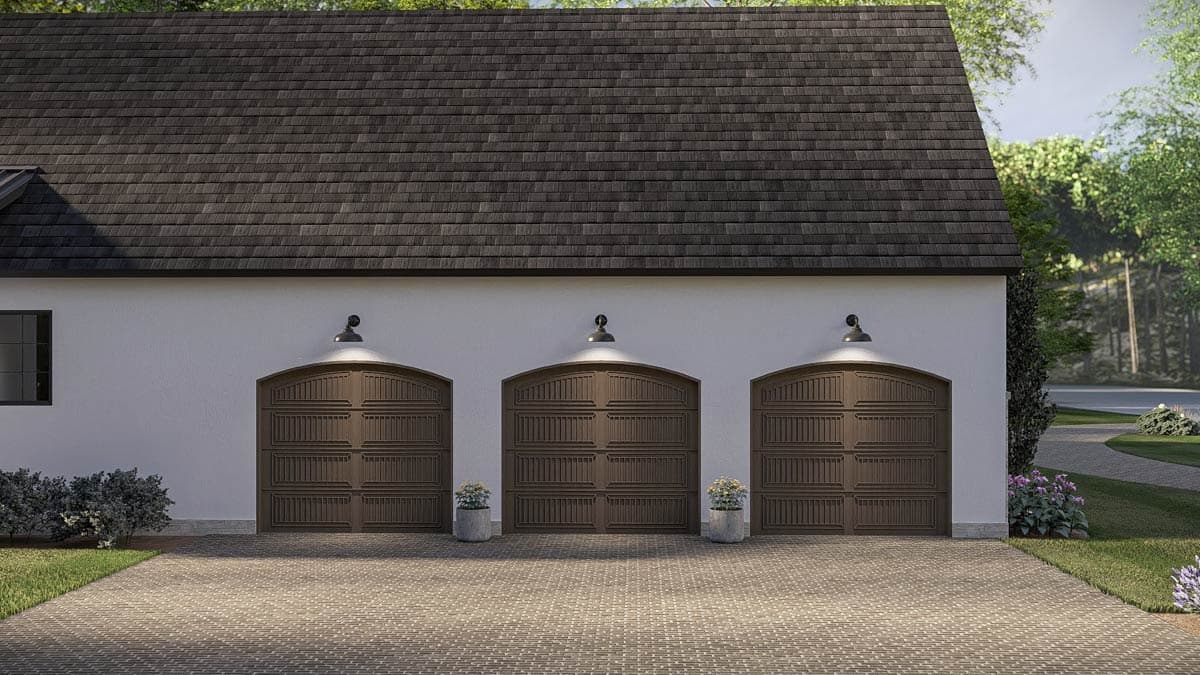

  • This 2,895 square foot modern transitional home features three bedrooms, two-and-a-half baths, and an attached three-car garage totaling 1,015 square feet.

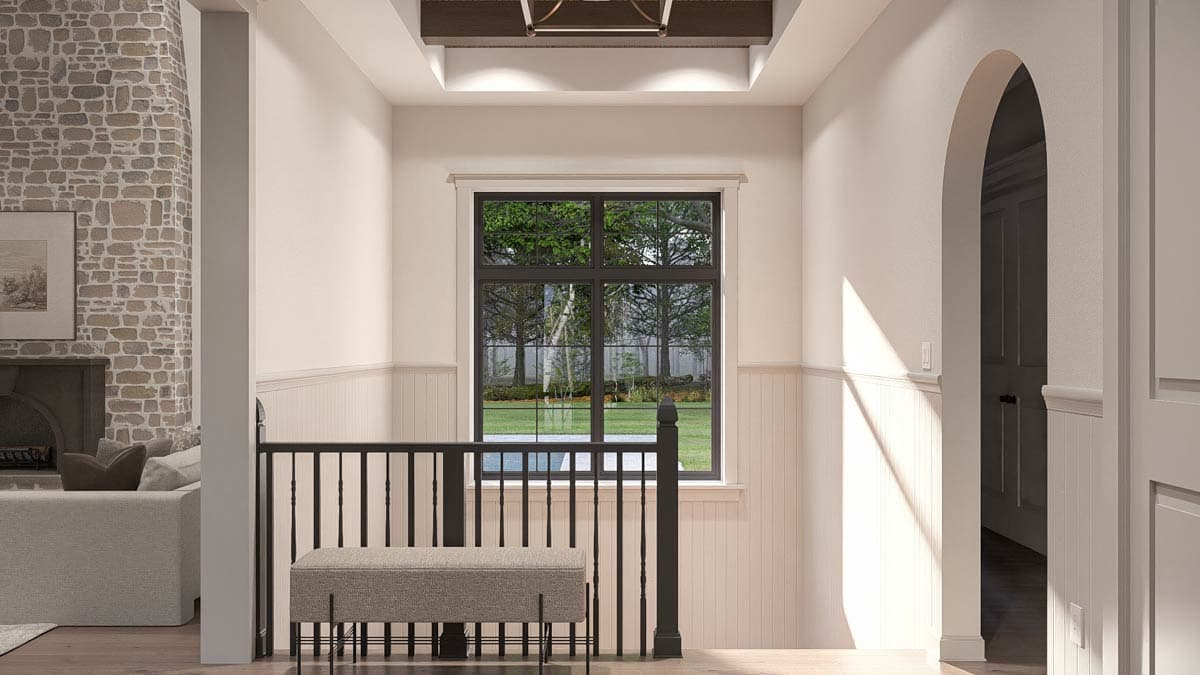

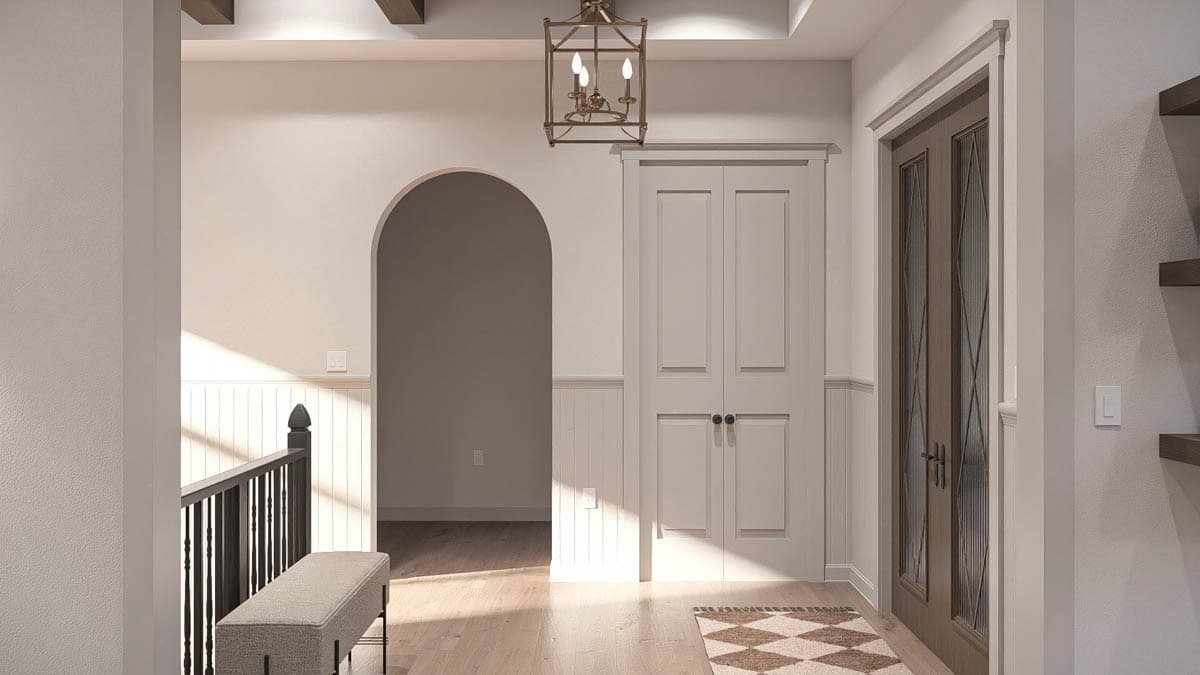

  • Upon entry, the foyer reveals a light-filled, open-concept floor plan characterized by soaring cathedral ceilings and refined architectural lines.

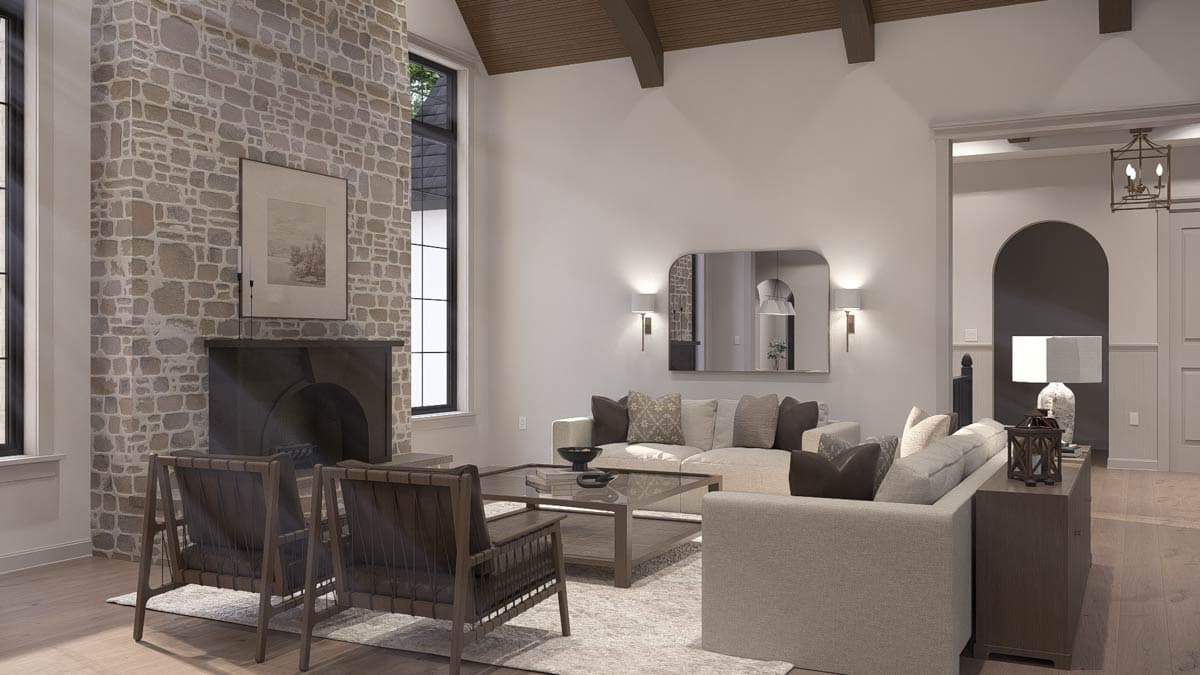

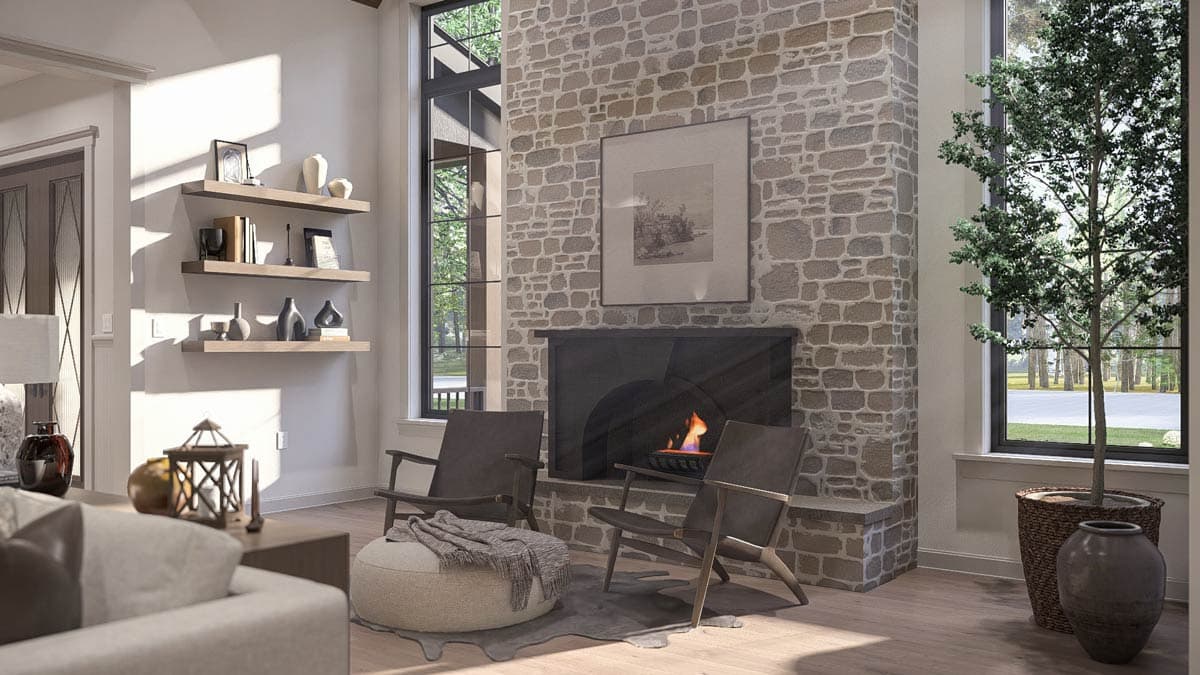

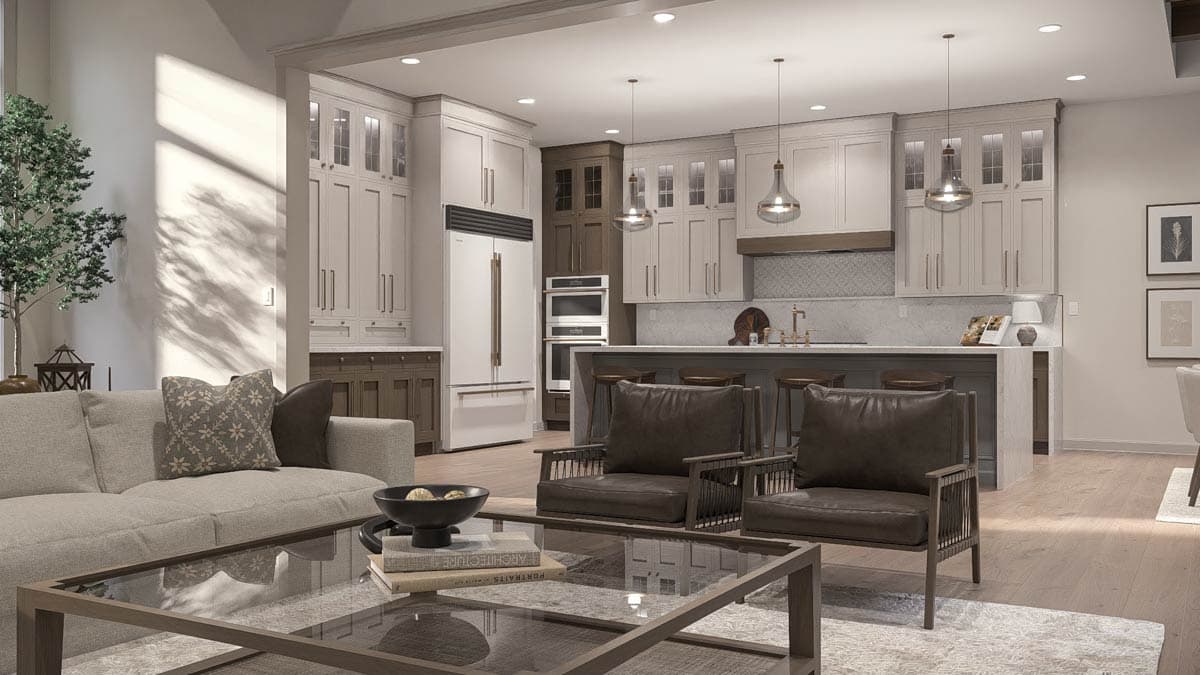

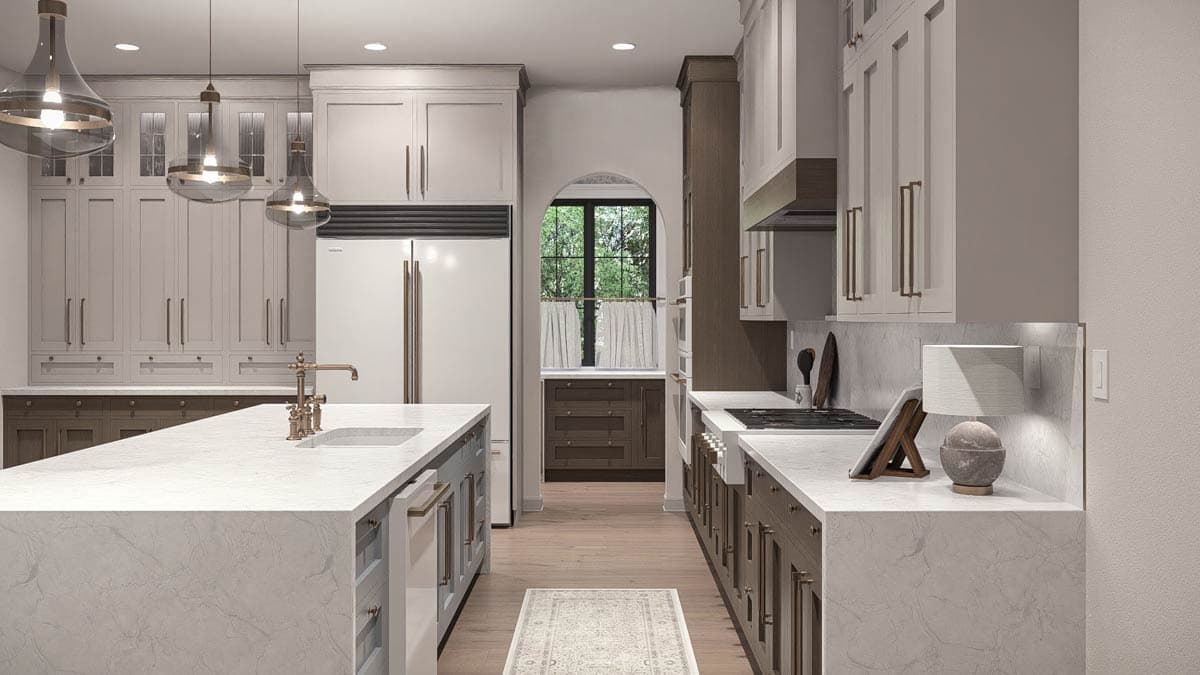

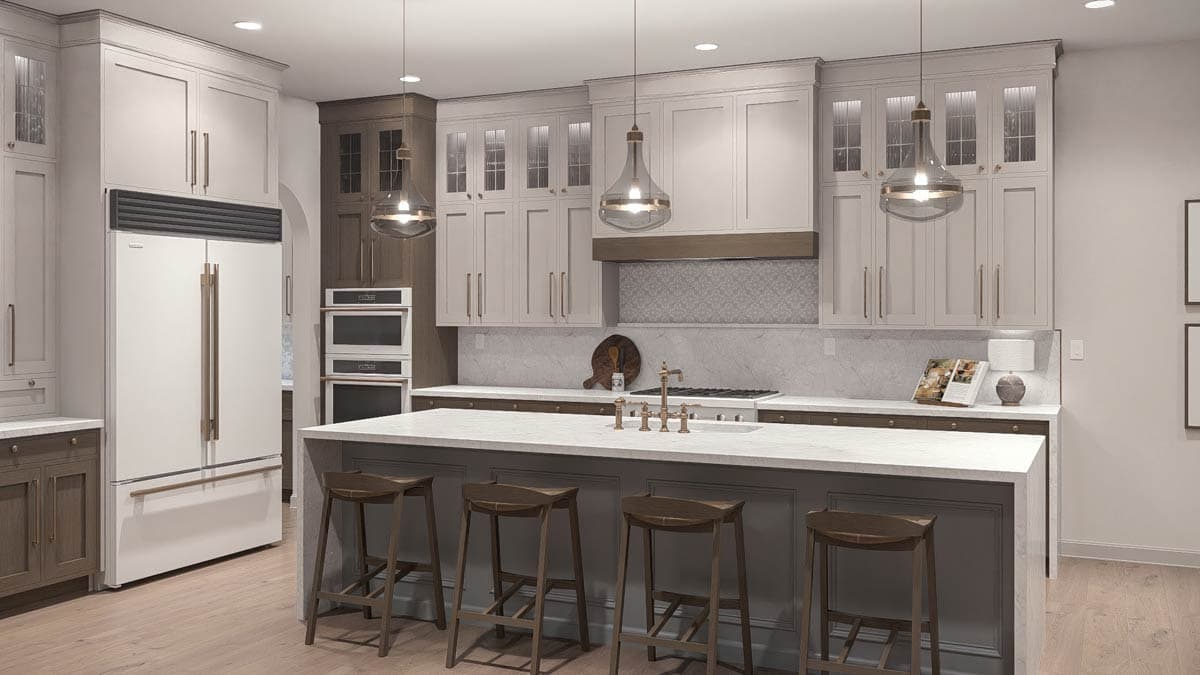

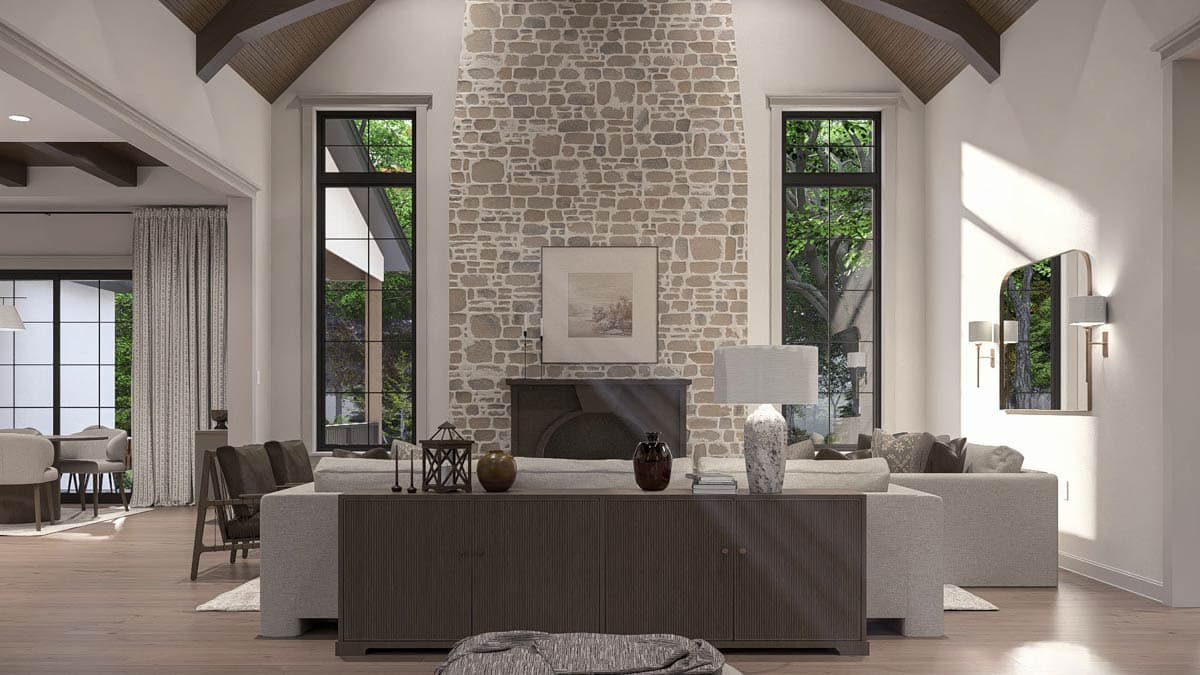

  • The heart of the home centers around a generous great room and gourmet kitchen, which flows effortlessly into the dining area for seamless daily living.

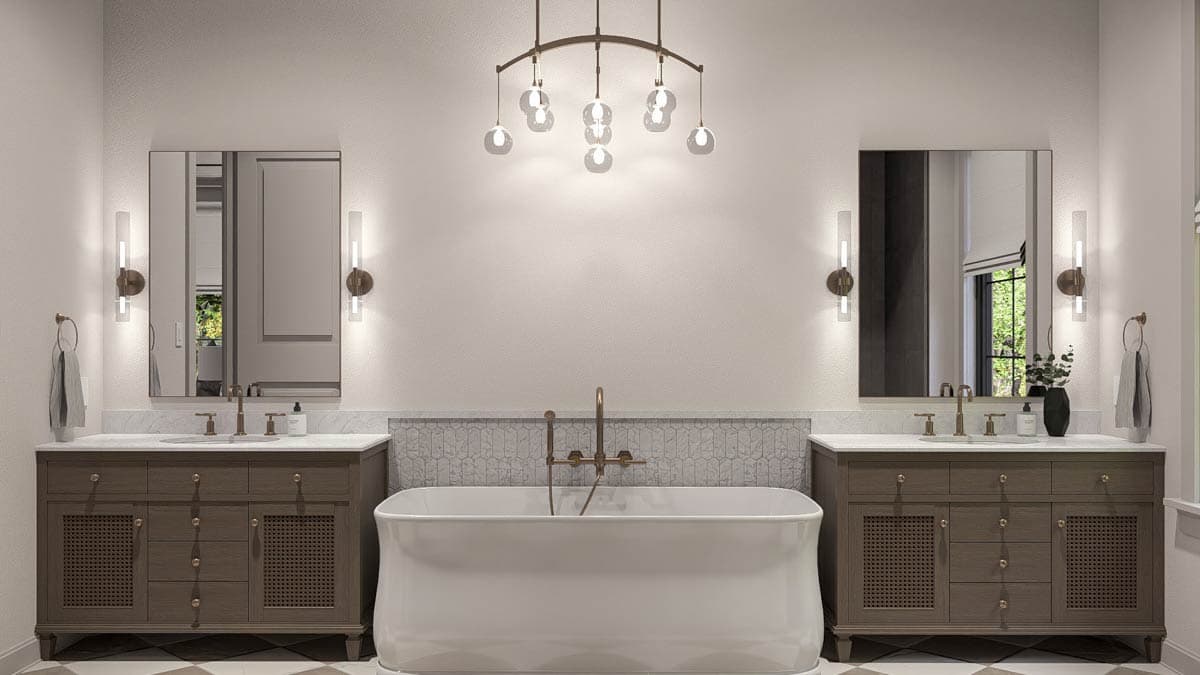

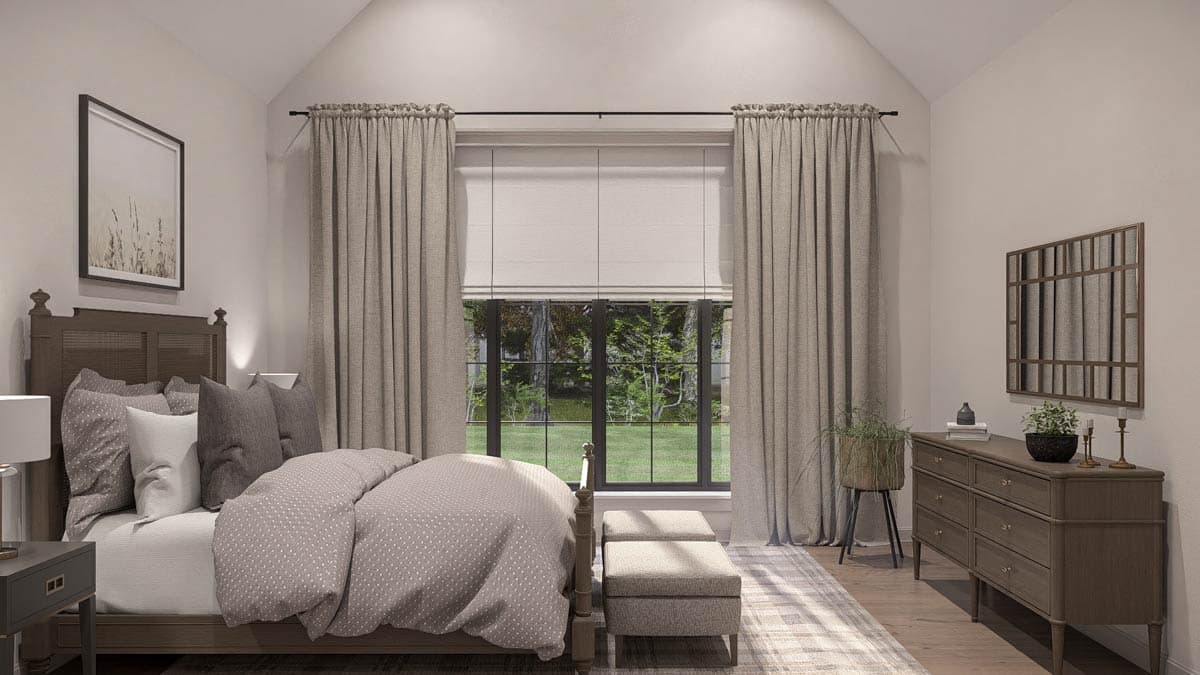

  • A private primary suite occupies its own wing for ultimate seclusion, while two secondary bedrooms are thoughtfully positioned on the opposite side of the home.
  • The optional lower level offers significant expansion, including a dedicated home theater, a wet bar, an exercise room, and two additional bedrooms.

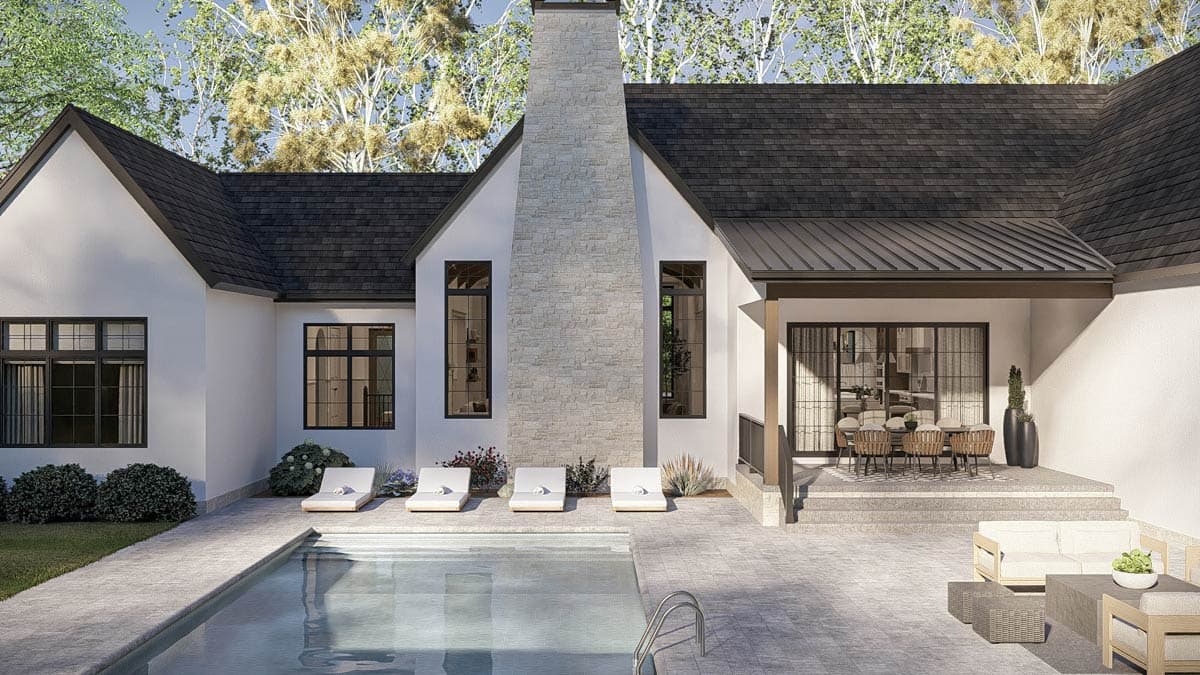

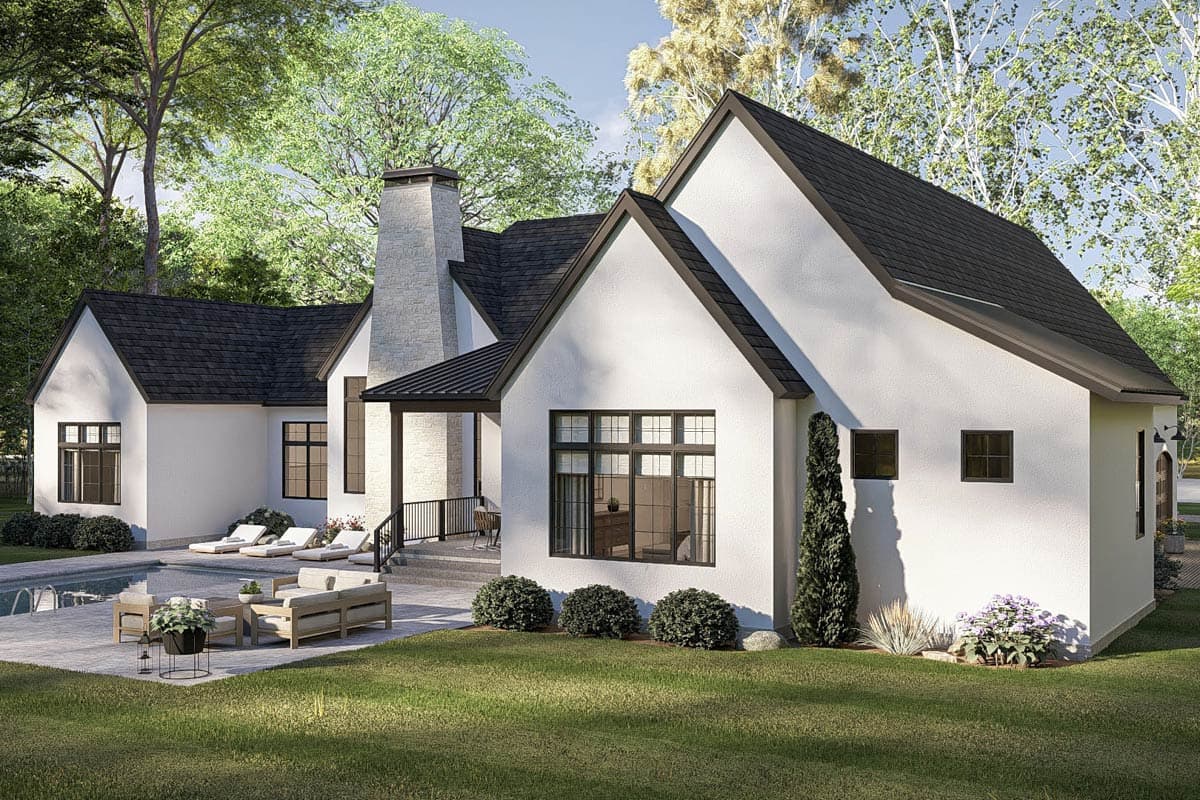

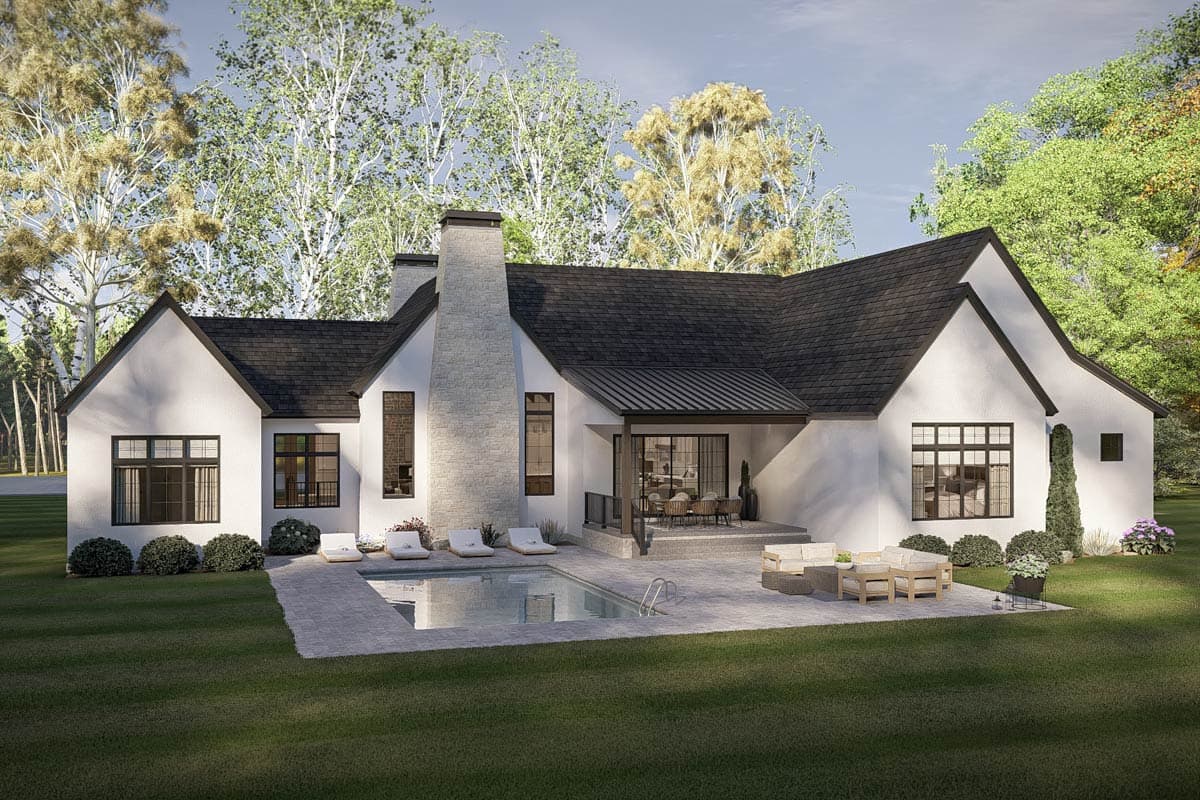

  • Dual covered porches provide the perfect setting for morning coffee or evening relaxation, extending the interior living space into the outdoors.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,895 sq. ft.

1st Floor

2,895 sq. ft.

Optional Lower Level

2,359 sq. ft.

Porch, Combined

311 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

991' 0"

Depth

71' 0"

Max Ridge Height

26' 4"

Garage

Type

Standard, Attached

Area

1015 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Modern

Transitional

Special Features

Bedrooms - Split

Game/Rec Room

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

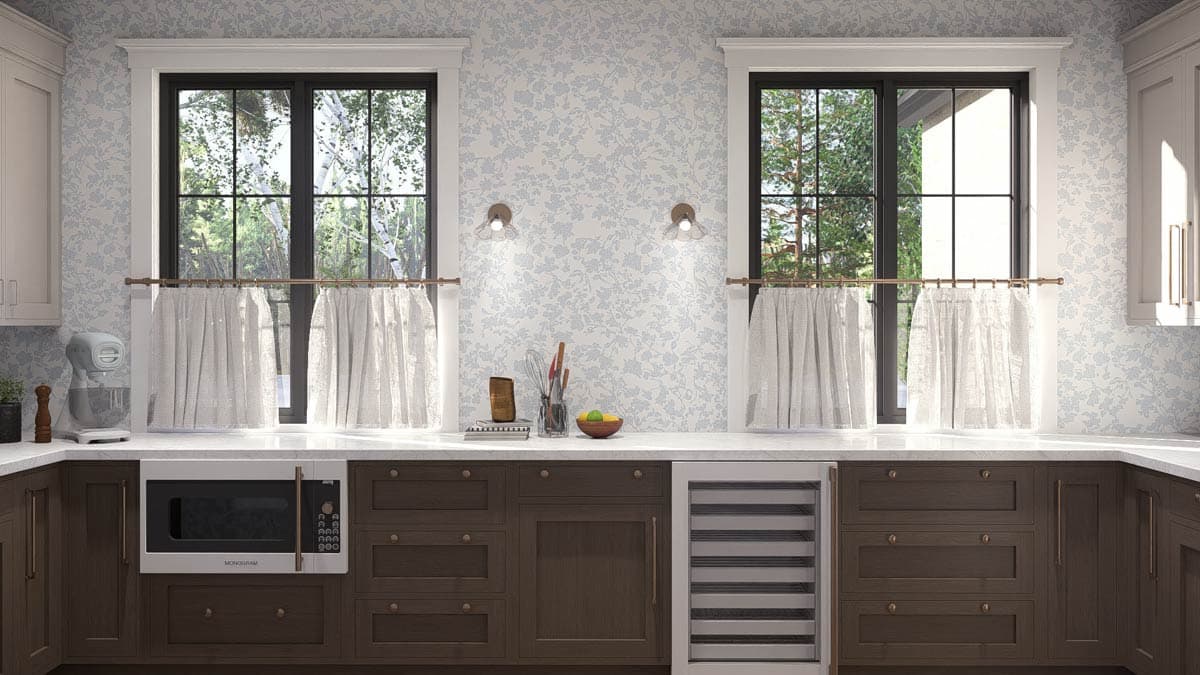

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

2,895 sq. ft.

1st Floor

2,895 sq. ft.

Optional Lower Level

2,359 sq. ft.

Porch, Combined

311 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

991' 0"

Depth

71' 0"

Max Ridge Height

26' 4"

Garage

Type

Standard, Attached

Area

1015 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Modern

Transitional

Special Features

Bedrooms - Split

Game/Rec Room

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
