Plan 50191PH
Modern Tudor Home Plan with Rear Porch - 2365 Sq Ft
Heated S.F.
2,365
Beds
4-5
Baths
3
Stories
2
Plan Details
  • This modern Tudor home plan presents all of the classic exterior charm that comes with the Tudor style, but with an updated interior for the modern family.
  • While the living spaces are open to one another, each room has its own ceiling and opening treatments that define the rooms.
  • A unique feature of this plan is the large central laundry and pantry area that each homeowner can tweak to their own needs: food pantry, sports equipment storage, pet station, etc.
  • The generous master bedroom on the first floor makes for easy living whatever your age. Two more bedrooms on this level can double as office space, workout room, or a media room.
  • Upstairs, two additional private bedrooms share a spacious bath.
  • Related Plans: Get an alternate version with house plan 50225PH (2,930 sq. ft. with 5 bedrooms) and a 4 bedroom version with house plan 50235PH (2,917 sq. ft.).
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Tudor Home Plan with Rear Porch - 2365 Sq Ft

  • 2,365

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Floors

Floor Plan

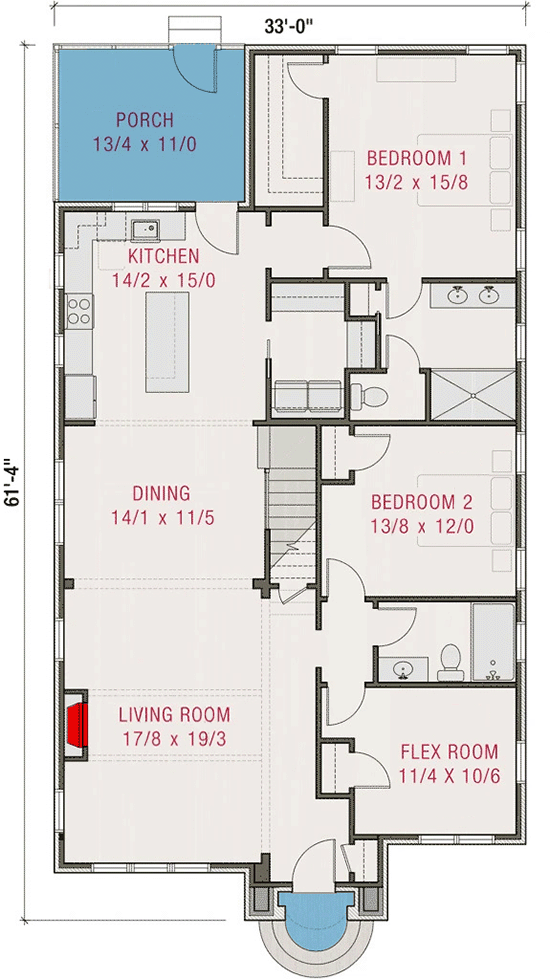

  • Main Level

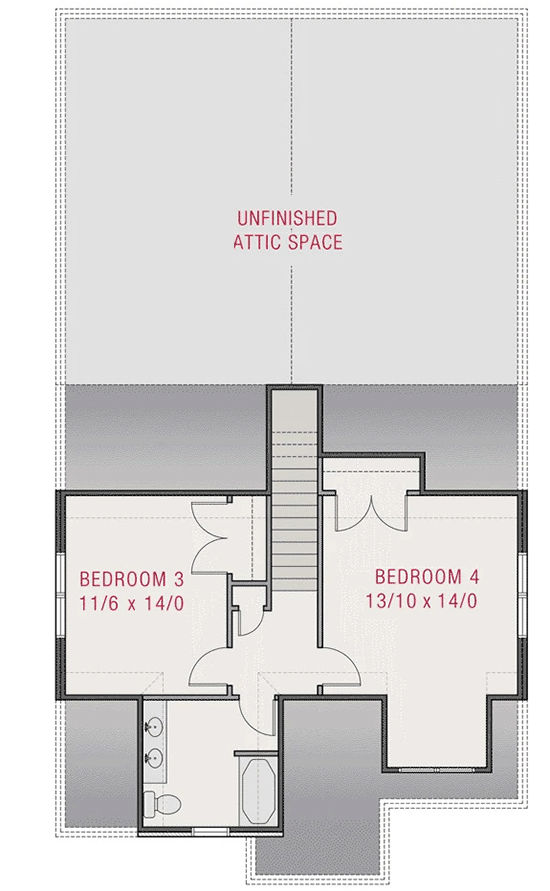

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,365 sq. ft.
  • 1st Floor: 1,700 sq. ft.
  • 2nd Floor: 665 sq. ft.

Dimensions

  • Width: 33' 0"
  • Depth: 61' 4"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site
