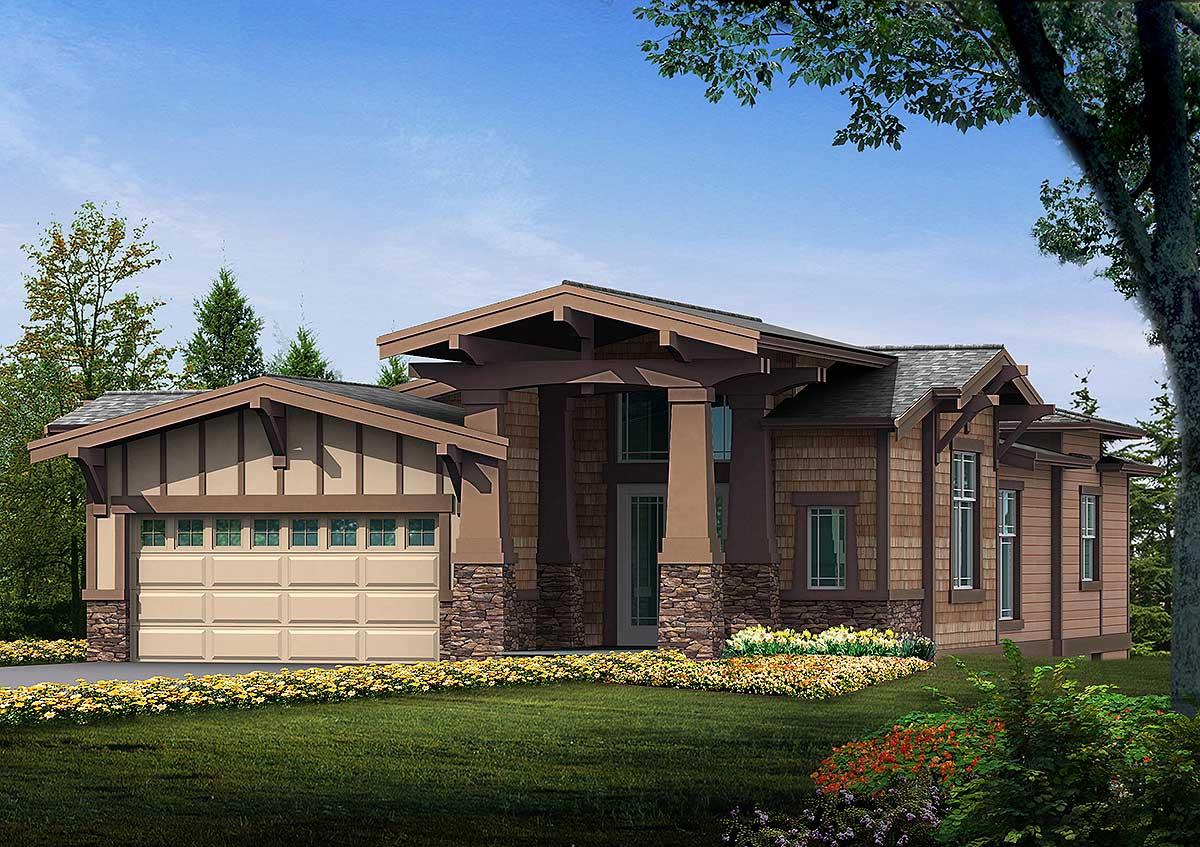

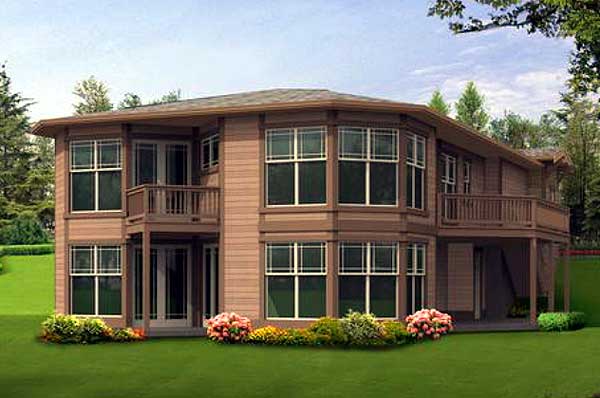

Modern Twist on Prairie Style Home

Plan 23240JD

  • 3,495

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Designed for a sloping lot, this magnificent home plan lets you live all on the main level with three more bedrooms on the finished lower level.
  • Two columns separate the formal dining room from the foyer making the space seem larger.
  • From the kitchen sink in the big island, you have views of the informal eating nook and the great room with fireplace beyond.
  • A large side deck is perfect for eating outdoors or relaxing in the sun.
  • The first floor master suite has its own private deck.
  • The big rec room with fireplace on the lower level also opens up to a patio.
  • See photos of this home being built in Michigan in our Facebook photo album.
  • NOTE: Additional fees apply when building this house plan in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

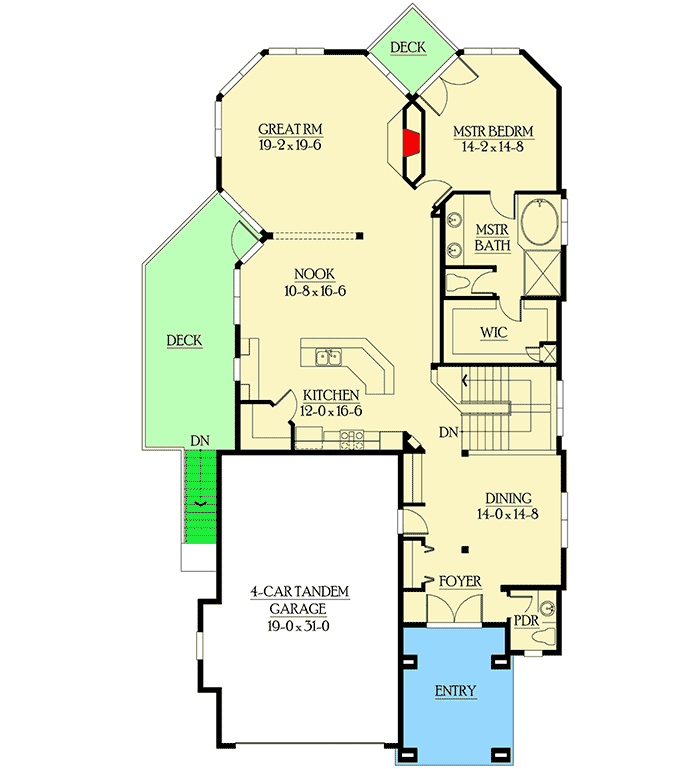

Modern Twist on Prairie Style Home - 23240JD floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

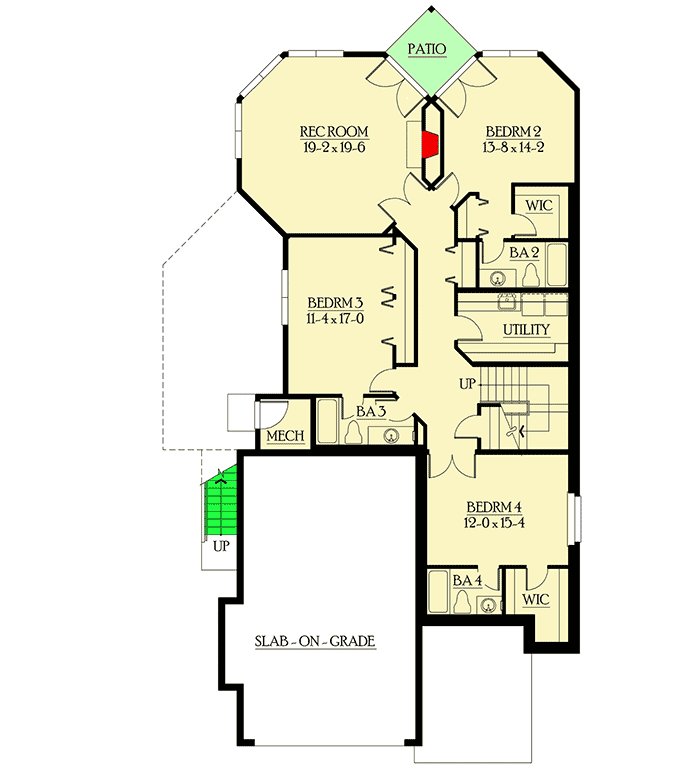

Modern Twist on Prairie Style Home - 23240JD floor plan - Lower Level

Modern Twist on Prairie Style Home

  • 3,495

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Basement

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,495 sq. ft.
  • Lower Level: 1,743 sq. ft.
  • 1st Floor: 1,752 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 82' 0"
  • Max ridge height: 17' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
