Plan 444224GDN Modest Three Bedroom Modern Farmhouse Plan with Bonus Above Garage

1,683 2-3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modest Three Bedroom Modern Farmhouse Plan with Bonus Above Garage

Plan 444224GDN

  • 1,683

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

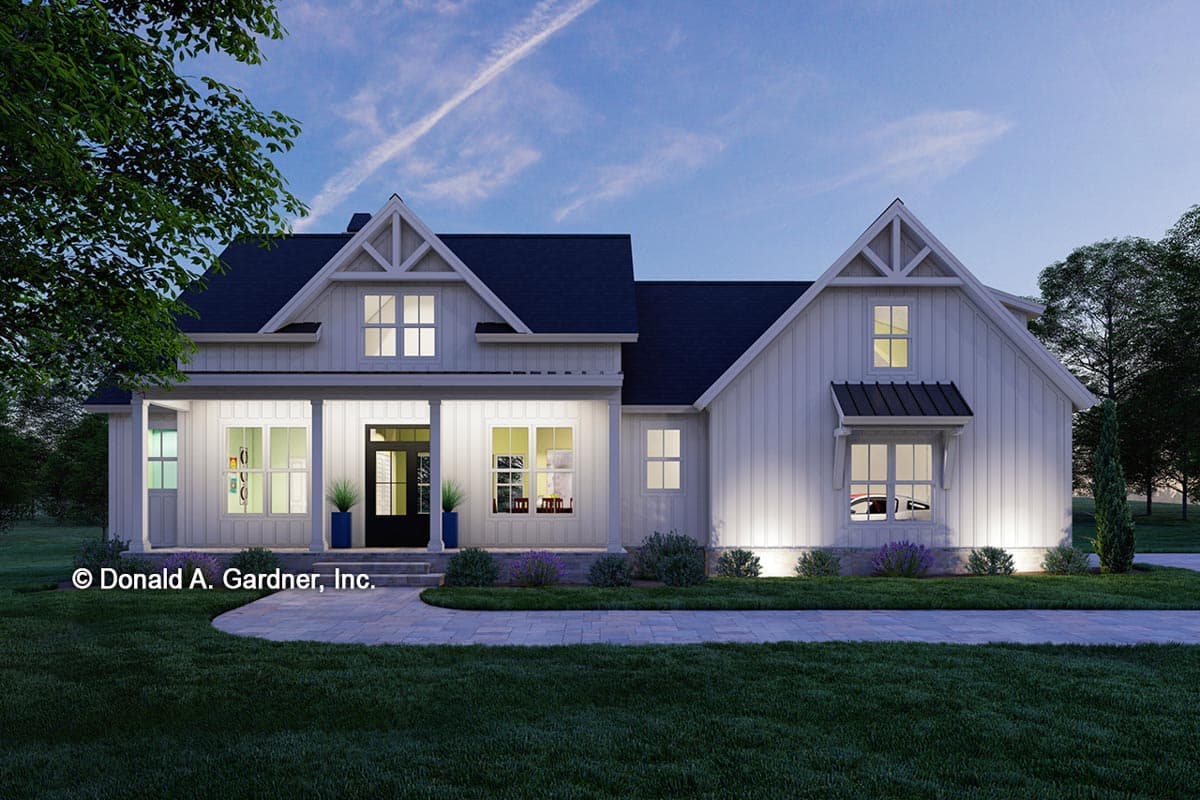

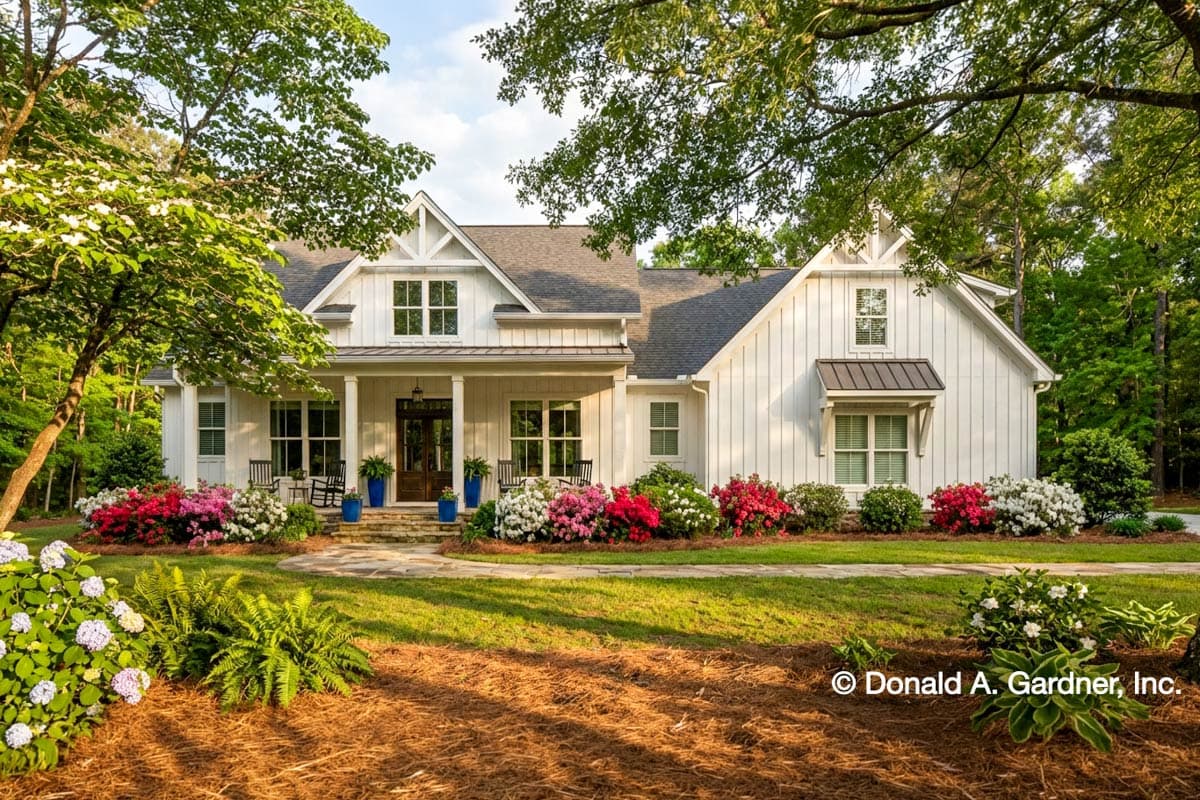

  • This modest modern farmhouse plan has an attractive facade with board and batten siding and decorative brackets in the gable above the front porch and the one above the garage. A shed roof covers the 29'4"-wide and 6'-deep front porch with four supports.
  • Inside, a thoughtfully designed floor plain awaits. with the dining room and a study/home office/guest bedroom flanking the foyer.
  • The kitchen is a treat with an island with casual seating and two sinks and double ovens while a breakfast nook and pantry are only steps away.
  • Skylights brighten the 25'10"-wide and 6'-deep rear porch and the master bathroom with a 16'3" cathedral ceiling, and sun tunnels bring natural light to the master closet and utility room.
  • Find a bonus room upstairs for a media room, home gym, or future expansion and 413 square feet of new space when you finish it.
  • Related Plans: Get more space on the second floor with house plan 444390GDN (2,500 sq. ft.) and add a bathroom to the bonus room with house plan 444121GDN (1,683 sq. ft.). Get an alternate version with house plans 444395GDN (2,123 sq. ft.) and 444399GDN (1,569 sq. ft.).
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option or 2x6 exterior wall conversion.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

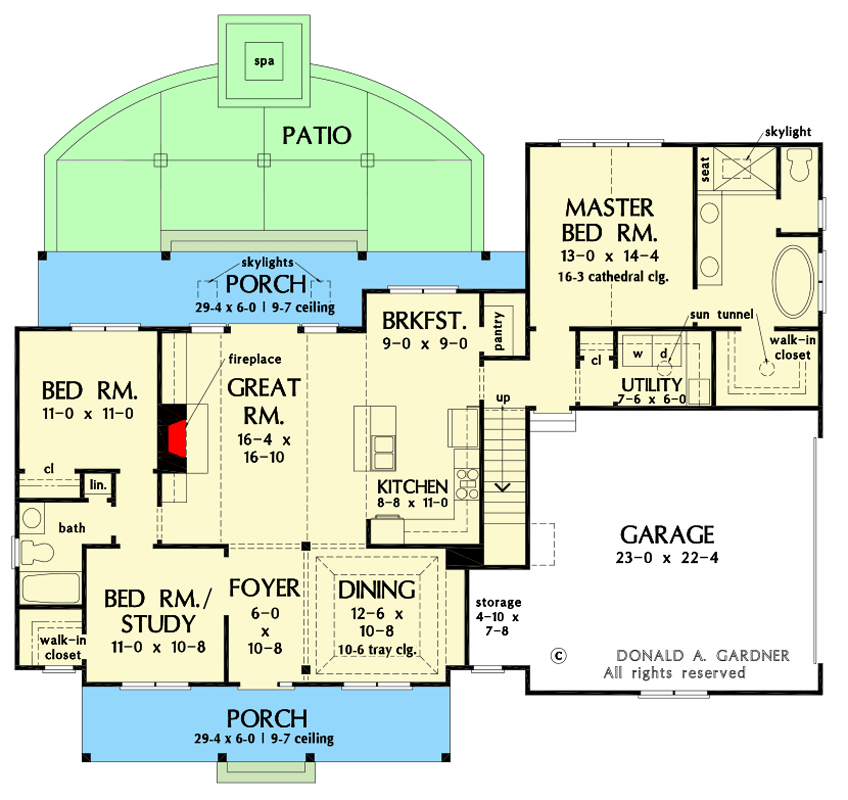

Modest Three Bedroom Modern Farmhouse Plan with Bonus Above Garage - 444224GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modest Three Bedroom Modern Farmhouse Plan with Bonus Above Garage - 444224GDN floor plan - Bonus Room

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

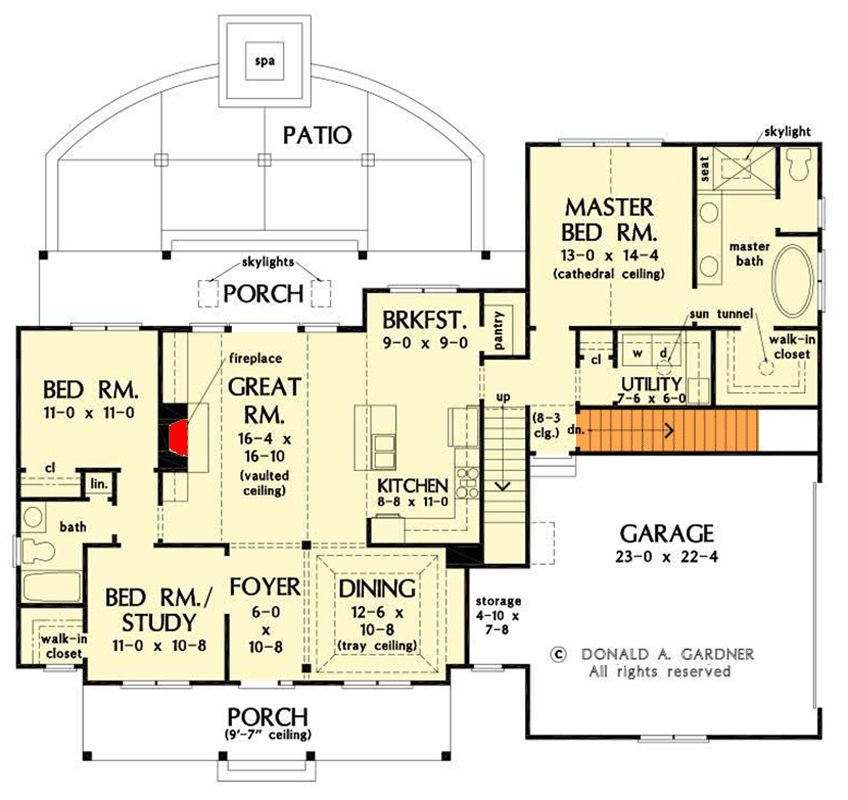

Modest Three Bedroom Modern Farmhouse Plan with Bonus Above Garage - 444224GDN floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,683 sq. ft.
  • 1st Floor: 1,683 sq. ft.
  • Covered Patio: 479 sq. ft.
  • Porch, Rear: 194 sq. ft.
  • Porch, Front: 176 sq. ft.
  • Bonus: 413 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 4"
  • Depth: 49' 4"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 568 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modest Three Bedroom Modern Farmhouse Plan with Bonus Above Garage

  • 1,683

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,250
  • PDF - Single-Build $1,450
  • CAD Unlimited + PDF $2,550
  • View all purchase option online

About This Plan

  • This modest modern farmhouse plan has an attractive facade with board and batten siding and decorative brackets in the gable above the front porch and the one above the garage. A shed roof covers the 29'4"-wide and 6'-deep front porch with four supports.
  • Inside, a thoughtfully designed floor plain awaits. with the dining room and a study/home office/guest bedroom flanking the foyer.
  • The kitchen is a treat with an island with casual seating and two sinks and double ovens while a breakfast nook and pantry are only steps away.
  • Skylights brighten the 25'10"-wide and 6'-deep rear porch and the master bathroom with a 16'3" cathedral ceiling, and sun tunnels bring natural light to the master closet and utility room.
  • Find a bonus room upstairs for a media room, home gym, or future expansion and 413 square feet of new space when you finish it.
  • Related Plans: Get more space on the second floor with house plan 444390GDN (2,500 sq. ft.) and add a bathroom to the bonus room with house plan 444121GDN (1,683 sq. ft.). Get an alternate version with house plans 444395GDN (2,123 sq. ft.) and 444399GDN (1,569 sq. ft.).
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option or 2x6 exterior wall conversion.

Floor Plans

  • Main Level

  • Bonus Room

  • Main Level - Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,683 sq. ft.
  • 1st Floor: 1,683 sq. ft.
  • Covered Patio: 479 sq. ft.
  • Porch, Rear: 194 sq. ft.
  • Porch, Front: 176 sq. ft.
  • Bonus: 413 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 4"
  • Depth: 49' 4"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 568 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
Plan 444224GDN
