Mountain Cottage With Attached Garage

Plan 26693GG

1,735
Heated s.f.
2-4
Beds
2 - 4
Baths
1
Stories
2
Cars

Wood shakes and board and battan siding impart a casual feel to this Mountain home plan.
Inside, the beautiful ceilings are a sight to behold with vaults and beams in the main living area.
Even the outdoor porch is vaulted for your enjoyment.
A French door in the eating area opens into the porch and the master suite has a French door too that leads to the deck area.
Bedroom 2 is away from the master suite giving both bedrooms privacy.
Finish the lower level and add two more bedrooms plus a home theater and an enormous den.
Related Plans: Angle the garage with house plan 26694GG. Detach the garage with a connecting breezeway with house plans 26666GG (1,662 sq. ft.), 26695GG (1,754 sq. ft.) and 26610GG (with fireplace on the back wall).

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan

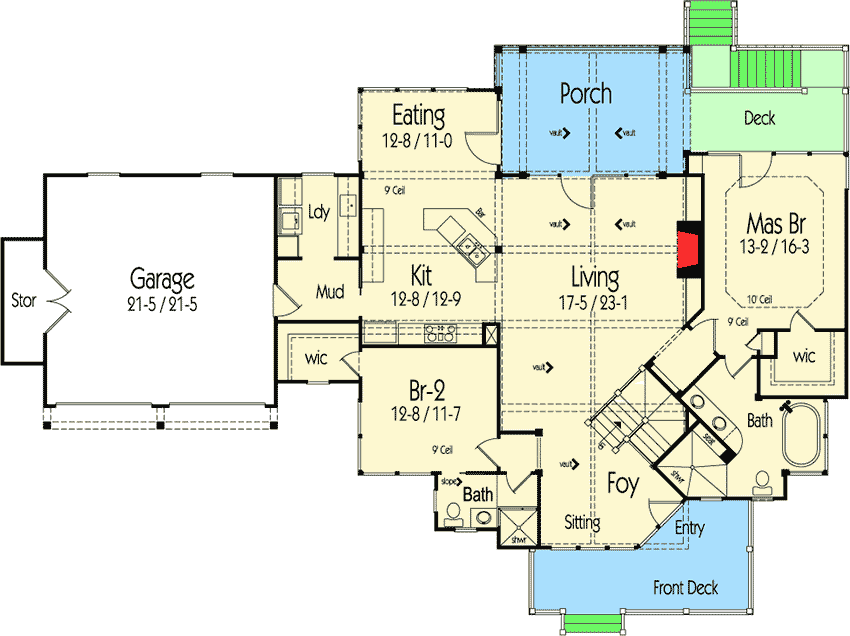

Mountain Cottage With Attached Garage - 26693GG floor plan - Main Level

Optional Finished Lower Level

Reverse Floor Plan

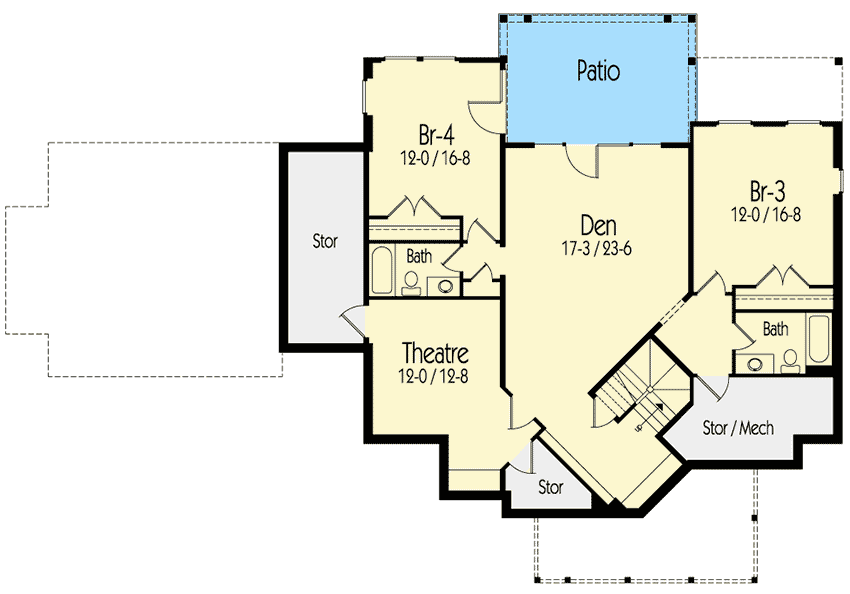

Mountain Cottage With Attached Garage - 26693GG floor plan - Optional Finished Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,735 sq. ft.
1st Floor: 1,735 sq. ft.

Deck: 253 sq. ft.
Porch, Combined: 216 sq. ft.
Covered Patio: 220 sq. ft.

Beds/Baths

Bedrooms: 2, 3, & 4

Full bathrooms: 2, 3, & 4

Foundation Type

Standard Foundations: Walkout

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 78' 8"
Depth: 53' 4"
Max ridge height: 19' 4"

Garage

Type: Attached
Area: 526 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 8 on 12

Framing Type: Truss

Architectural Style
