Mountain Craftsman Home Plan with Angled RV-friendly Garage for a Rear-sloping Lot

Plan 365008PED

  • 5,372

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Spread out in this mountain Craftsman home plan, which highlights an open concept floor plan, 4-car garage plus an RV bay, and a generous walk-out basement.
  • The sizable kitchen is every cook's dream and provides plenty of workspace and a large range. The pass-through pantry connects to the mudroom for a shortcut when unloading groceries.
  • A sitting nook greets you upon entering the well-appointed master bedroom, enhanced by a double-sided fireplace, exposed beams, and access to the back deck. The master bathroom includes an oversized shower and walk-in closet.
  • Down the hall, a second bedroom suite and home office completes the main level.
  • The fun continues on the lower level, where an enormous great room merges with a game room, bar, and theater. Bedrooms 3 and 4 share a compartmentalized bath, and an optional fifth bedroom neighbors a safe room.

This plan set has 12 pages as follows:

  • Cover sheet with general construction notes
  • Main level floor plan
  • Garage floor plan
  • Lower level floor plan
  • All four elevations
  • Roof plan
  • Building section and details
  • Main level electrical schematic
  • Garage electrical schematic
  • Lower level electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

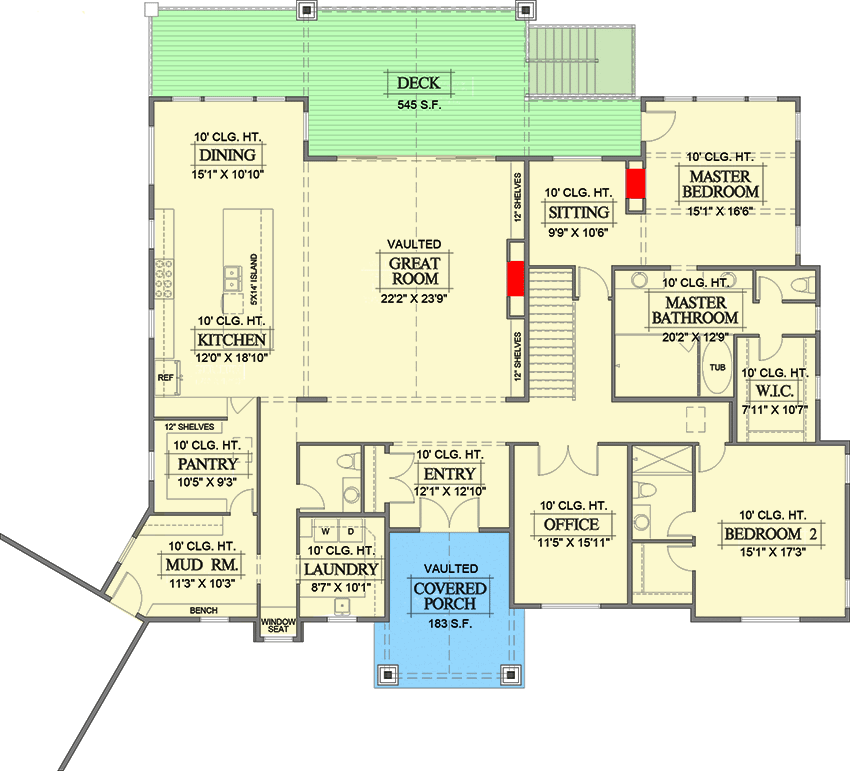

Mountain Craftsman Home Plan with Angled RV-friendly Garage for a Rear-sloping Lot - 365008PED floor plan - Main Level

Attached Courtyard Garage

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

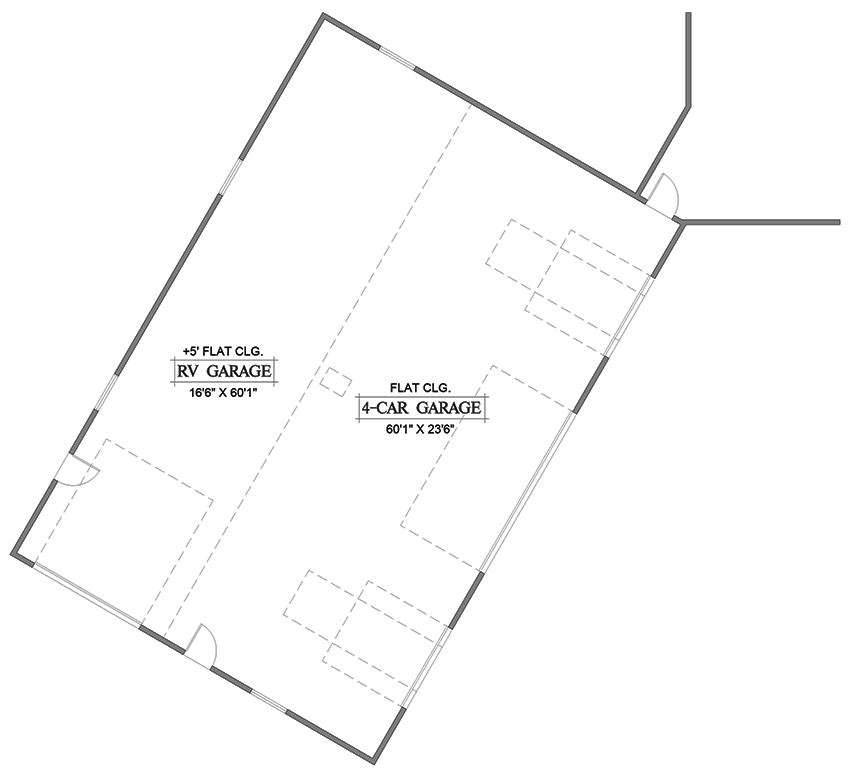

Mountain Craftsman Home Plan with Angled RV-friendly Garage for a Rear-sloping Lot - 365008PED floor plan - Attached Courtyard Garage

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

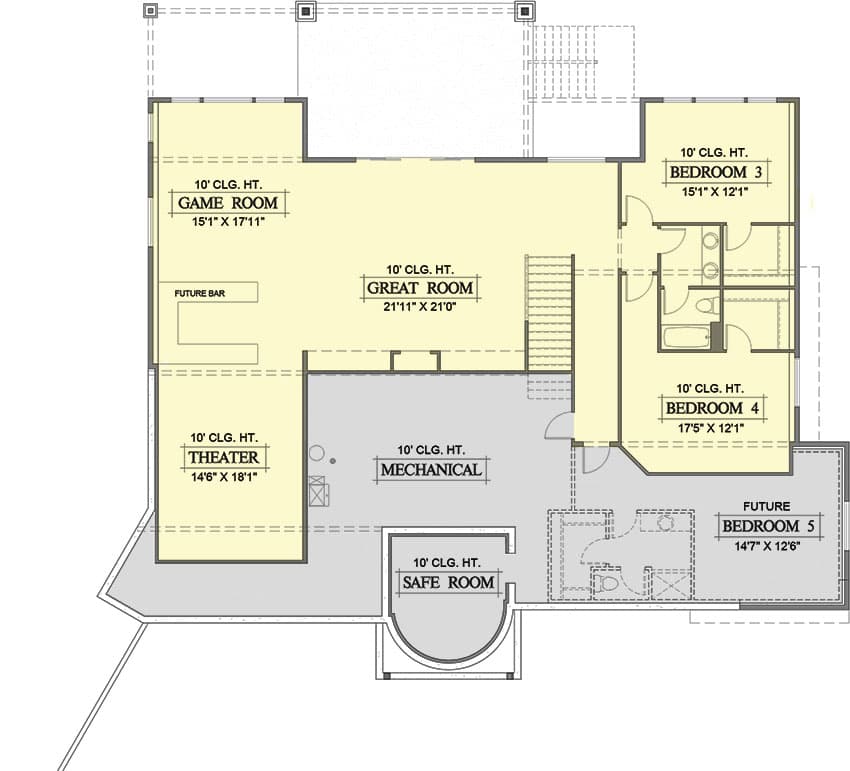

Mountain Craftsman Home Plan with Angled RV-friendly Garage for a Rear-sloping Lot - 365008PED floor plan - Lower Level
