Plan 280142JWD Mountain Craftsman Home Plan with Home Office and Bonus Room

3,843 4-5 3 2 3
1 Client
Album
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman Home Plan with Home Office and Bonus Room

Plan 280142JWD

  • 3,843

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Shakes rest above the board and batten lower half of this Mountain Craftsman home plan, totaling 3,843 square feet of living space spread over two floors.
  • The great room's vaulted ceiling features exposed beams for a rustic aesthetic and continues through the adjacent covered patio. Easily move into the adjoining eat-in kitchen, where a central prep island serves as a natural gathering spot.
  • The 3-car garage opens into a combined mud / laundry room with a wall of built-in lockers helping you to organize shoes and outerwear. A home office resides next door, along with a full bathroom.
  • Retreat to the master bedroom that is located on the main level and discover a vaulted ceiling, 5-fixture bathroom with access to the back patio, and a walk-in closet.
  • The remaining 3 bedrooms can be found upstairs, as well as a flexible bonus room that gives you 592 square feet of heated living space; this is factored into the total living area and does not change the size of the home when built.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

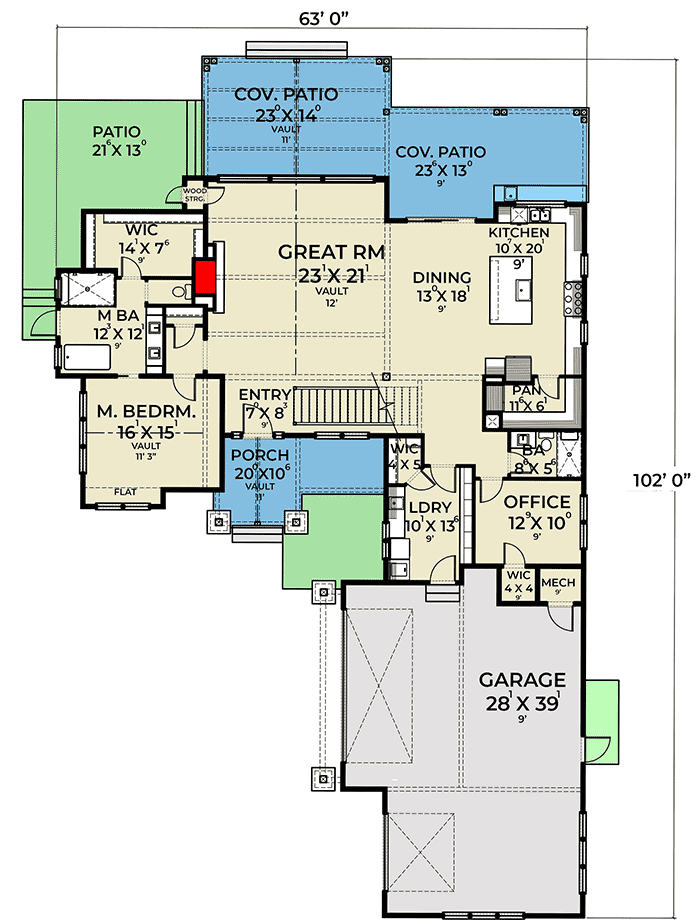

Mountain Craftsman Home Plan with Home Office and Bonus Room - 280142JWD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

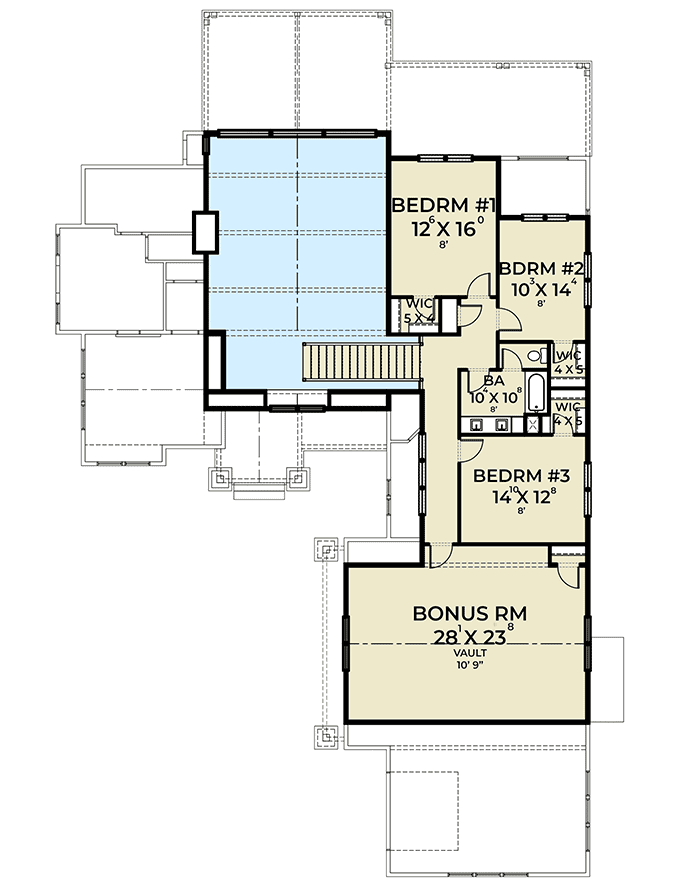

Mountain Craftsman Home Plan with Home Office and Bonus Room - 280142JWD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,843 sq. ft.
  • 1st Floor: 2,322 sq. ft.
  • 2nd Floor: 1,521 sq. ft.
  • Porch, Combined: 592 sq. ft.
  • Basement Unfinished: 1,056 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 102' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Great Room Vaulted 9' 0" to 12' 0"
Master Bedroom Vaulted 9' 0" to 11' 3"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Craftsman Home Plan with Home Office and Bonus Room

  • 3,843

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,843 sq. ft.
  • 1st Floor: 2,322 sq. ft.
  • 2nd Floor: 1,521 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 102' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
