Plan 61362UT Mountain Craftsman Home Plan with Main-Floor Master

1,868 4-5 3.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman Home Plan with Main-Floor Master

Plan 61362UT

  • 1,868

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • The square footprint of this mountain Craftsman home plan keeps the budget in mind, while the symmetrical front elevation lends a sense of charming comfort to the immense curb appeal.
  • The open floor plan that bridges the kitchen and family room has become a must-have for modern life, and allows you to easily move between the shared spaces. A half bath is located just off the kitchen, and neighbors the laundry room with a door to access the backyard.
  • The master suite is located on the main level, and boasts French doors that lead to the backyard, a walk-in closet, and a 5-fixture bath with a toilet room.
  • Upstairs, two bedrooms frame the stairwell, and a full bath is nestled into the shed dormer to share.
  • A second family room can be found on the lower level, along with two bedrooms separated by a Jack-and-Jill bath.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

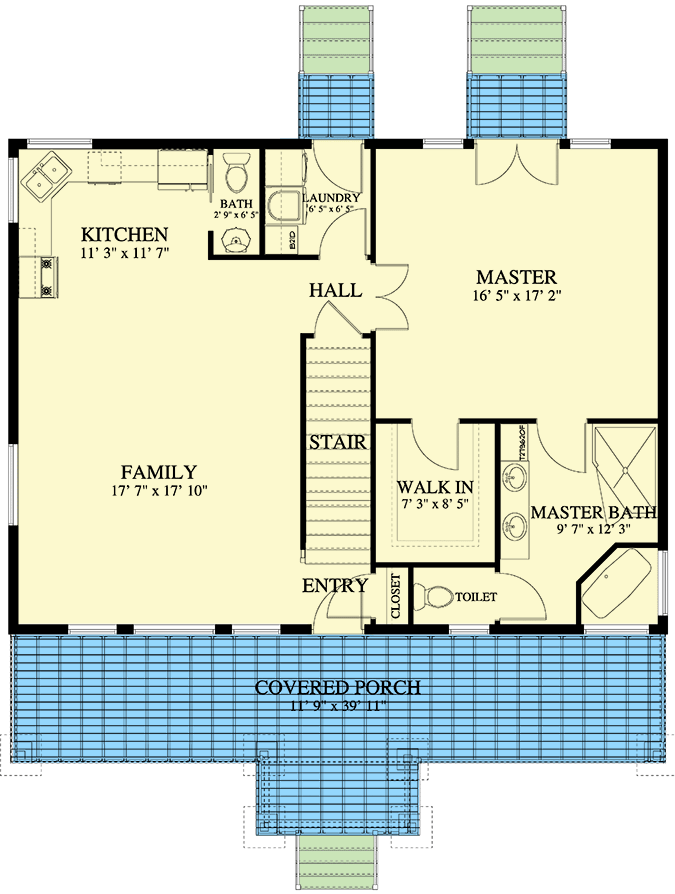

Mountain Craftsman Home Plan with Main-Floor Master - 61362UT floor plan - Main Level

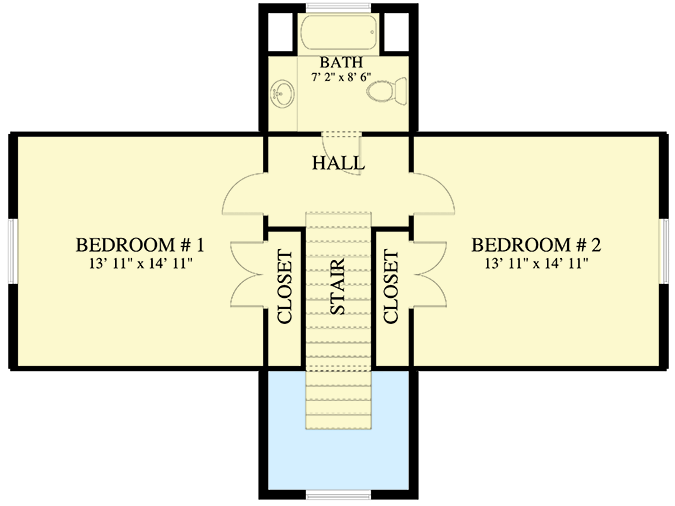

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Home Plan with Main-Floor Master - 61362UT floor plan - 2nd Floor

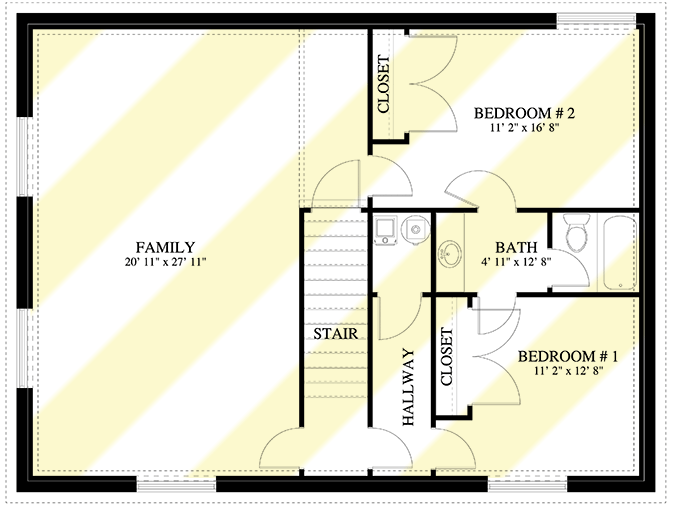

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Home Plan with Main-Floor Master - 61362UT floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,868 sq. ft.
  • 1st Floor: 1,218 sq. ft.
  • 2nd Floor: 650 sq. ft.
  • Optional Lower Level: 1,200 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Stem Wall, Monolithic Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 30' 0"
  • Max ridge height: 24' 3"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12

Architectural Style

Special features

Mountain Craftsman Home Plan with Main-Floor Master

  • 1,868

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,150
  • 5 Sets $1,295
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,695
  • CAD Unlimited + PDF $1,775
  • CAD - Unlimited Build $1,850
  • View all purchase option online

About This Plan

  • The square footprint of this mountain Craftsman home plan keeps the budget in mind, while the symmetrical front elevation lends a sense of charming comfort to the immense curb appeal.
  • The open floor plan that bridges the kitchen and family room has become a must-have for modern life, and allows you to easily move between the shared spaces. A half bath is located just off the kitchen, and neighbors the laundry room with a door to access the backyard.
  • The master suite is located on the main level, and boasts French doors that lead to the backyard, a walk-in closet, and a 5-fixture bath with a toilet room.
  • Upstairs, two bedrooms frame the stairwell, and a full bath is nestled into the shed dormer to share.
  • A second family room can be found on the lower level, along with two bedrooms separated by a Jack-and-Jill bath.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,868 sq. ft.
  • 1st Floor: 1,218 sq. ft.
  • 2nd Floor: 650 sq. ft.
  • Optional Lower Level: 1,200 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Stem Wall, Monolithic Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 30' 0"
  • Max ridge height: 24' 3"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
Plan 61362UT
View this and more for this plan by visiting www.architechtecturaldesigns.com/61362UT
|
Need Help? 800-854-7852
|
