Mountain Craftsman Home Plan with Screened Porch

Plan 70693MK

  • 5,347

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • From the white brick, gray stone accents, and warm caramel shake siding to the rich timber columns and bold exterior window frames, this Mountain Craftsman home plan is drenched in rustic character.
  • Large box windows frame each side of the formal entry, bathing the front rooms in natural lighting. A dedicated dining space is located to the left of the foyer, while an open-wall office can be found to the right.
  • Vaulted ceilings and timber beam framing flows into the great room for a cohesive design, which smoothly transitions into the kitchen. Up to four guests can sit at the L-shaped high island, surrounded by loads of cook space in the kitchen, while an outdoor kitchen station in the screened porch encourages backyard activities.
  • Privately situated to the right of the great room, discover the master suite, complete with a safe room to keep the family safe from inclement weather, a 5-fixture master bath, and a walk-in closet.
  • Three large windows soak the home office in natural lighting, located next to a powder bath and the laundry room with a pet shower.
  • The lower level is perfect for social gatherings and casual entertaining. The living room leads to bedroom 2 and the game room, while a flex room neighbors a full bath.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

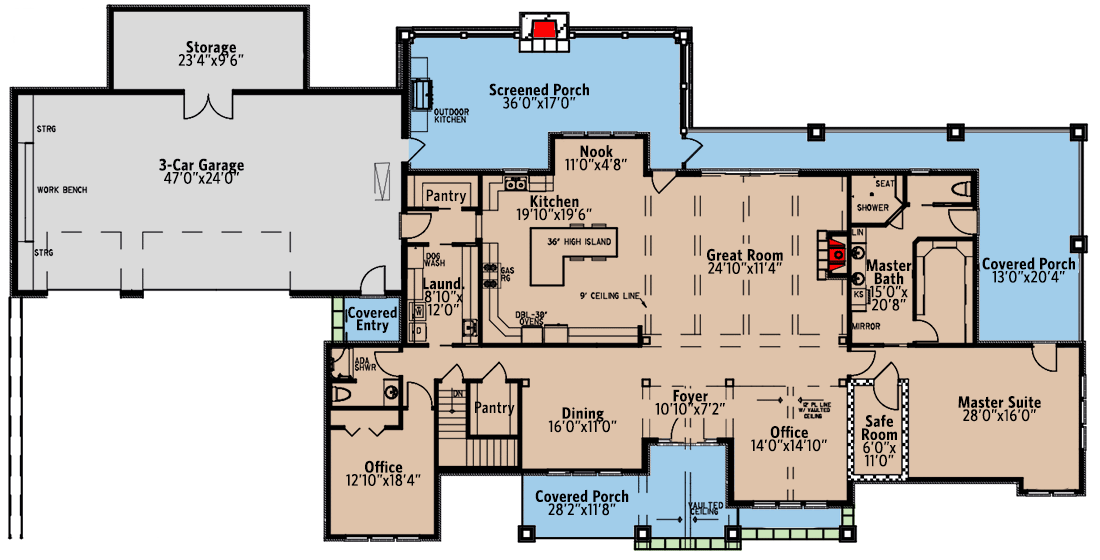

Mountain Craftsman Home Plan with Screened Porch - 70693MK floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

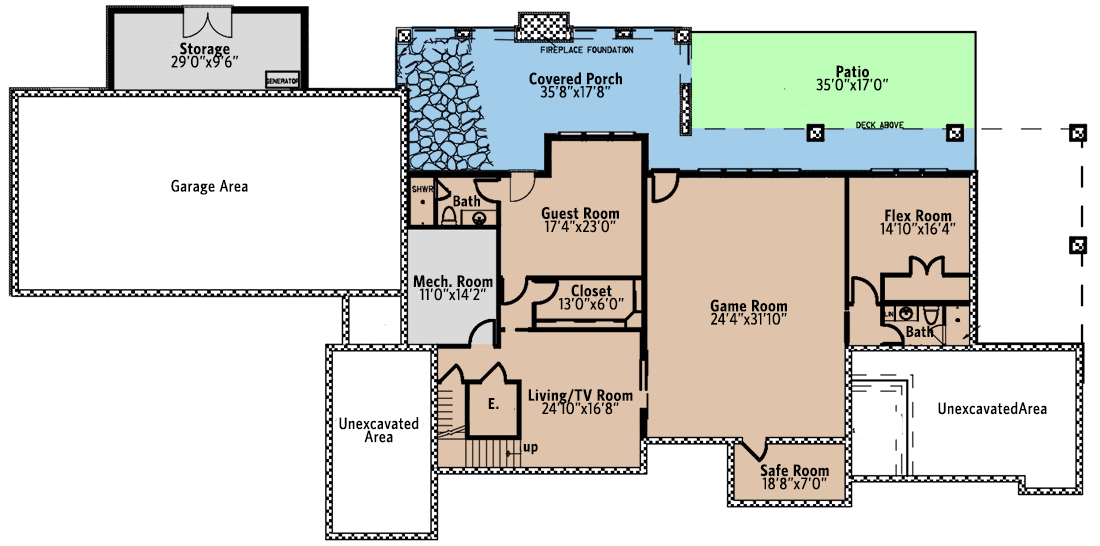

Mountain Craftsman Home Plan with Screened Porch - 70693MK floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,347 sq. ft.
  • Lower Level: 2,271 sq. ft.
  • 1st Floor: 3,076 sq. ft.
  • Porch, Combined: 1,348 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 130' 6"
  • Depth: 64' 8"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1427 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Mountain Craftsman Home Plan with Screened Porch

  • 5,347

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,250
  • 5 Sets $2,350
  • 5 Sets + PDF $2,600
  • PDF - Unlimited Build $2,950
  • CAD Unlimited + PDF $4,500
  • View all purchase option online

About This Plan

  • From the white brick, gray stone accents, and warm caramel shake siding to the rich timber columns and bold exterior window frames, this Mountain Craftsman home plan is drenched in rustic character.
  • Large box windows frame each side of the formal entry, bathing the front rooms in natural lighting. A dedicated dining space is located to the left of the foyer, while an open-wall office can be found to the right.
  • Vaulted ceilings and timber beam framing flows into the great room for a cohesive design, which smoothly transitions into the kitchen. Up to four guests can sit at the L-shaped high island, surrounded by loads of cook space in the kitchen, while an outdoor kitchen station in the screened porch encourages backyard activities.
  • Privately situated to the right of the great room, discover the master suite, complete with a safe room to keep the family safe from inclement weather, a 5-fixture master bath, and a walk-in closet.
  • Three large windows soak the home office in natural lighting, located next to a powder bath and the laundry room with a pet shower.
  • The lower level is perfect for social gatherings and casual entertaining. The living room leads to bedroom 2 and the game room, while a flex room neighbors a full bath.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,347 sq. ft.
  • Lower Level: 2,271 sq. ft.
  • 1st Floor: 3,076 sq. ft.
  • Porch, Combined: 1,348 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 130' 6"
  • Depth: 64' 8"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1427 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
