Plan 95050RW

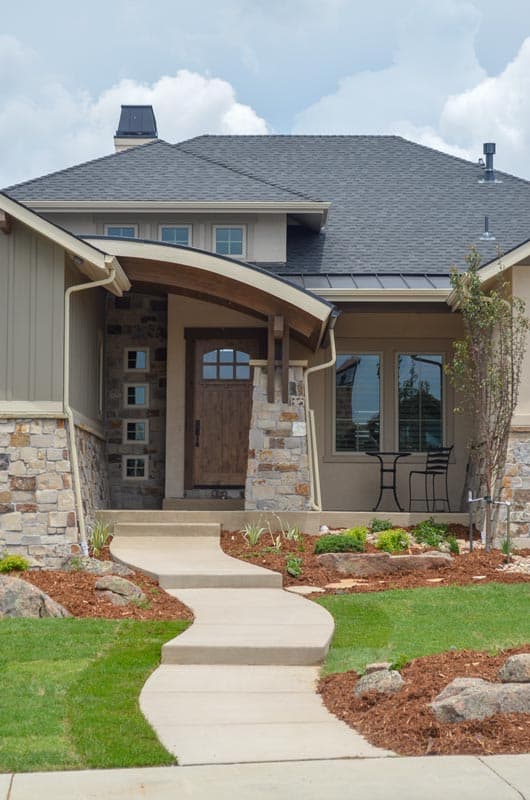

Mountain Craftsman House Plan with Lower Level Options
Heated S.F.
4,319
Beds
4
Baths
3.5+ - 4.5+
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

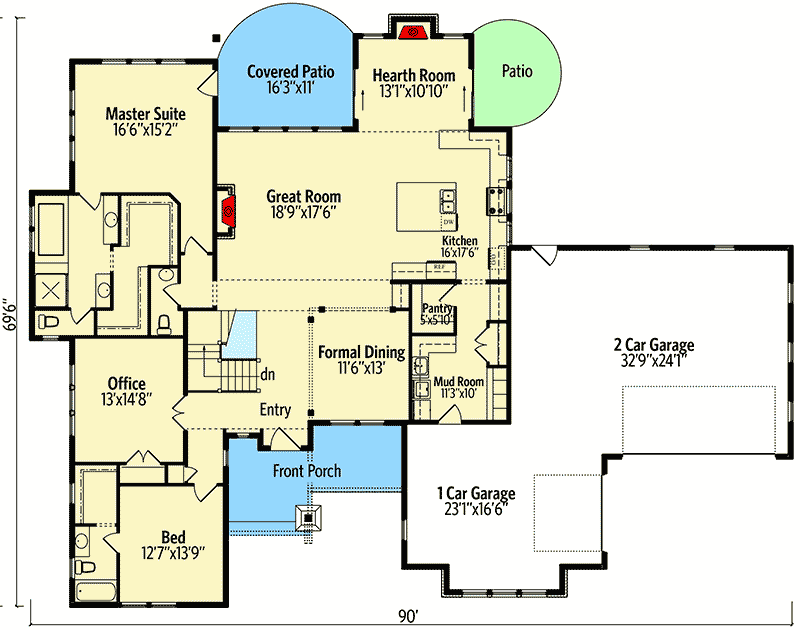

Main Level
Reverse Floor Plan
Mountain Craftsman House Plan with Lower Level Options - 95050RW floor plan - Main Level

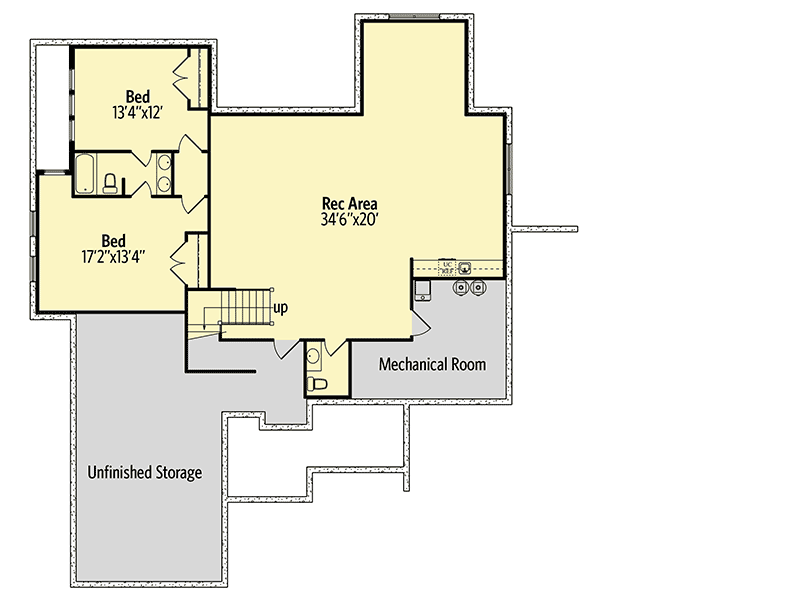

Lower Level
Reverse Floor Plan
Mountain Craftsman House Plan with Lower Level Options - 95050RW floor plan - Lower Level

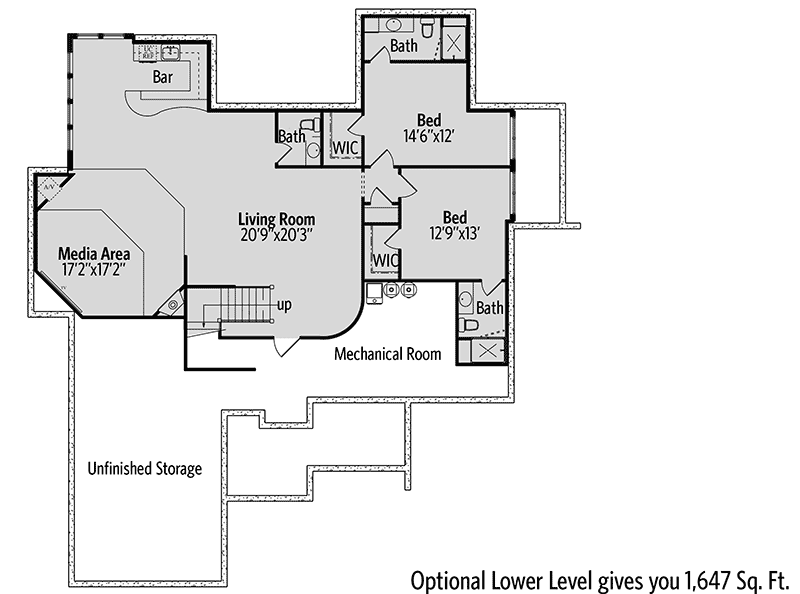

Optional Lower Level
Reverse Floor Plan
Mountain Craftsman House Plan with Lower Level Options - 95050RW floor plan - Optional Lower Level
Plan Details
  • This spacious, high-end Craftsman house plan boasts a big, open floor plan and a finished lower level with an optional configuration.

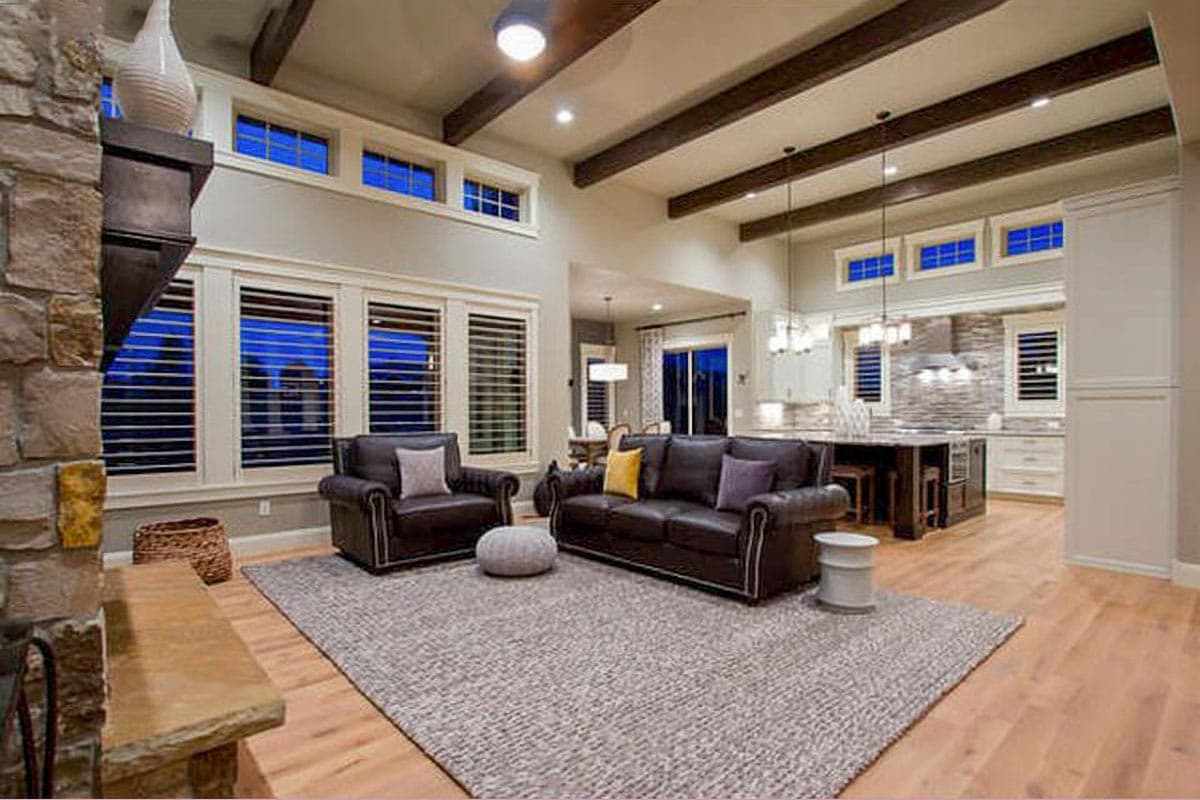

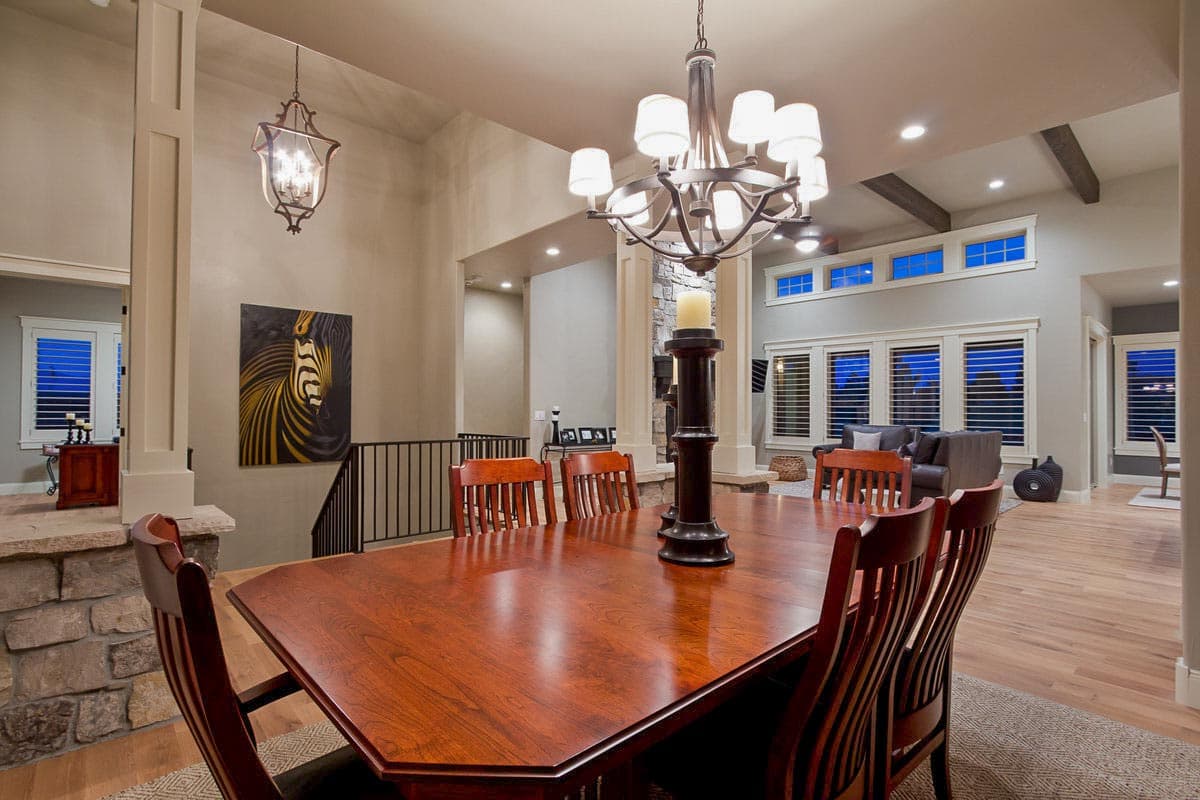

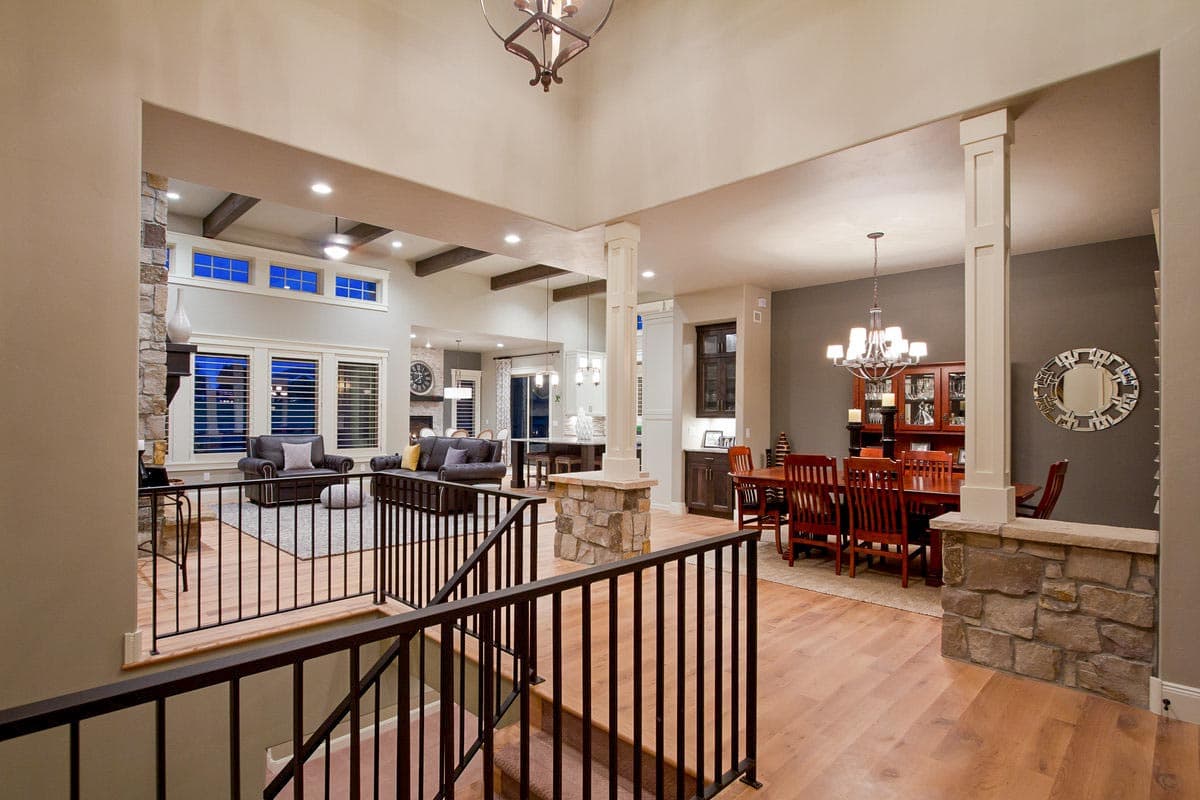

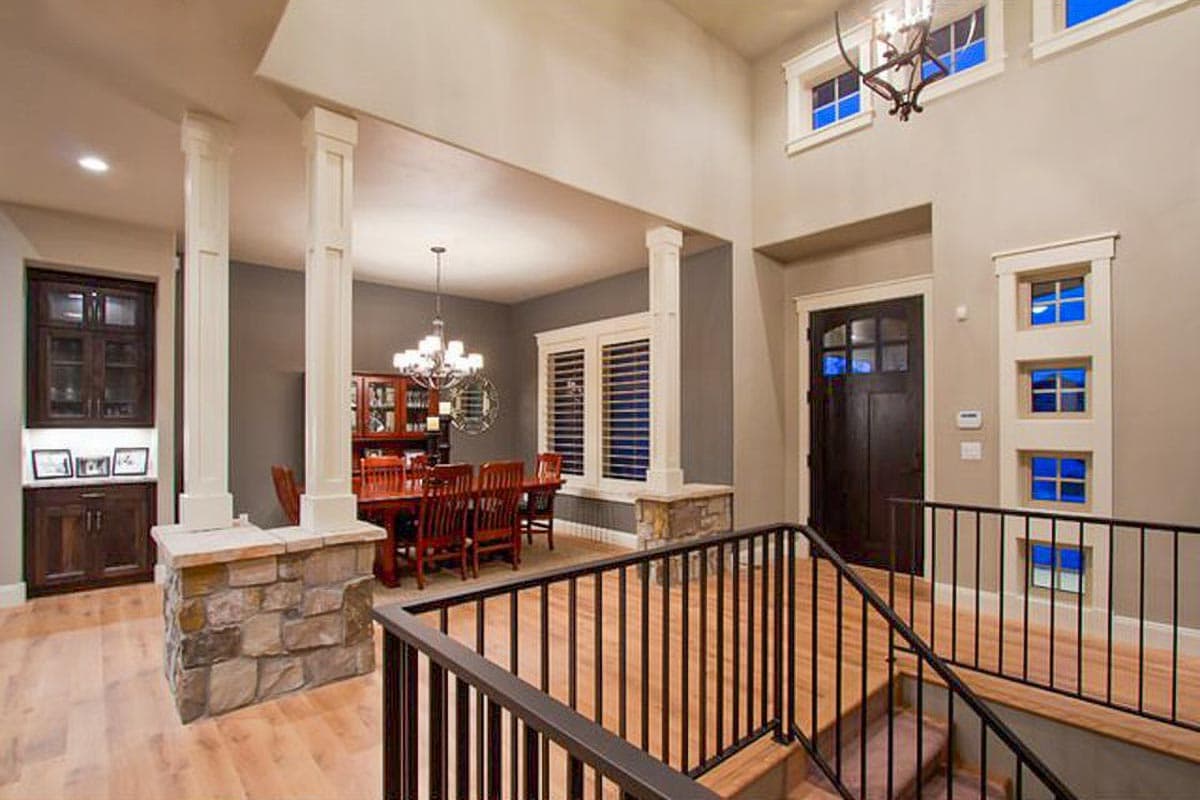

  • With just two walls in the formal dining room, the sight lines extend into the huge great room and out to the covered patio beyond.

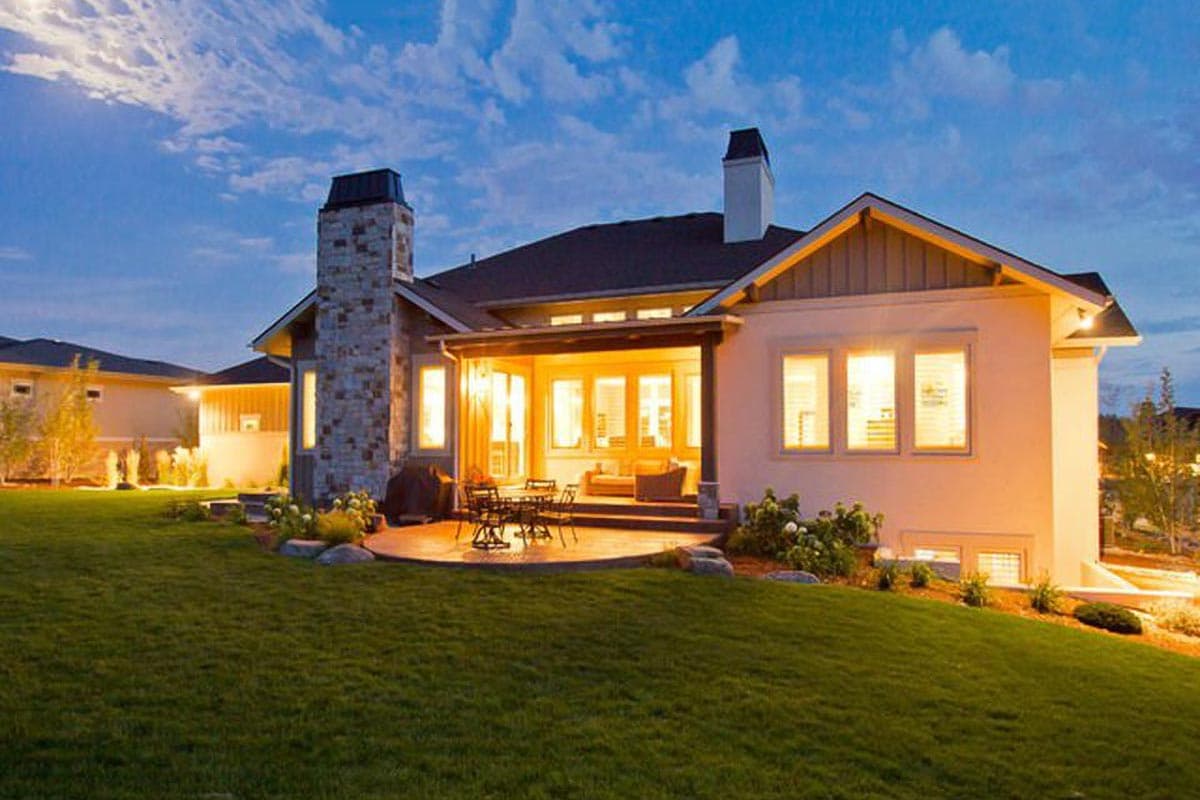

  • Sliding glass doors on both sides of the hearth room open to a patio on each side, one with shade and one for sunbathing.

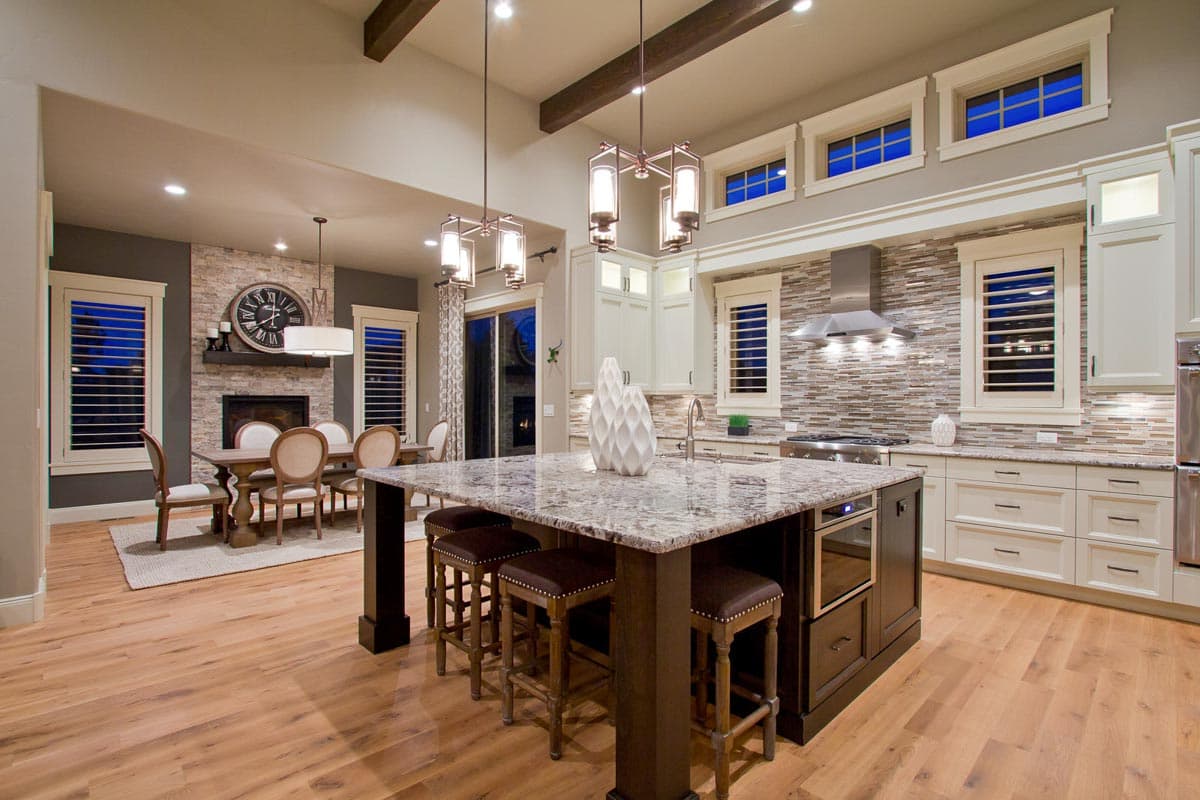

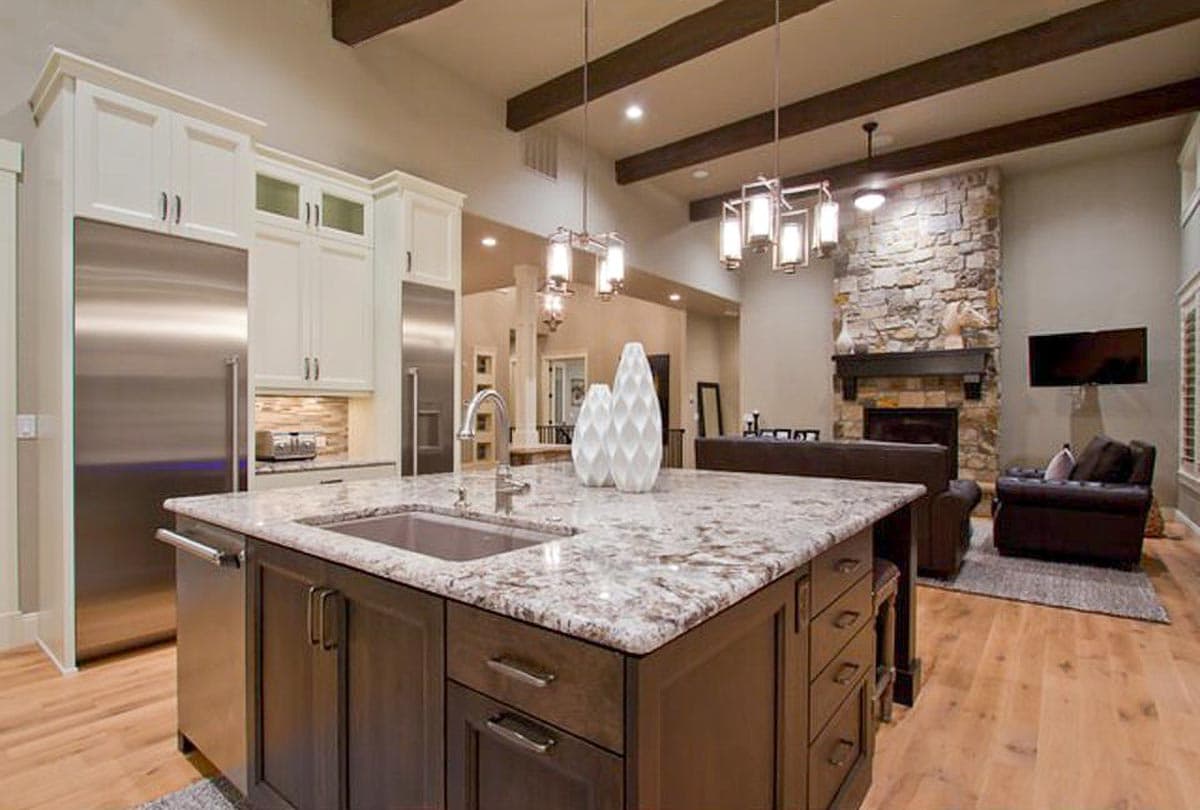

  • You'll have plenty of counter space in the well-organized kitchen, where the kitchen sink in the island faces the great room fireplace.

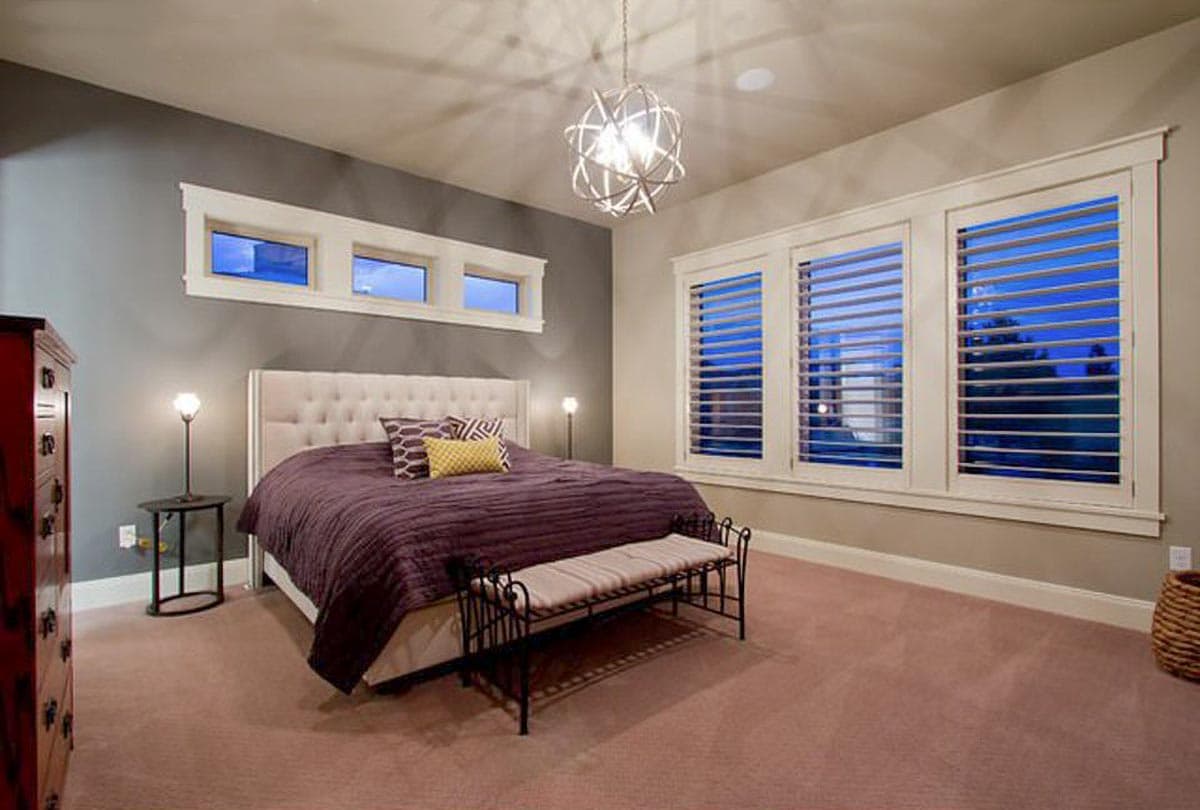

  • On the left wing of the home, the master suite is all the way in back, away from street noise.
  • A home office and a second bedroom with a walk-in closet complete the first floor.

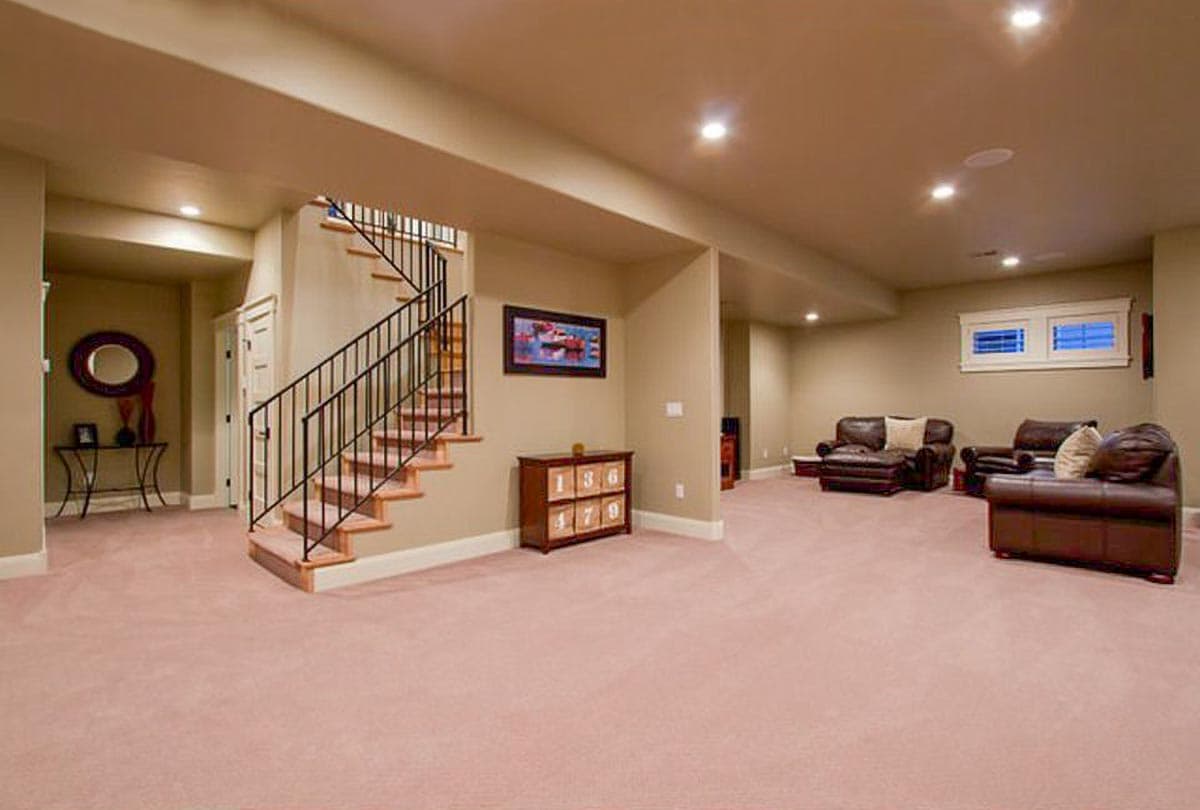

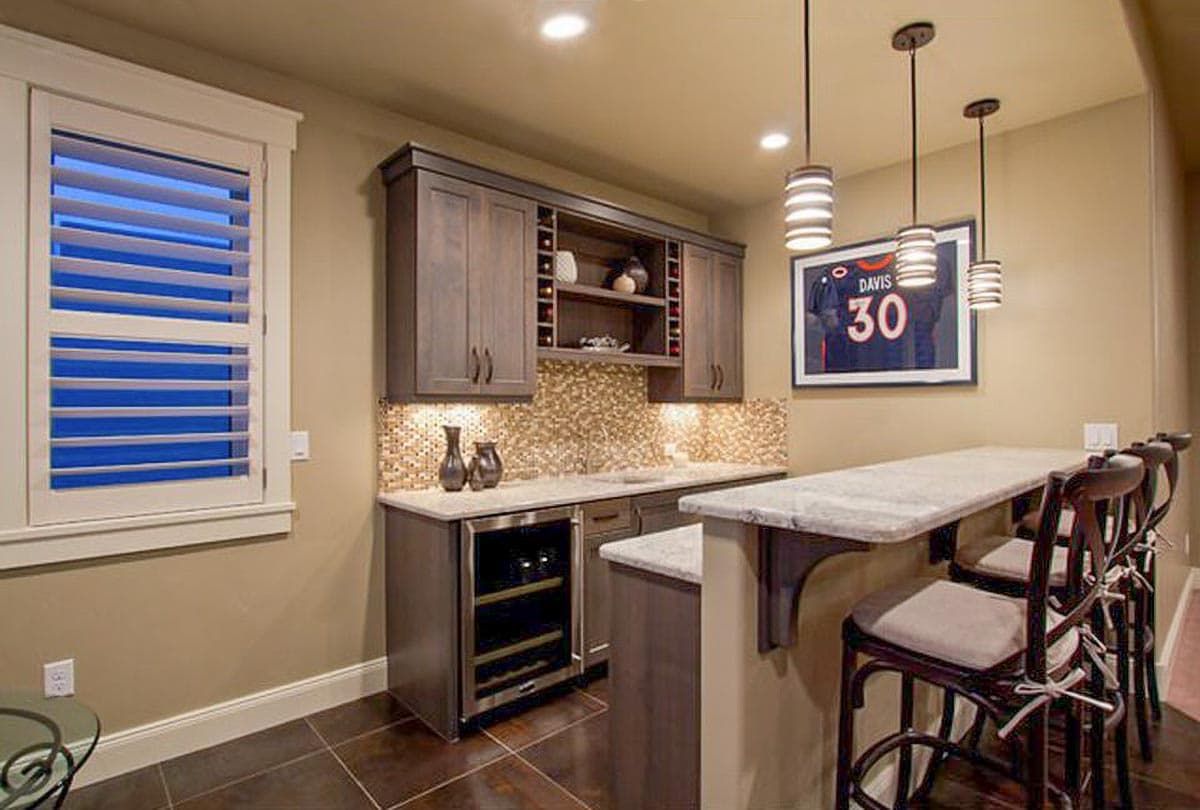

  • Head down the stairs to the finished lower level with its massive rec room and two more bedrooms.
  • Plans will come with an optional lower level configuration that has slightly less square footage.
  • Related Plan: Get an alternate version with house plan 95051RW.
What's Included
This plan set has 8 pages as follows:
  1. Cover page

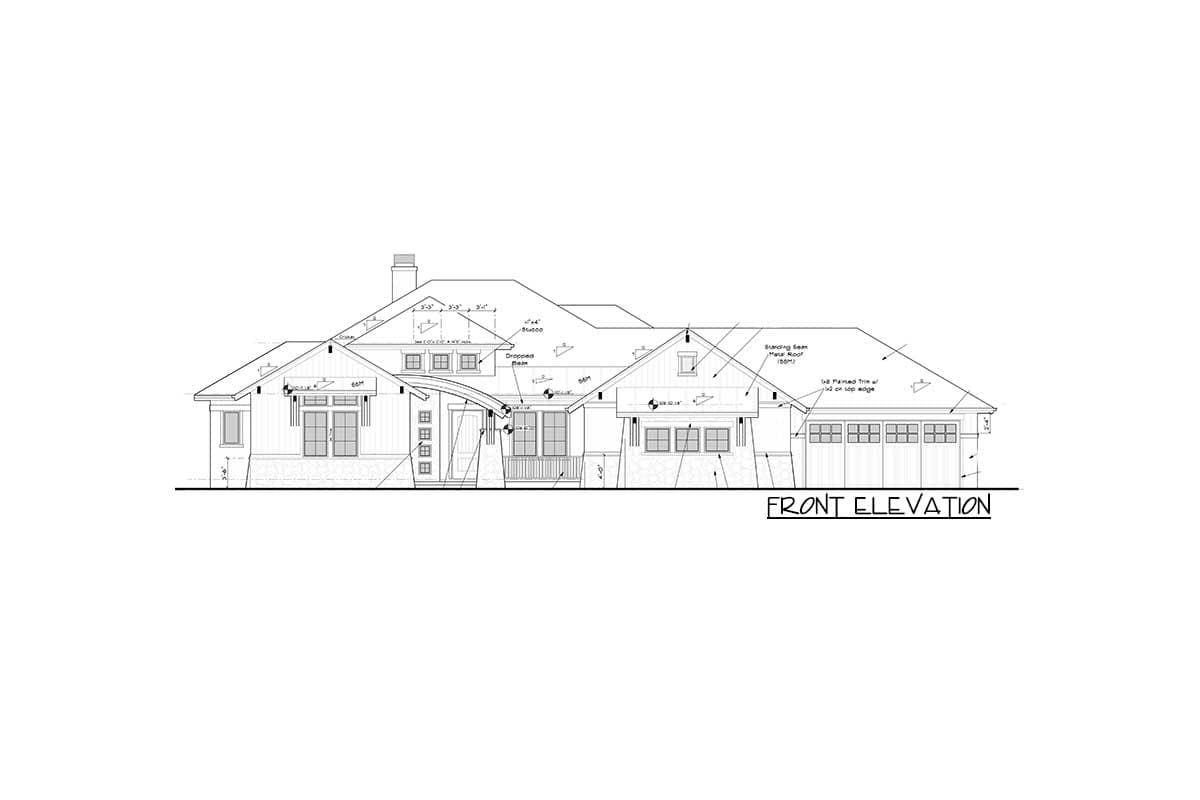

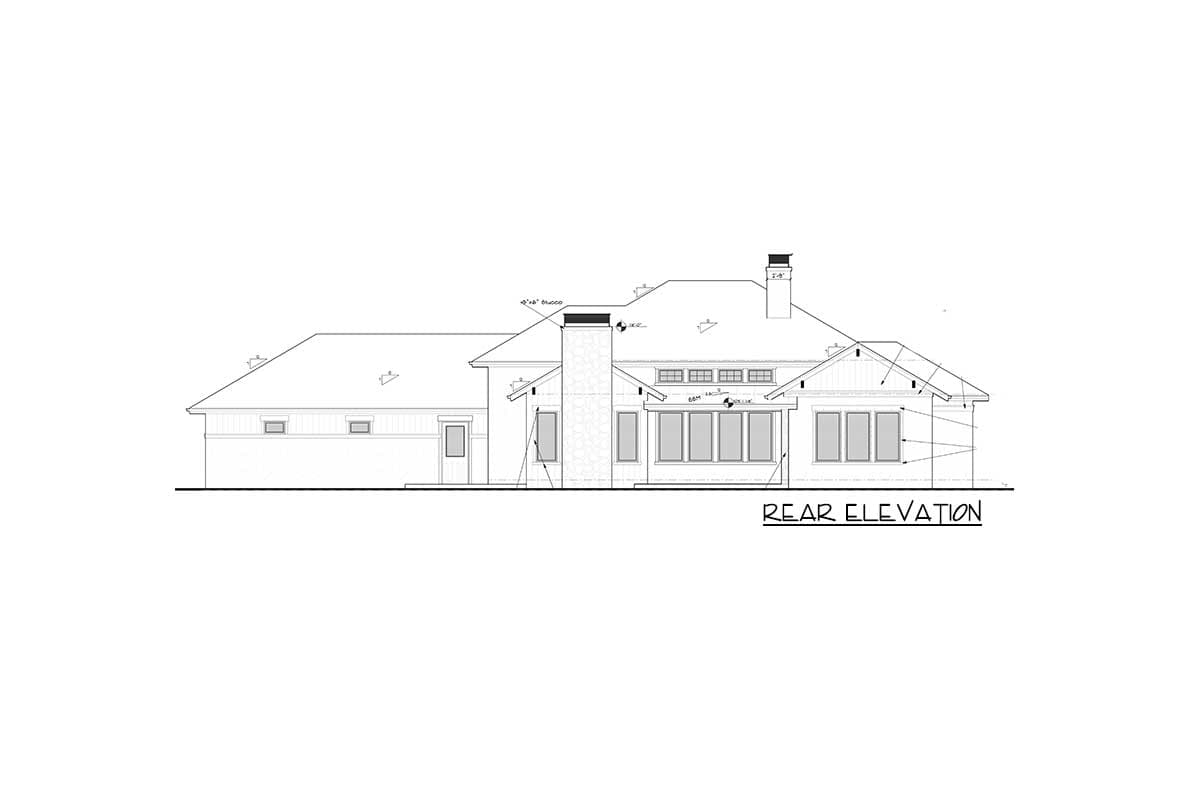

  2. Front and back elevations

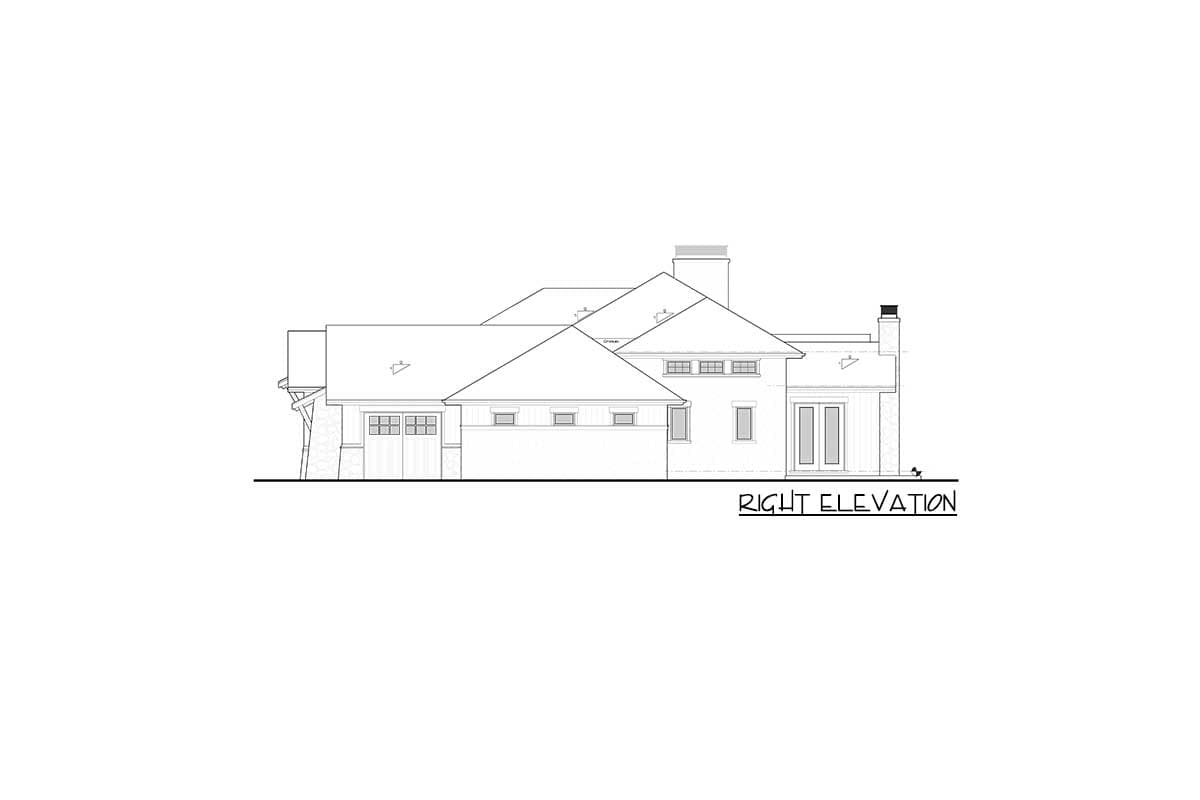

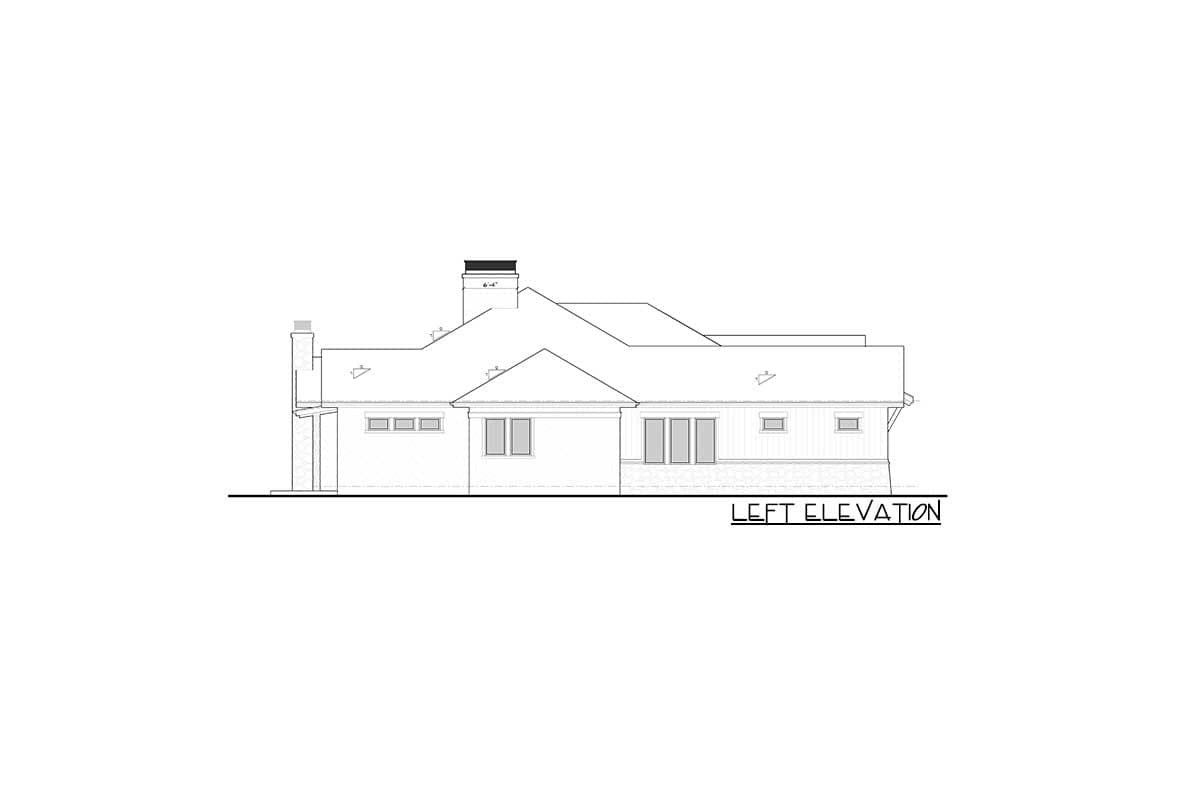

  3. Left and right elevations
  4. Lower floor plan
  5. Lower floor plan option
  6. Main floor plan
  7. Foundation plan
  8. Roof plan
  9. Electrical plan and typical wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Craftsman House Plan with Lower Level Options

  • 4,319

    Heated s.f.

  • 4

    Beds

  • 3.5+ - 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,319 sq. ft.
  • Lower Level: 1,704 sq. ft.
  • 1st Floor: 2,615 sq. ft.

Dimensions

  • Width: 90' 6"
  • Depth: 69' 6"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1236 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
