Plan 95160RW
Mountain Craftsman House Plan with Luxury Master Wing and Walkout Basement
Heated S.F.
6,047
Beds
5
Baths
4.5+
Stories
1
Cars
3
Flyer
What's Included
Plan Details
  • A variety of architectural features capture your attention when gazing at this Mountain Craftsman home plan, complete with an L-shaped 3-car garage with a flex room (or man cave) overhead.

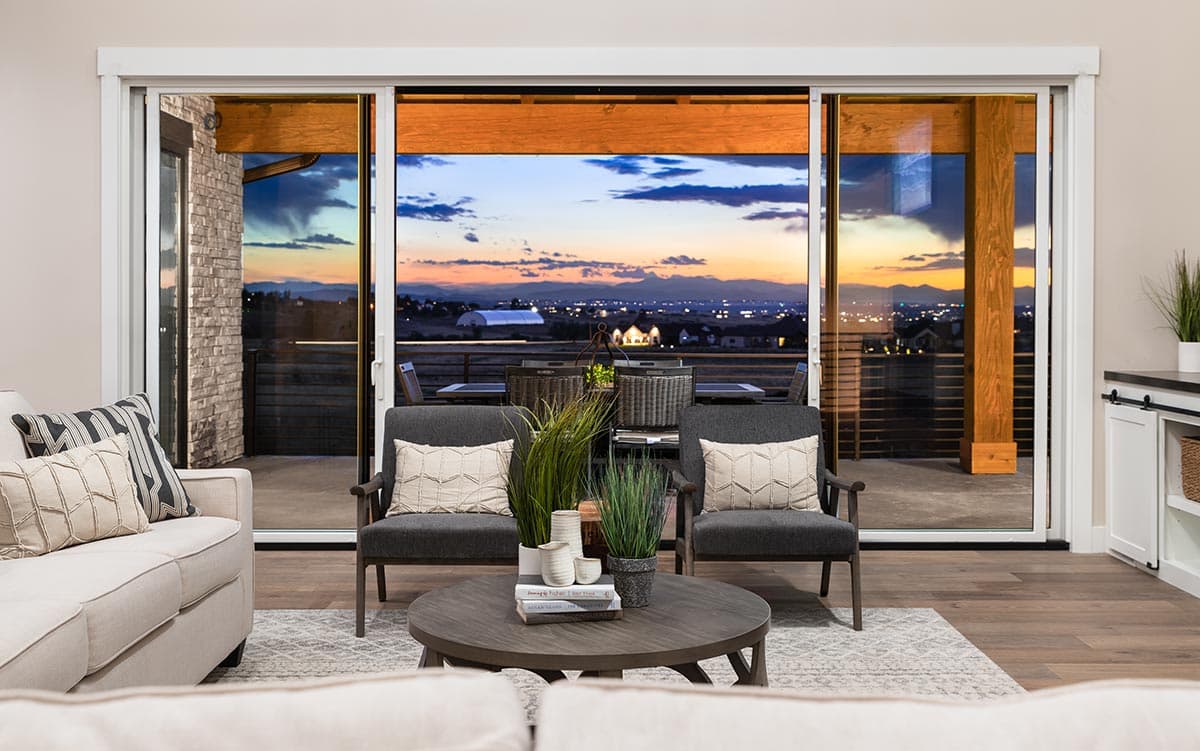

  • A rustic, exposed-beam ceiling connects the foyer with the great room where a fireplace is surrounded by builtins and sliding doors part to grant access to a large, covered deck.
  • The island kitchen includes plenty of workspace, a nearby walk-in pantry, and adjacent dining room.
  • Discover a study and master bedroom in the right wing of the main level. The sizable bedroom provides access to the back deck, a 5-fixture bath, and two closets.

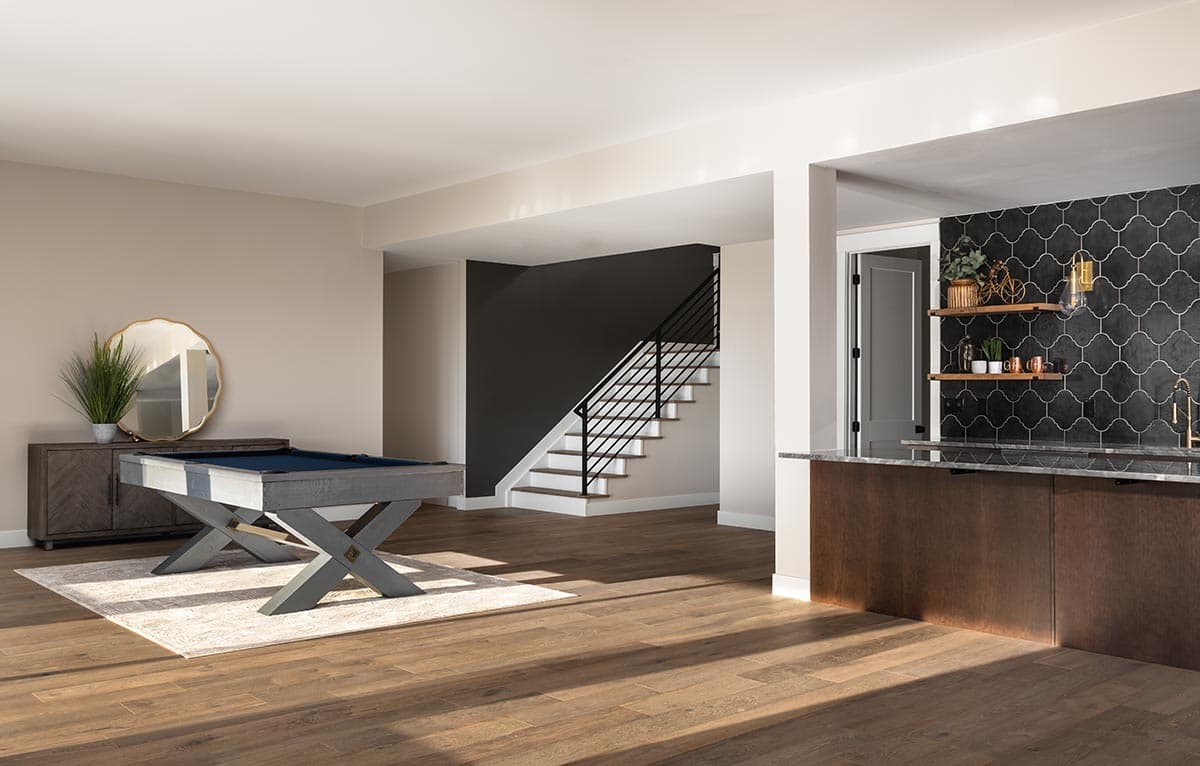

  • Entertaining is made easy with this walk-out basement that features a generous media / rec room with a built-in bar, three bedroom suites, and a second laundry room.
What's Included

  • Cover Page

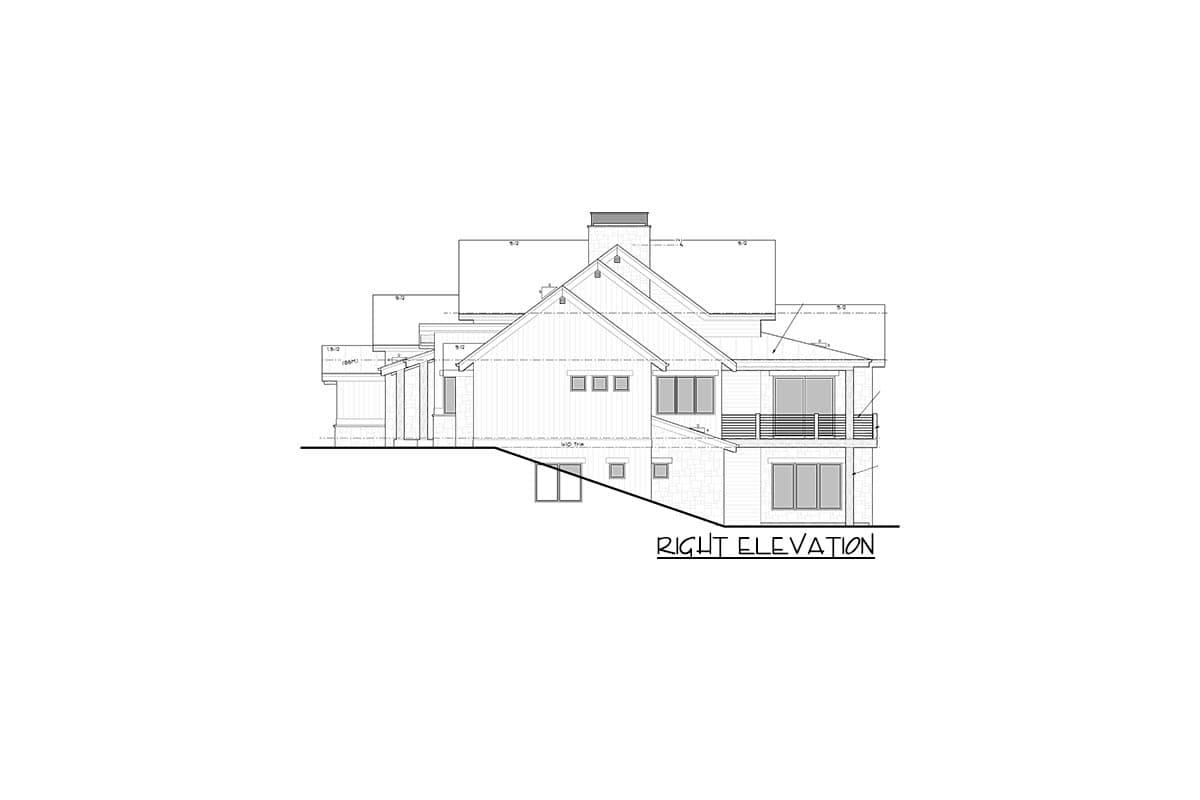

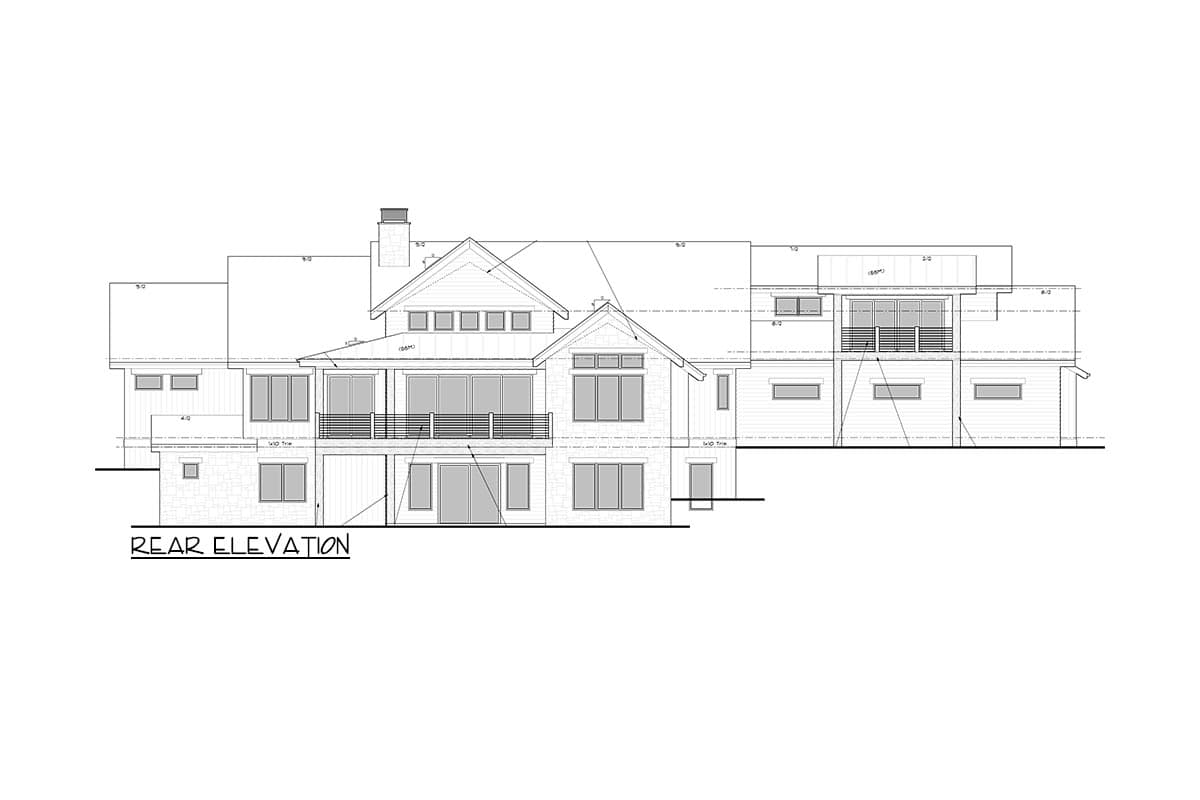

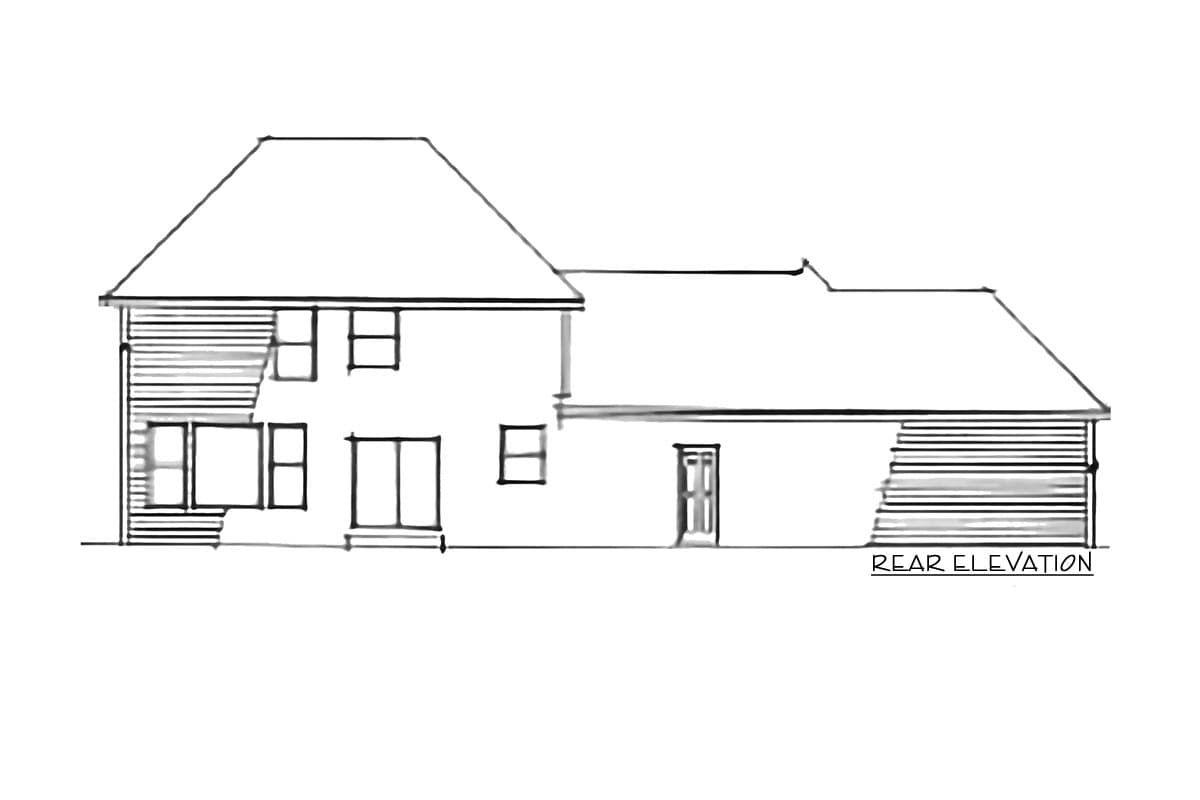

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Craftsman House Plan with Luxury Master Wing and Walkout Basement

  • 6,047

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

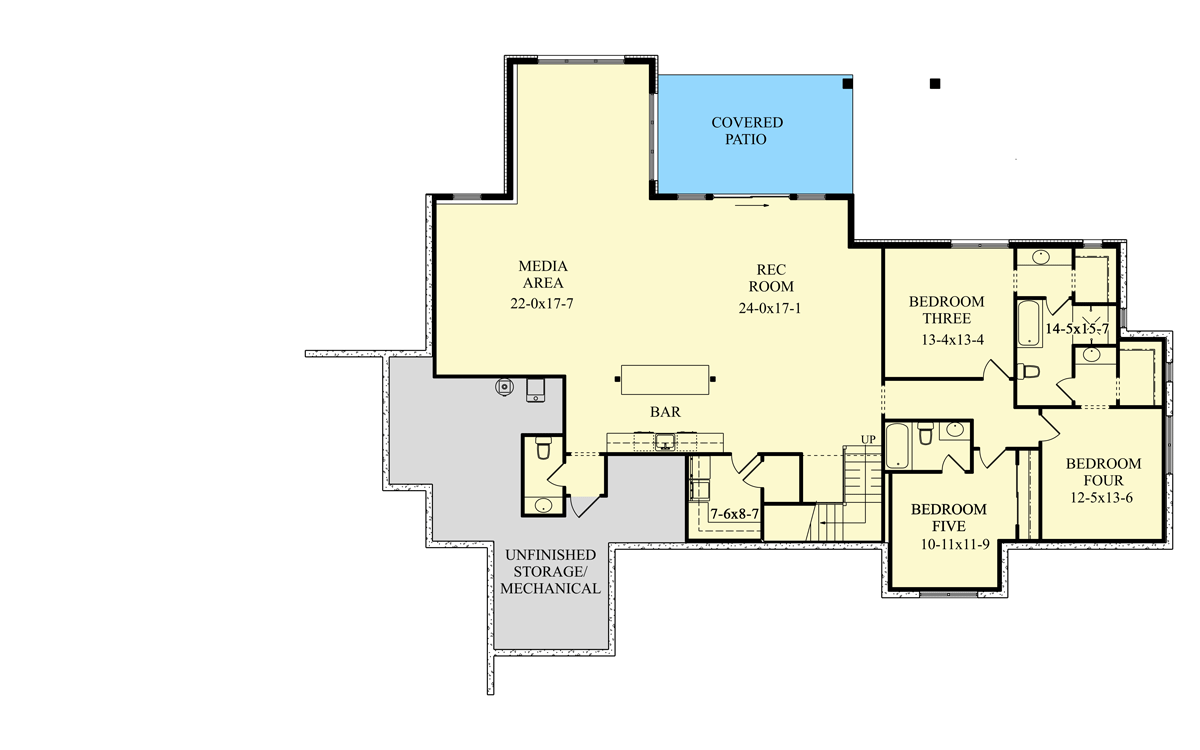

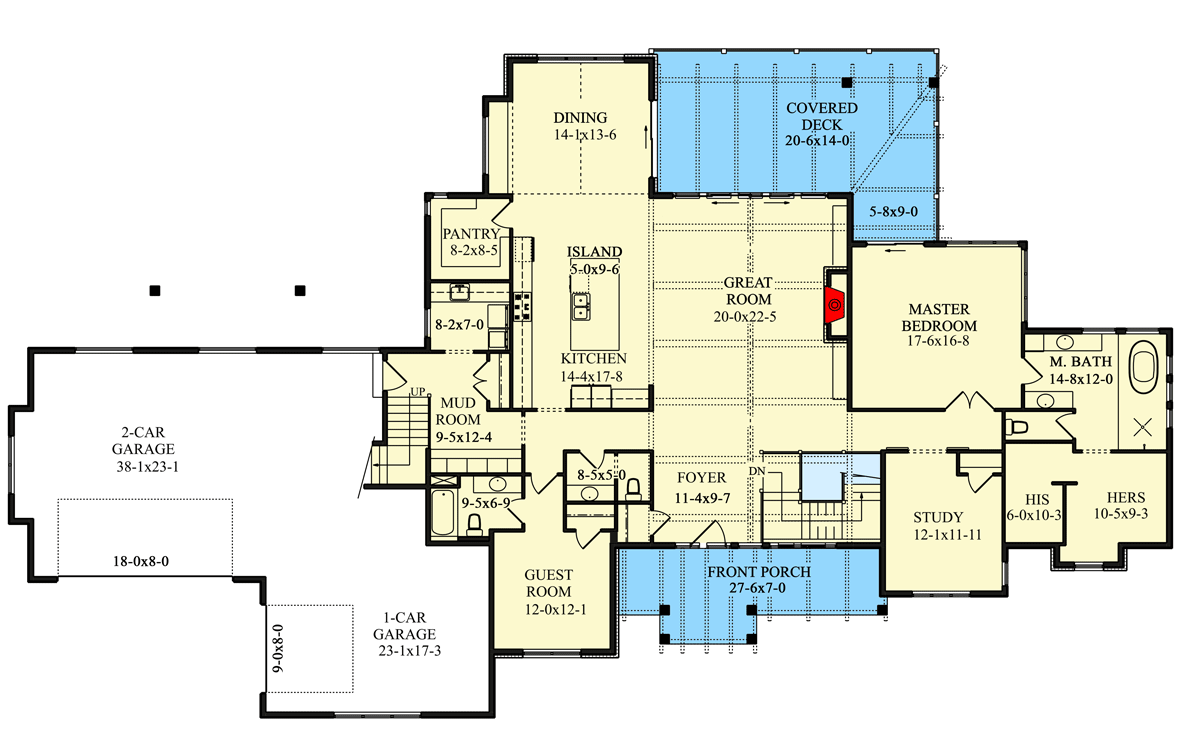

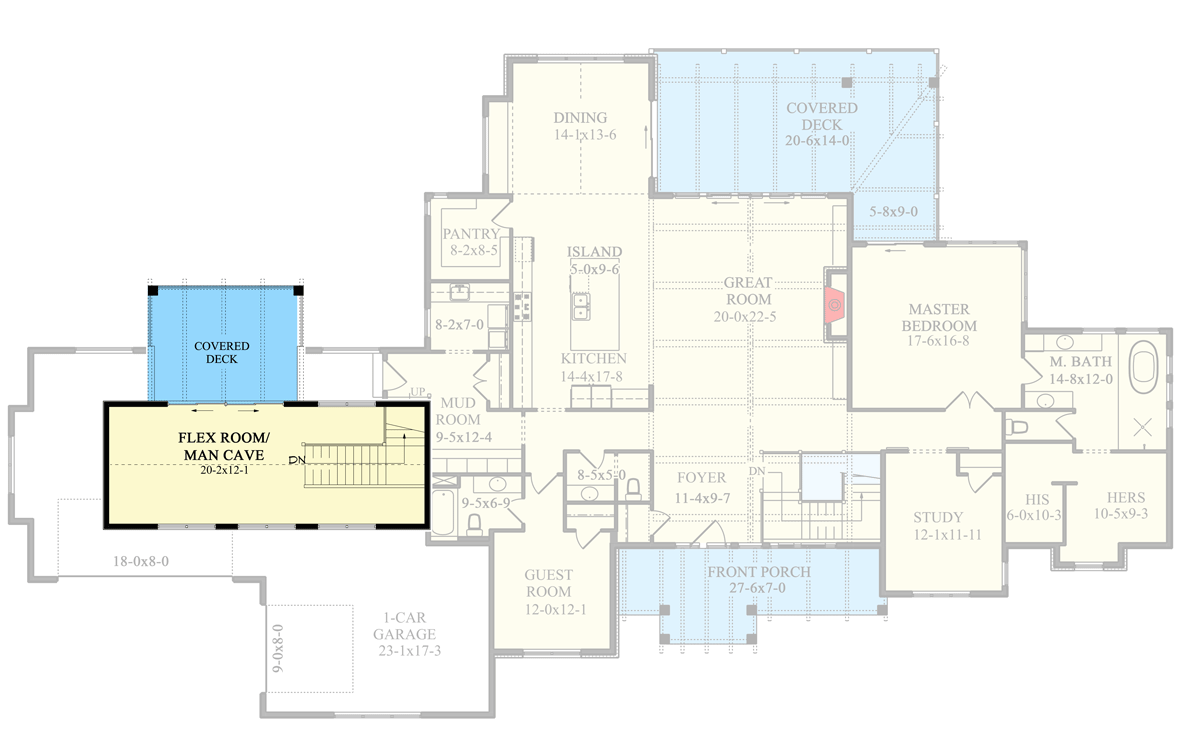

Floor Plan
