Plan 444300GDN Mountain Craftsman Plan with Angled Garage and Walkout Basement

2,607 3-4 4 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman Plan with Angled Garage and Walkout Basement

Plan 444300GDN

  • 2,607

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • A courtyard entry and mixed-material facade give this Mountain Craftsman plan instant curb appeal. The double garage extends at an angle with two dormer windows adding natural light to the bonus room above.
  • Inside, the open arrangement of the kitchen, great room, and bayed dining room creates the perfect place for casual entertaining. A 14'8" coffered ceiling above the great room adds elegance overhead.

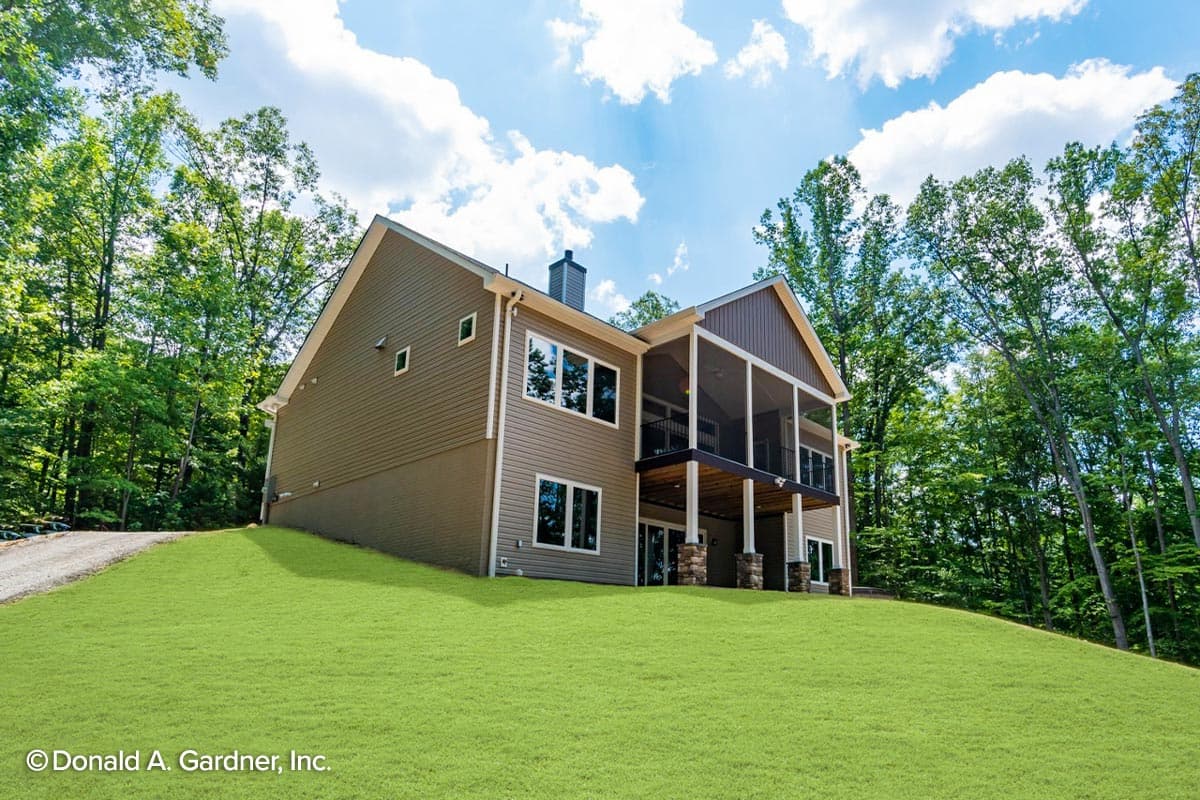

  • Enjoy outdoor living on the 21'4" by 10' rear porch, topped by skylights, or bug-free dining off the kitchen in the screened porch.

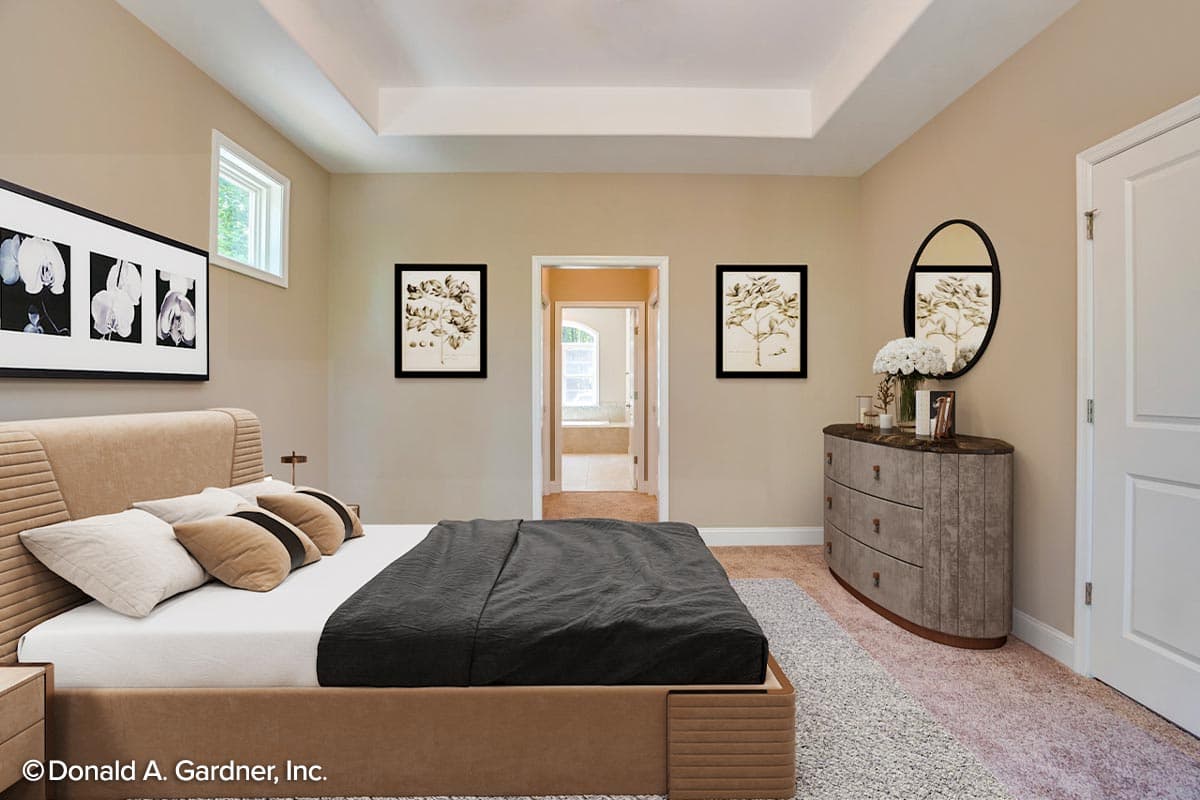

  • The master bedroom privately occupies the right side of the main level and features a tray ceiling, dual walk-in closets, and a sizable ensuite with a garden tub.
  • A home elevator makes it easy to move to the basement, where a rec room and two additional bedrooms await guests or family.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Plan with Angled Garage and Walkout Basement - 444300GDN floor plan - Main Level

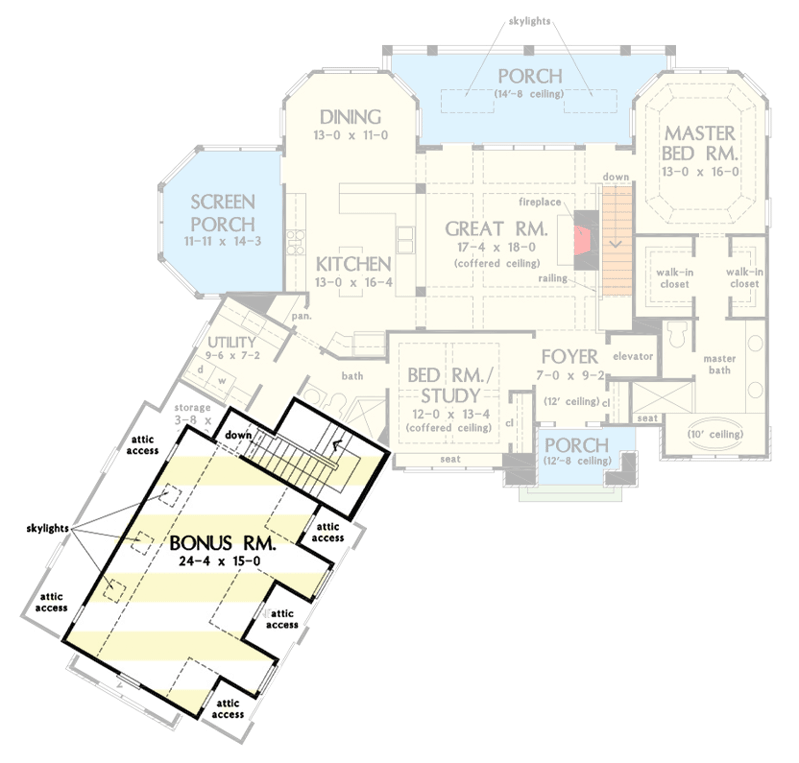

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Plan with Angled Garage and Walkout Basement - 444300GDN floor plan - Bonus Room

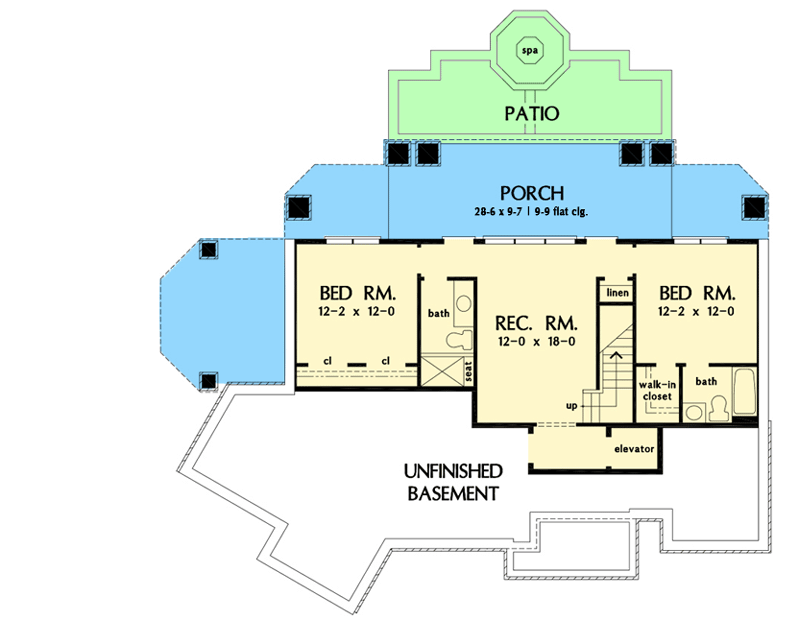

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Plan with Angled Garage and Walkout Basement - 444300GDN floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,607 sq. ft.
  • Lower Level: 919 sq. ft.
  • 1st Floor: 1,688 sq. ft.
  • Covered Patio: 278 sq. ft.
  • Screened Porch: 172 sq. ft.
  • Porch, Combined: 273 sq. ft.
  • Porch, Rear: 242 sq. ft.
  • Porch, Front: 66 sq. ft.
  • Bonus: 529 sq. ft.
  • Basement Unfinished: 724 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 70' 1"
  • Max ridge height: 38' 10"

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 5" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Mountain Craftsman Plan with Angled Garage and Walkout Basement

  • 2,607

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,455
  • PDF - Single-Build $1,655
  • 5 Sets + PDF $1,905
  • CAD Unlimited + PDF $3,310
  • View all purchase option online

About This Plan

  • A courtyard entry and mixed-material facade give this Mountain Craftsman plan instant curb appeal. The double garage extends at an angle with two dormer windows adding natural light to the bonus room above.
  • Inside, the open arrangement of the kitchen, great room, and bayed dining room creates the perfect place for casual entertaining. A 14'8" coffered ceiling above the great room adds elegance overhead.
  • Enjoy outdoor living on the 21'4" by 10' rear porch, topped by skylights, or bug-free dining off the kitchen in the screened porch.
  • The master bedroom privately occupies the right side of the main level and features a tray ceiling, dual walk-in closets, and a sizable ensuite with a garden tub.
  • A home elevator makes it easy to move to the basement, where a rec room and two additional bedrooms await guests or family.

Floor Plans

  • Main Level

  • Bonus Room

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,607 sq. ft.
  • Lower Level: 919 sq. ft.
  • 1st Floor: 1,688 sq. ft.
  • Covered Patio: 278 sq. ft.
  • Screened Porch: 172 sq. ft.
  • Porch, Combined: 273 sq. ft.
  • Porch, Rear: 242 sq. ft.
  • Porch, Front: 66 sq. ft.
  • Bonus: 529 sq. ft.
  • Basement Unfinished: 724 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 70' 1"
  • Max ridge height: 38' 10"

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 5" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
