Mountain Craftsman with 2 Master Suites

Plan 23648JD

  • 3,481

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

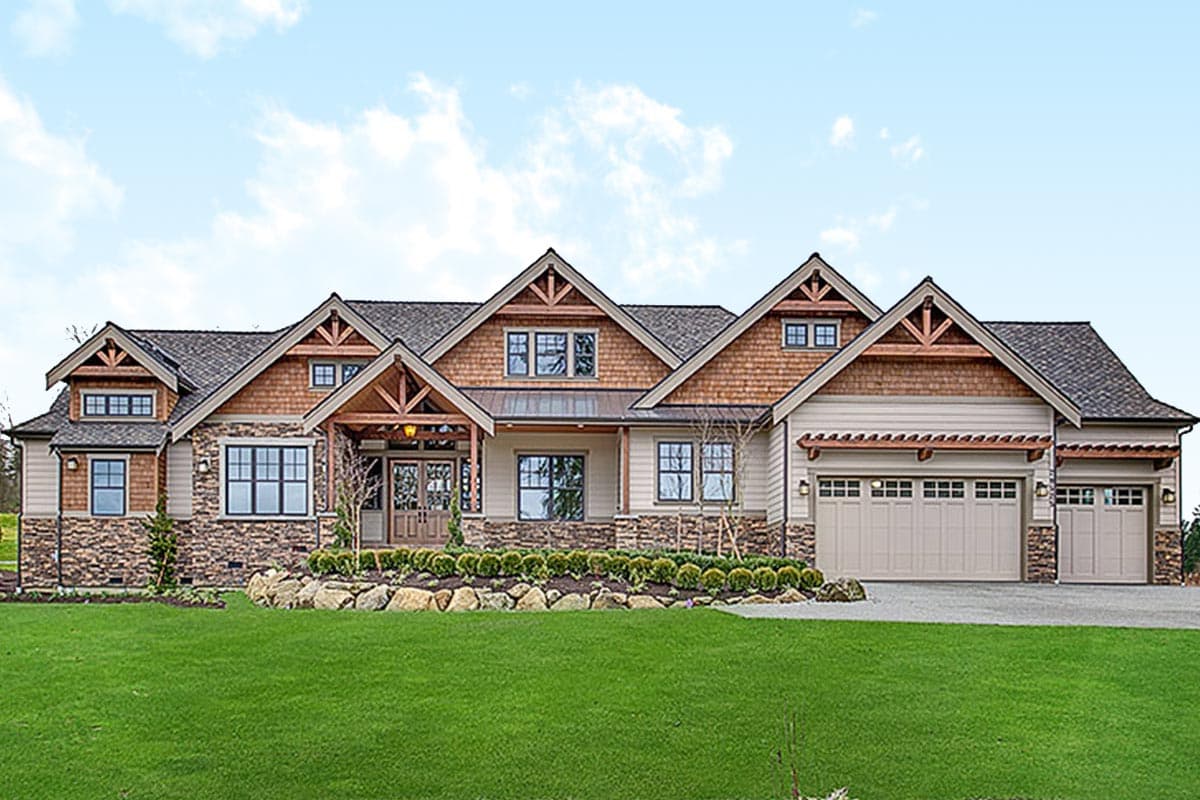

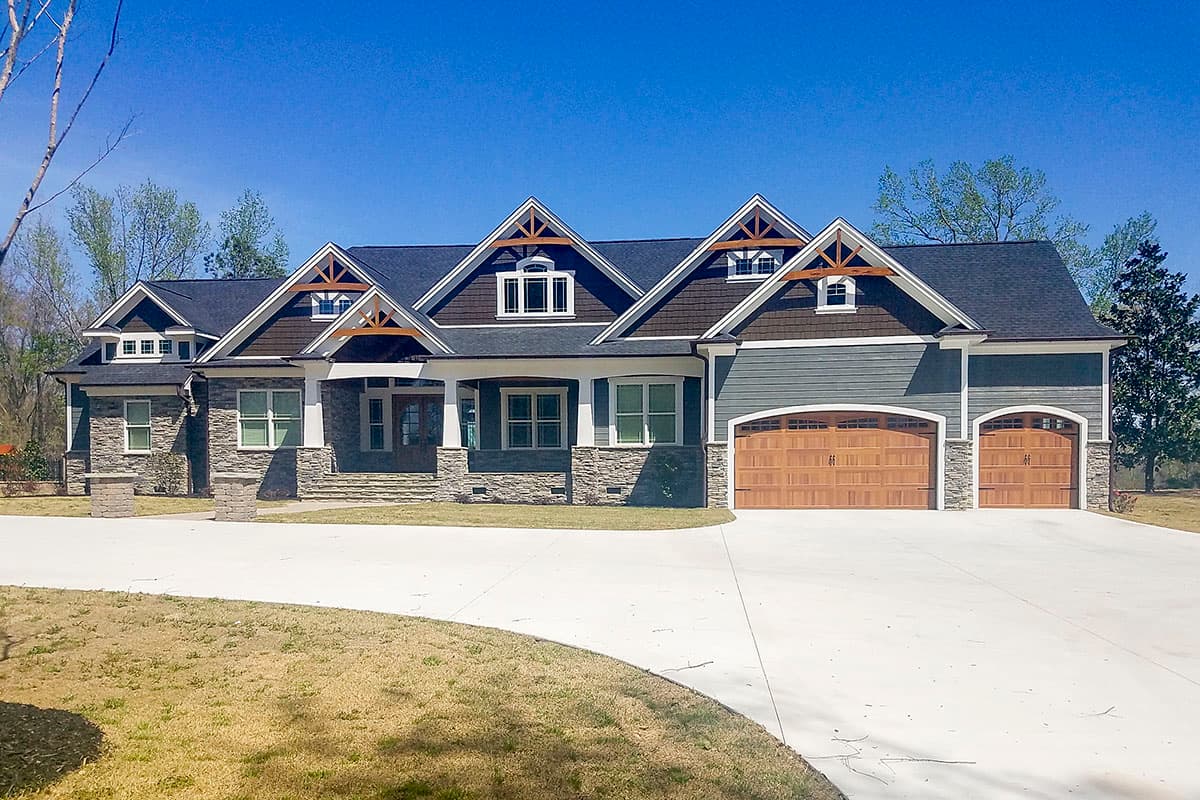

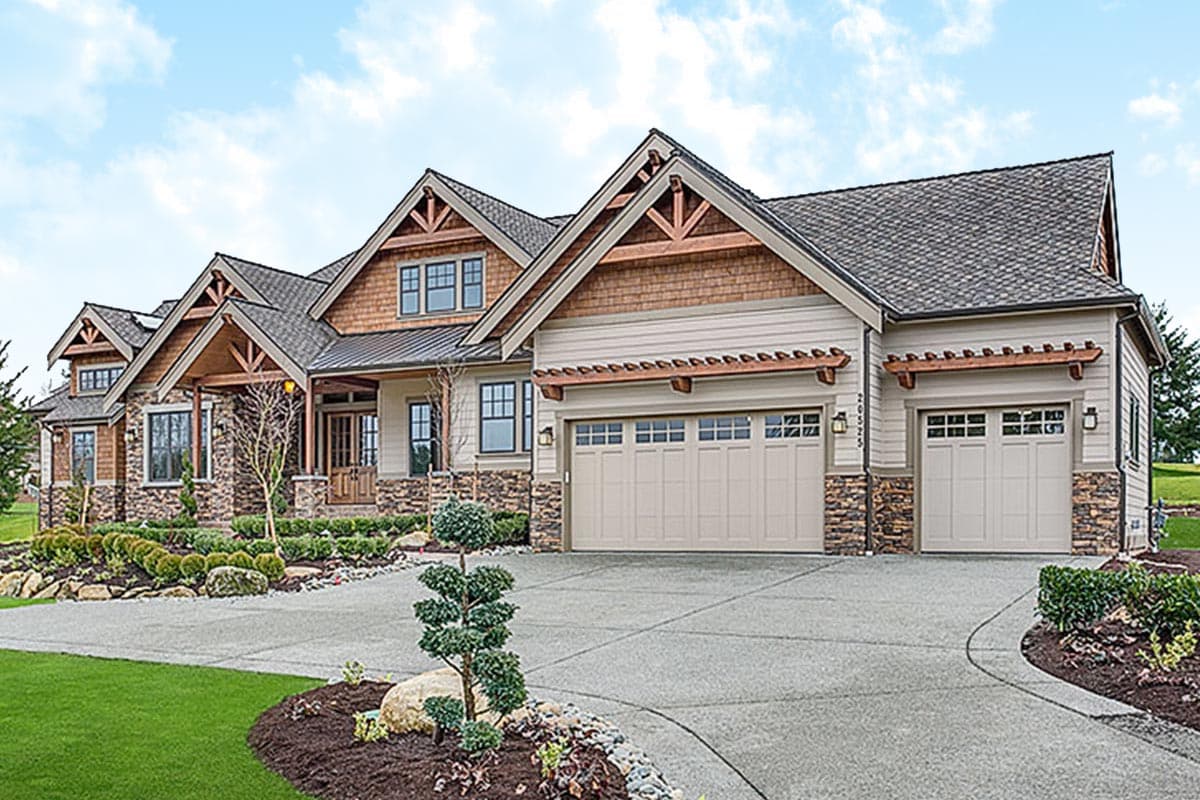

  • 6 gables with decorative brackets give this 4 bed Craftsman house plan a distinctive look. A mixed material exterior of stone, clapboard and shingles adds to the appeal.

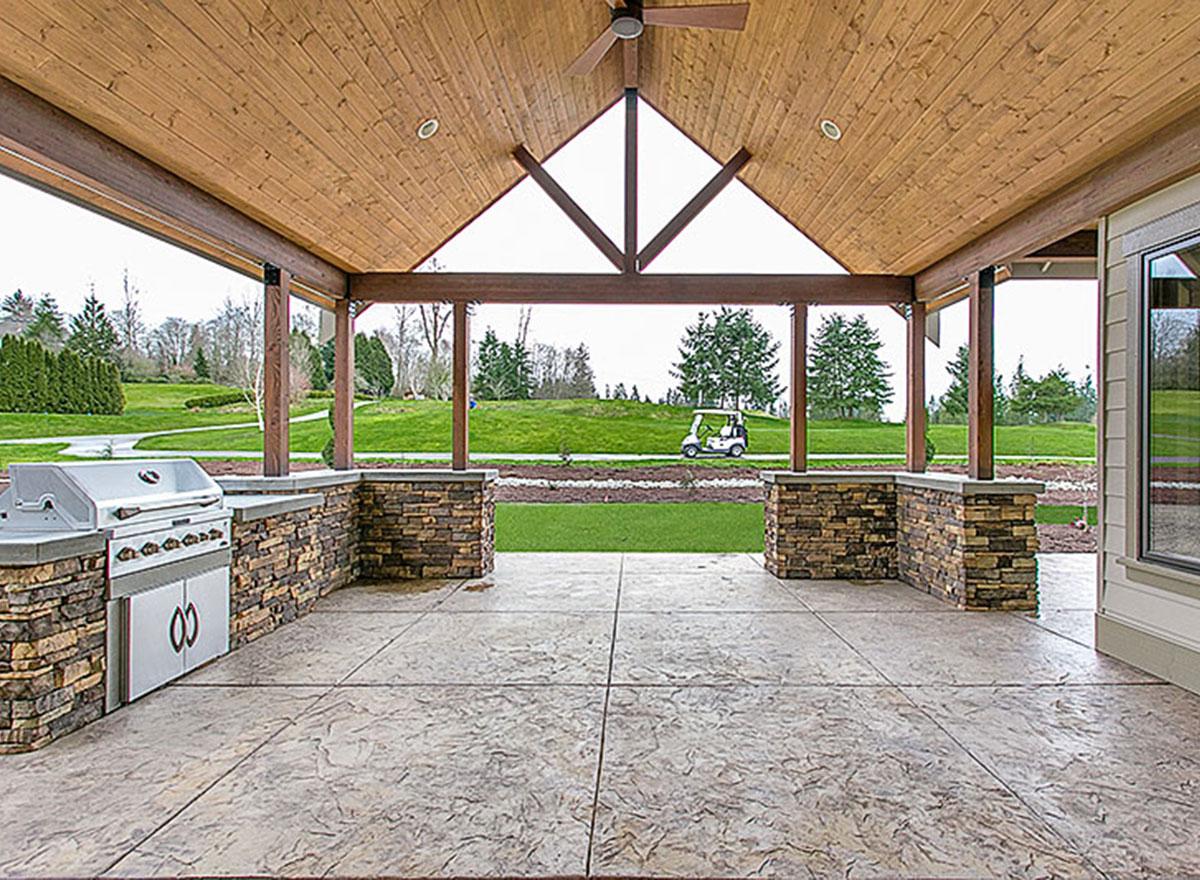

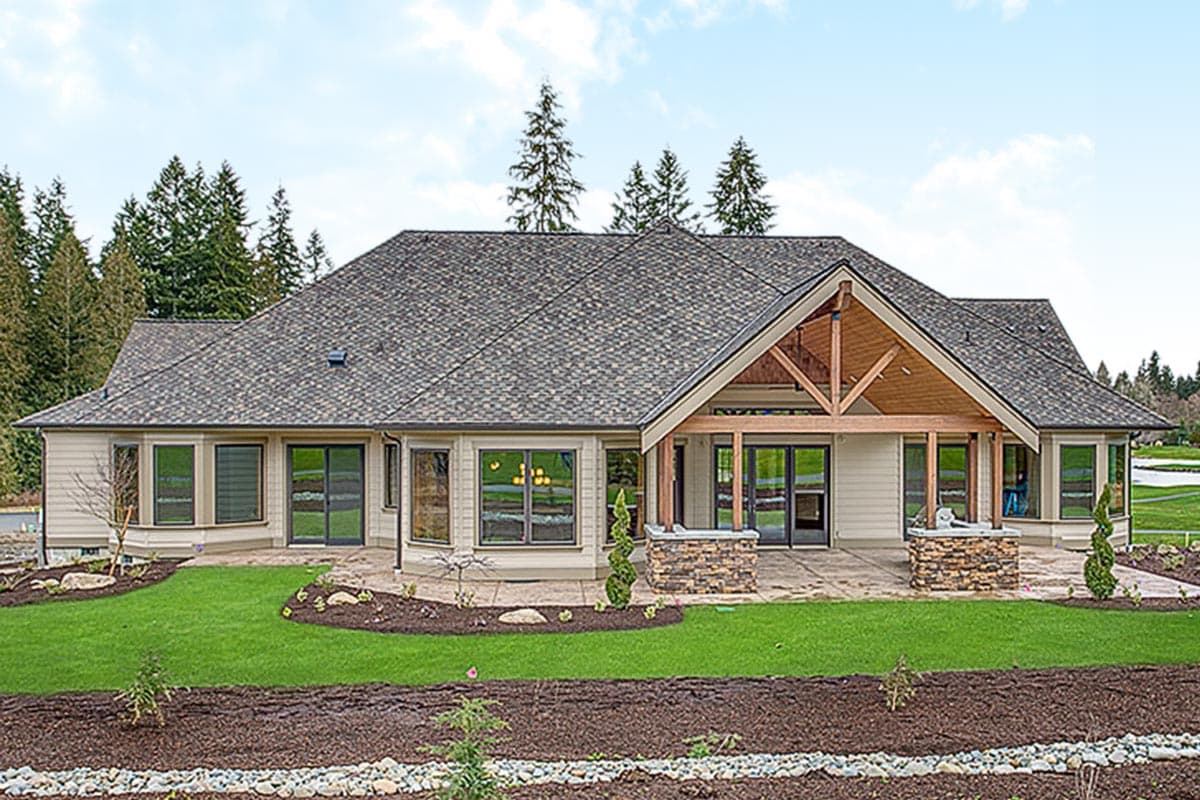

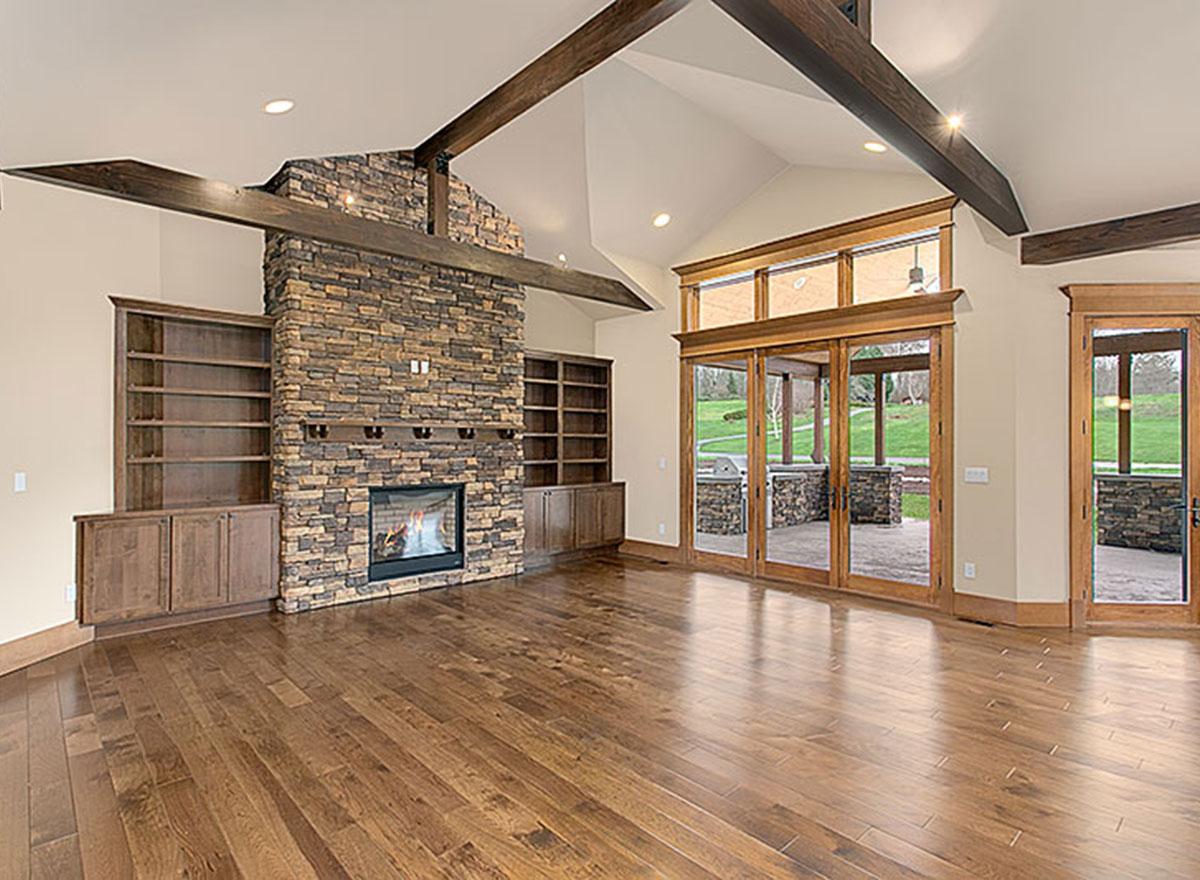

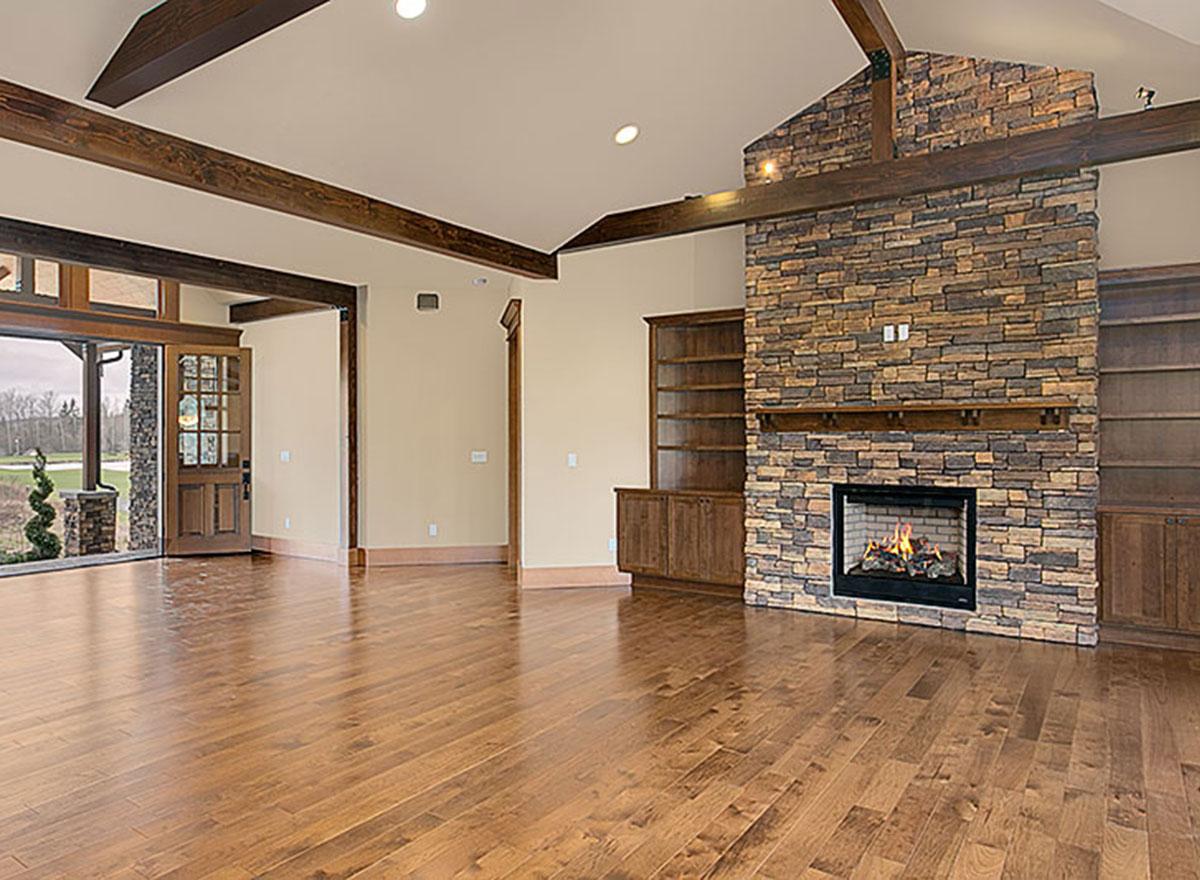

  • French doors open to the vaulted foyer. From there, you have views across the vaulted great room to the outdoor living room beyond.

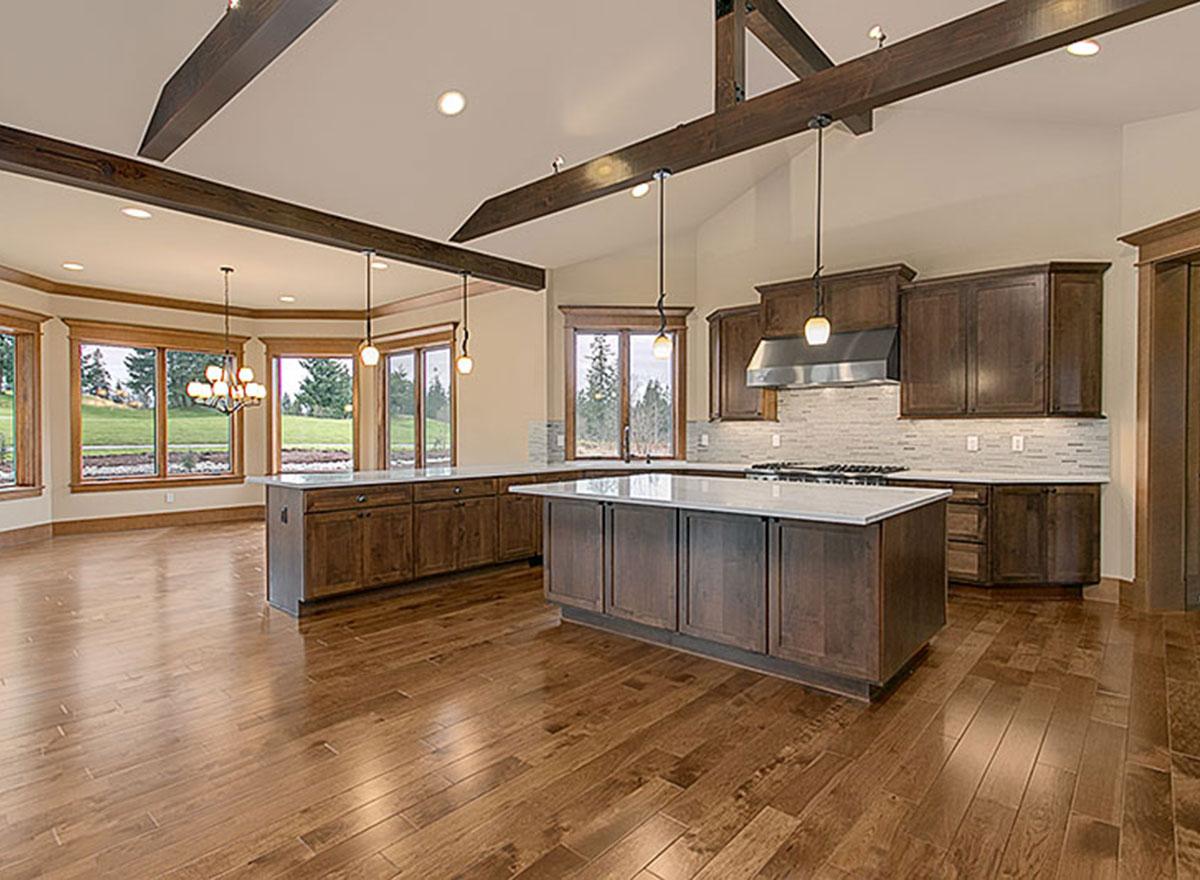

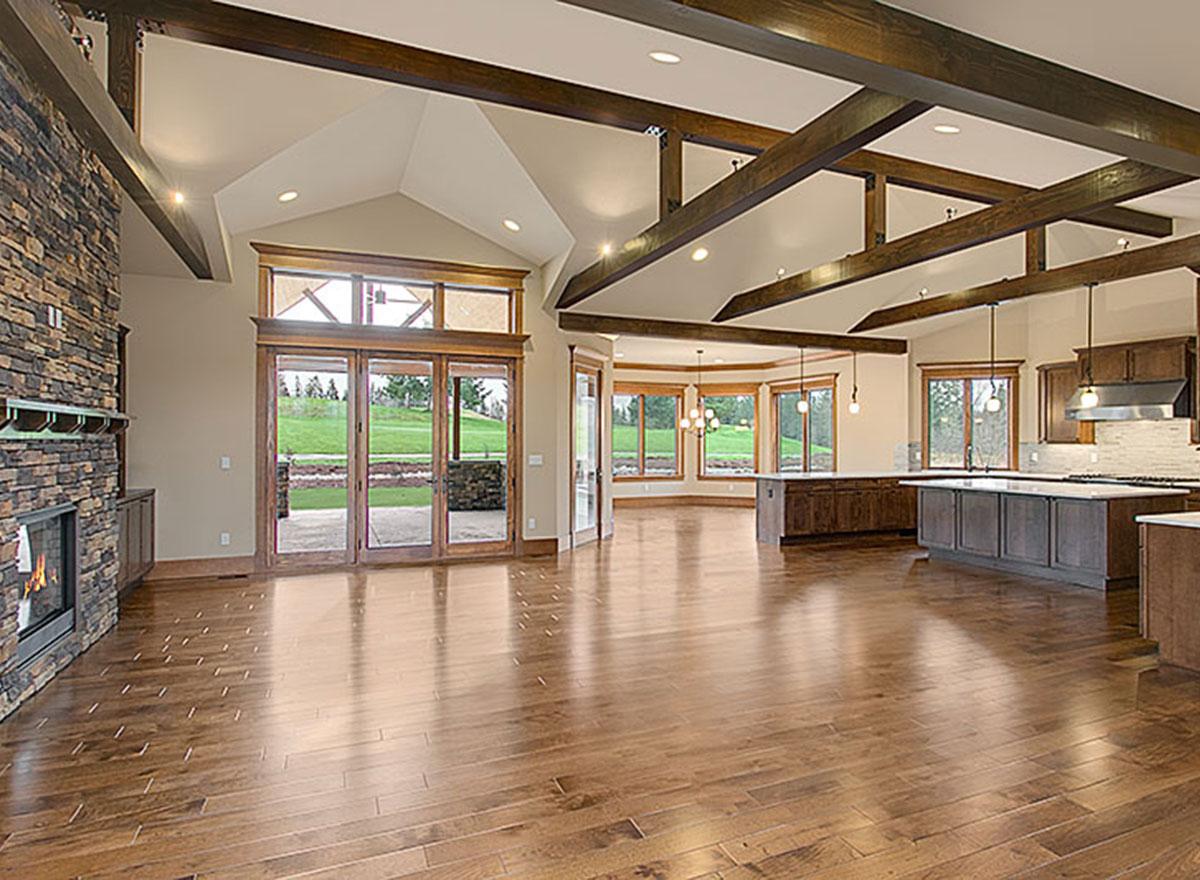

  • The kitchen has a large central island and a peninsula for casual eating. A sunny eating nook has views in three directions.

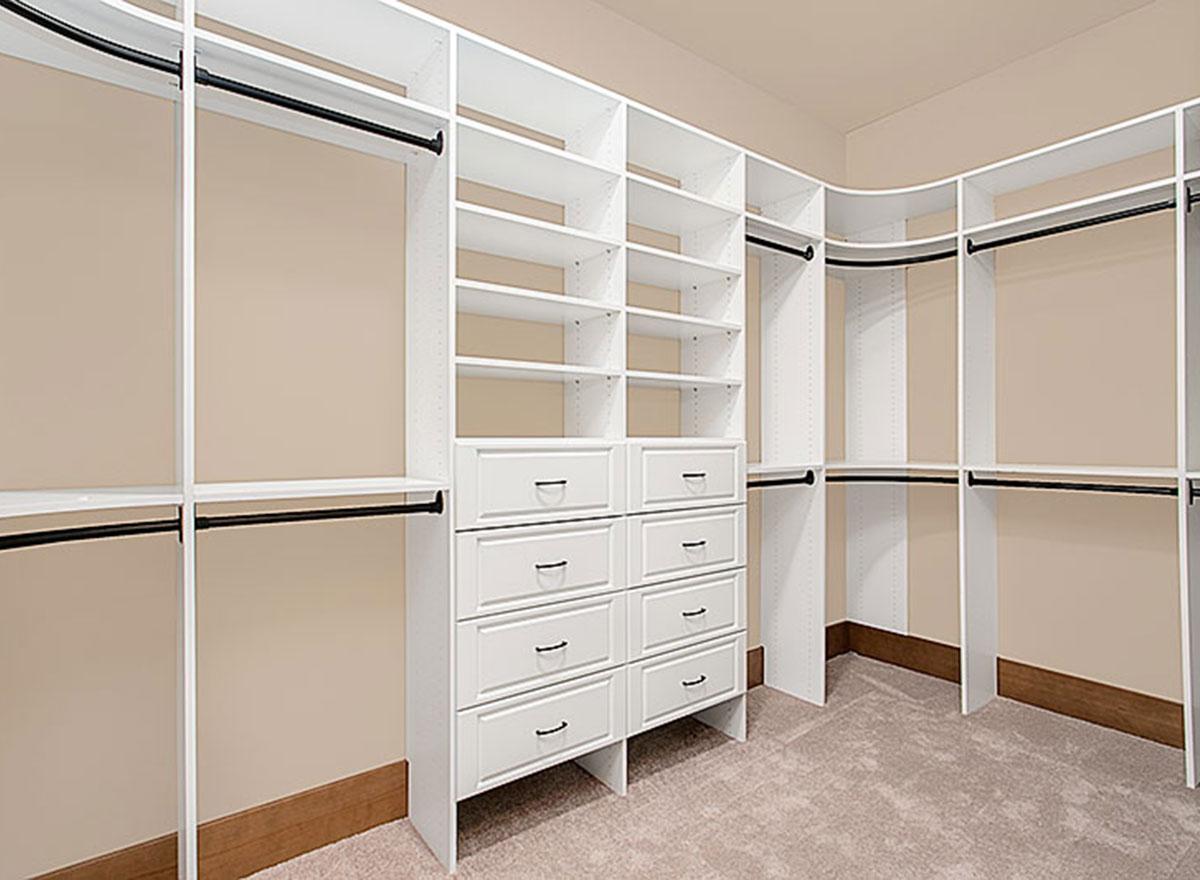

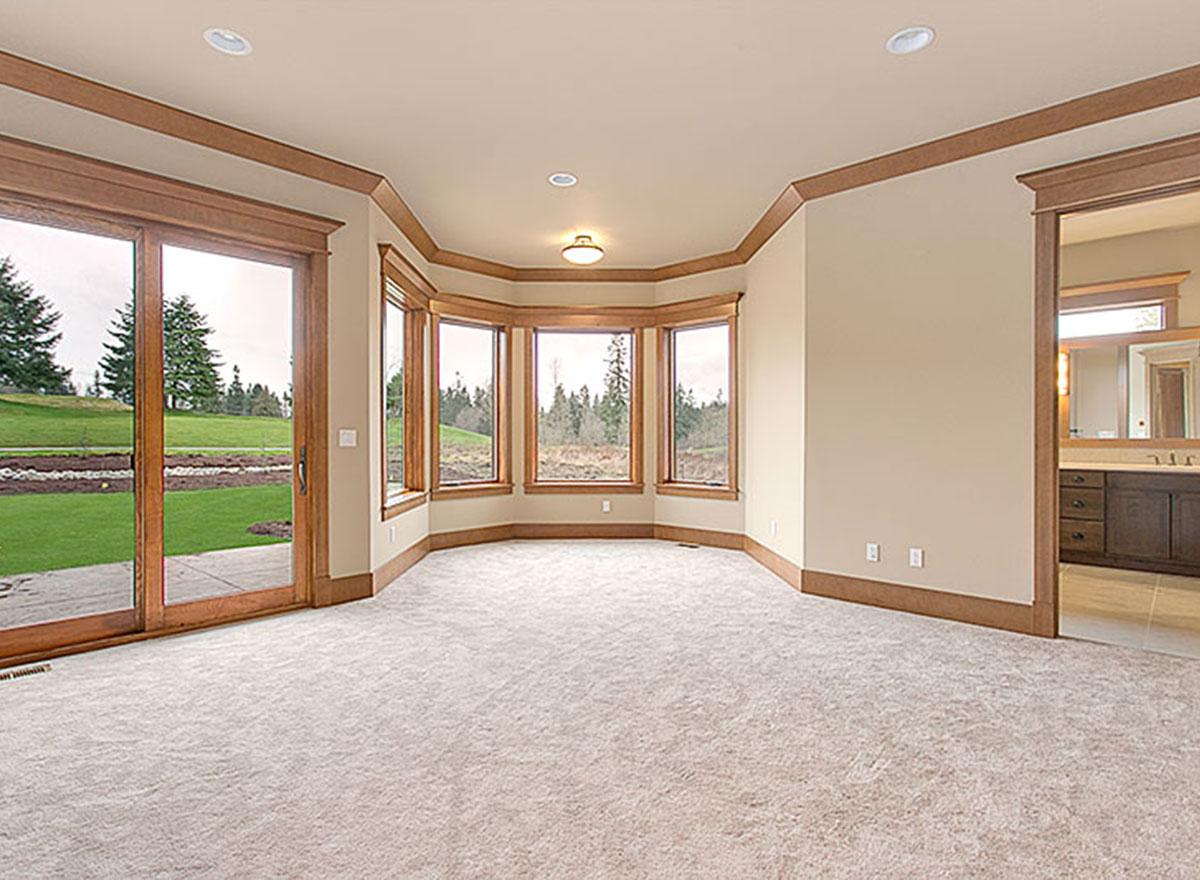

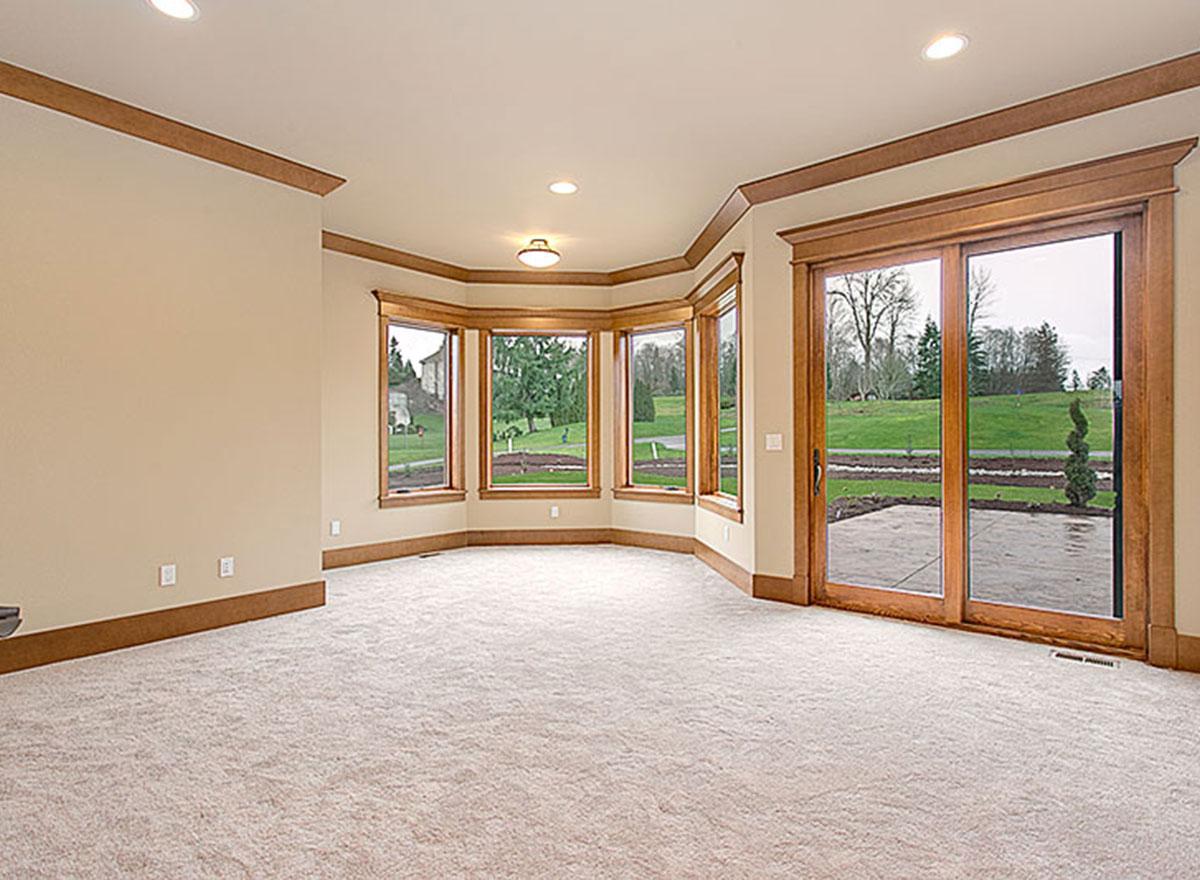

  • There are two master bedrooms, each with their own covered porches and large walk-in closets. Two smaller bedrooms and a den complete the home.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

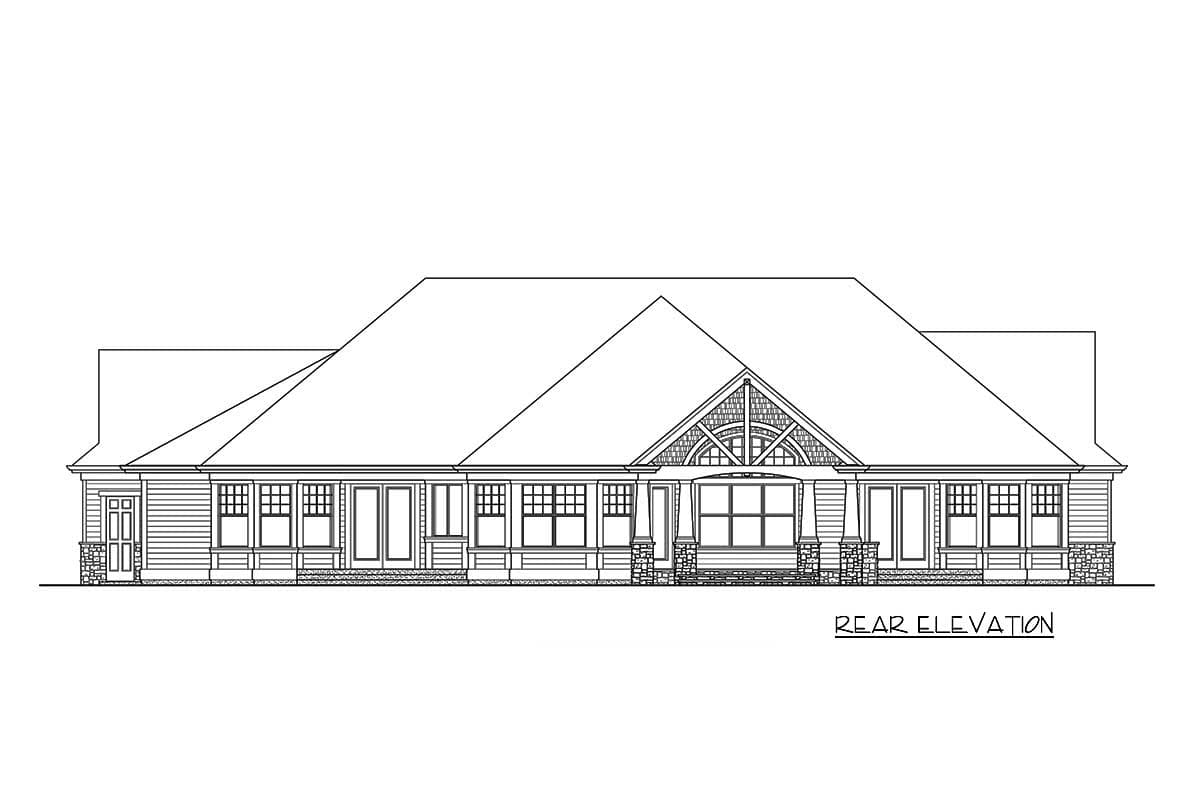

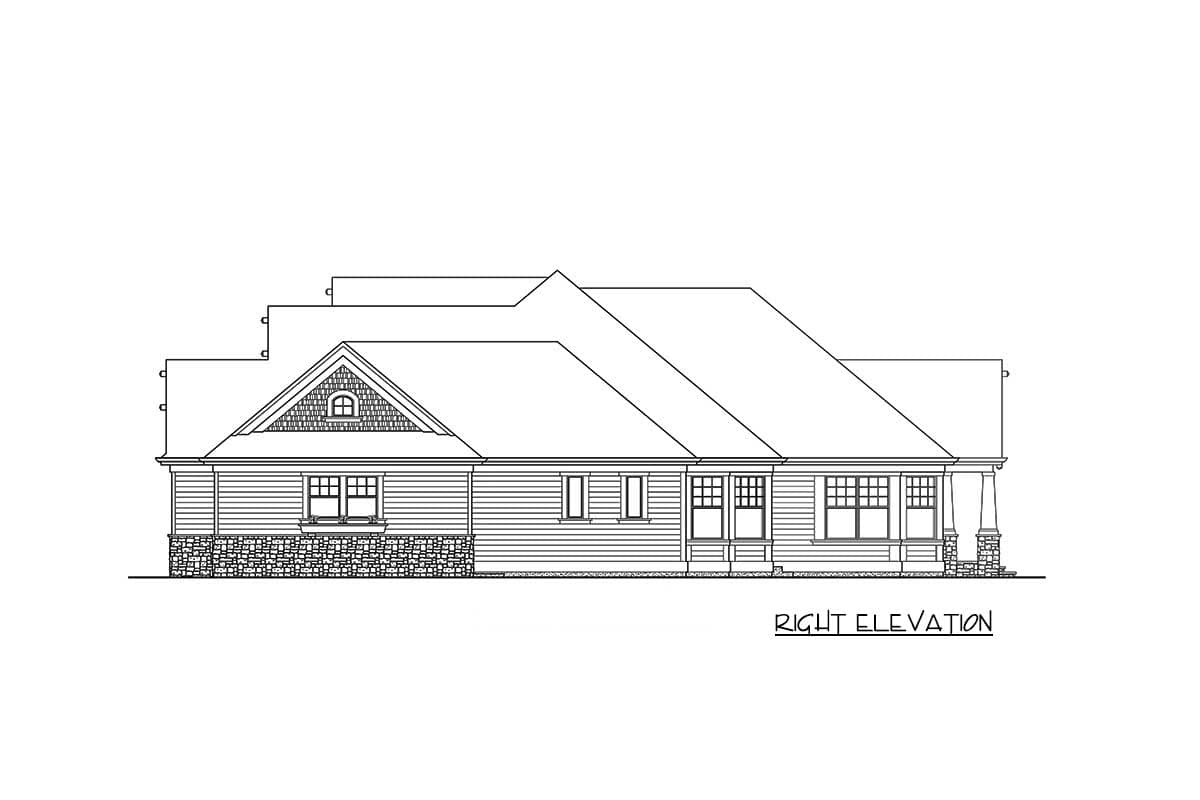

Elevation Sheet

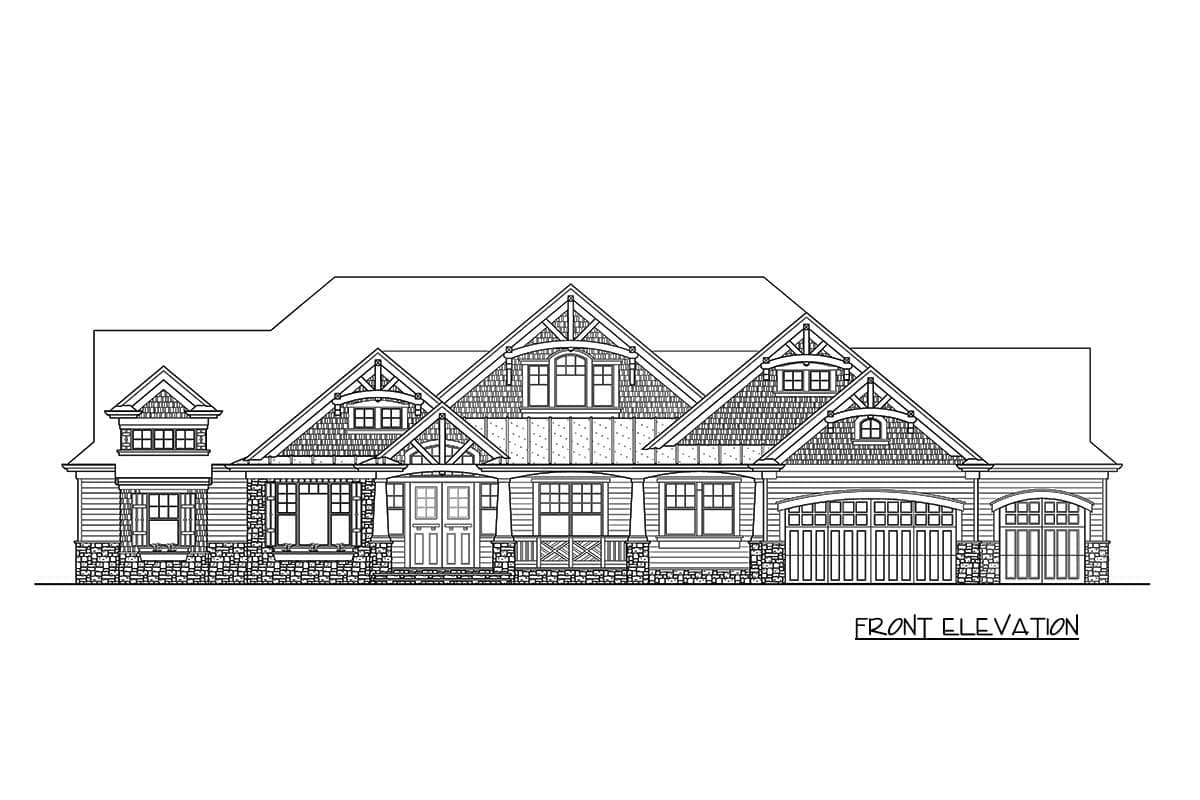

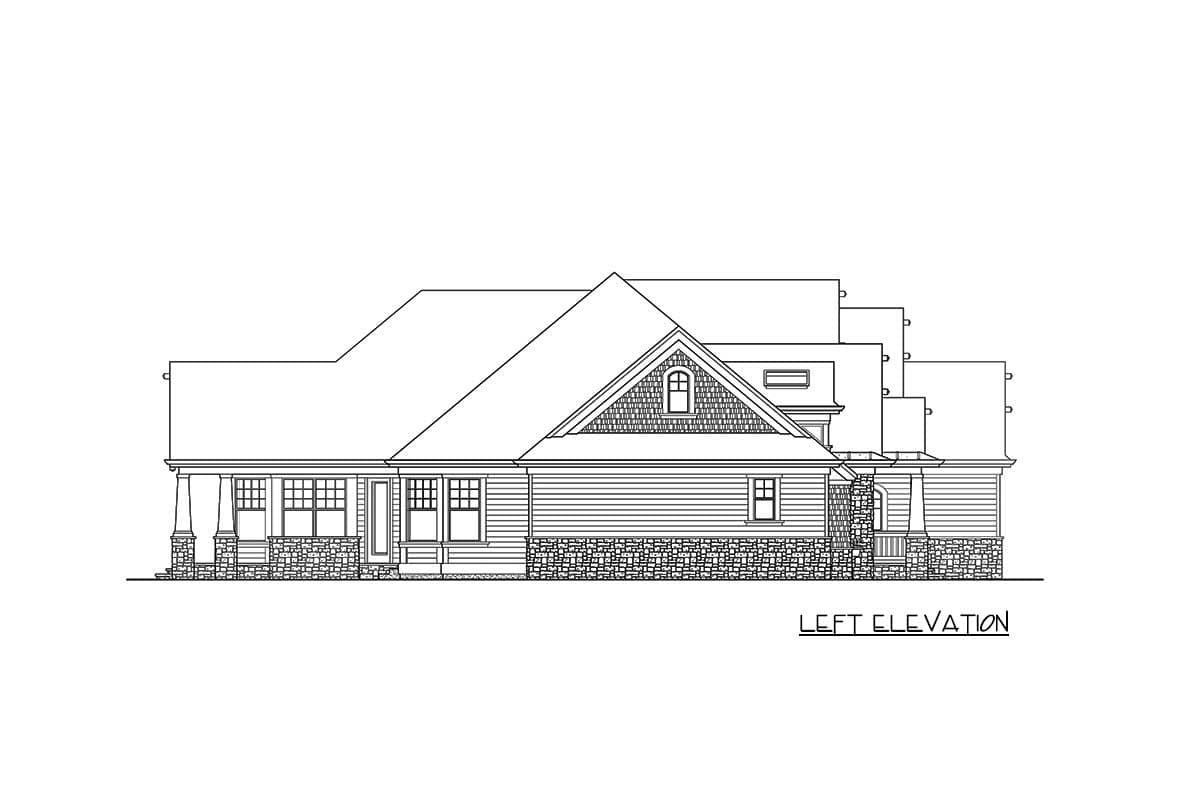

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

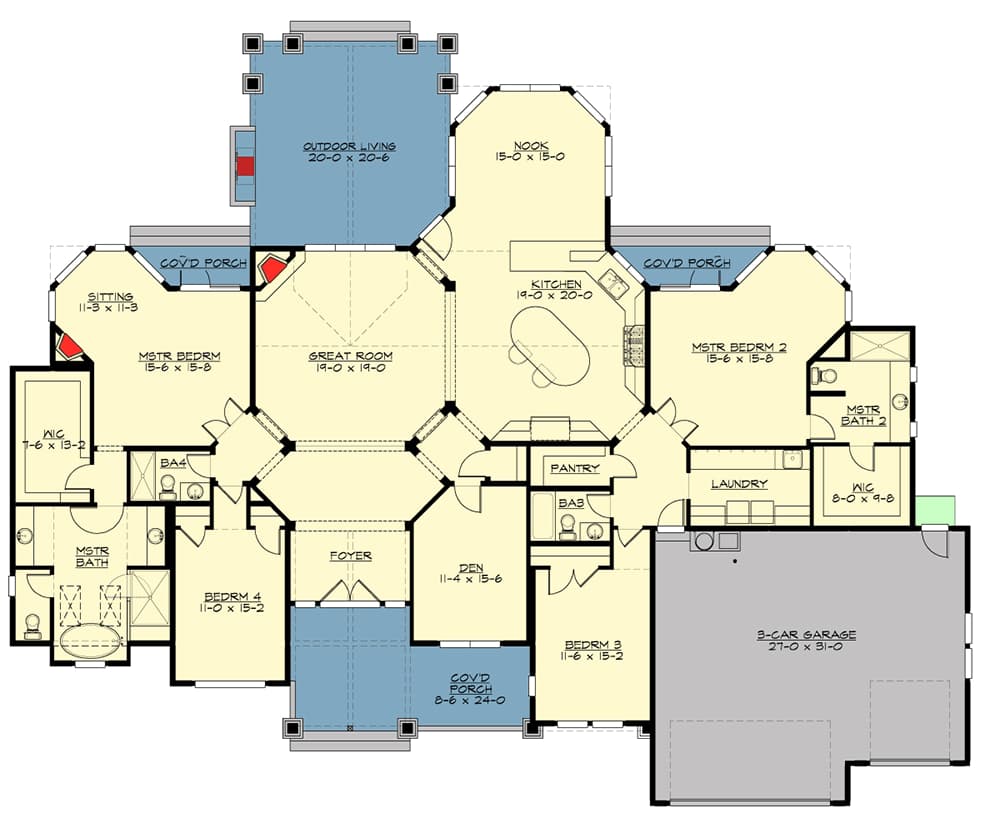

Mountain Craftsman with 2 Master Suites - 23648JD floor plan - Main Level

Mountain Craftsman with 2 Master Suites

  • 3,481

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,481 sq. ft.
  • 1st Floor: 3,481 sq. ft.

Dimensions

  • Width: 96' 0"
  • Depth: 72' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 825 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
