Plan 18799CK

Mountain Craftsman With Open Floor Plan

Heated S.F.

2,223

Beds

3

Baths

3.5

Stories

2

Cars

2

What's Included

Floor Plan

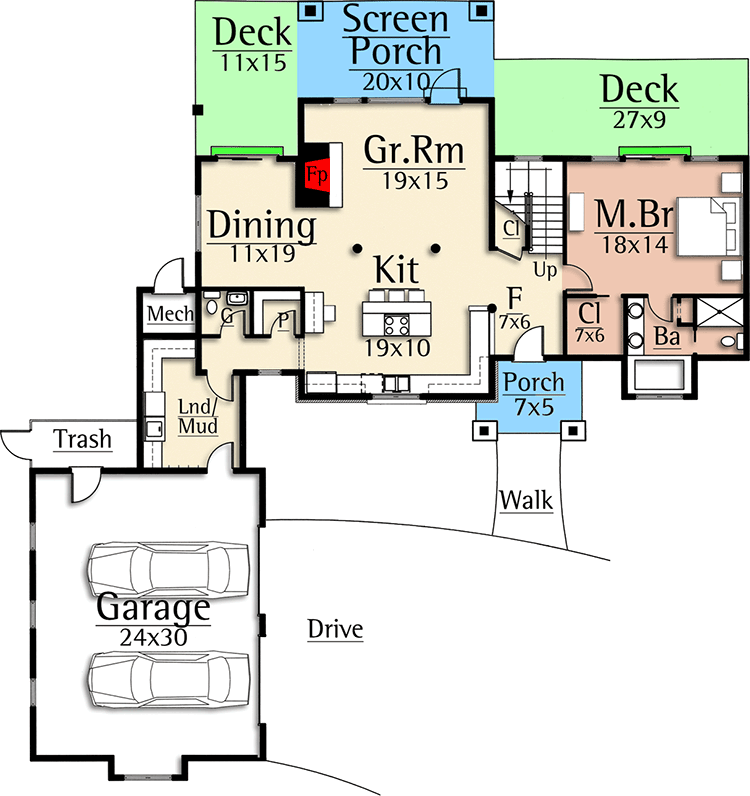

Main Level

Reverse Floor Plan

Mountain Craftsman With Open Floor Plan - 18799CK floor plan - Main Level

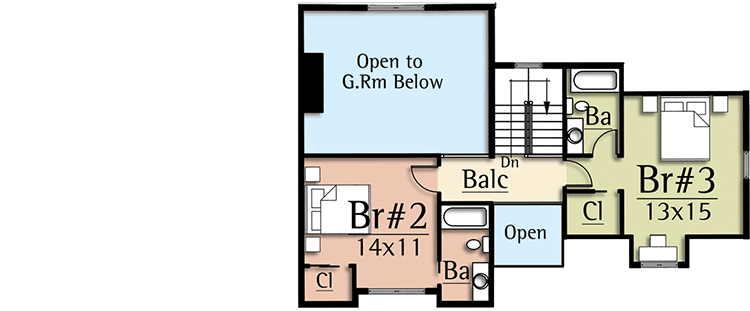

2nd Floor

Reverse Floor Plan

Mountain Craftsman With Open Floor Plan - 18799CK floor plan - 2nd Floor

Plan Details

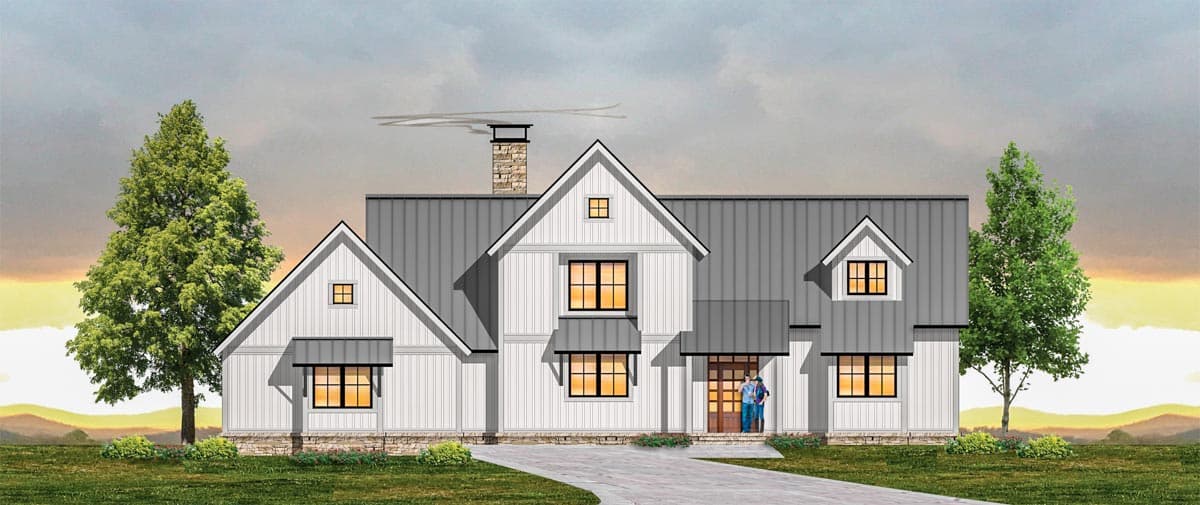

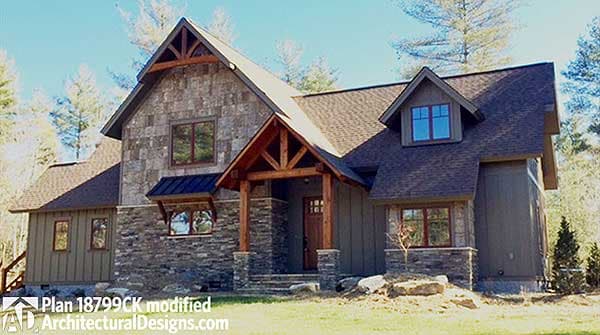

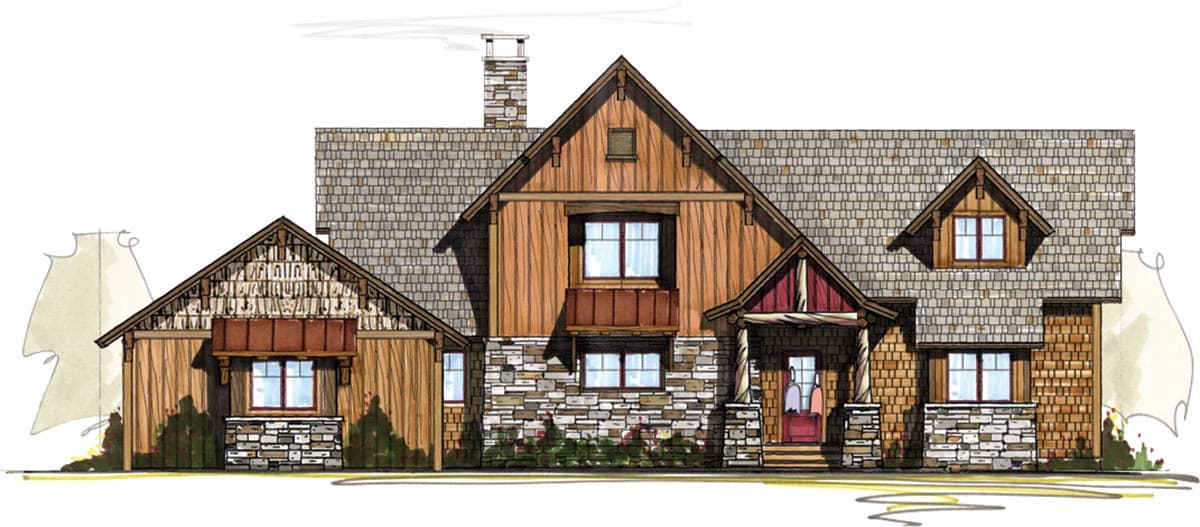

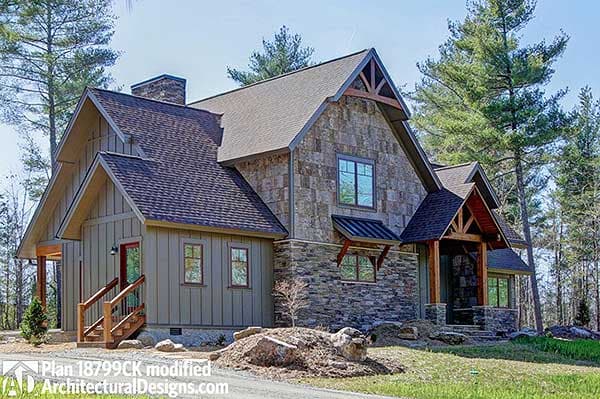

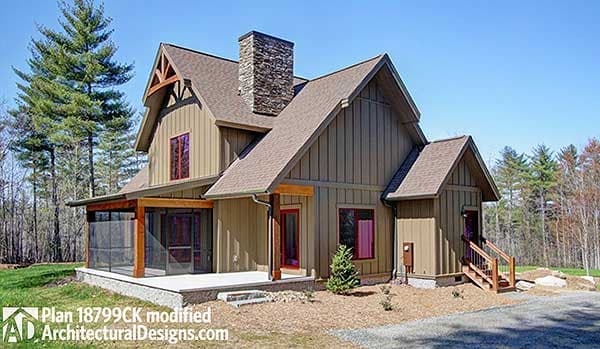

The exterior of this Craftsman home plan is rich with natural materials such as stone and wood.

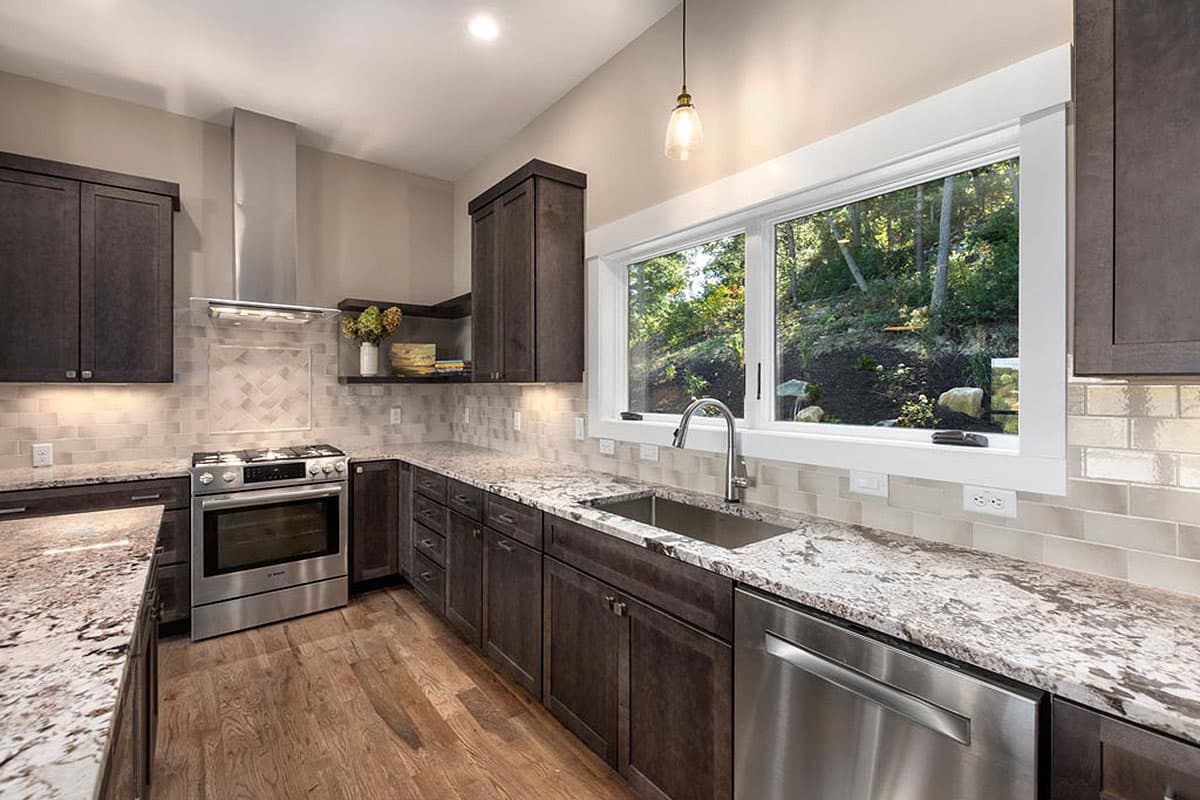

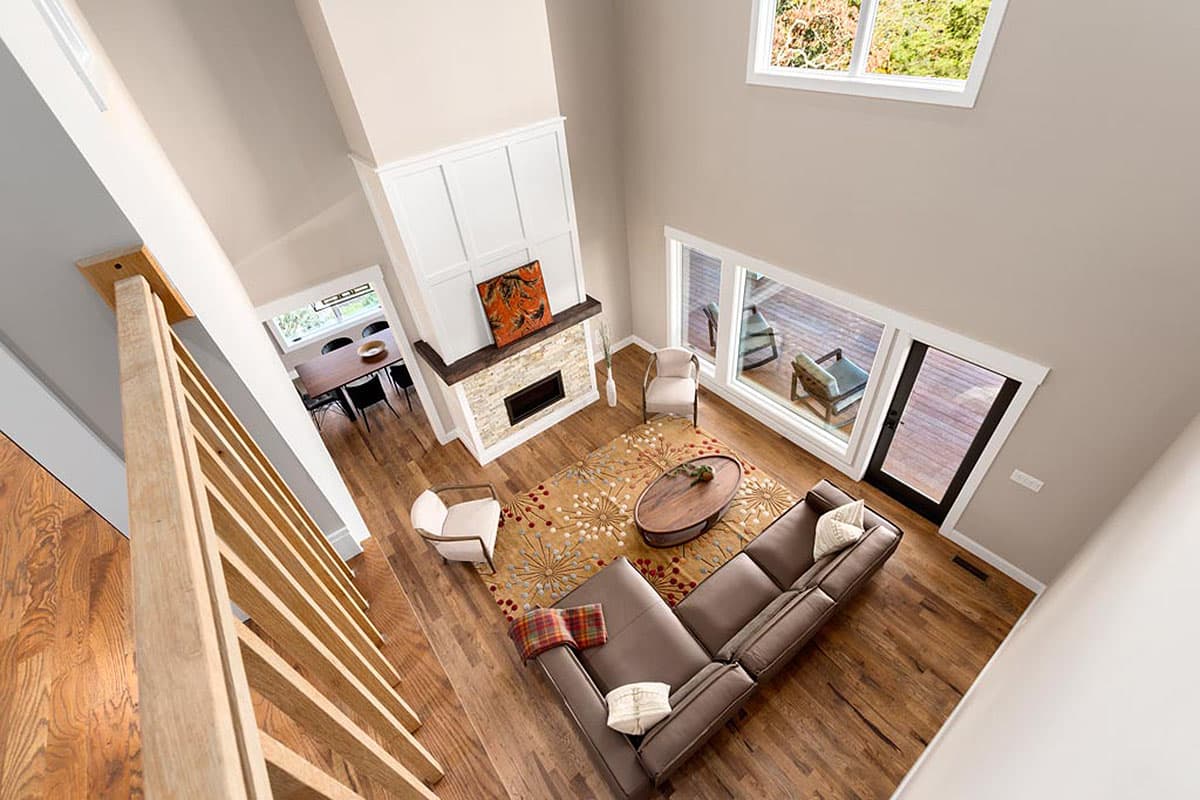

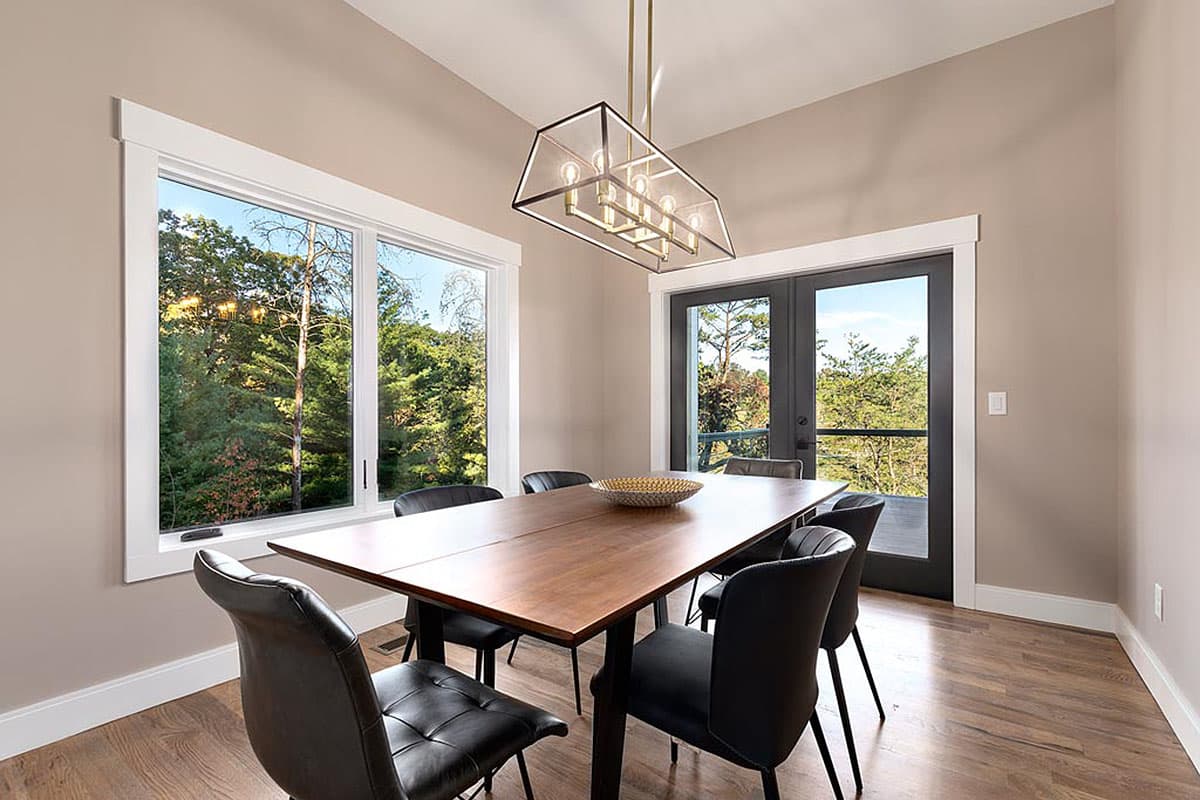

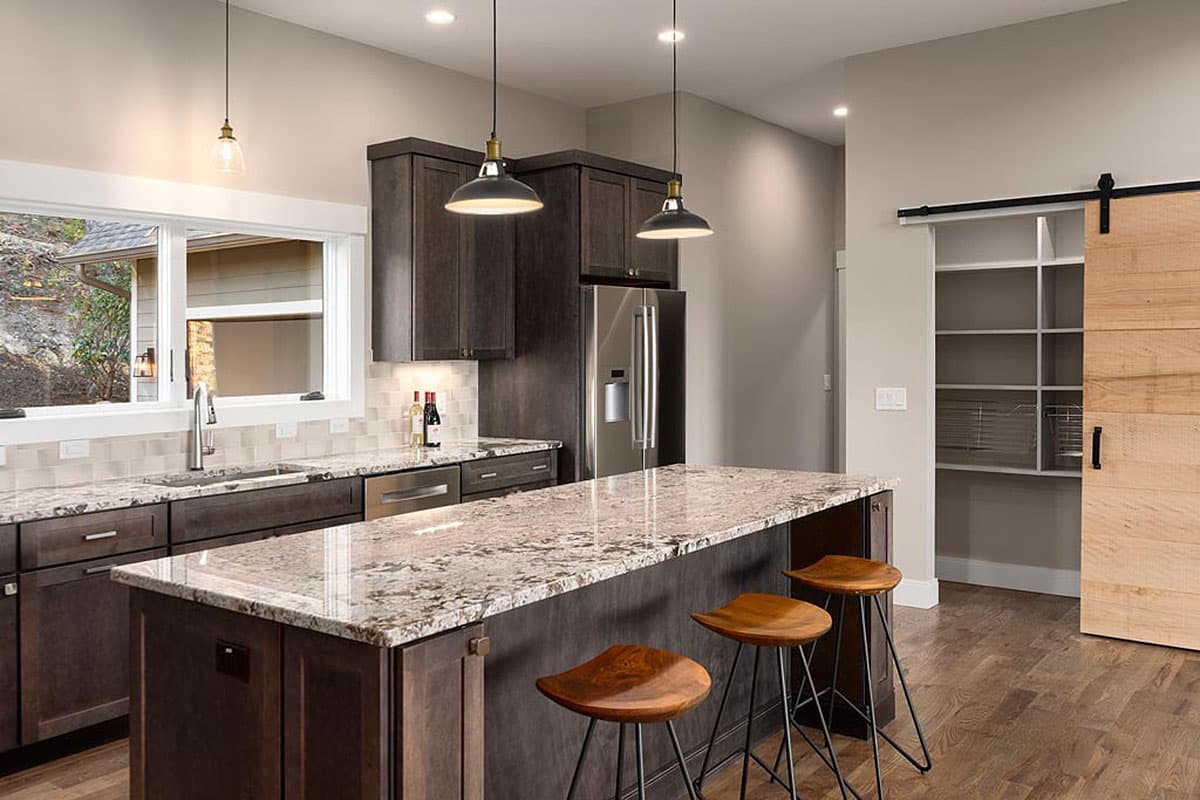

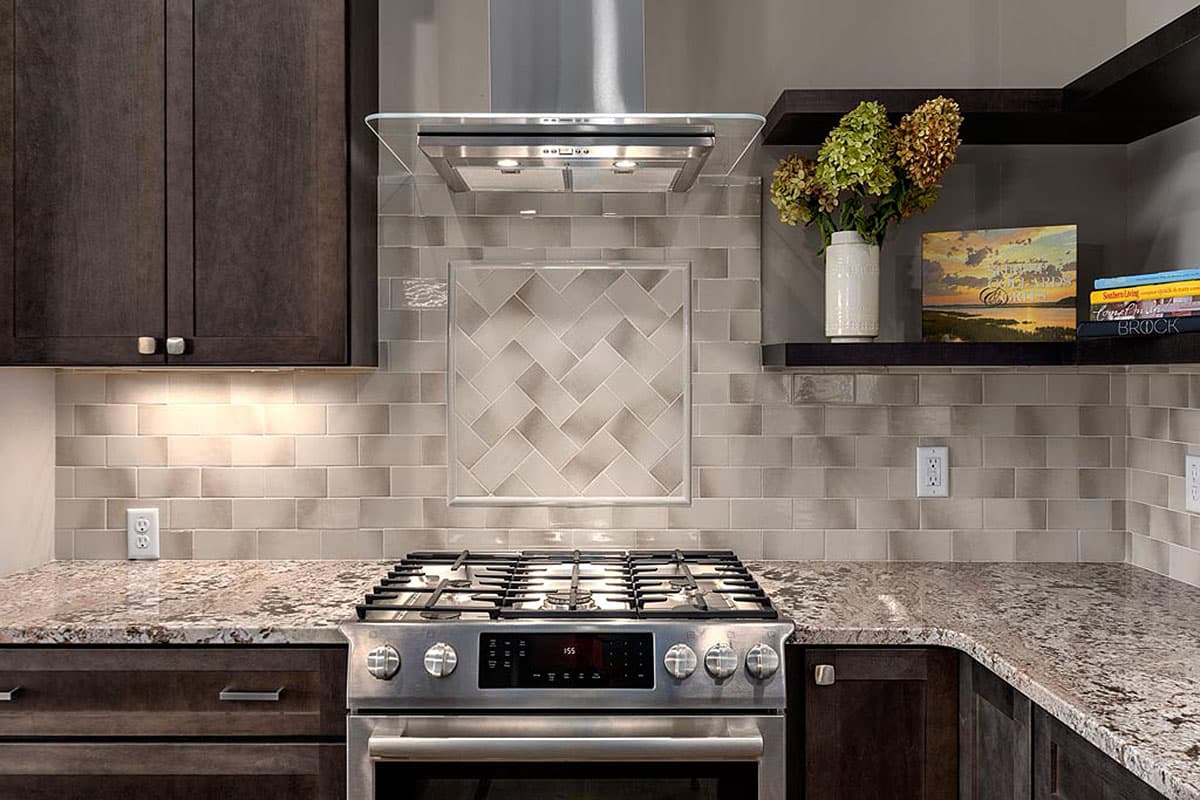

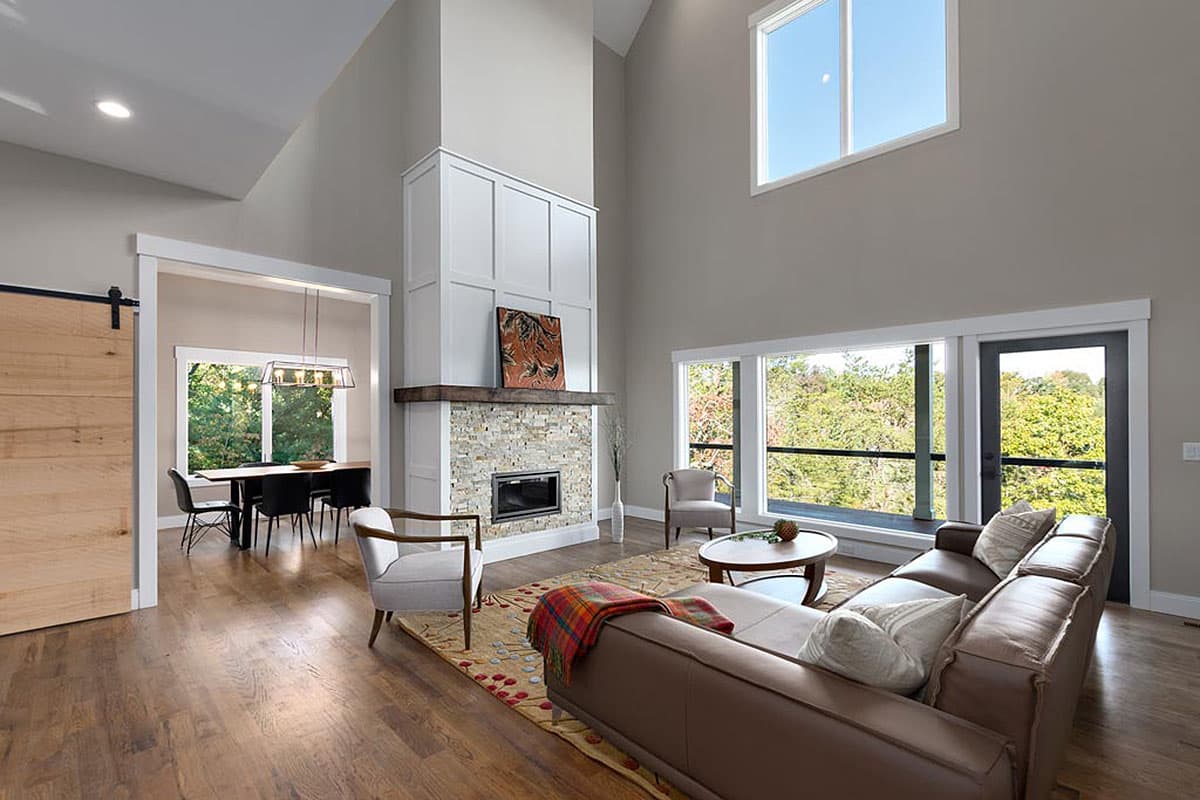

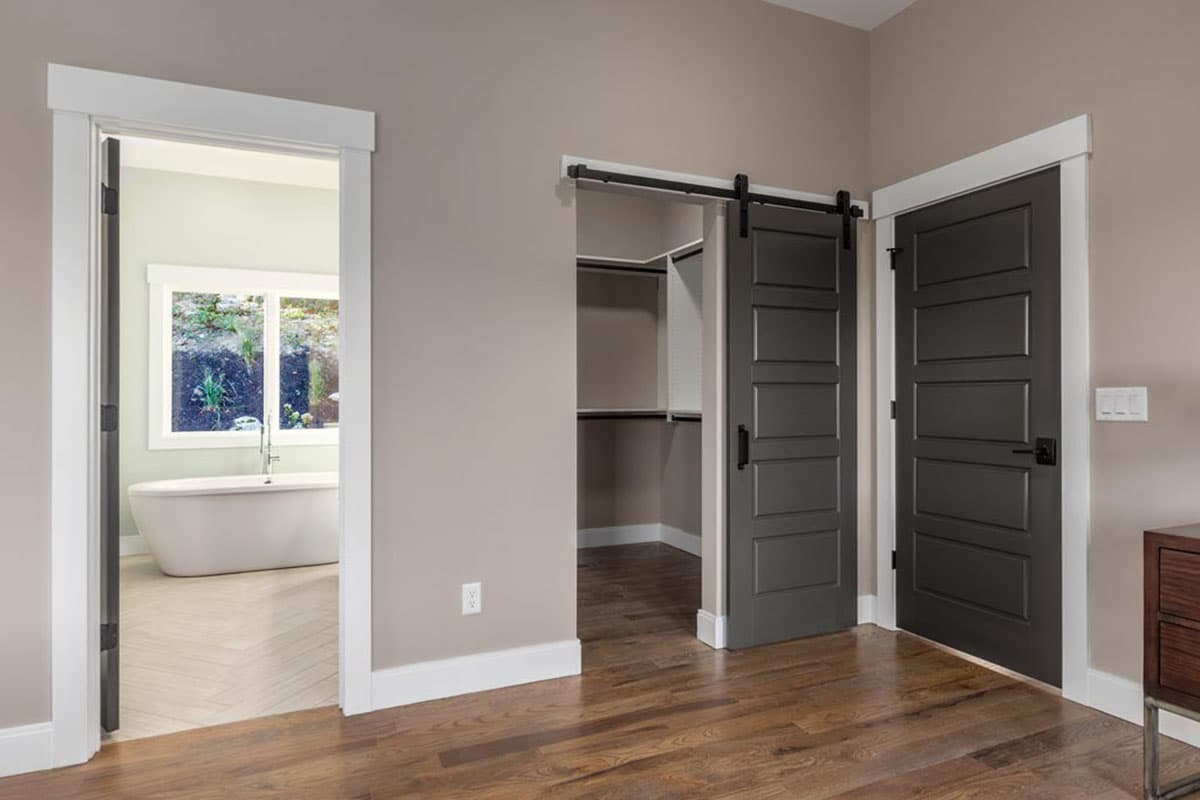

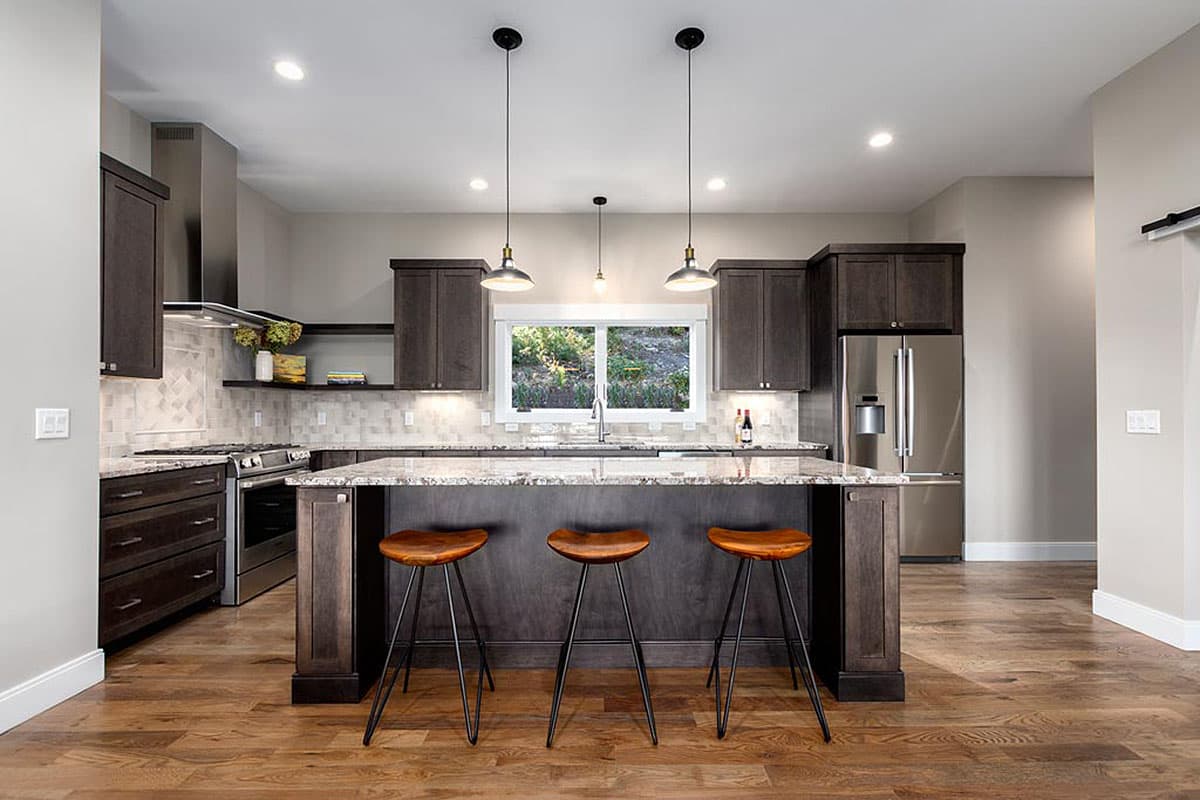

On the interior, the house plan features a master suite on the main level along the living triangle of open kitchen-dining-great room areas.

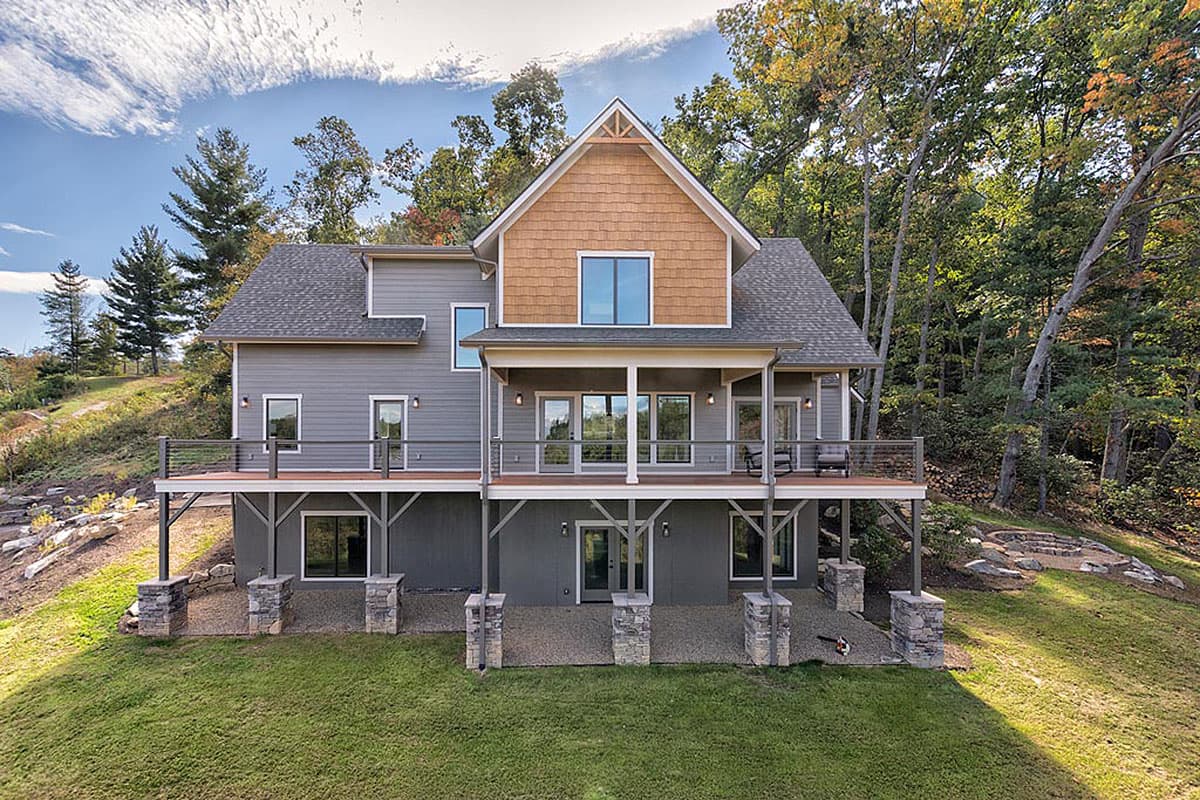

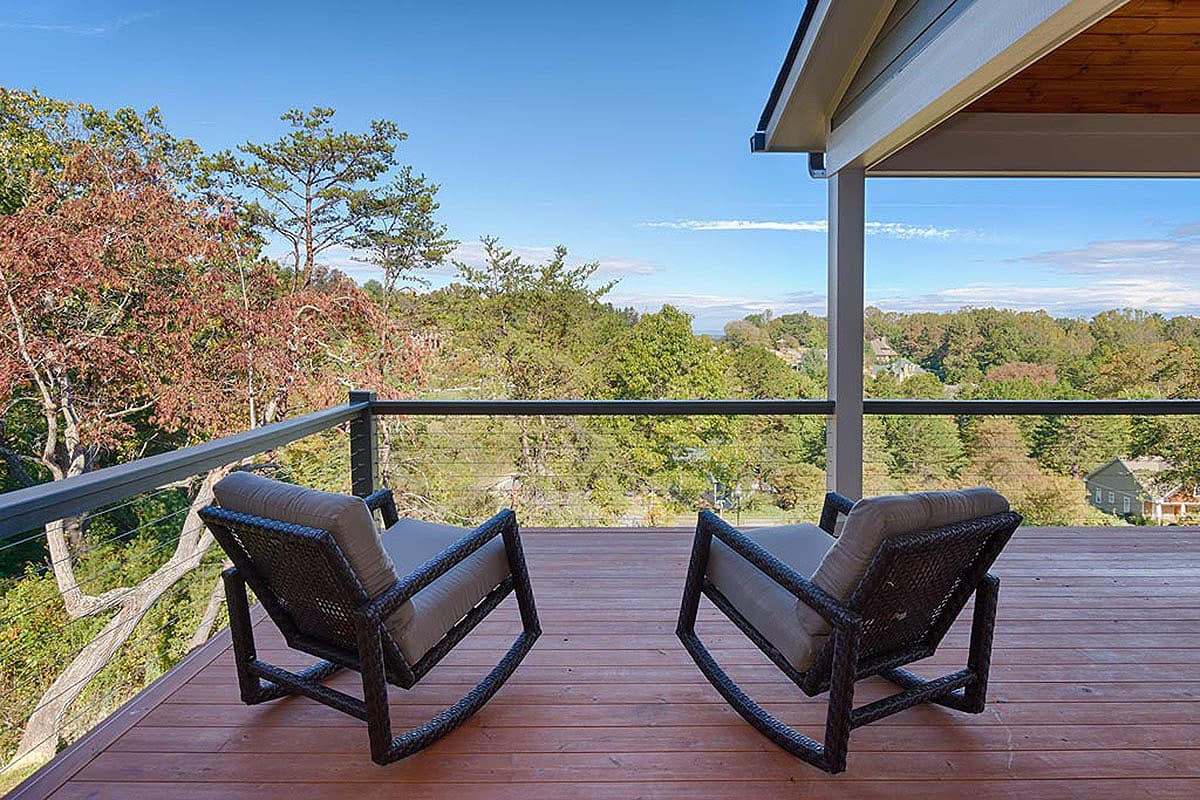

A large screened outdoor living porch on the rear of home is great for relaxing in the outdoors free from the nuisance of insects.

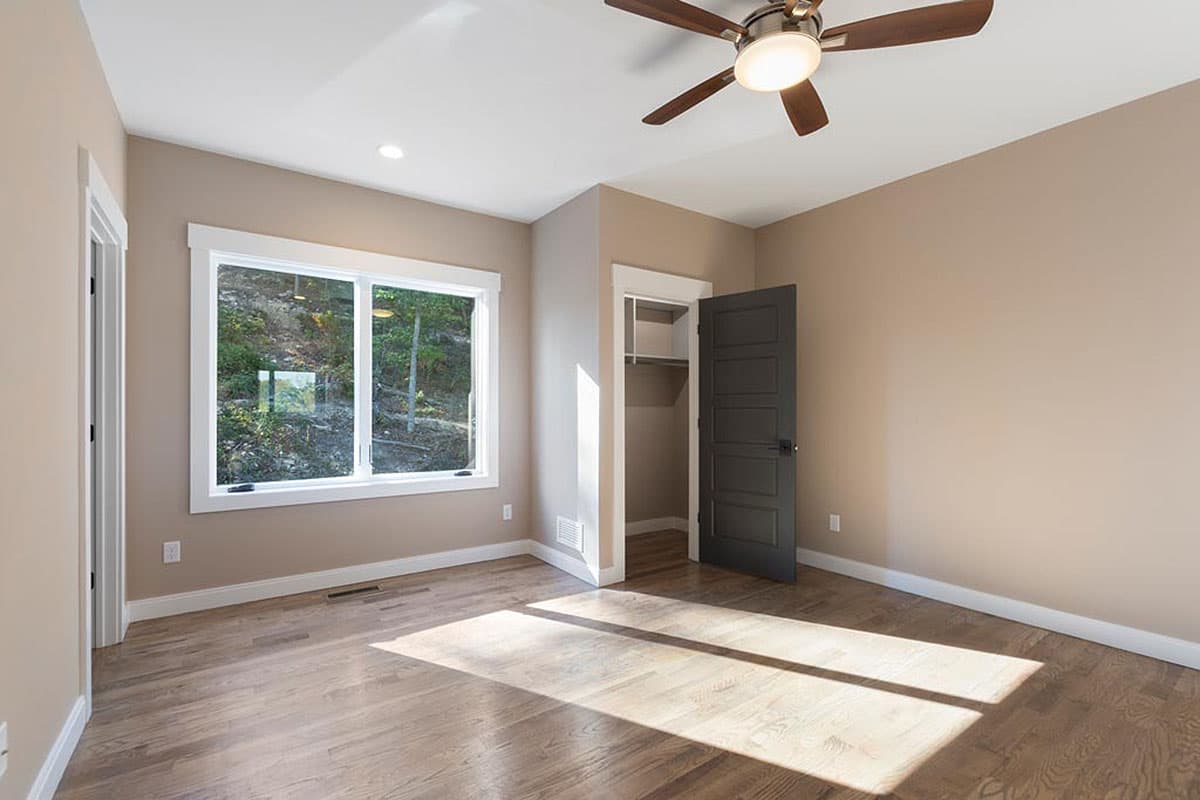

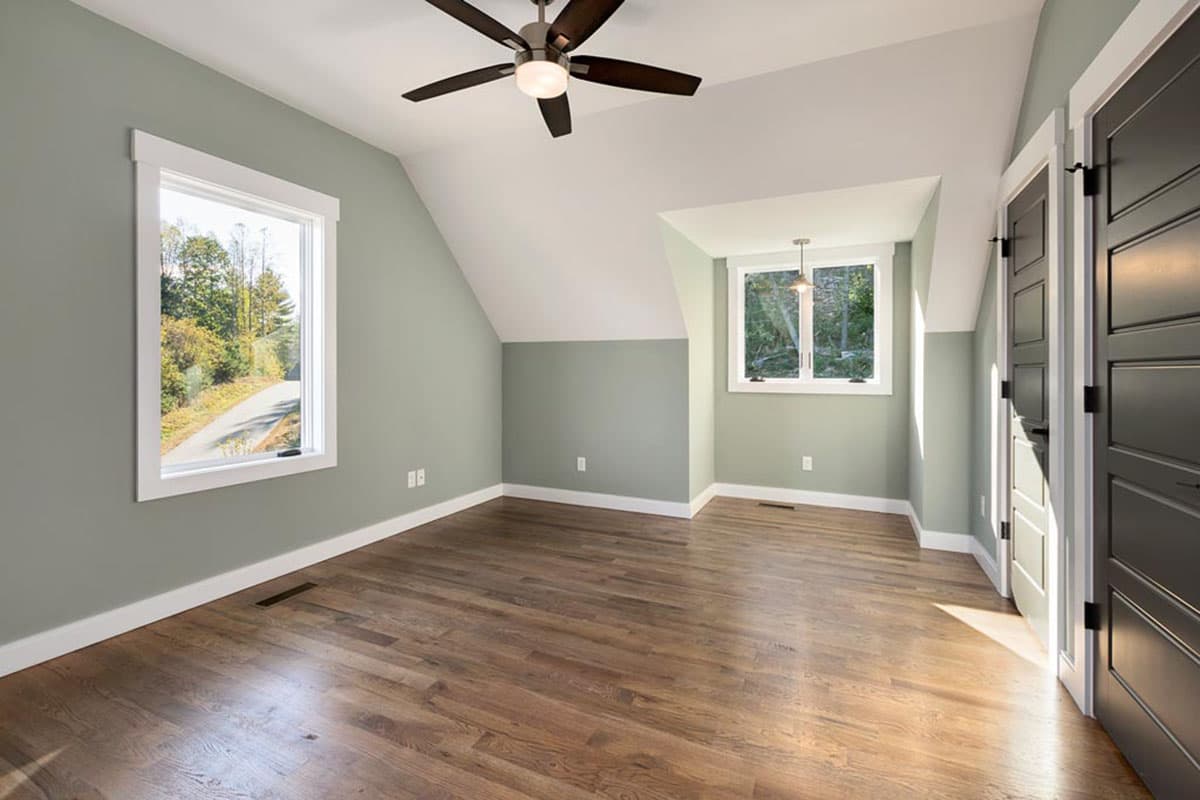

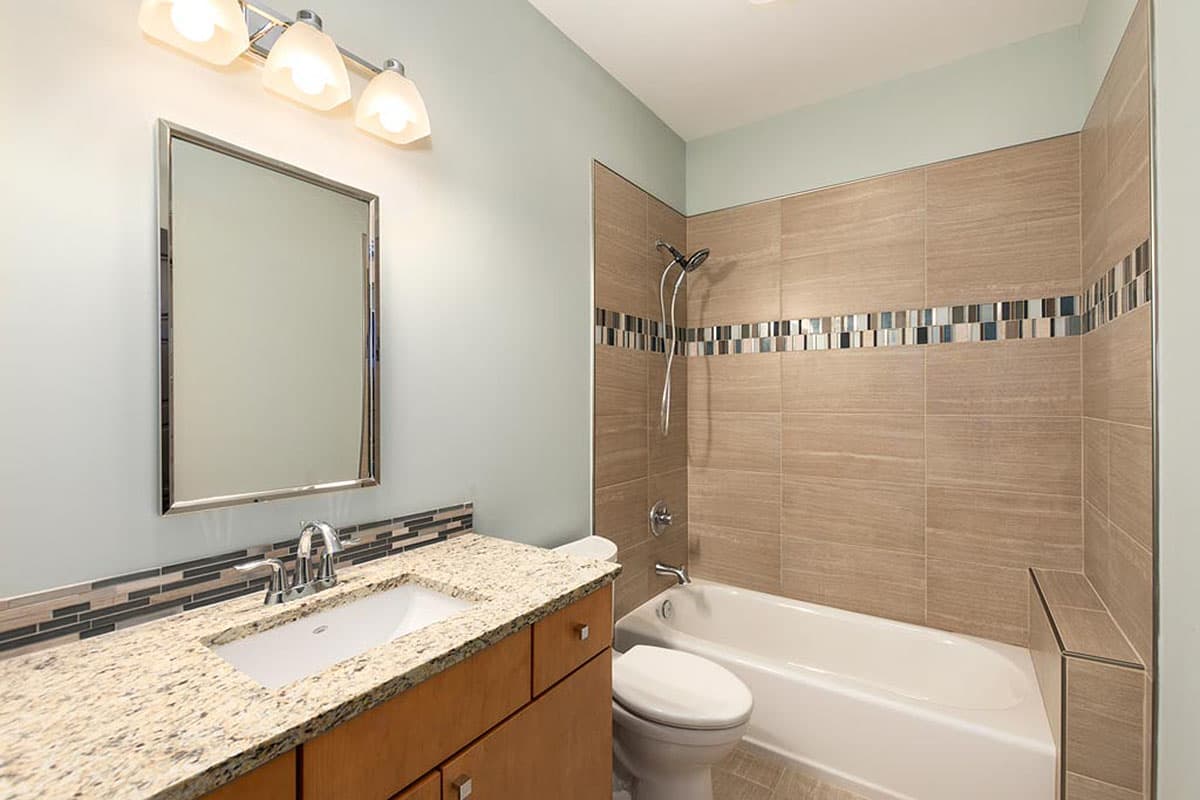

The upper level features two spacious guest rooms and baths.

What's Included

Foundation
Framing
Floor plan
Roof
Special sections
Details page
Electrical plan
Door and window schedule
Elevations with details
Cross sections as needed

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,223 sq. ft.

1st Floor:

1,519 sq. ft.

2nd Floor:

704 sq. ft.

Entry:

35 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

3

Half bathrooms:

1

Foundation Type

Standard Foundations:

Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

74' 0"

Depth:

77' 0"

Garage

Type:

Attached

Area:

720 sq. ft.

Count:

2 Cars

Entry Location:

Courtyard

Ceiling Heights

Floor / Height:

First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Framing Type:

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
