Mountain Farmhouse Plan with Vaulted Living Room

Plan 12936KN

This plan plants 3 trees

1,825
Heated s.f.
1-3
Beds
1 - 2
Baths
2
Stories
2
Cars

Rustic board and batten and stone columns give this home plan a real mountain look.
The living room is anchored by a big fireplace and has a cozy card table nook on the side.
The big country kitchen combines a bright and cheerful nook with the big kitchen.
Located on the first floor, the master suite has a private bathroom and both a linear and walk-in clothes closet.
Both bedrooms on the second floor are huge and have vaulted ceilings.
The desk area has built-in bookshelves on each side and a double window so you can work or surf the web in natural sunlight.
Related Plan: Get a smaller version with house plan 11549KN (1,362 sq. ft.).

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

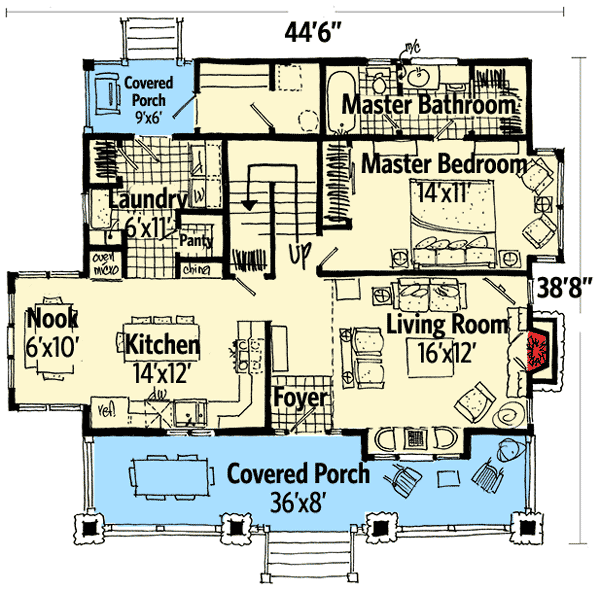

Mountain Farmhouse Plan with Vaulted Living Room - 12936KN floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

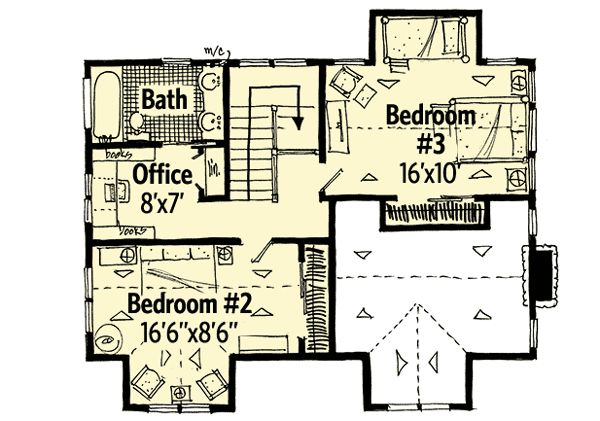

Mountain Farmhouse Plan with Vaulted Living Room - 12936KN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,825 sq. ft.
1st Floor: 1,072 sq. ft.
2nd Floor: 753 sq. ft.

Porch, Combined: 385 sq. ft.

Beds/Baths

Bedrooms: 1, 2, or 3

Full bathrooms: 1 or 2

Foundation Type

Standard Foundations: Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 44' 6"
Depth: 38' 0"
Max ridge height: 30' 2"

Garage

Type: Detached
Area: 672 sq. ft.
Count: 2 Cars
Entry Location: Front

Architectural Style

Special features
