Plan 29826RL
Mountain Home Plan with Garage and Bonus Level
Heated S.F.
2,523
Beds
2-5
Baths
2.5 - 5.5
Stories
1
Cars
3
Photos
What's Included
Floor Plan
PRINT PLANS

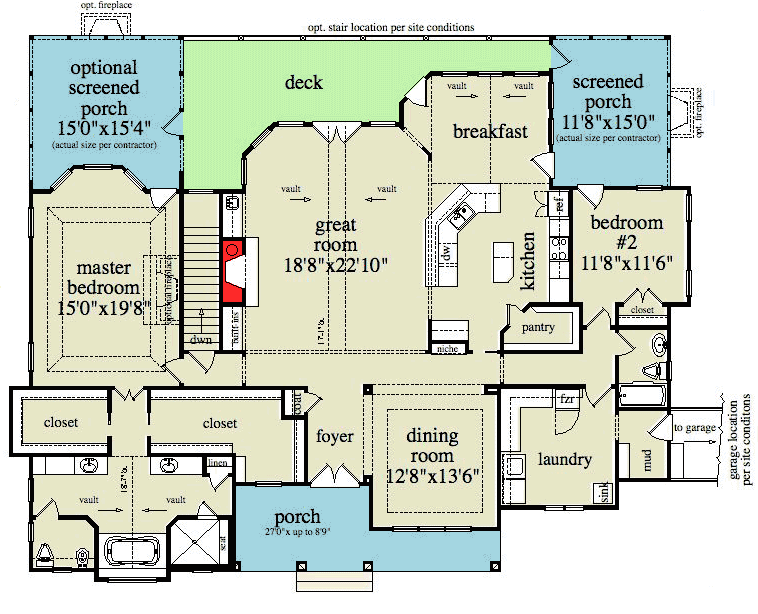

Main Level
Reverse Floor Plan
Mountain Home Plan with Garage and Bonus Level - 29826RL floor plan - Main Level

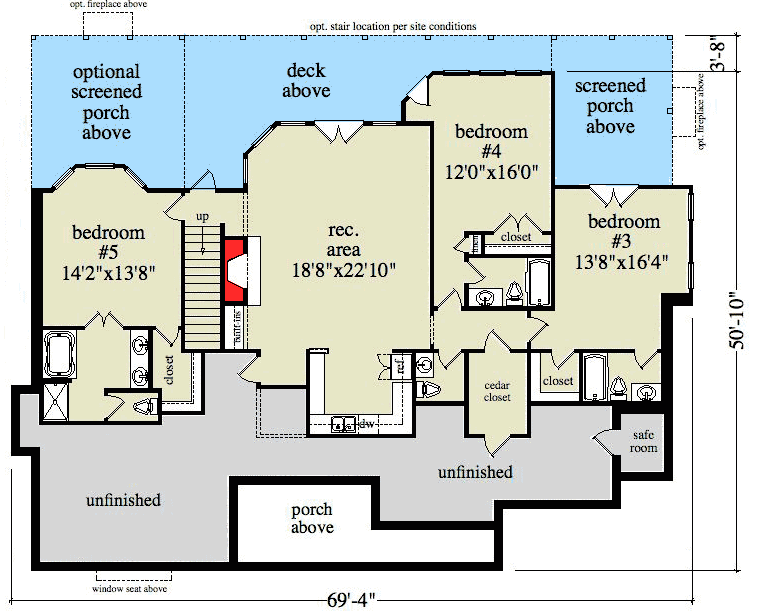

Optional Finished Lower Level
Reverse Floor Plan
Mountain Home Plan with Garage and Bonus Level - 29826RL floor plan - Optional Finished Lower Level

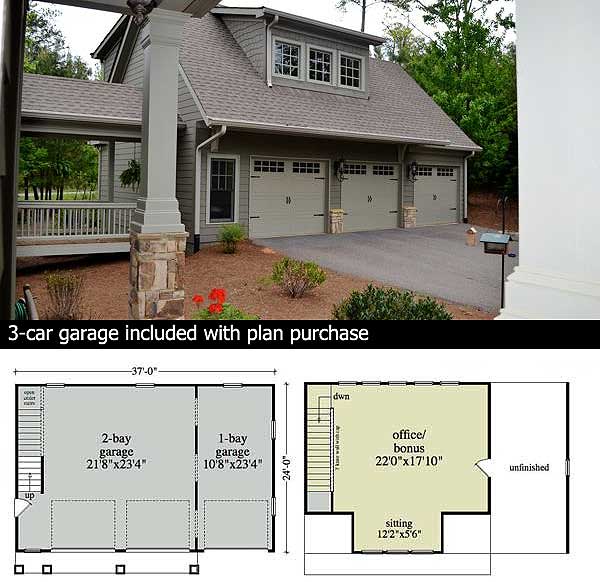

Garage
Reverse Floor Plan
Mountain Home Plan with Garage and Bonus Level - 29826RL floor plan - Garage
Plan Details

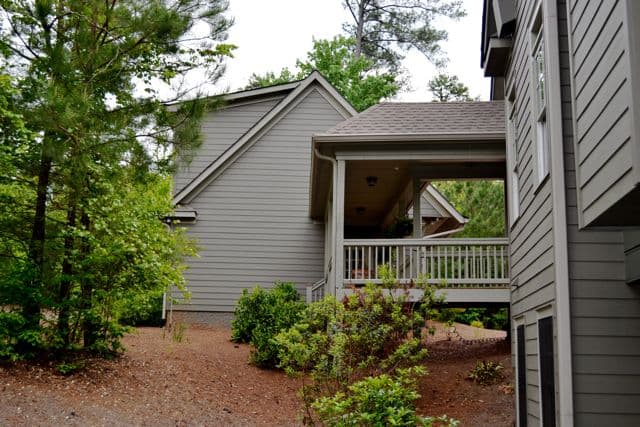

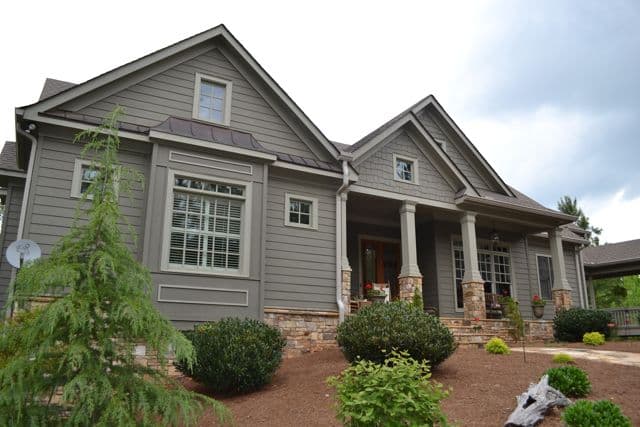

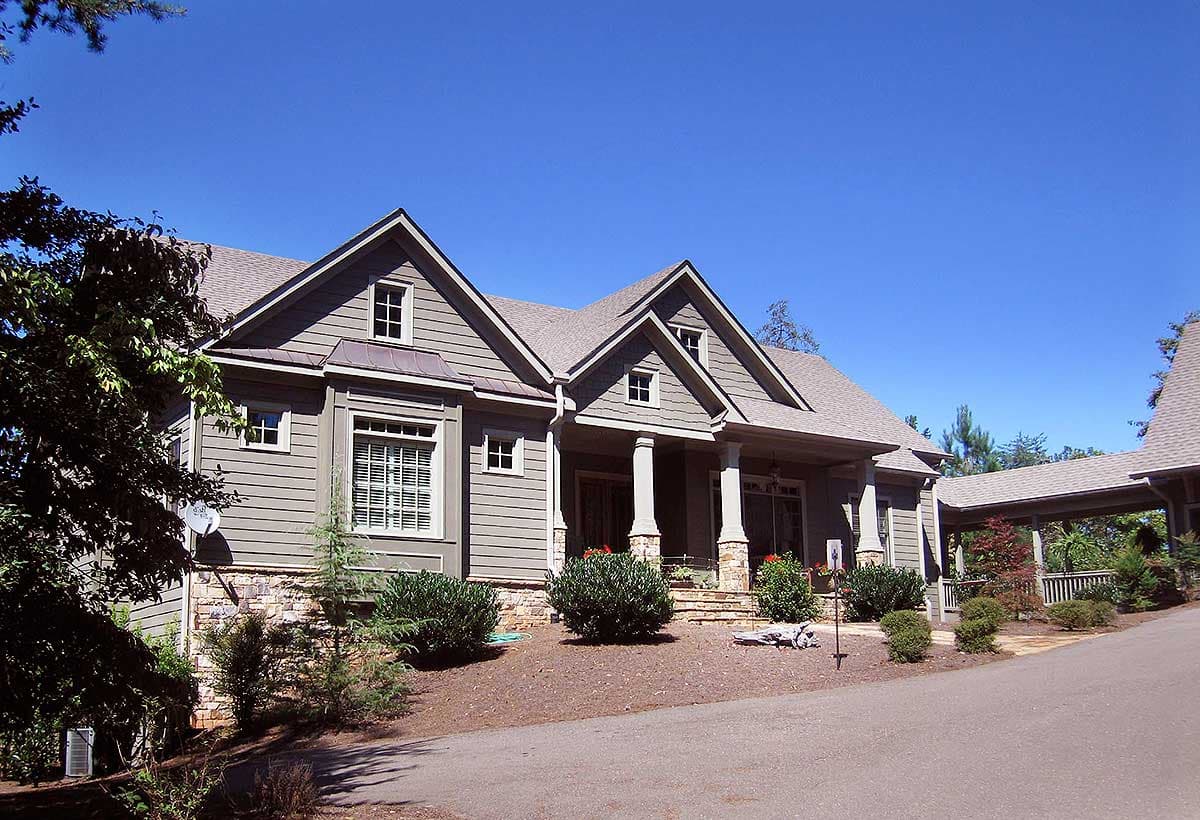

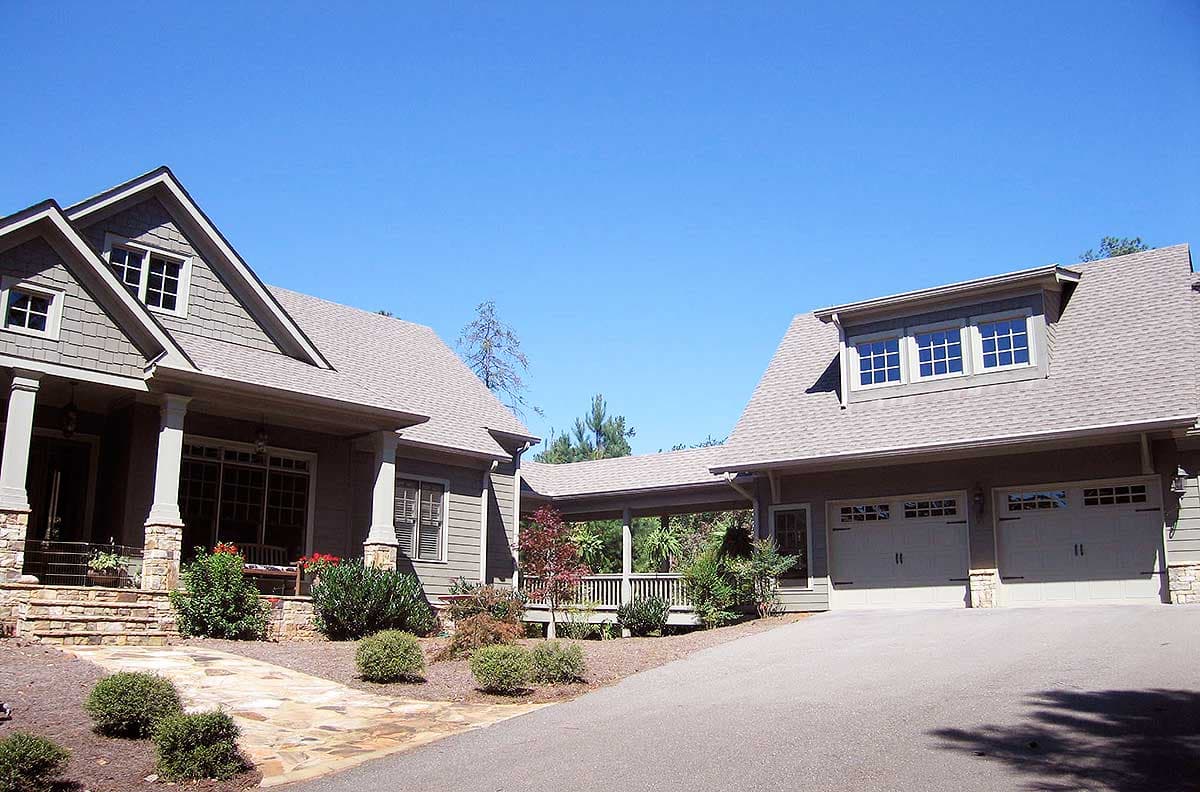

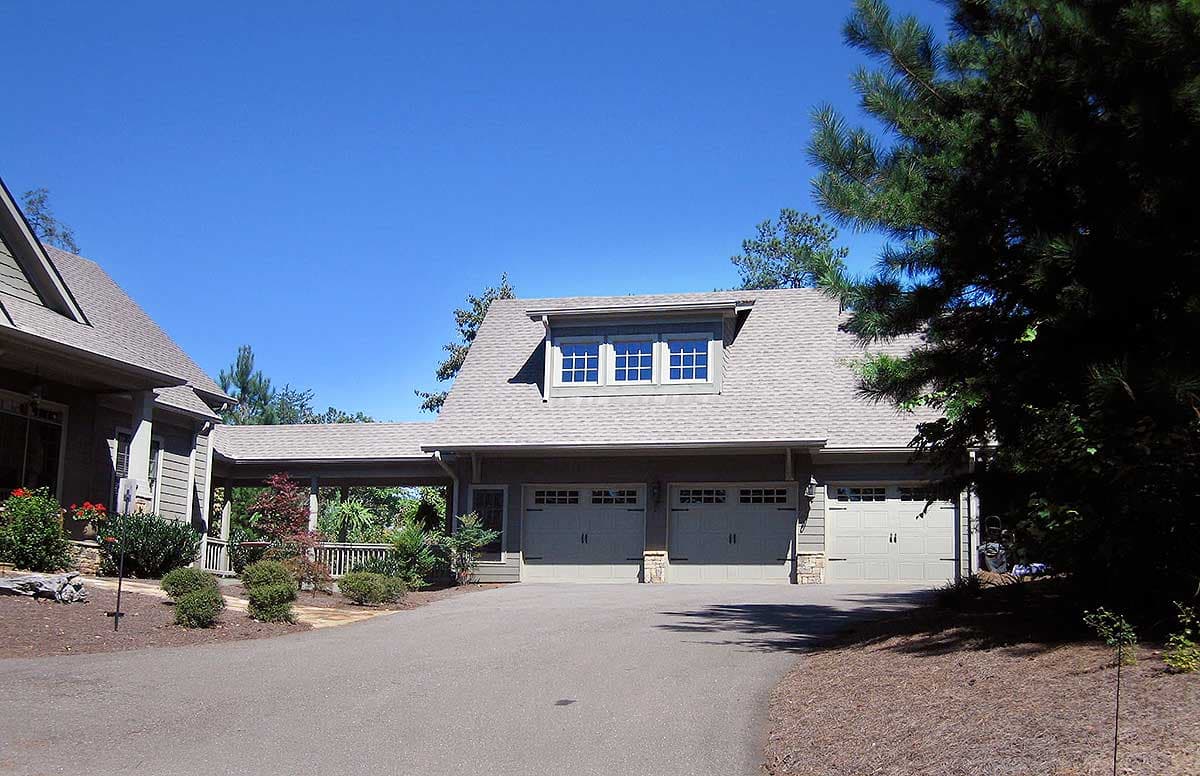

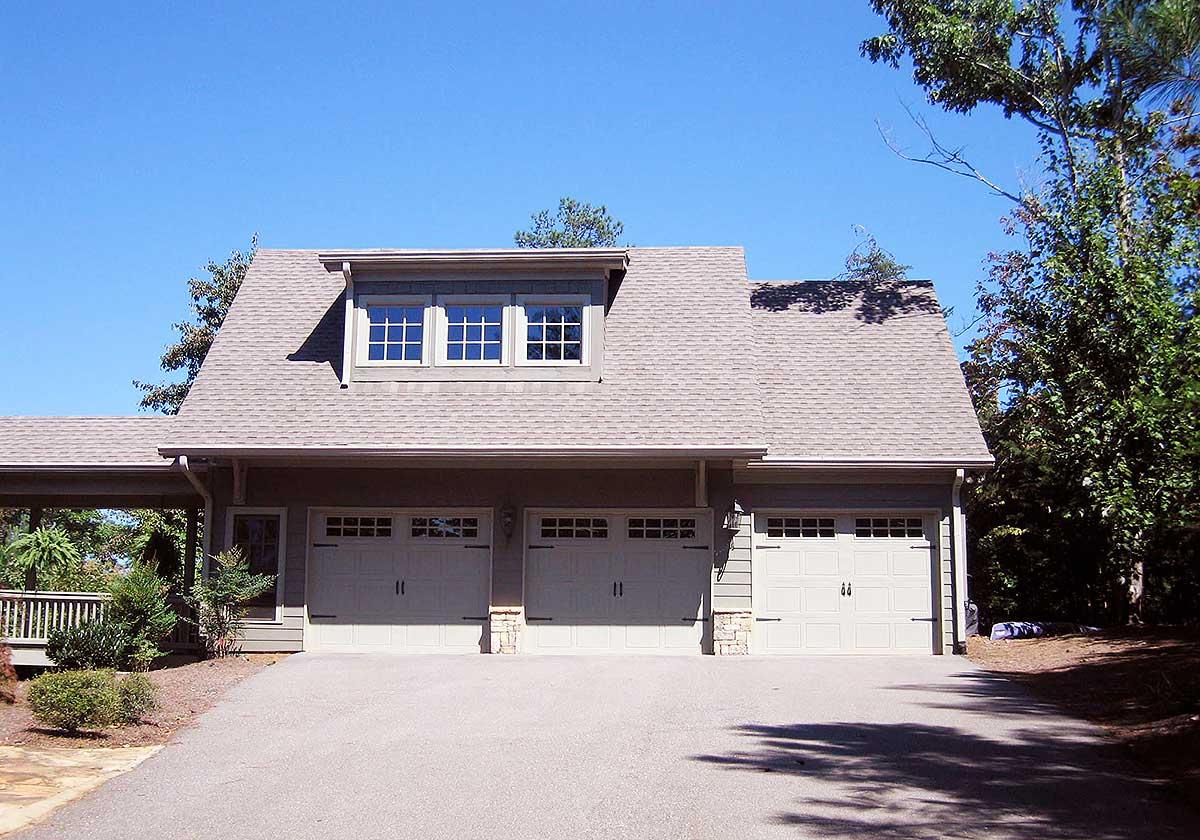

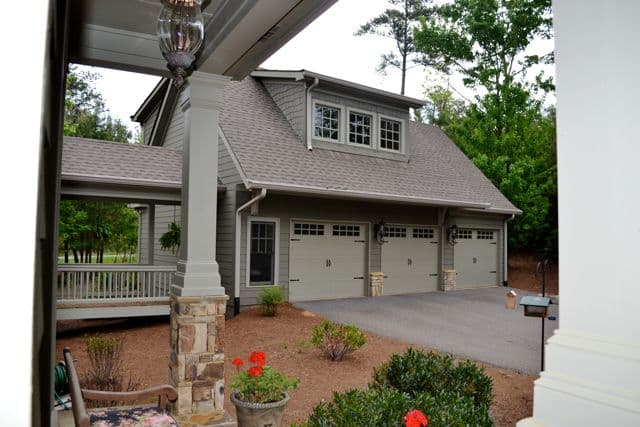

  • Just like most of our mountain home plans, this one has a rustic and craftsman appearance with a detached garage that joins the house with a breezeway. It has room for 3 cars and gives you room for an office or apartment above.

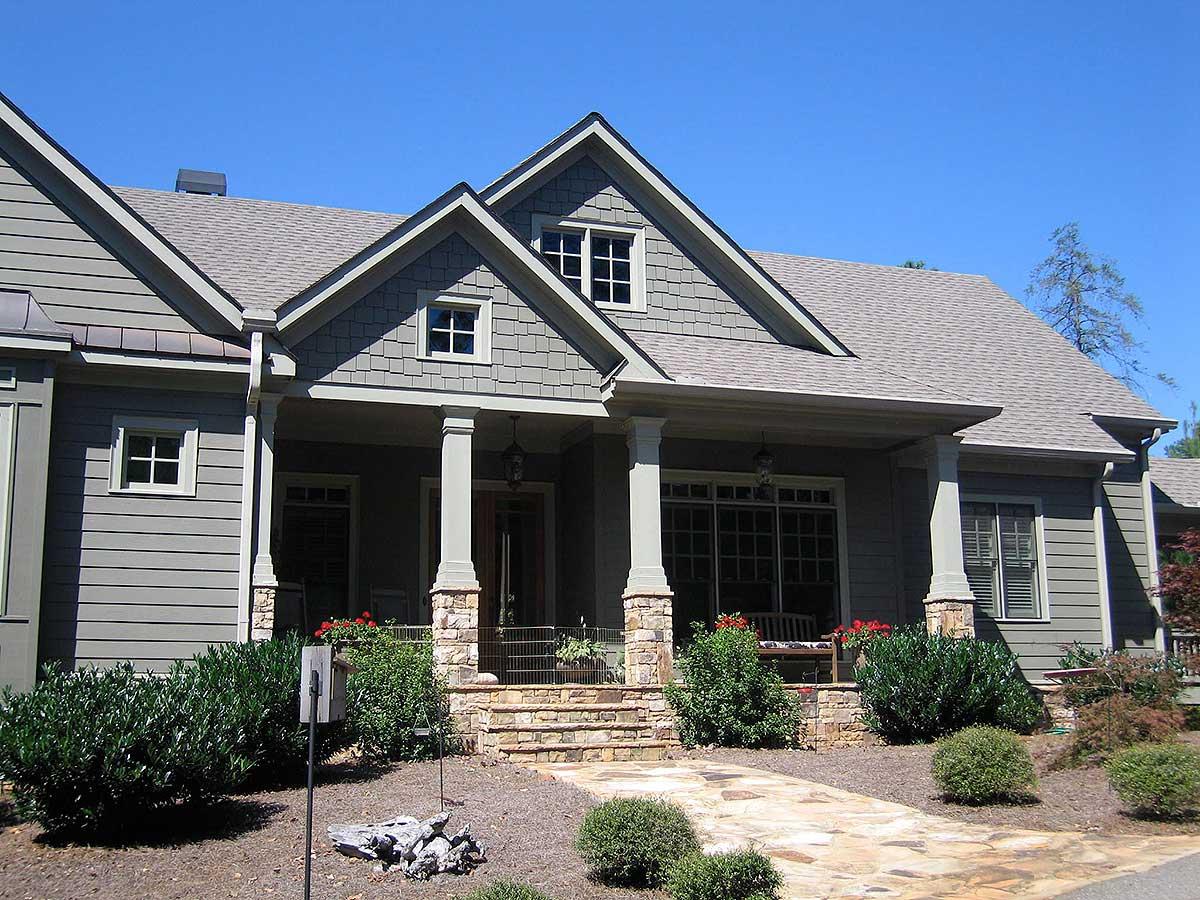

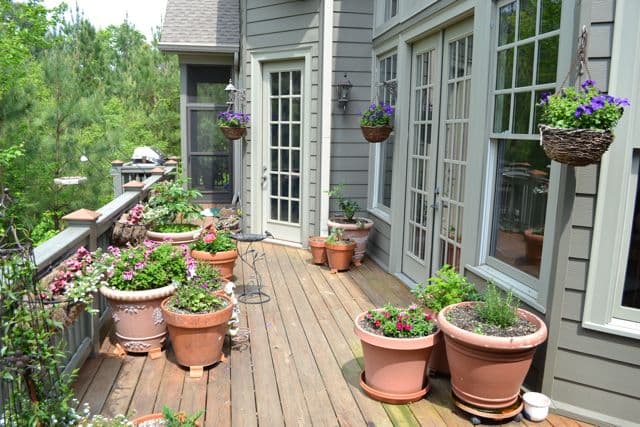

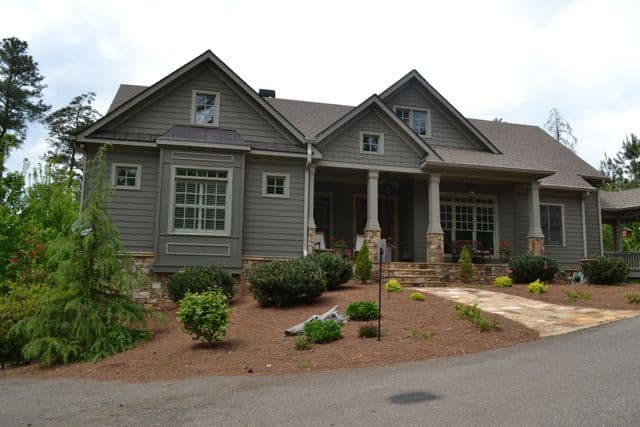

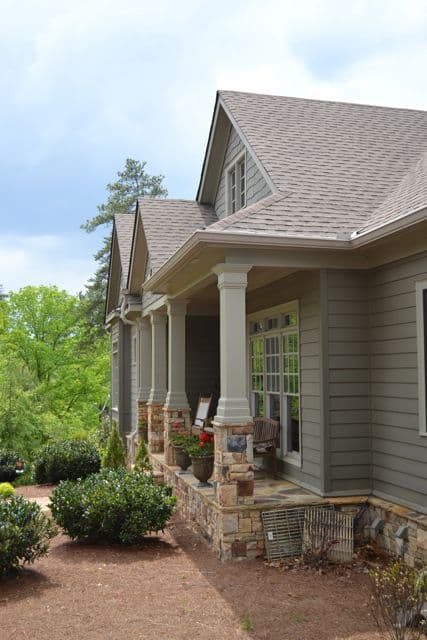

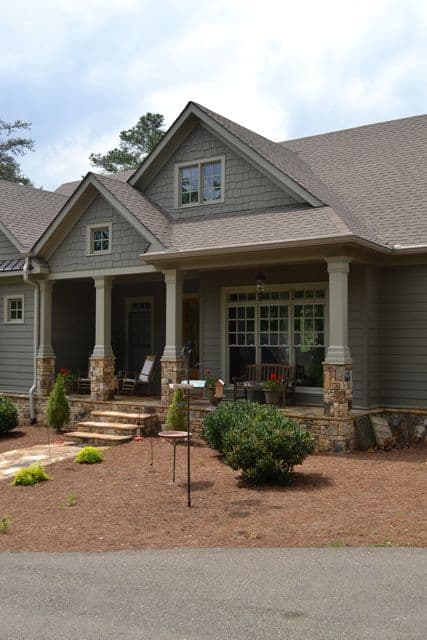

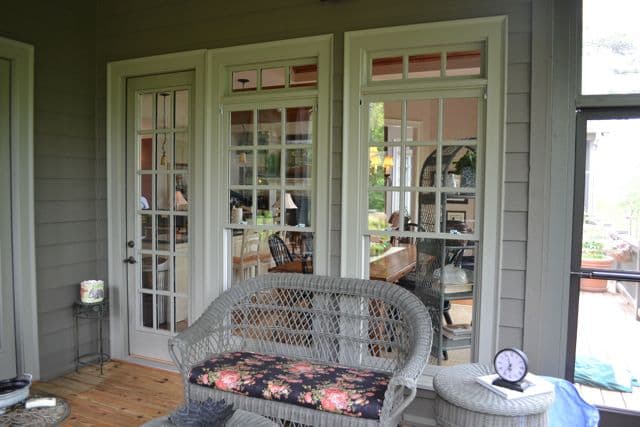

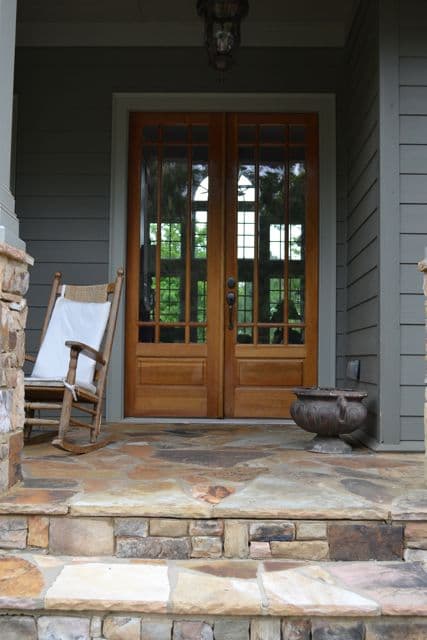

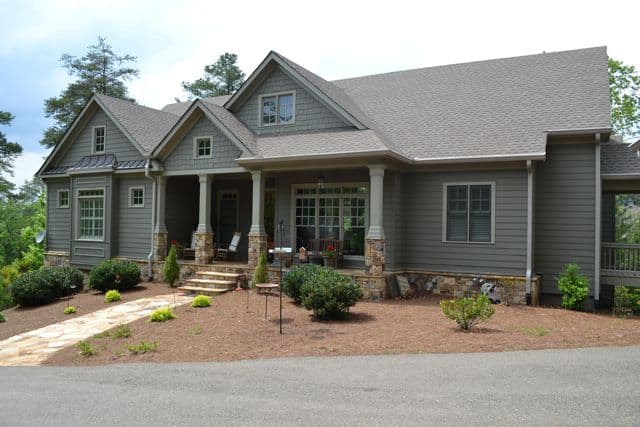

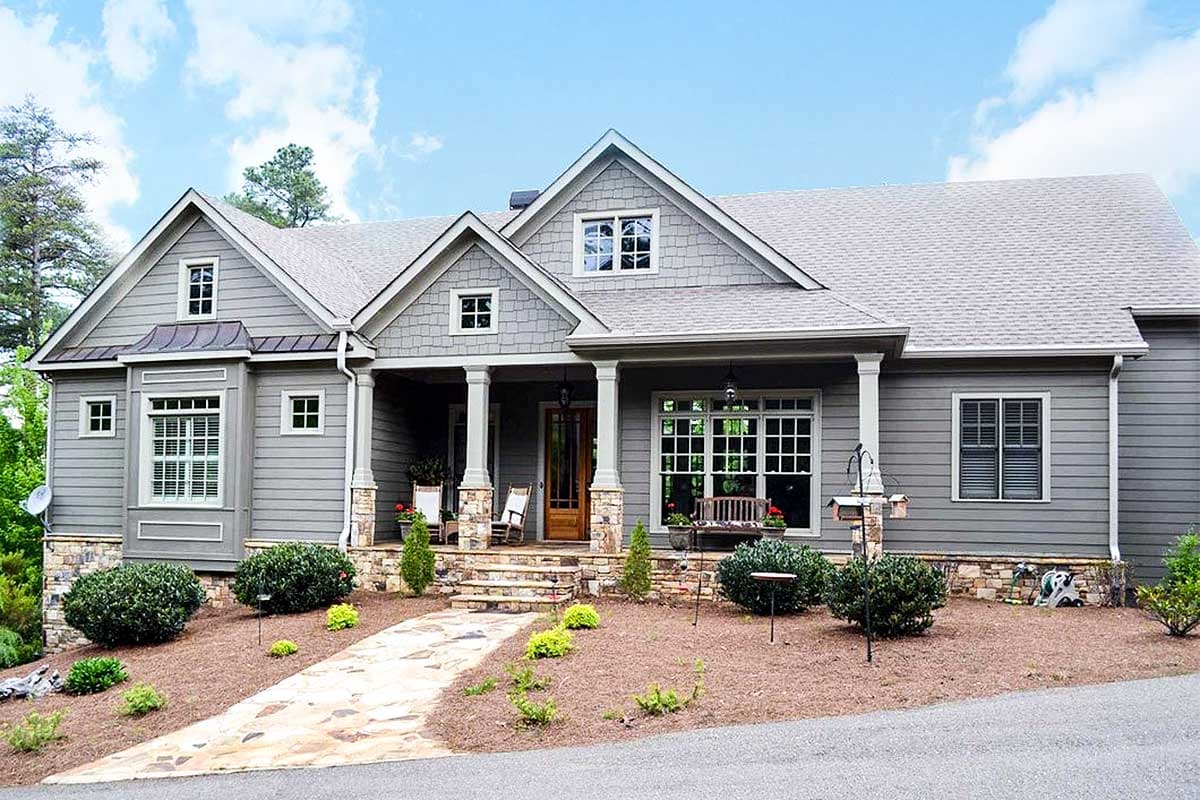

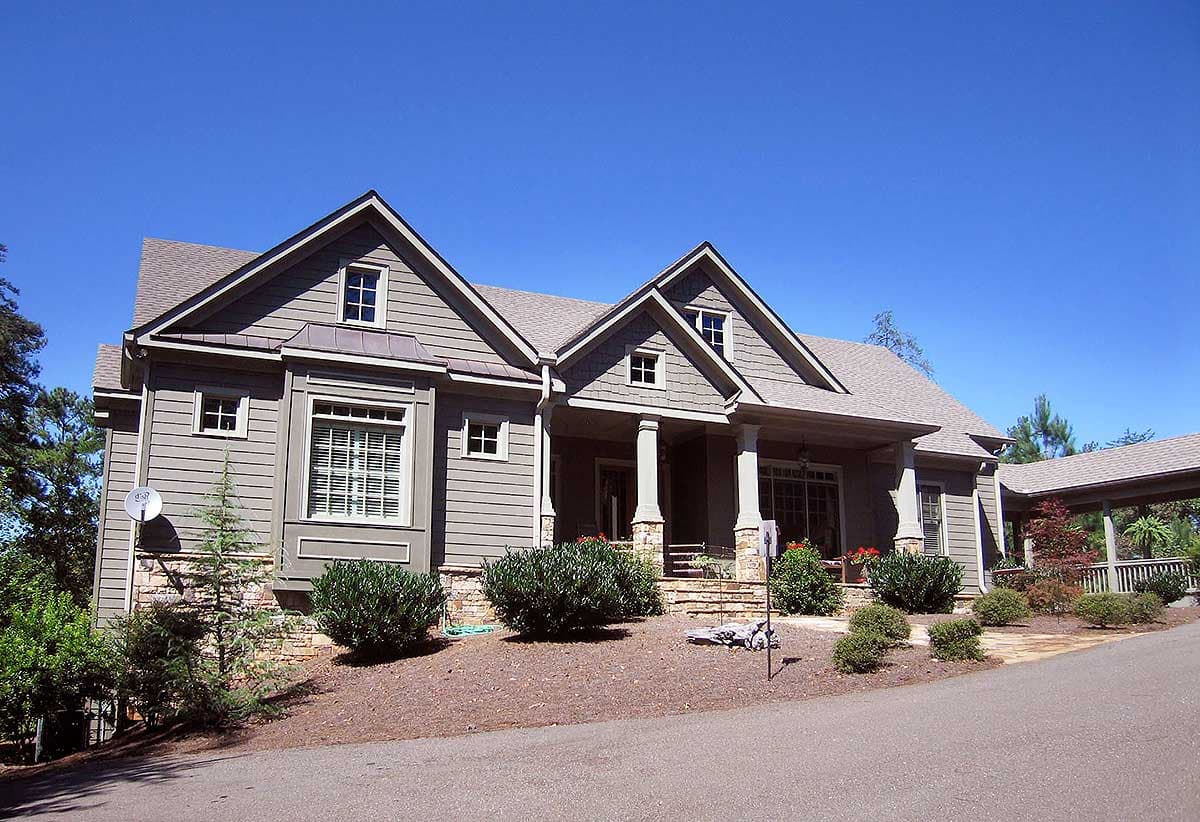

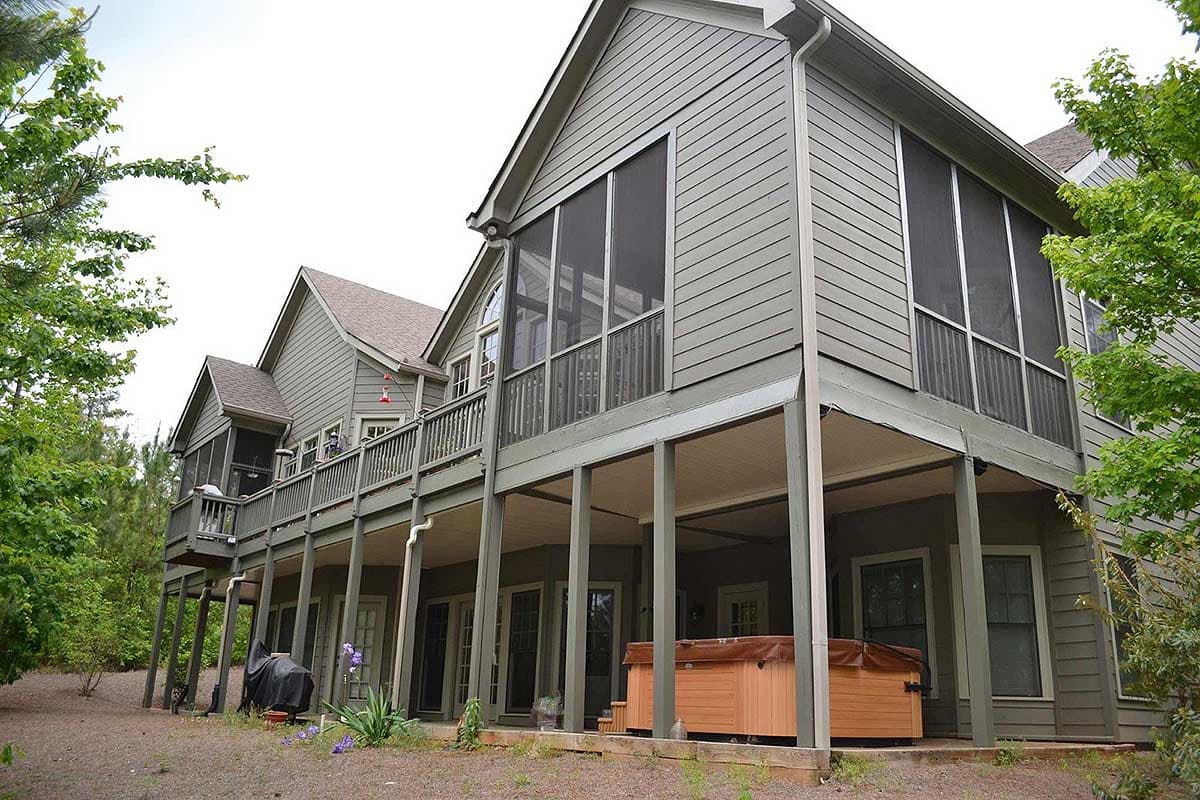

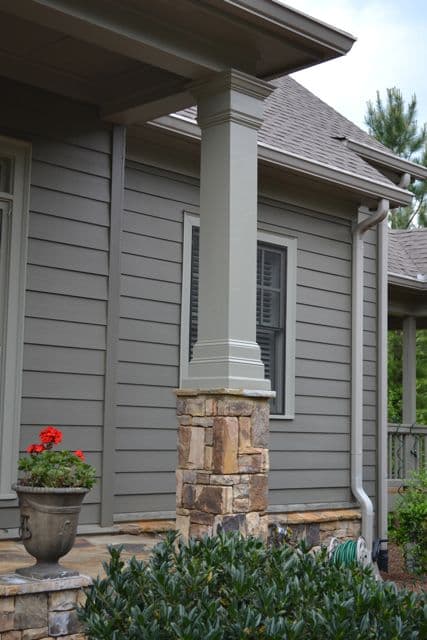

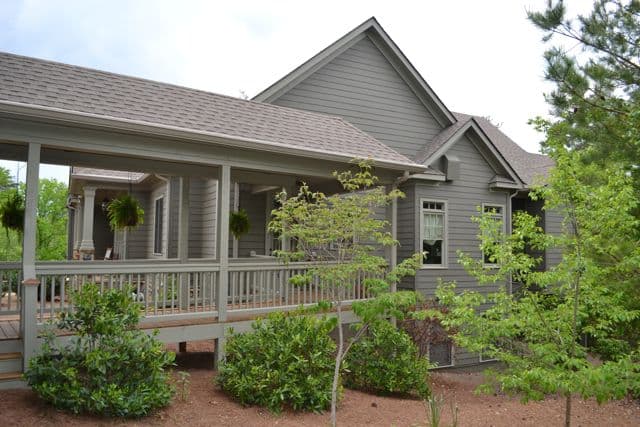

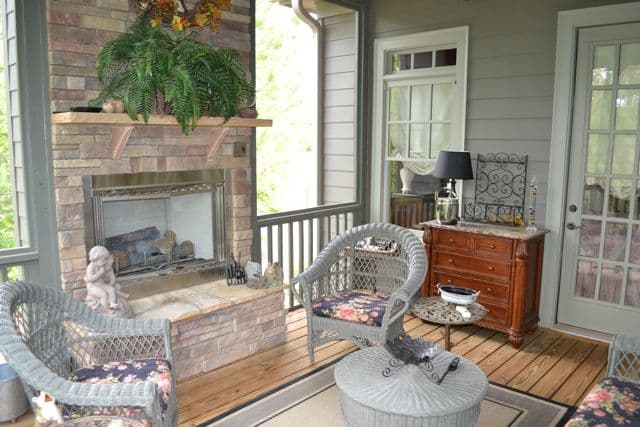

  • A covered front porch graces the front of the home, and a large deck in the back with a screened porch off the breakfast and an optional screened porch off the master suite gives you more room to enjoy the outdoors.
  • The interior is open and bright and features a split bedroom plan to maximize guest privacy.

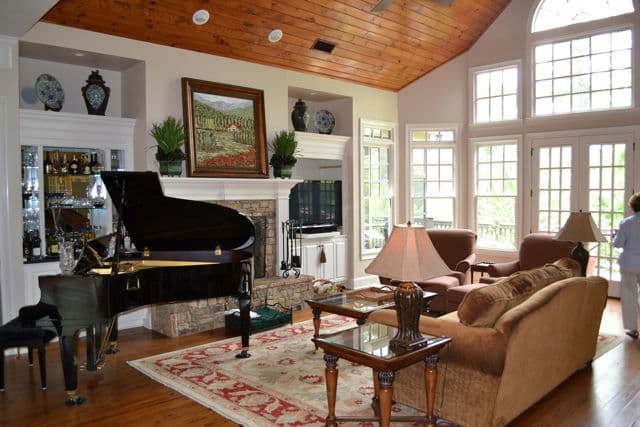

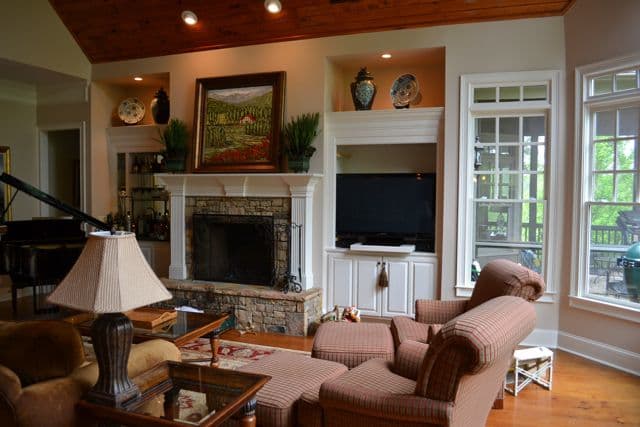

  • The plan features a large vaulted great room (17'1" ceiling peak) with built-ins and a fireplace.

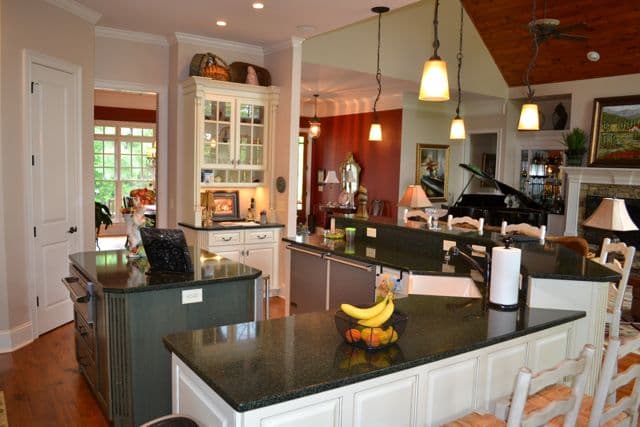

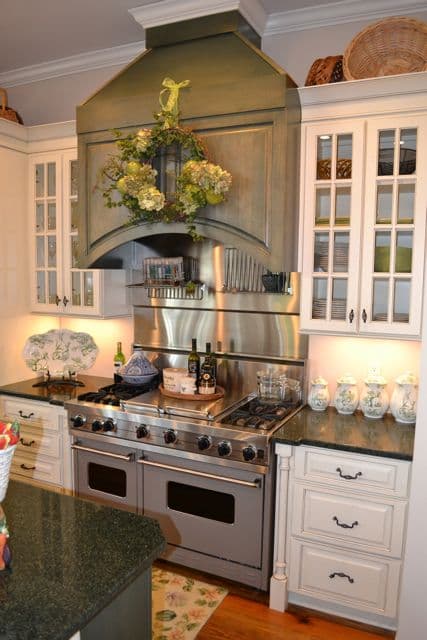

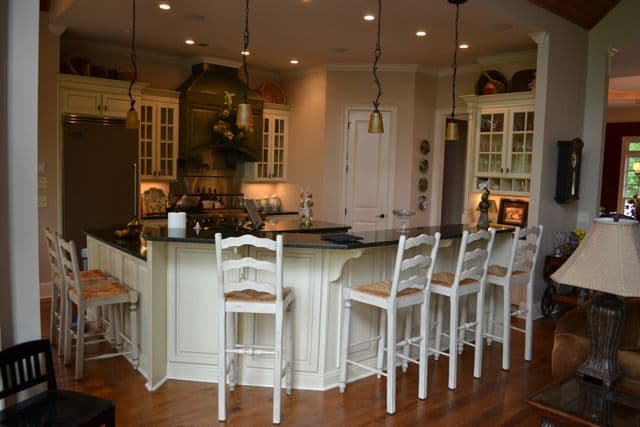

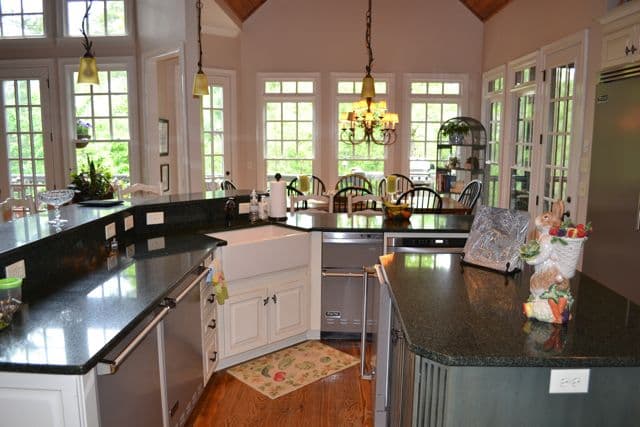

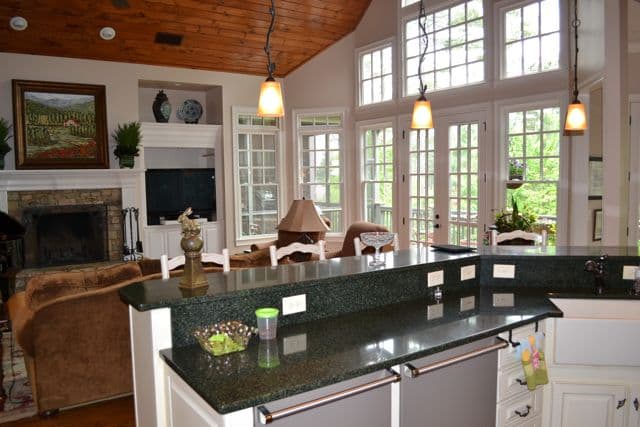

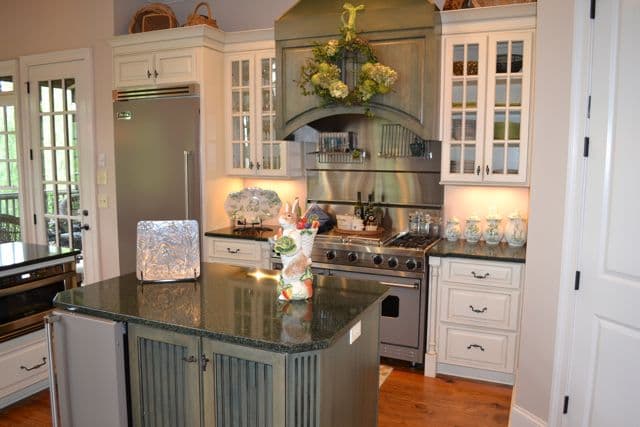

  • The kitchen is open to the great room and the breakfast room. A walk-in pantry is nestled in the kitchen and is located across from an oversized laundry room with a freezer, a wash sink and plenty of built-ins.

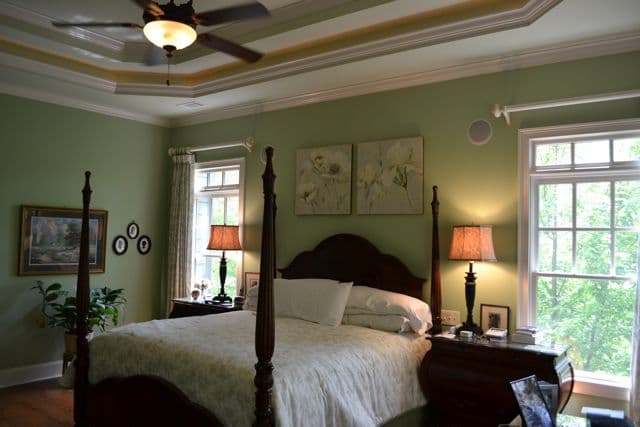

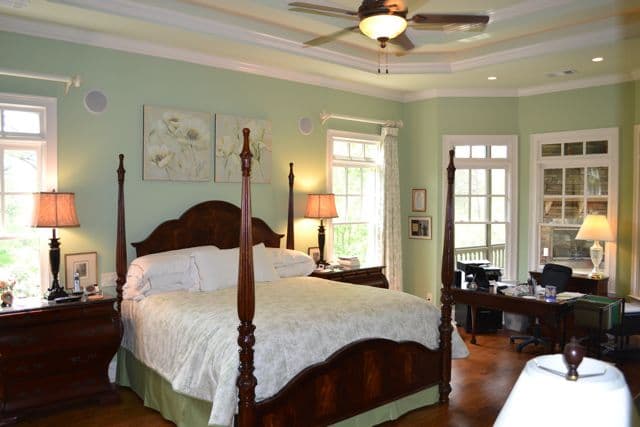

  • The master suite has a bay window, an optional fireplace, two generous walk-in closets and a separate tub and shower.
  • Included with the plans you get the optional terrace level where you will find 3 additional bedrooms each with their own full baths giving you 1,774 of additional space. There is also, a rec area, wet bar, cedar closet and plenty of unfinished storage remain on the basement level.
  • Special Option: Buy the carriage house plan separately with plan 29827RL.
What's Included
Each plan set includes the following:

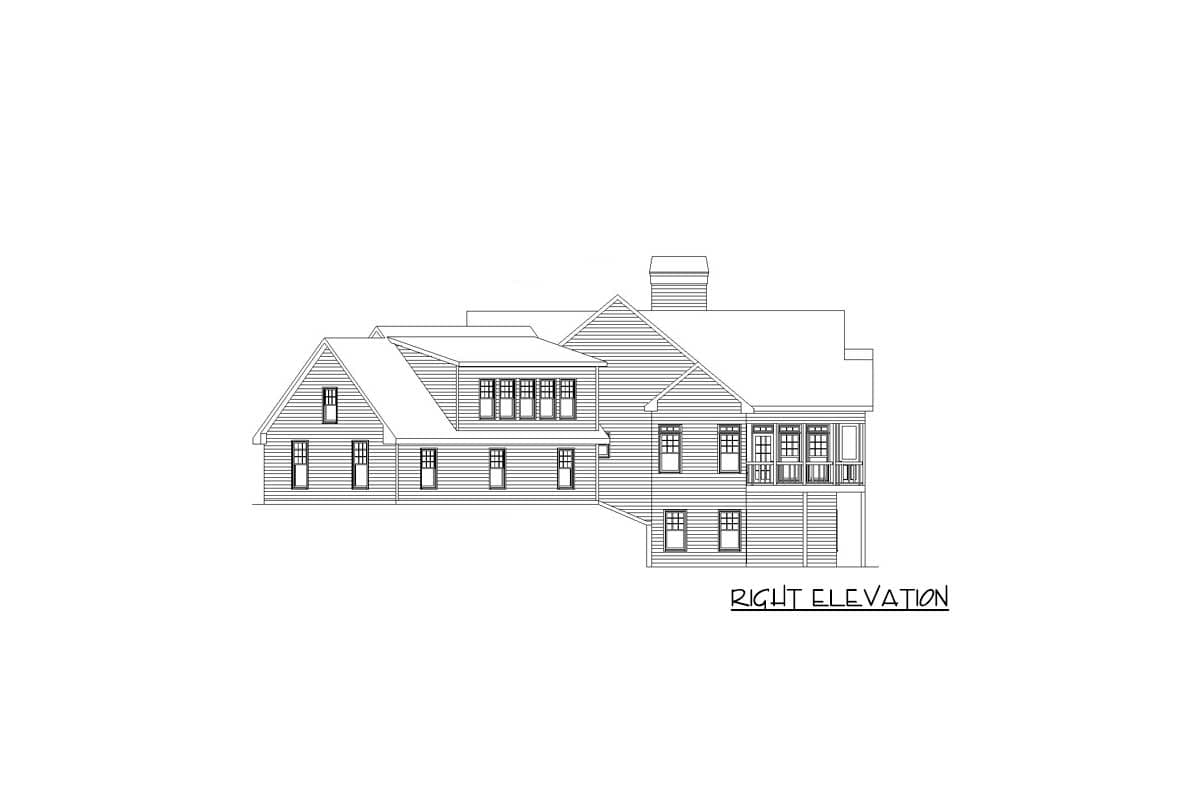

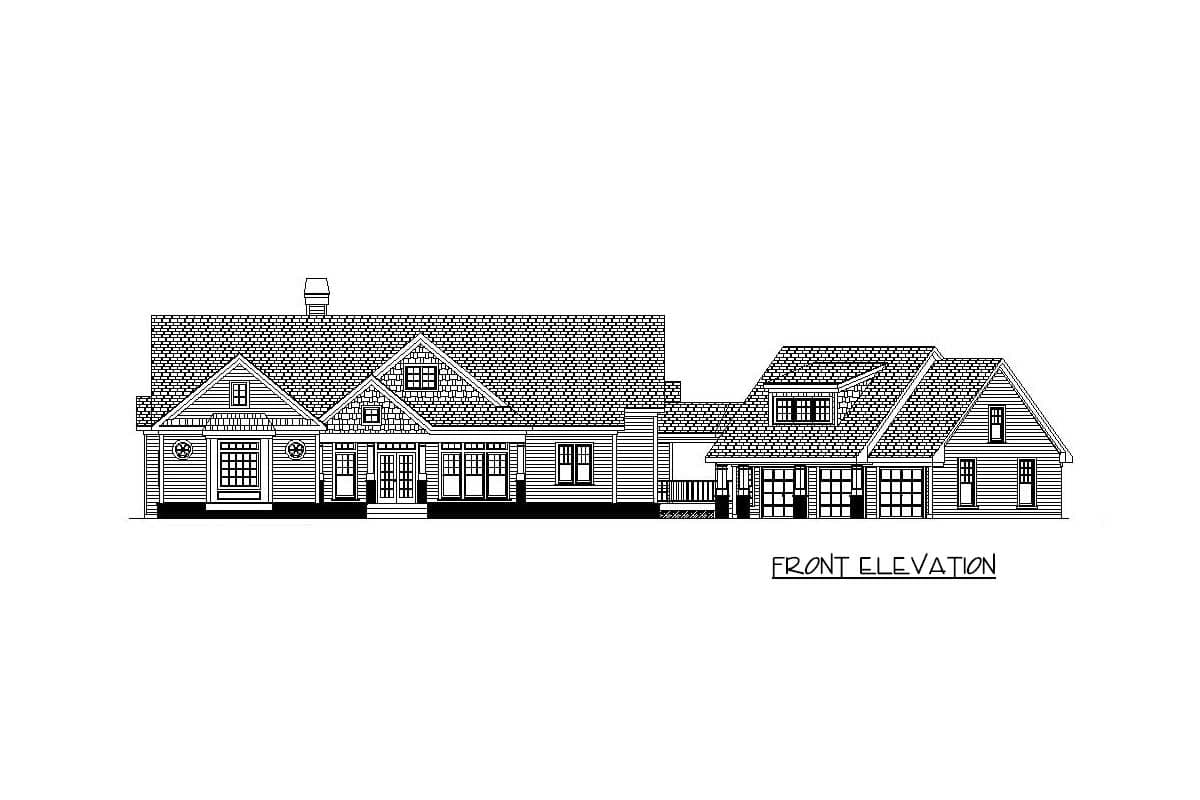

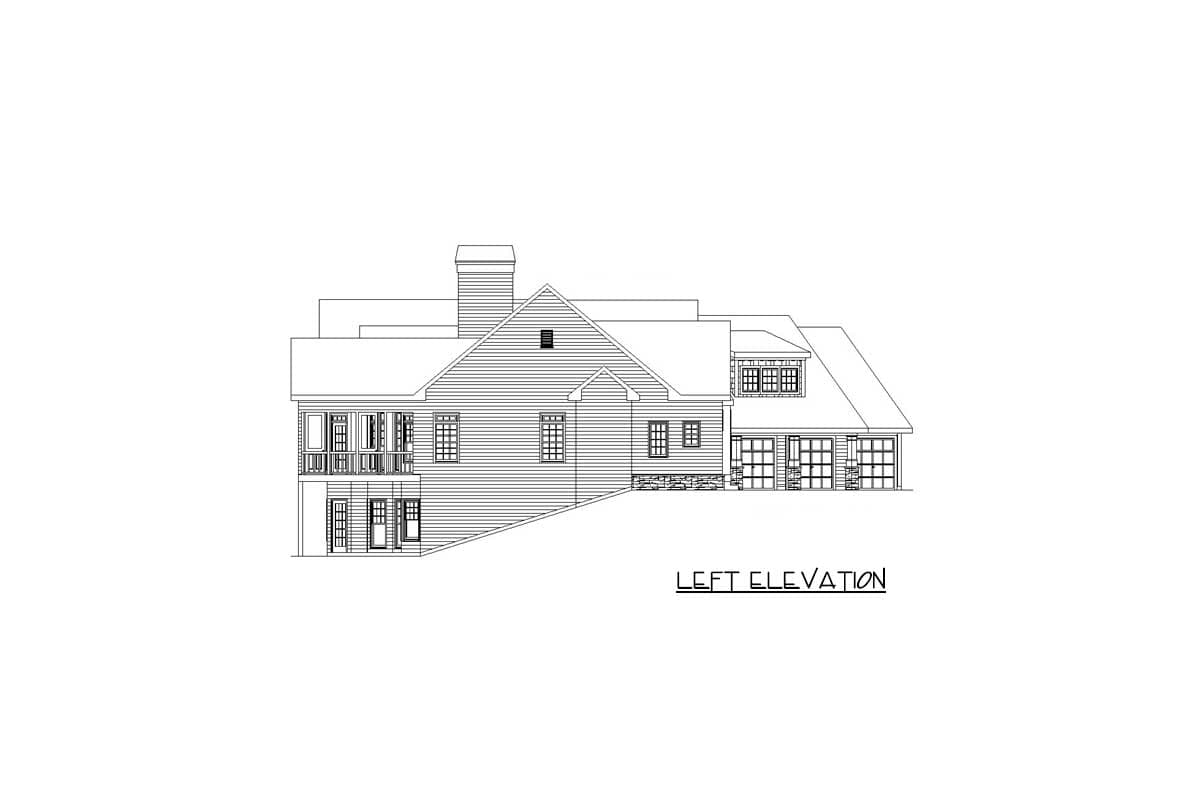

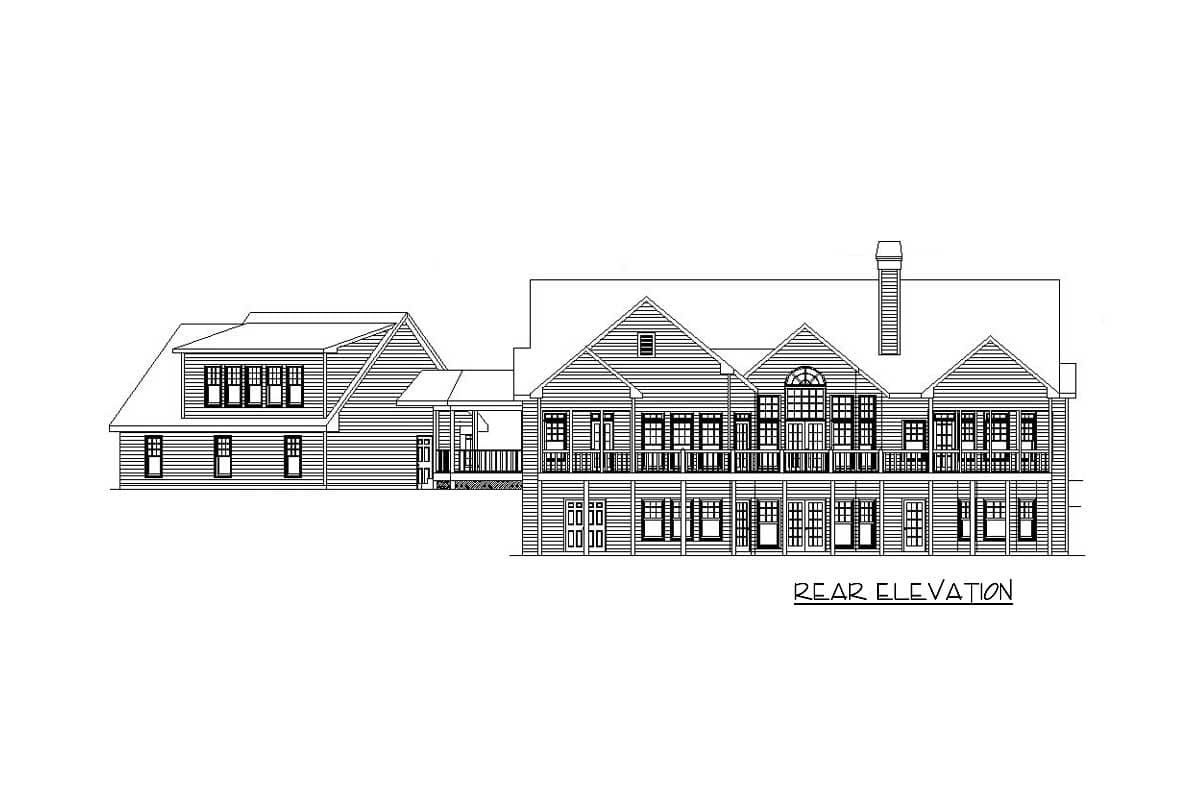

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Home Plan with Garage and Bonus Level

  • 2,523

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Finished Lower Level

  • Garage

Plan Details

Square Footage Breakdown

  • Total: 2,523 sq. ft.
  • 1st Floor: 2,523 sq. ft.

Dimensions

  • Width: 69' 4"
  • Depth: 50' 10"
  • Max ridge height: 24' 1"

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 807 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Daylight, Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
