Plan 20122GA
Mountain Home with Side Courtyard
Heated S.F.
2,689
Beds
3-4
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • A pergola-covered side courtyard can be seen from the breakfast nook and the master sitting area in this engaging Mountain home plan.
  • Another pergola covers the outdoor bar and grill area on the opposite side of the home.
  • An open rail staircase divides the dining room from the big gathering room with its fireplace and a Euro wall of folding doors to the terrace.
  • Use the front-facing home office as a fourth bedroom if it suits your needs.
  • The master suite offers his and her bathrooms, each with a spcaious walk-in closet.

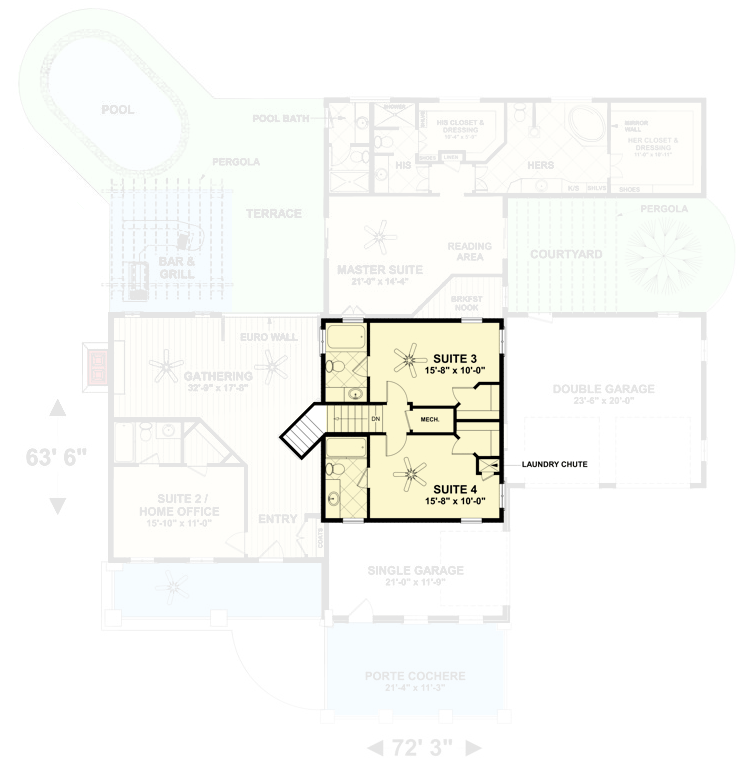

  • Two additional bedrooms are up on the second floor, with suite 4 having a handy laundry chute that drops down directly into the laundry room.
  • IMPORTANT NOTE:  Please allow three weeks for plan delivery.
What's Included
  • Digital exterior rendering cover page
  • Exterior elevation page

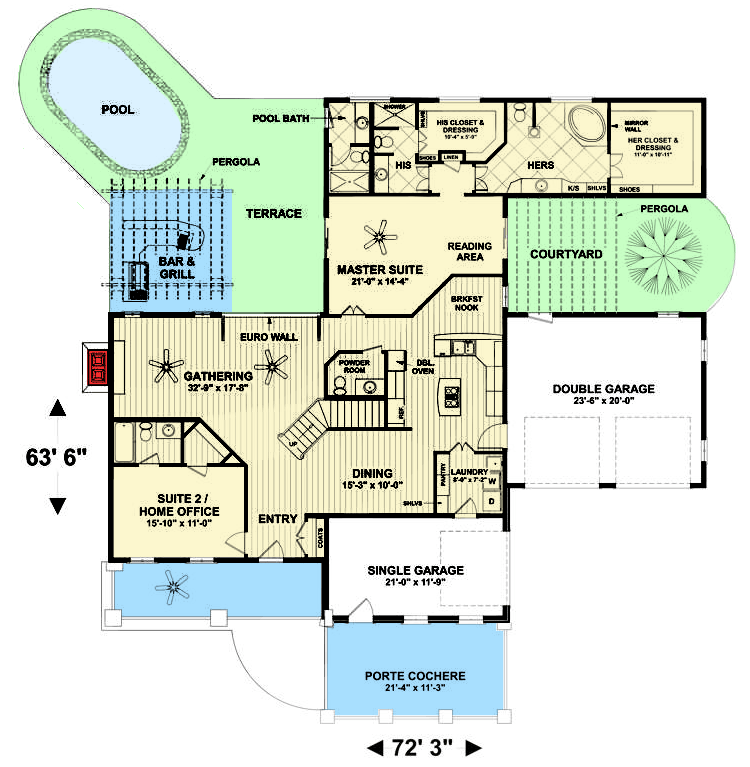

  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Home with Side Courtyard

  • 2,689

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,689 sq. ft.
  • 1st Floor: 2,184 sq. ft.
  • 2nd Floor: 505 sq. ft.

Dimensions

  • Width: 72' 3"
  • Depth: 63' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 716 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
