Plan 350162GH

Mountain House Plan: Split Beds, Wrap-Around Porch, Vaulted Great Room

Name: Plan 350162GH: Mountain House Plan: Split Beds, Wrap-Around Porch, Vaulted Great Room
Brand: Architectural Designs
SKU: 350162GH
Price: 1315.0 USD
Availability: InStock

Heated S.F.

1,176

Beds

Baths

Stories

Floor Plan

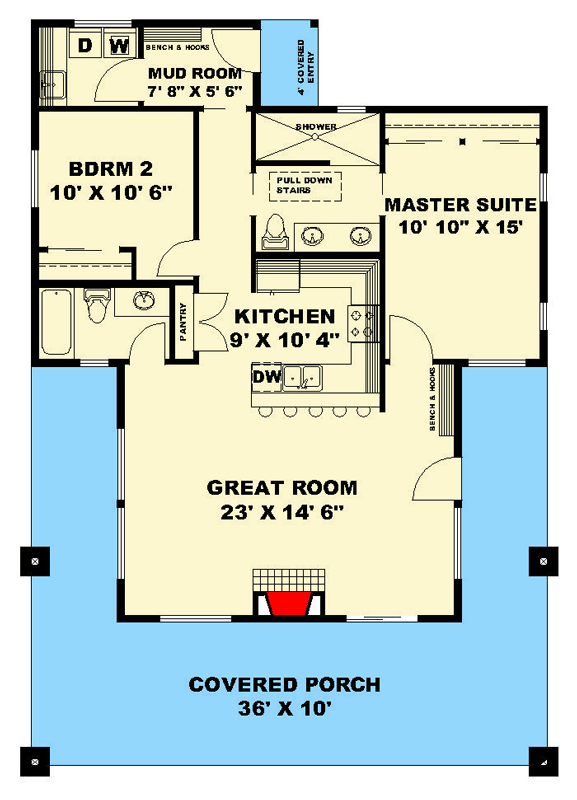

Main Level

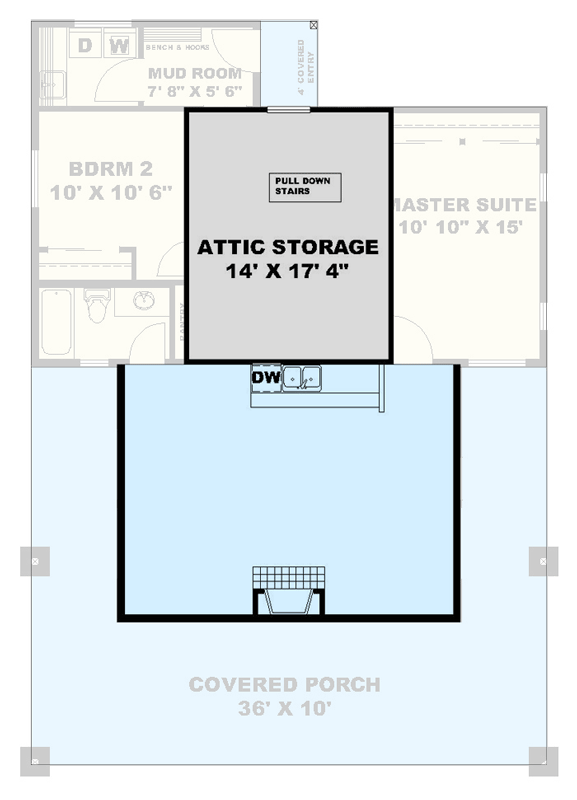

2nd Floor

Plan Details

This 1,176 sq. ft. Mountain house plan offers a comfortable 2-bedroom, 2-bathroom layout, characterized by its clean lines and inviting aesthetic.
Step inside directly from the expansive covered porch into a dramatic, open-concept Great Room, where a soaring vaulted ceiling creates an immediate sense of spaciousness and light.
The Great Room flows seamlessly into the well-appointed kitchen, featuring an island with casual seating and a convenient pantry, fostering an effortless connection for daily living and social gatherings. Nearby, a practical mudroom with laundry facilities offers a dedicated space for organization.
Designed for privacy, the split-bedroom layout places the serene master suite on one side of the home, complete with its private bathroom and shower, while a comfortable second bedroom and full bathroom are situated on the opposite side, ensuring quiet retreats for all.
Embrace outdoor living on the generous wrap-around covered porch, providing ample space for morning coffee, evening relaxation, and connecting with the natural surroundings.

What's Included

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
