Plan 680586VR

Mountain Retreat with Wrap Around Porch and Vaulted Great Room

Heated S.F.
1,800
Beds
3
Baths
2.5
Stories
2
Tour

Floor Plan

Plan 680586VR

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 680586VR

M-F 9am-5pm EST |

1-203-761-8500

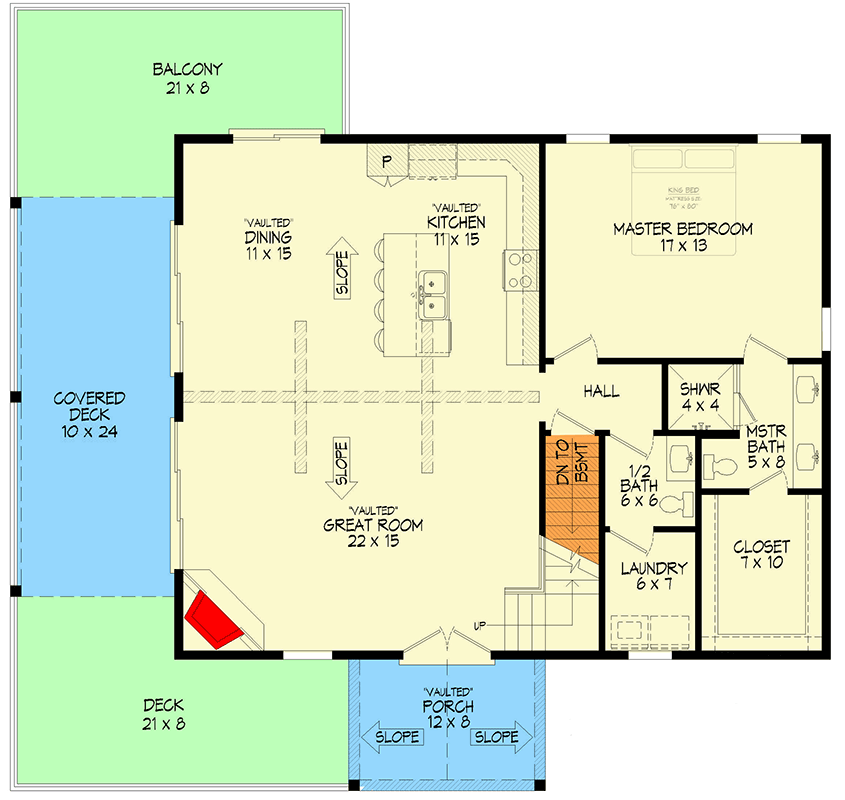

Main Level

Plan 680586VR: Mountain Retreat with Wrap Around Porch and Vaulted Great Room - Floor Plan - Main Level - Mountain, New American

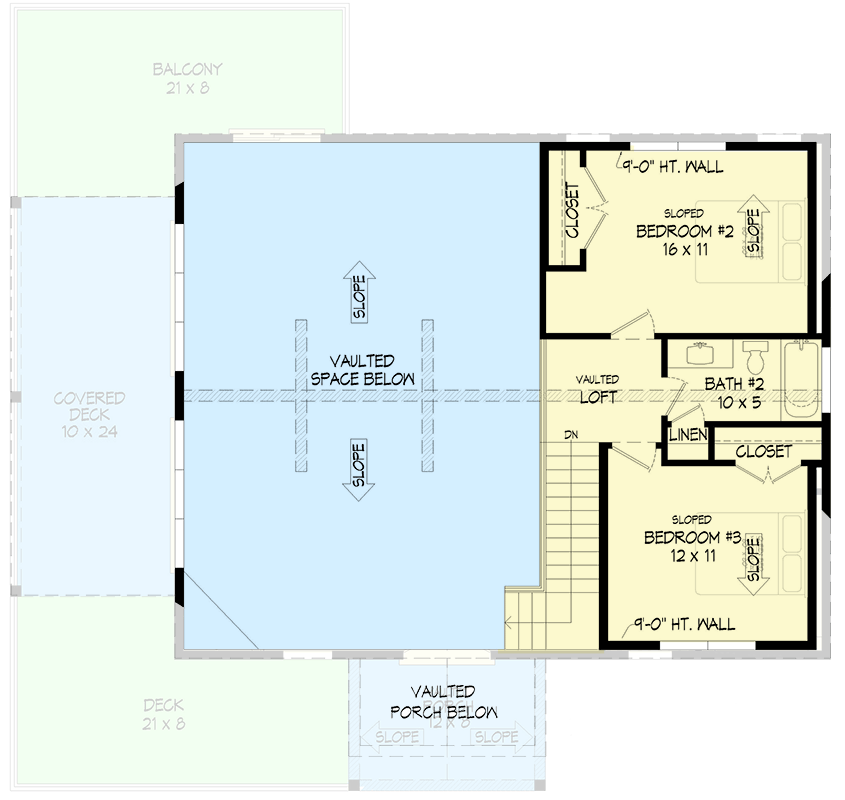

2nd Floor

Plan 680586VR: Mountain Retreat with Wrap Around Porch and Vaulted Great Room - Floor Plan - 2nd Floor - Mountain, New American

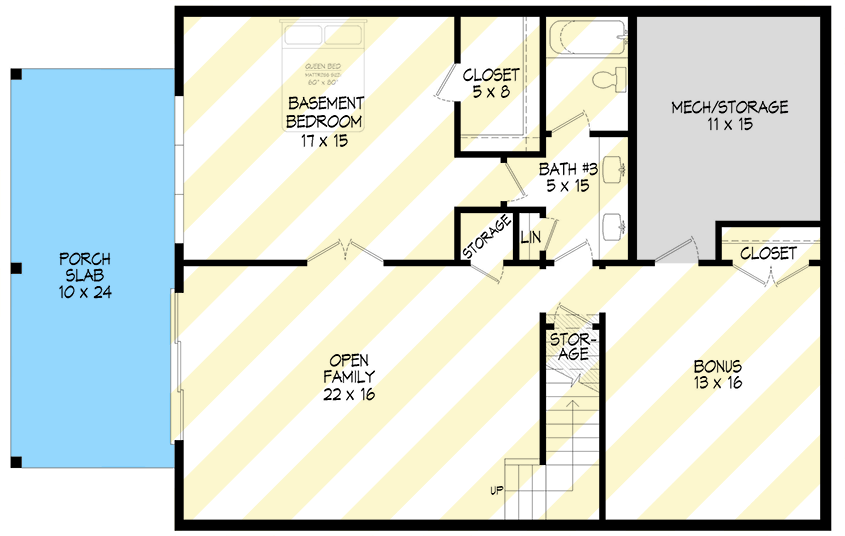

Optional Lower Level

Plan 680586VR: Mountain Retreat with Wrap Around Porch and Vaulted Great Room - Floor Plan - Optional Lower Level - Mountain, New American

Plan Details

  • This 1,800 sq. ft. Mountain New American house plan offers 3 bedrooms, 2 full and 1 half bathrooms. The design features a 9' walkout foundation and a generous wrap-around porch.
  • Entering the home, you're welcomed into a vaulted great room that seamlessly connects with the dining and kitchen areas, emphasizing an open-concept layout.
  • The main living areas flow effortlessly, with the kitchen featuring a central island perfect for social gatherings, and the dining area opening to the expansive deck.
  • The first-floor master suite is a tranquil retreat, with an en-suite bathroom and a spacious walk-in closet. The secondary bedrooms are located on the upper level, offering privacy and ample space.
  • The covered deck and wrap-around porch provide spots for outdoor relaxation, with views ideal for enjoying morning coffee or evening sunsets.
  • The optional lower level adds versatility, with space for an additional bedroom, family room, and bonus storage, allowing customization to your lifestyle needs.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

520 sq. ft.

Basement Unfinished

168 sq. ft.

Optional Lower Level

1,112 sq. ft.

Deck & Porch

746 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

26' 10"

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9' 6"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Mountain

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Wraparound Porch

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

520 sq. ft.

Basement Unfinished

168 sq. ft.

Optional Lower Level

1,112 sq. ft.

Deck & Porch

746 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

26' 10"

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9' 6"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Mountain

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Wraparound Porch
