Plan 490169NAH

Mountain Style Cabin Plan with Five Bedrooms

Heated S.F.
1,974
Beds
5
Baths
3
Stories
3

Floor Plan

Plan 490169NAH

Main Level
Main Level
2nd Floor
2nd Floor
Basement Level
Basement Level

Plan 490169NAH

M-F 9am-5pm EST |

1-203-761-8500

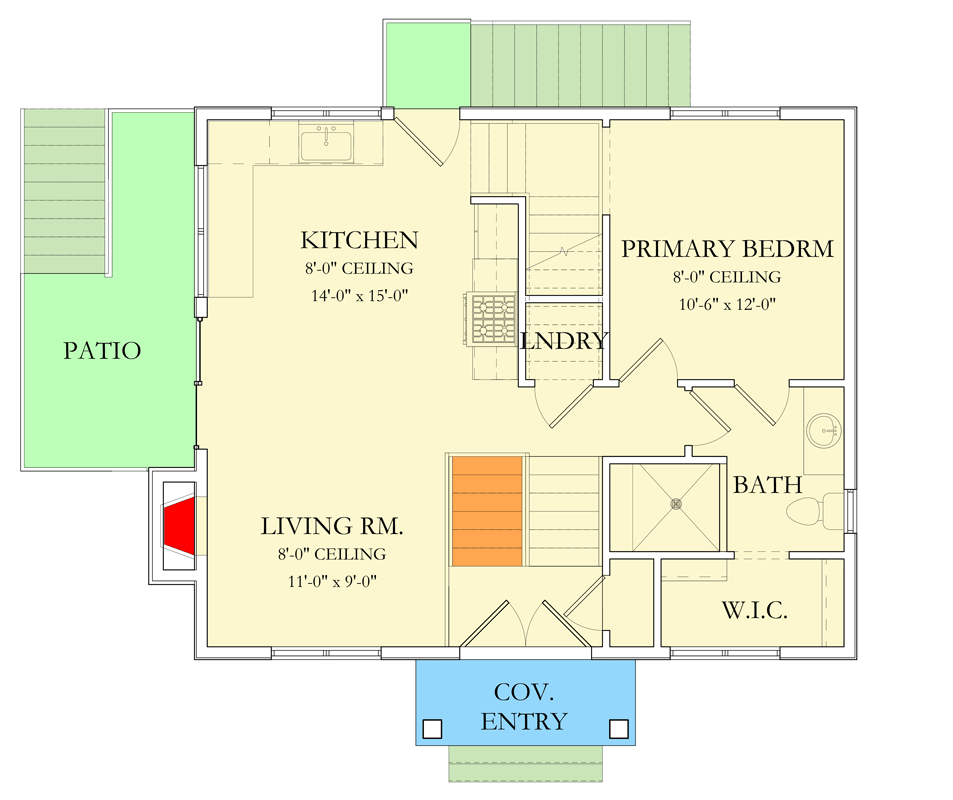

Main Level

Plan 490169NAH: Mountain Style Cabin Plan with Five Bedrooms - Floor Plan - Main Level - Cabin, Mountain, Rustic

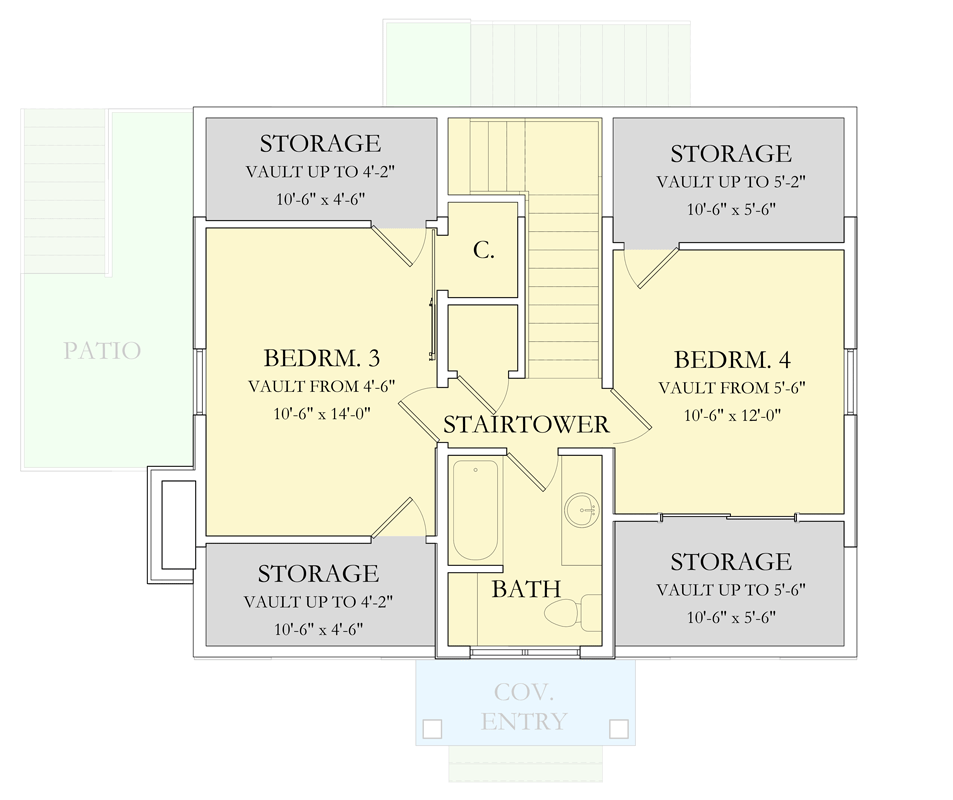

2nd Floor

Plan 490169NAH: Mountain Style Cabin Plan with Five Bedrooms - Floor Plan - 2nd Floor - Cabin, Mountain, Rustic

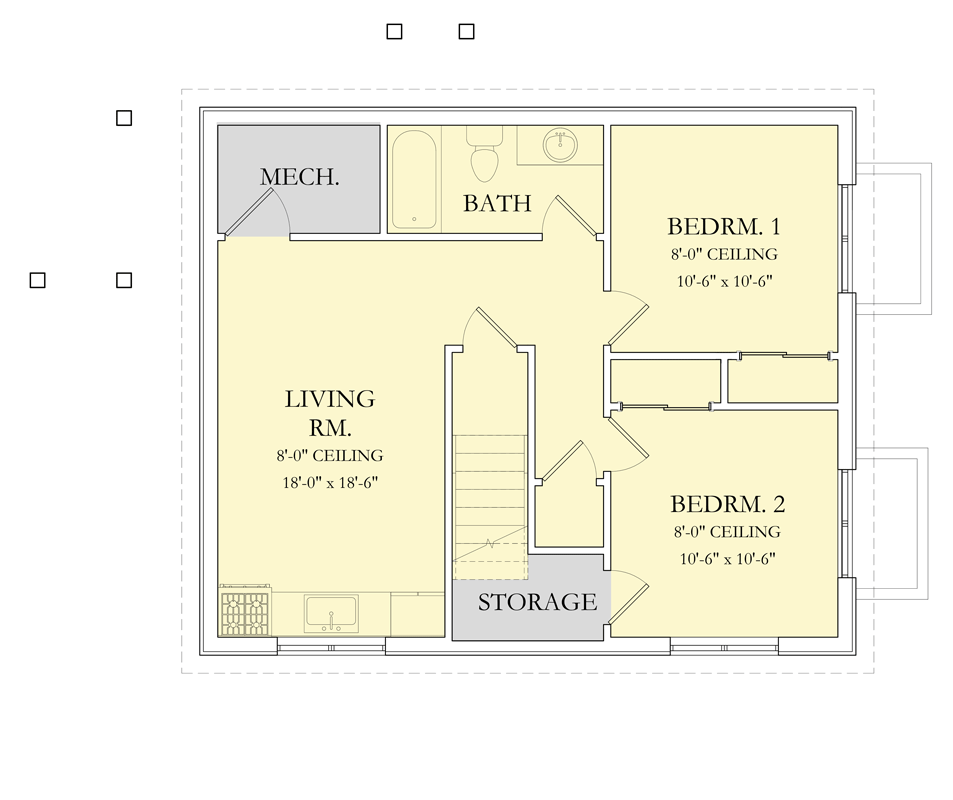

Basement Level

Plan 490169NAH: Mountain Style Cabin Plan with Five Bedrooms - Floor Plan - Basement Level - Cabin, Mountain, Rustic

Plan Details

  • This 1,974 sq. ft. mountain cabin plan features 5 bedrooms and 3 baths, with a distinctive stone and wood exterior that harmonizes with the natural landscape.
  • The welcoming first floor offers an open living area that connects seamlessly to the dining and kitchen spaces, perfect for family gatherings.
  • Lower-level accommodations provide two bedrooms along with a spacious living room, creating a private retreat.
  • The primary bedroom suite is conveniently located on the main level, offering a tranquil escape with easy access to the living areas.
  • Upstairs, two additional bedrooms share a bath and offer vaulted ceiling storage spaces, enhancing the cabin's functionality.
  • Outdoor spaces include a quaint front porch and a covered patio at the back, perfect for enjoying the forest views.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,974 sq. ft.

Lower Level

698 sq. ft.

1st Floor

750 sq. ft.

2nd Floor

526 sq. ft.

Porch, Front

40 sq. ft.

Covered Patio

102 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

25' 0"

Max Ridge Height

28' 0"

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Cabin

Mountain

Rustic

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Square Footage Breakdown

Total Heated Area

1,974 sq. ft.

Lower Level

698 sq. ft.

1st Floor

750 sq. ft.

2nd Floor

526 sq. ft.

Porch, Front

40 sq. ft.

Covered Patio

102 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

25' 0"

Max Ridge Height

28' 0"

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Cabin

Mountain

Rustic

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Split Level
