Plan 64488SC

Multi-Family Craftsman Plan with 2 Dissimilar Units 2 Bedroom Units - 1845 Sq Ft and 1747 Sq Ft

Heated S.F.
3,582
Units
2
Width
Depth

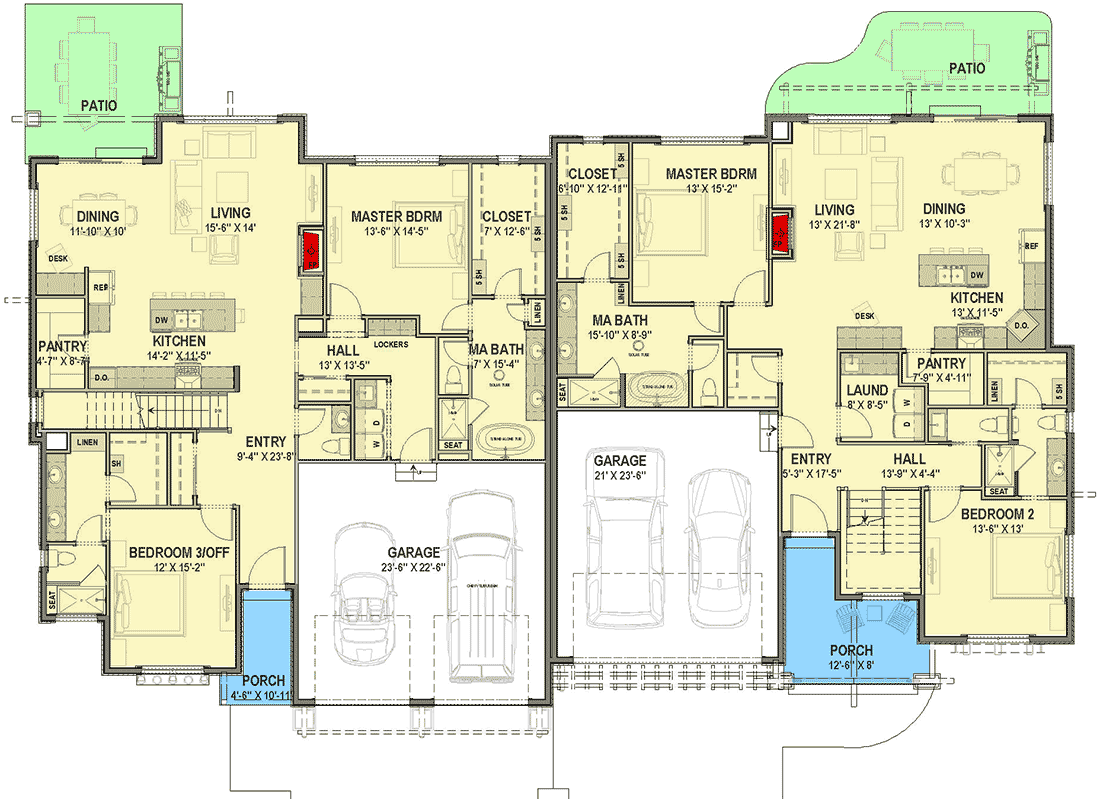

Floor Plan

Plan 64488SC

Main Level
Main Level

Plan 64488SC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 64488SC: Multi-Family Craftsman Plan with 2 Dissimilar Units 2 Bedroom Units - 1845 Sq Ft and 1747 Sq Ft - Floor Plan - Main Level - Craftsman, Farmhouse, Northwest, Prairie

Plan Details

  • Each unit in this multi-family, Craftsman structure features 2 bedrooms, a double garage, and an open floor plan with a fireplace serving as the focal point.
  • The unit on the left gives you 1,835 sq. ft. of heated living space and a 549 sq. ft. 2-car garage. The unit on the right gives you 1,747 sq. ft. of heated living space and a 509 sq. ft. 2-car garage.
  • Once past the threshold, a bedroom near the foyer includes a full bath and a walk-in closet.
  • Straight ahead, discover the common living spaces, combined to create a comfortable, open layout, which extends outdoors onto a patio.
  • Each kitchen features a prep island with a double-bowl sink, and a nearby built-in desk offers a communal office space.
  • The master bedroom is separate from the secondary bedroom for the utmost privacy, and includes a 5-fixture bath and walk-in closet. Enter from the garage and discover the laundry room, with a utility sink, and built-lockers to organize outdoor gear.
Unit A
Heated Area
1,835Sq. Ft.
1835 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
549 Sq. Ft.
Dimensions
49' 1"width
56'depth
25'height
Unfinished Areas
549 Sq. Ft. Garage
64 Sq. Ft. Porch, Front
210 Sq. Ft. Covered Patio
Unit B
Heated Area
1,747Sq. Ft.
1747 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
509 Sq. Ft.
Dimensions
49' 1"width
56'depth
25'height
Unfinished Areas
509 Sq. Ft. Garage
148 Sq. Ft. Porch, Front
219 Sq. Ft. Covered Patio

What's Included

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,582 sq. ft.

1st Floor

3,582 sq. ft.

Porch, Combined

212 sq. ft.

Covered Patio

429 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

99' 2"

Depth

56' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1058 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Farmhouse

Northwest

Prairie

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,582 sq. ft.

1st Floor

3,582 sq. ft.

Porch, Combined

212 sq. ft.

Covered Patio

429 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

99' 2"

Depth

56' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1058 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Farmhouse

Northwest

Prairie

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
