Multi-Generational House Plan with 4-Car Angled Garage - 3526 Sq Ft
Heated S.F.
3,526
Beds
4
Baths
3.5
Stories
1
Cars
4
What's Included
Plan Details
  • This 4 bed, 3.5 bath multi-generational house plan gives you 3,526 square feet of heated living space and has a 4-car 1,227 square foot angled garage with two 16' by 8' overhead doors.
  • A 1-bed, 1-bath apartment is on the right and has a living room with fireplace and outdoor access and a kitchenette. The bedroom suite has a walk-in closet and enjoys the utmost of privacy from the rest of the home.
  • The main family residence has three bedrooms clustered on the left with the master suite having covered patio access.
  • In the middle of the home, a vaulted great room opens to the vaulted covered patio in back and is open to the kitchen and dining room. A home office is located in front and can be entered from the courtyard, the foyer or from the kitchen hall.
What's Included

  • Cover Page

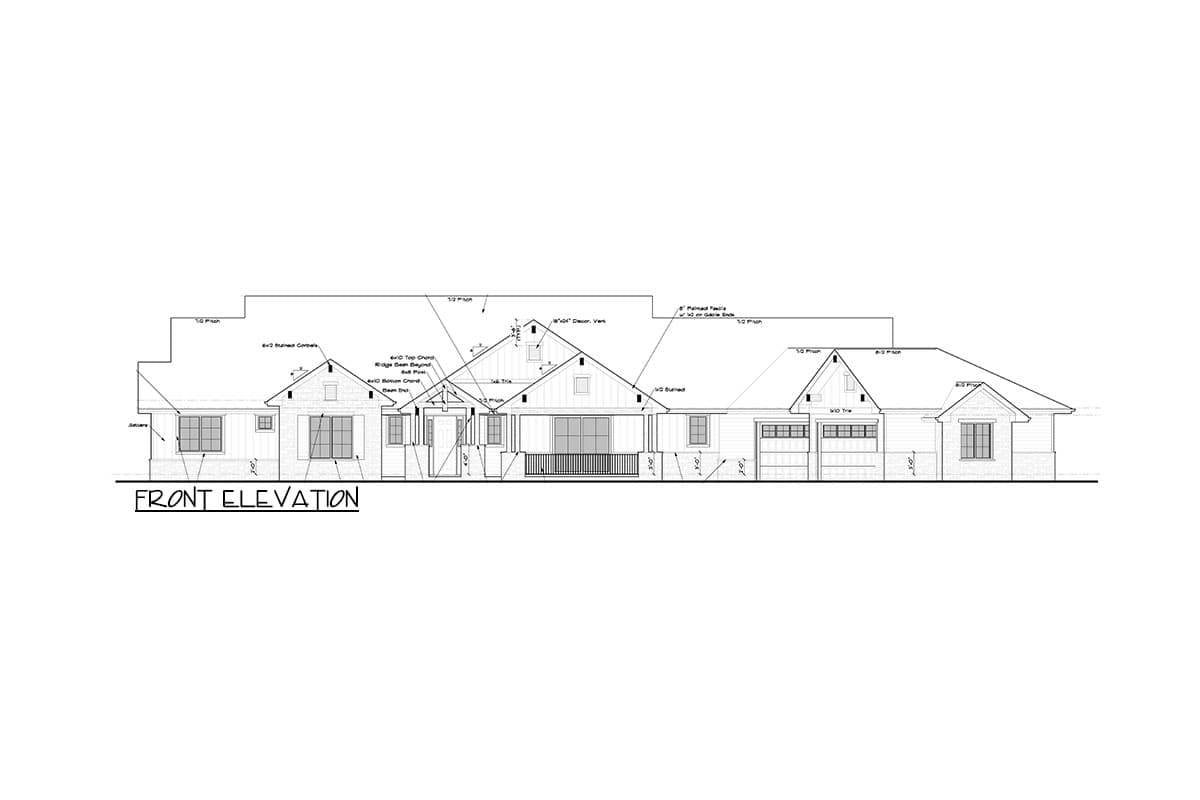

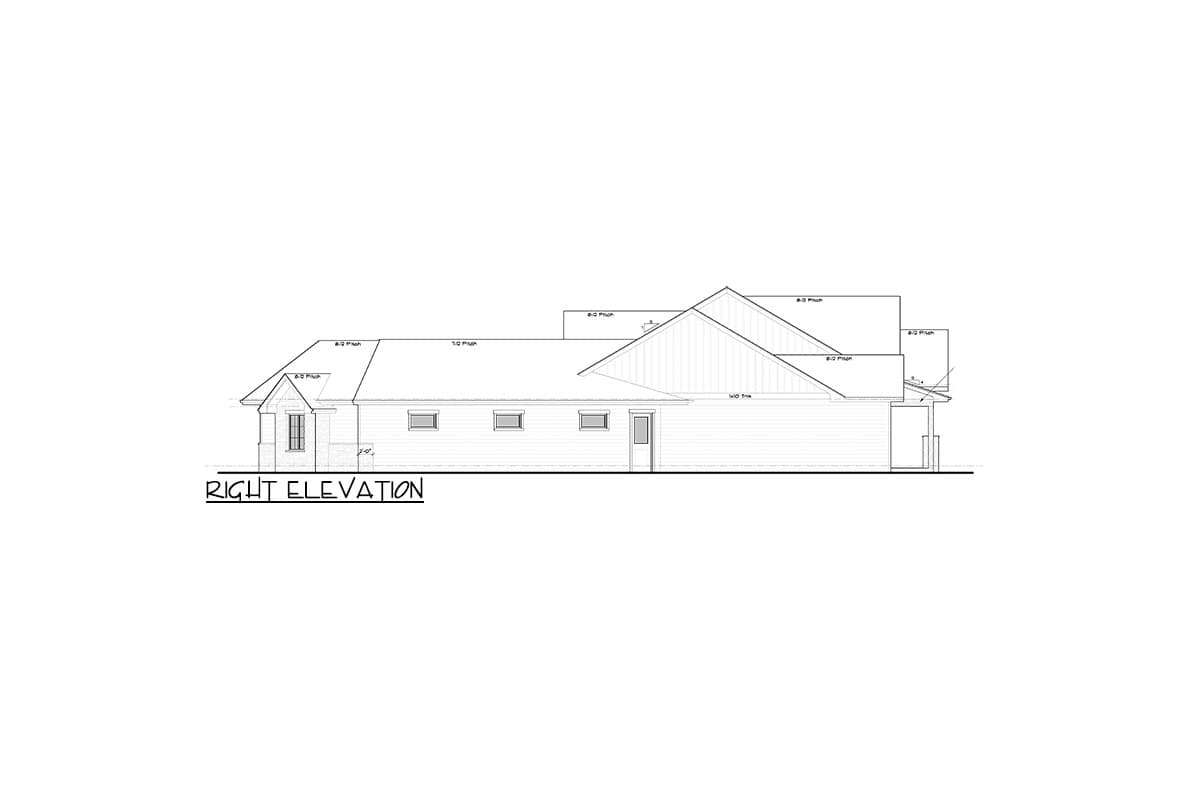

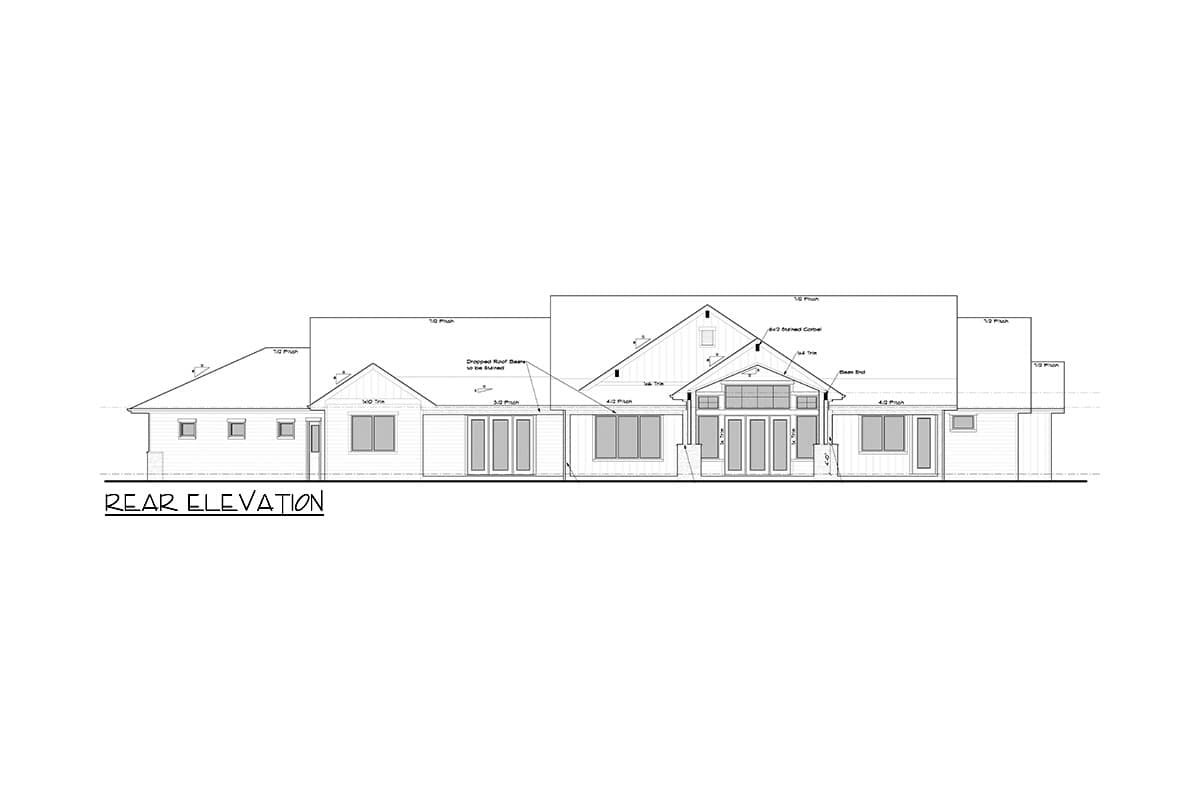

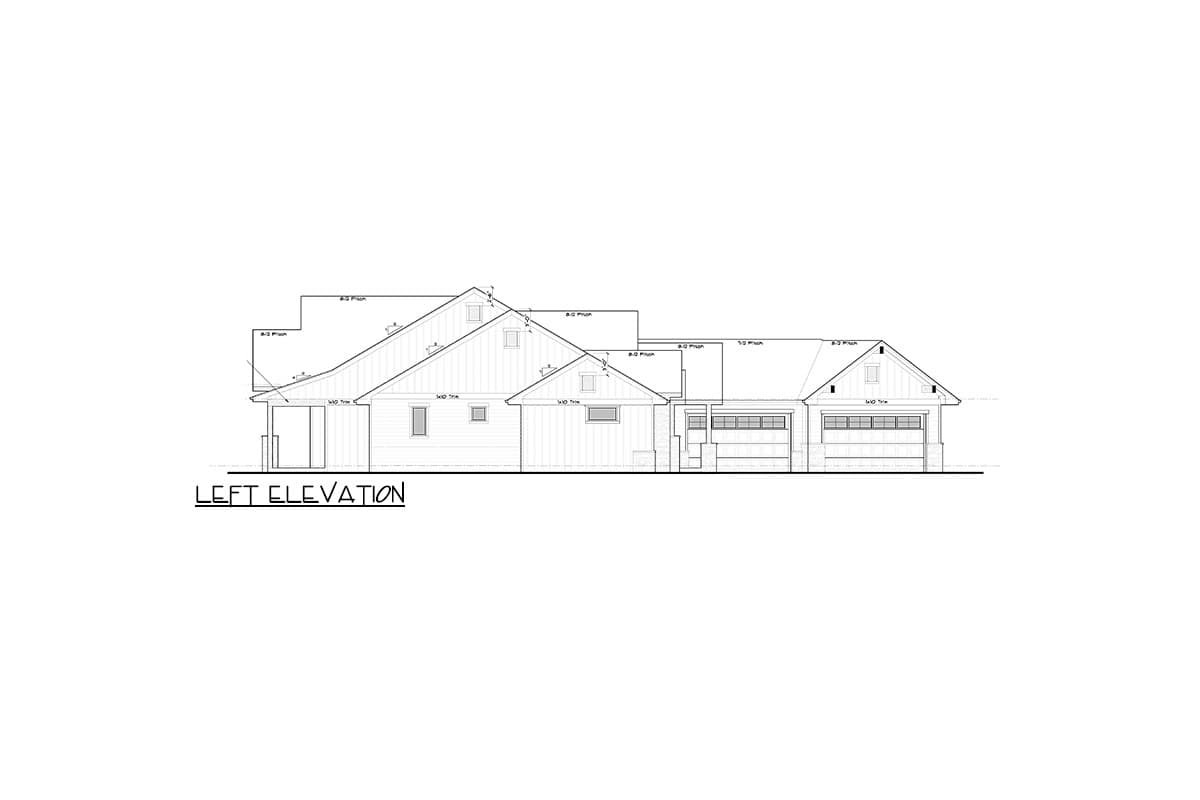

  • 4 Elevations

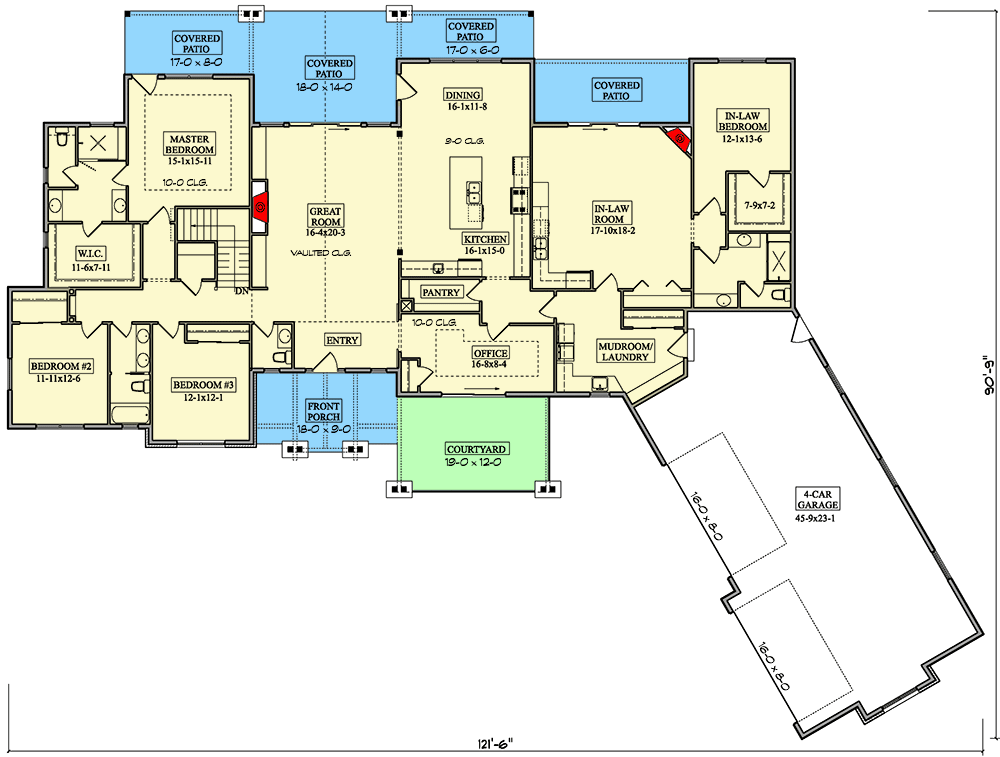

  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multi-Generational House Plan with 4-Car Angled Garage - 3526 Sq Ft

  • 3,526

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,526 sq. ft.
  • 1st Floor: 3,526 sq. ft.

Dimensions

  • Width: 121' 6"
  • Depth: 90' 9"
  • Max ridge height: 24' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1227 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
