Plan 8192LB

Multi-Level Northwest House Plan

Heated S.F.
2,616
Beds
3
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 8192LB

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 8192LB

M-F 9am-5pm EST |

1-203-761-8500

Basement

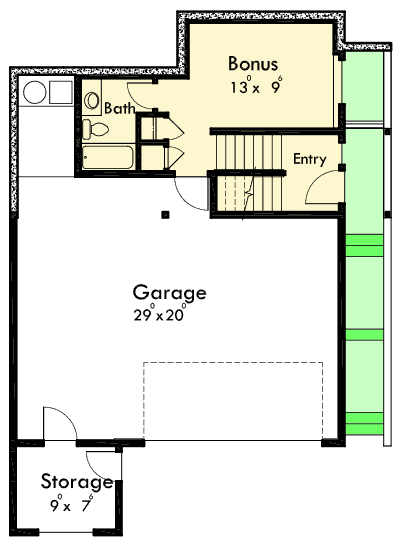

Plan 8192LB: Multi-Level Northwest House Plan - Floor Plan - Basement - Northwest

Main Level

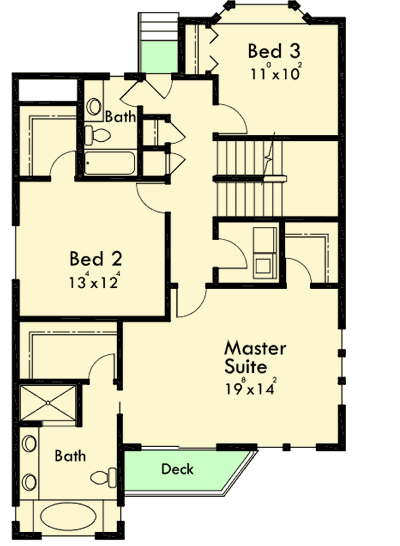

Plan 8192LB: Multi-Level Northwest House Plan - Floor Plan - Main Level - Northwest

2nd Floor

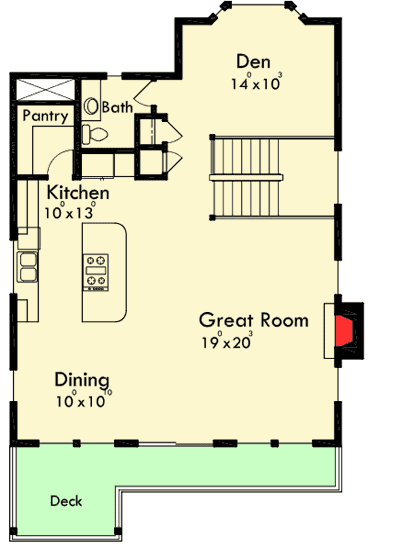

Plan 8192LB: Multi-Level Northwest House Plan - Floor Plan - 2nd Floor - Northwest

Plan Details

  • The lower level of this Northwest house plan takes you from the garage into a bonus room with full bath close by.
  • Seven steps up is the main entry foyer that carries you up to the first floor which is the bedroom level.
  • All three bedrooms are on this floor with the master suite getting a private deck.
  • A short flight of stairs takes you to the top level which is the main living area.
  • The open floor plan combines the kitchen, dining room and great room.
  • Across the open rail staircase, you'll find a den with a bay window and nearby powder room.
  • Sliding glass doors take you out to the deck that spans the full width of the house.

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,616 sq. ft.

Lower Level

335 sq. ft.

1st Floor

1,106 sq. ft.

2nd Floor

1,175 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 2"

Depth

48' 6"

Max Ridge Height

37' 4"

Garage

Type

Drive Under

Area

806 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Northwest

Special Features

Den

Master Suite - 1st Floor

Optionally Finished Bonus Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,616 sq. ft.

Lower Level

335 sq. ft.

1st Floor

1,106 sq. ft.

2nd Floor

1,175 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 2"

Depth

48' 6"

Max Ridge Height

37' 4"

Garage

Type

Drive Under

Area

806 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Northwest

Special Features

Den

Master Suite - 1st Floor

Optionally Finished Bonus Room

Walk-in Pantry
