Plan 59390ND
Multi-Storied Foyer
Heated S.F.
2,287
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • The multi-storied foyer and living room provide an even larger feel to this already formidable home.
  • Arched openings escort you to the marvelous formal dining room that blends barrier-free into a captivating living room. There you'll find the gas fireplace, snuggled among built-ins and media center, gains prominence from the vaulted ceiling and balcony above.
  • An enormous kitchen seats several at the eat-at bar where conversation flows effortlessly to the adjoining bay-windowed breakfast room.
  • Upstairs features large, lovely Jack-and-Jill bedrooms that share a common bath.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

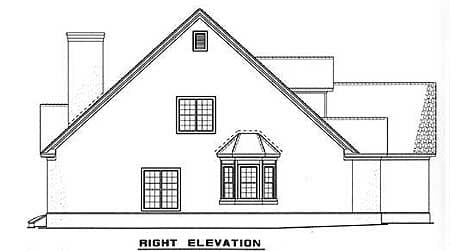

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multi-Storied Foyer

  • 2,287

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

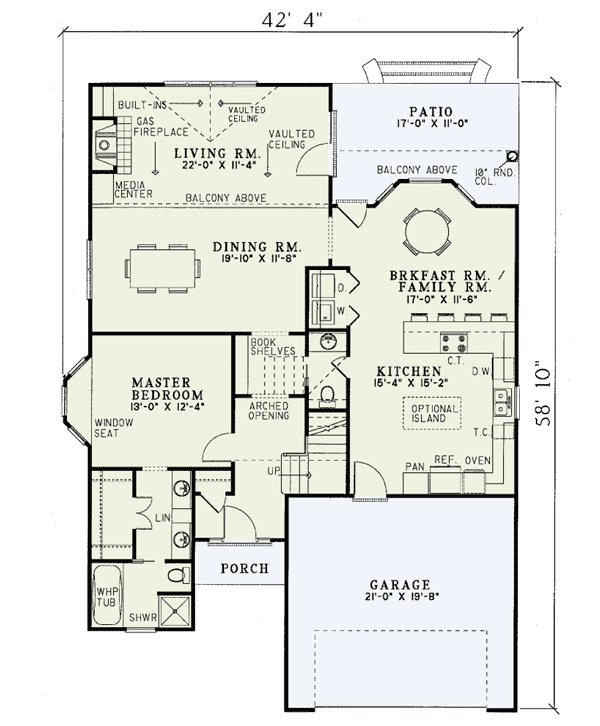

  • Main Level

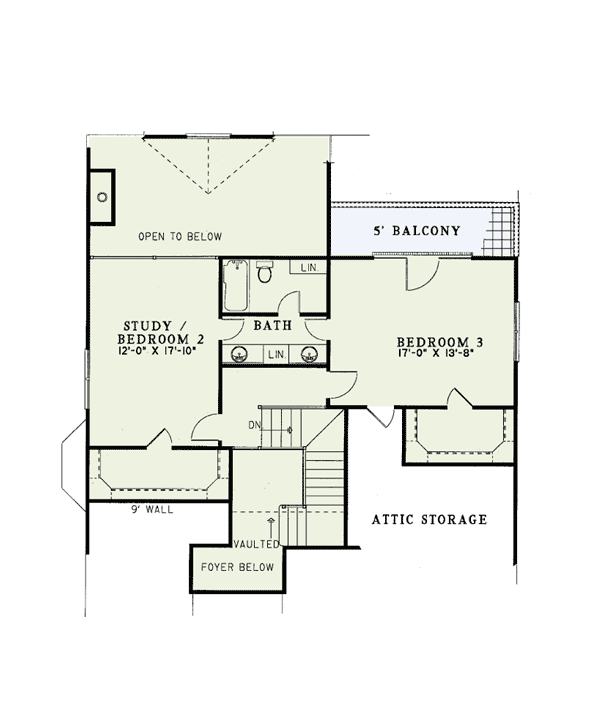

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,287 sq. ft.
  • 1st Floor: 1,542 sq. ft.
  • 2nd Floor: 745 sq. ft.

Dimensions

  • Width: 42' 4"
  • Depth: 58' 10"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 443 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 10
  • Framing Type: Stick
