Plan 57107HA
Multiple Entrances and a Great Rear Porch
Heated S.F.
1,568
Beds
2
Baths
2
Stories
1
Cars
3
What's Included
Plan Details
  • Multiple entrances from three porches help to bring the outdoors in. And a large screened porch with a two-sided fireplace gives you a great place to relax in.
  • The lodge-like great room features a vaulted ceiling with a 14'9' peak, stone fireplace, step-up entrance foyer and opens to the huge screened porch
  • The kitchen has an island and peninsula, a convenient laundry room and adjoins to a spacious dining area which also leads to the screened porch and the rear patio.
  • The master bedroom has two walk-in closets, a luxury bath and access to the screened porch or patio.
  • This is designed with a truss roof and it has an 8 on 12 pitch.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Multiple Entrances and a Great Rear Porch

  • 1,568

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

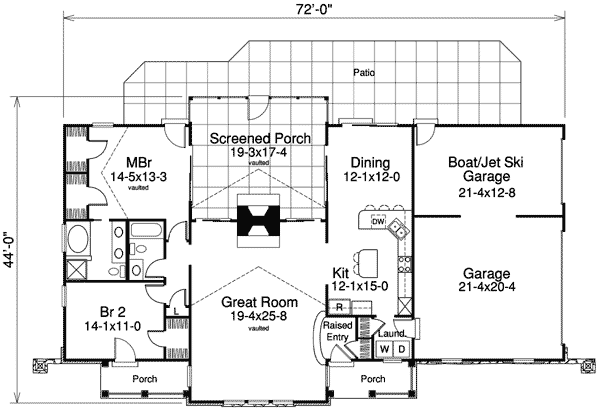

Floor Plan
