Multiple-Gabled Ranch

Plan 3907ST

  • 1,508

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Multiple gables and a cozy front porch welcome you to this enchanting one level house plan.
  • The grand openings between rooms create a spacious effect and the functional kitchen provides an abundance of counter space.
  • Additional room for quick meals is provided at the breakfast bar. Double hung windows and angles add light and dimension to the dining area.
  • Framed for an 8 ft. ceiling height throughout, the great room ceiling slopes to 10'6'. The bright and open floor plan of this three bedroom ranch makes this home look and feel much larger than its actual size.
  • See these modified versions of this house plan: 3916ST, 3927ST, 39012ST and 39063ST.

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

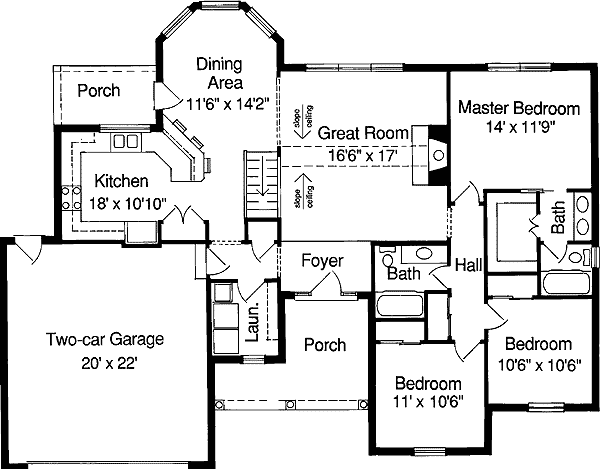

Multiple-Gabled Ranch - 3907ST floor plan - Main Level

Architectural Style

Plan Collections

Multiple-Gabled Ranch

  • 1,508

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,508 sq. ft.
  • 1st Floor: 1,508 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 47' 0"
  • Max ridge height: 21' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
