Plan 51225MM

Narrow 1-Bed ADU Cottage House Plan with Vaulted Great Room

Heated S.F.
612
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 51225MM

Main Level
Main Level

Plan 51225MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

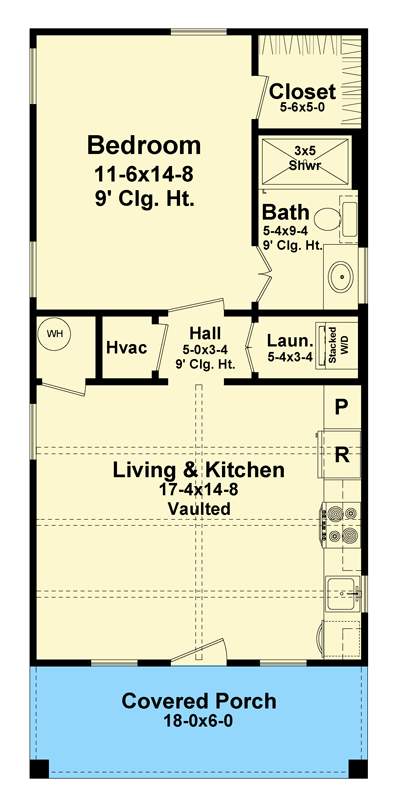

Plan 51225MM: Narrow 1-Bed ADU Cottage House Plan with Vaulted Great Room - Floor Plan - Main Level - Cottage, Country

Plan Details

  • This 612-square-foot, one-bedroom, one-bath home offers a simple, efficient layout ideal for a guest house, retreat, or downsized living.
  • A full-width front porch welcomes you into an open-concept living and kitchen area with a raised bar.
  • The bedroom includes a walk-in closet and the bathroom features a tub/shower combo. Rear and optional screened porches provide additional outdoor space.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

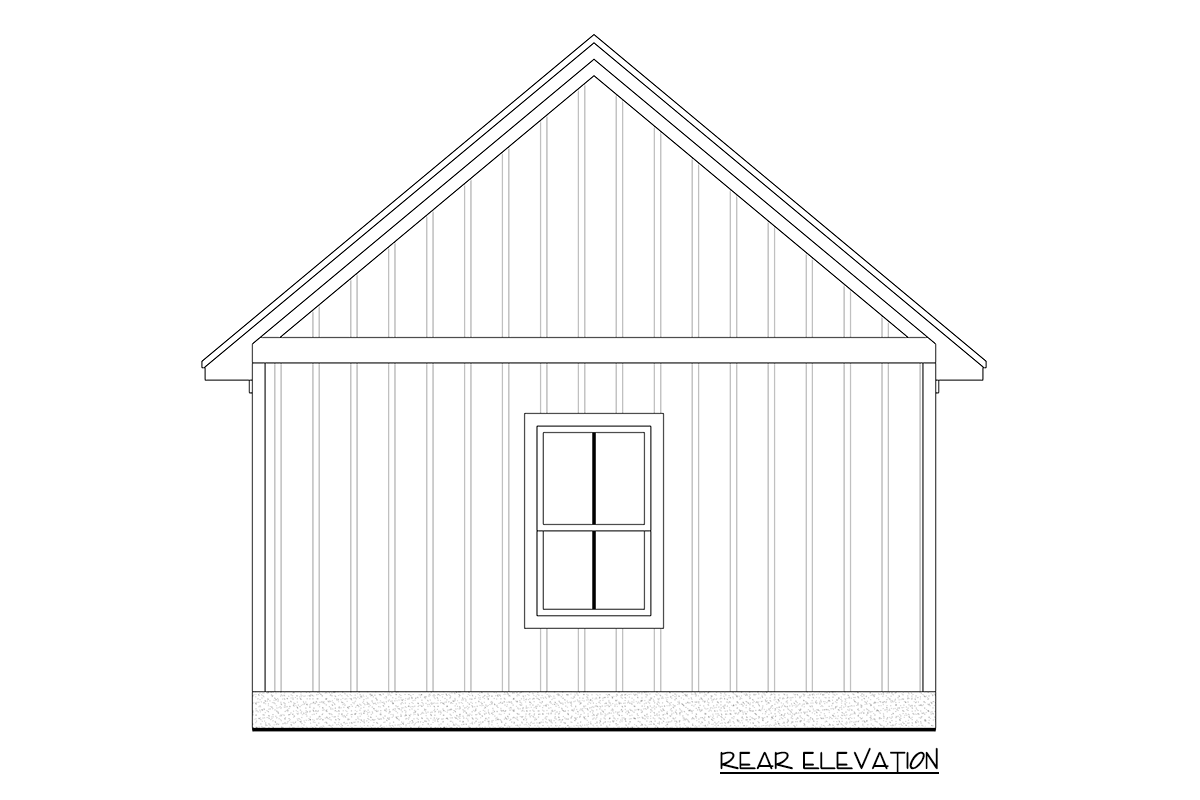

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

612 sq. ft.

1st Floor

612 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

18' 0"

Depth

40' 0"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

612 sq. ft.

1st Floor

612 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

18' 0"

Depth

40' 0"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Laundry - Main Level

Master Suite - 1st Floor
