Plan 521000TTL Narrow 3-Bed House Plan with a Rear-access Garage

1,452 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Narrow 3-Bed House Plan with a Rear-access Garage

Plan 521000TTL

  • 1,452

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Just 26'10" wide, this 3-bed narrow house plan is ideally suited for your narrow or in-fill lot. Being narrow doesn't mean you have to sacrifice a garage. There is a 2-car garage in back, perfect for alley access.

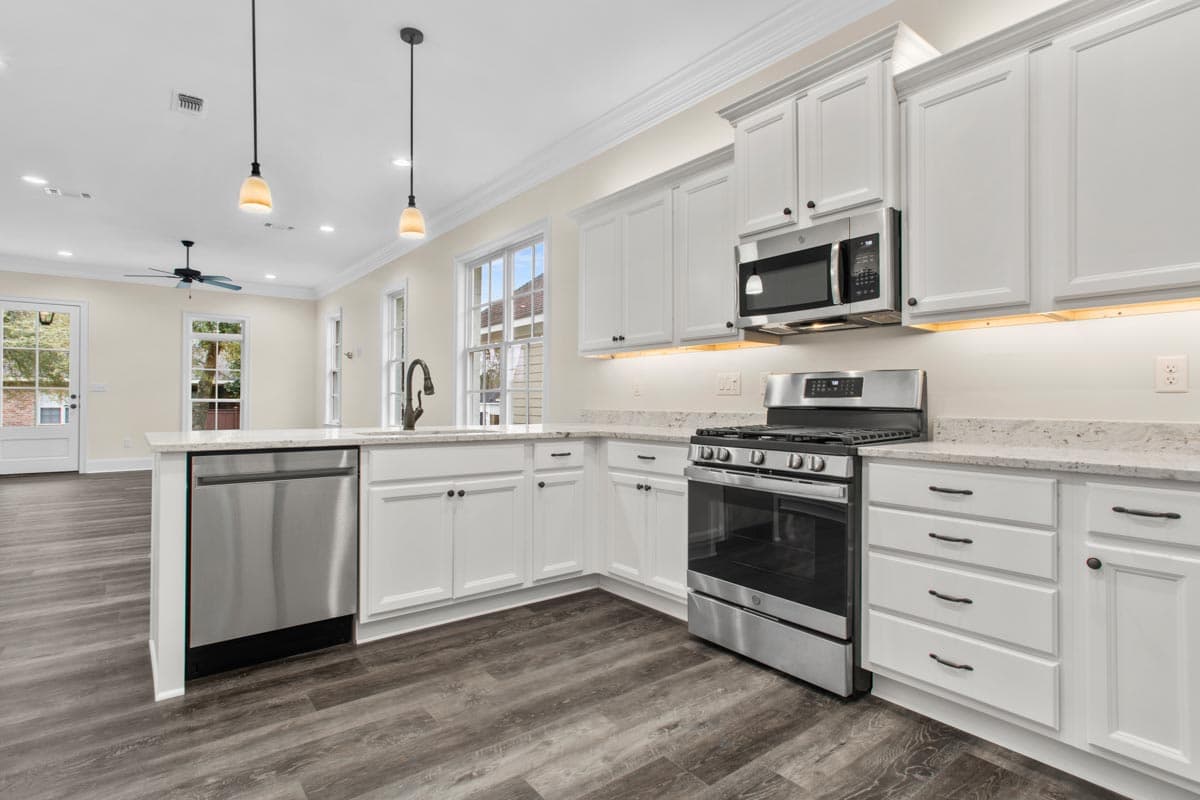

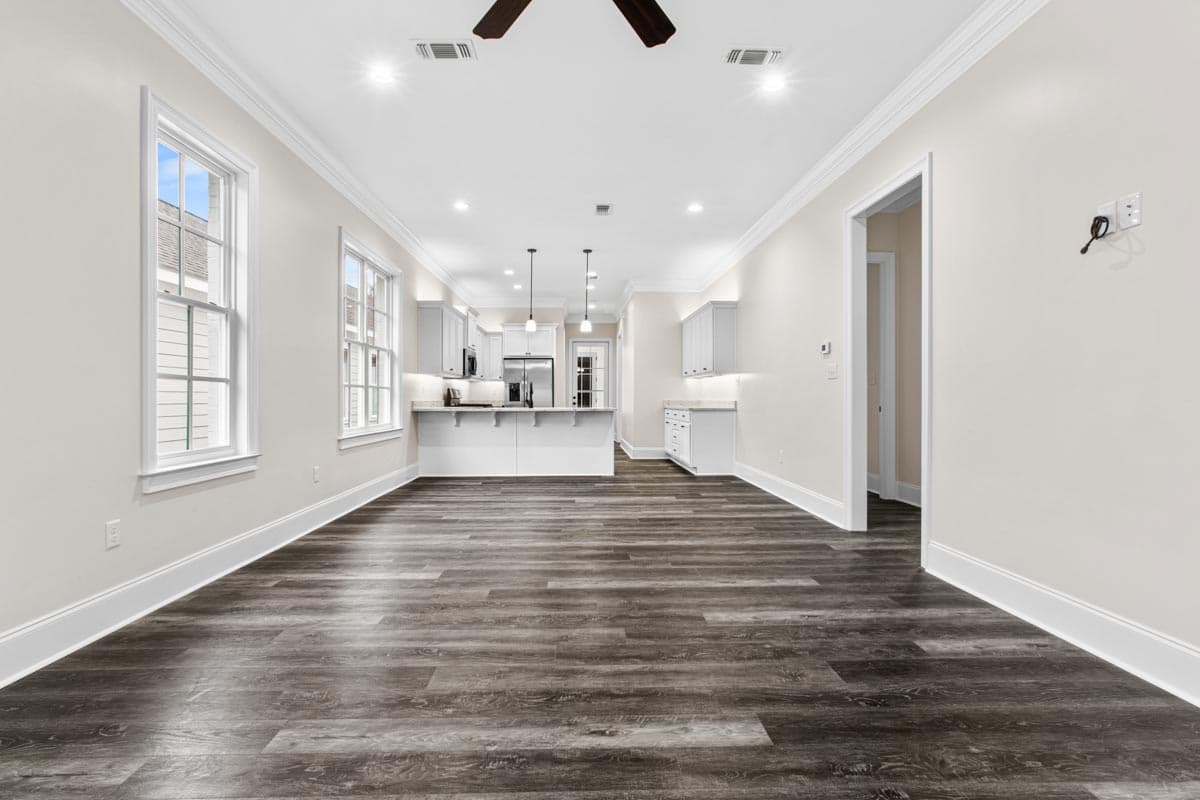

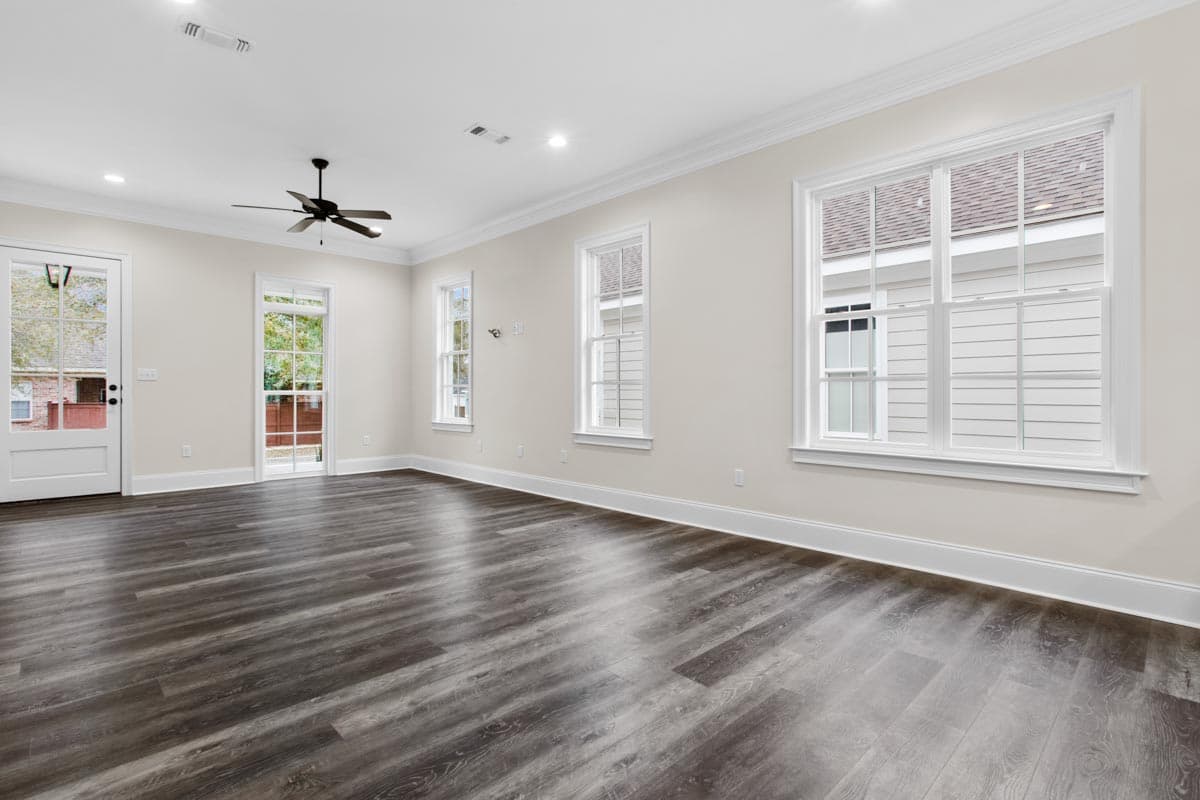

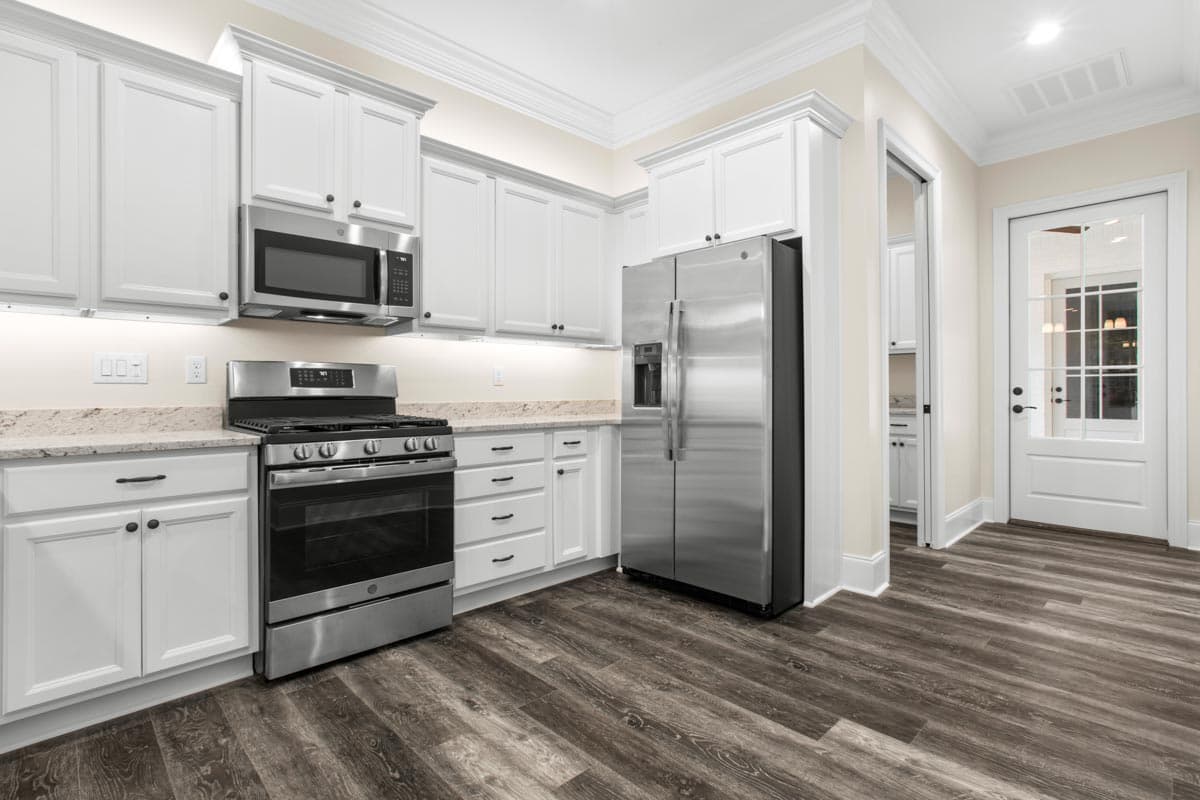

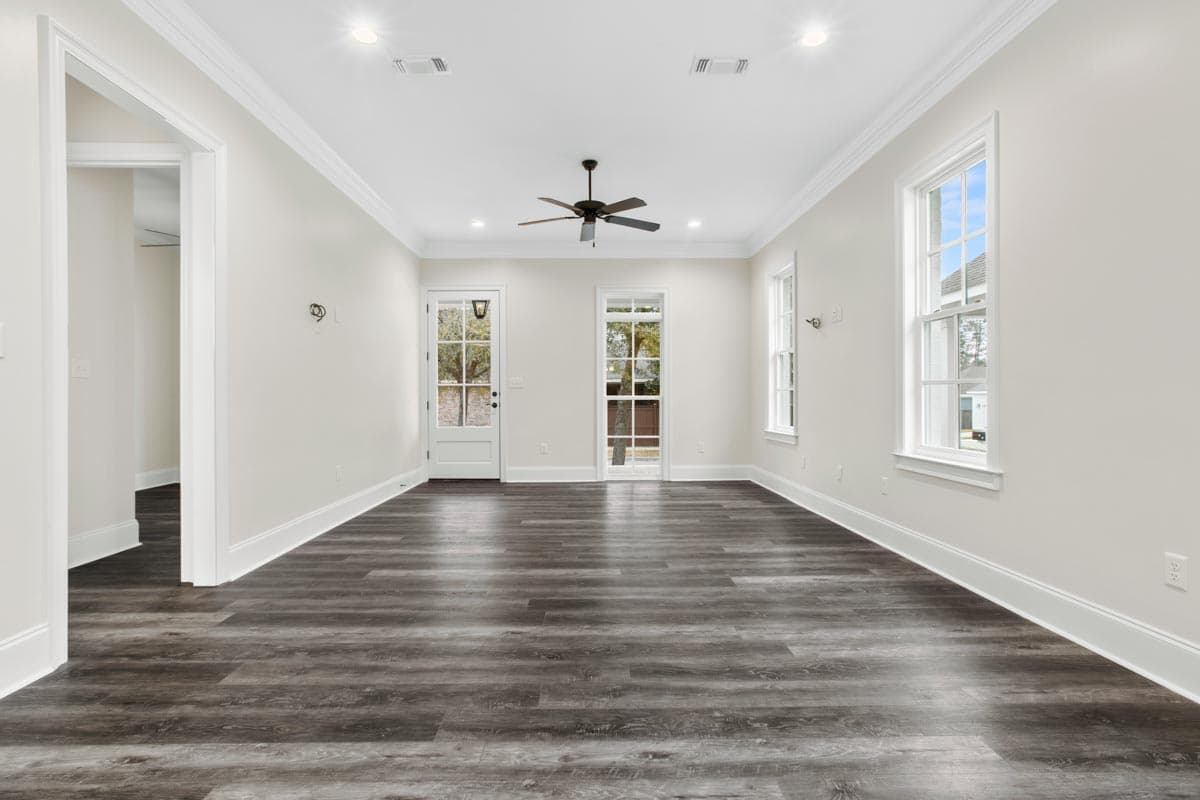

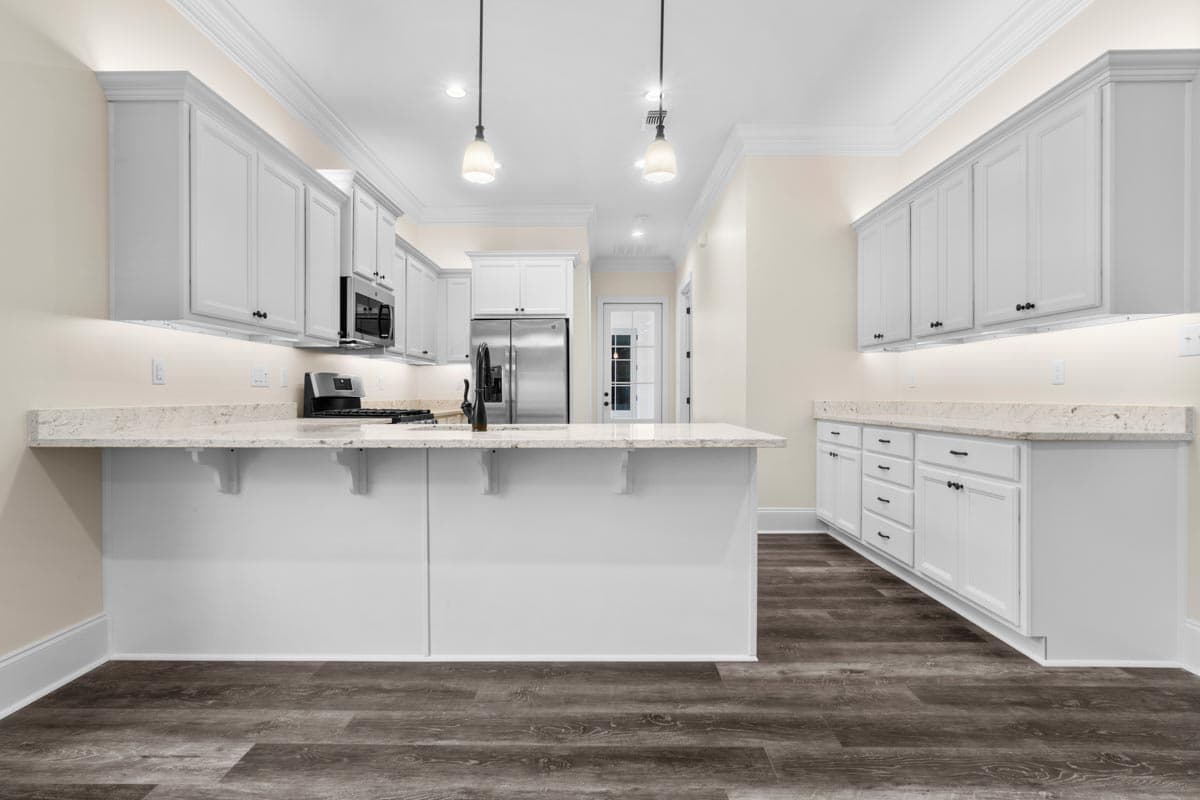

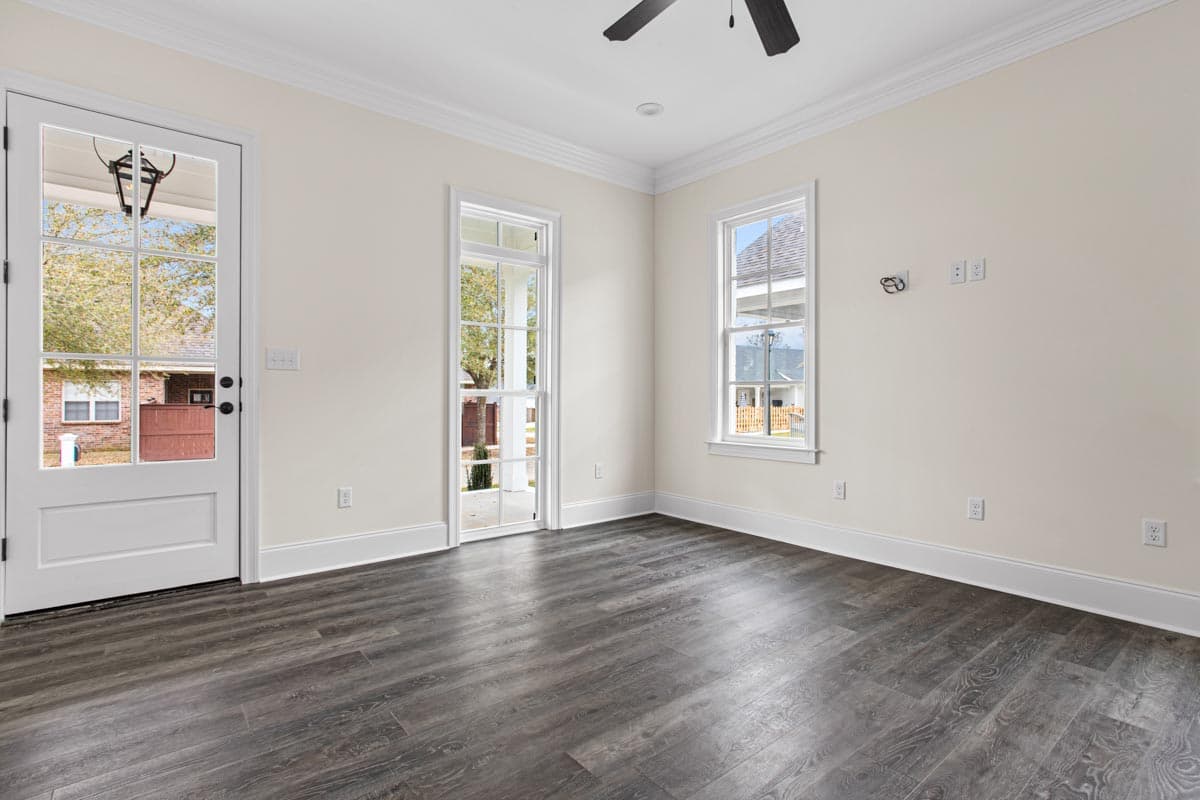

  • The left side of the home is open from the living area through the dining area to the kitchen. There, a peninsula gives you cook space as well as seating at the counter.

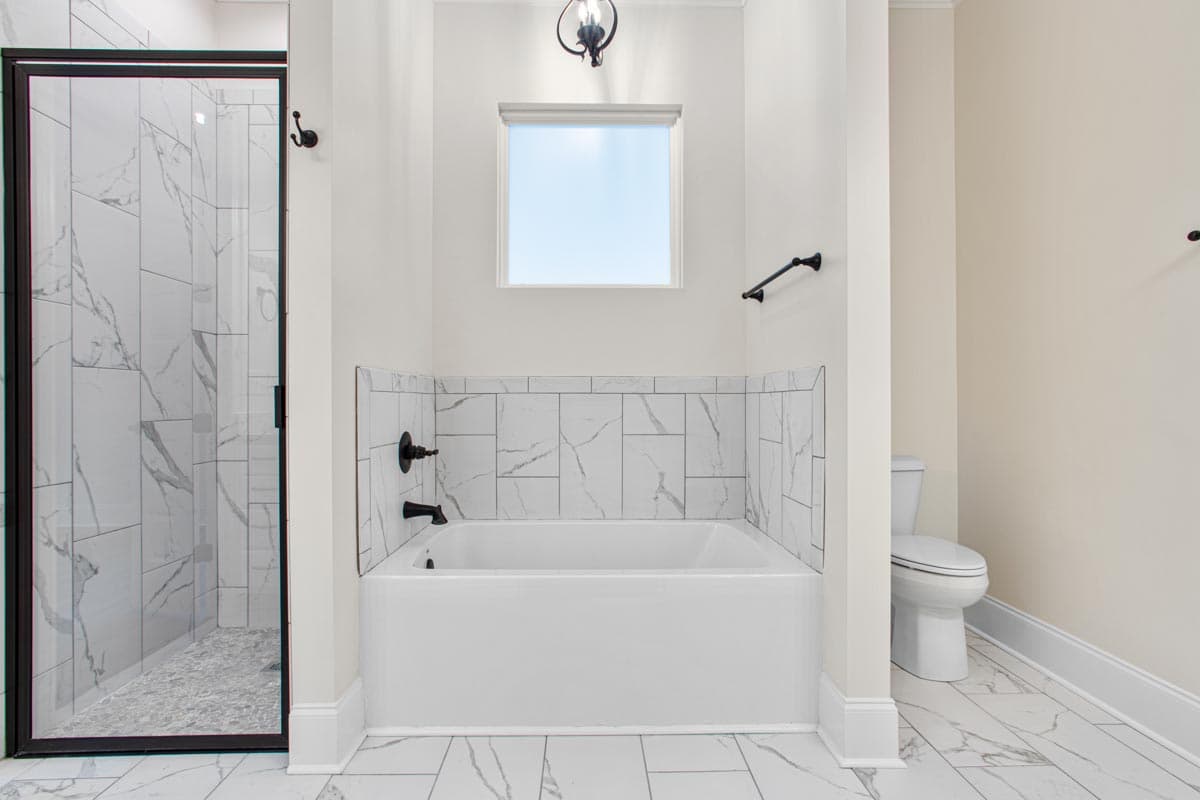

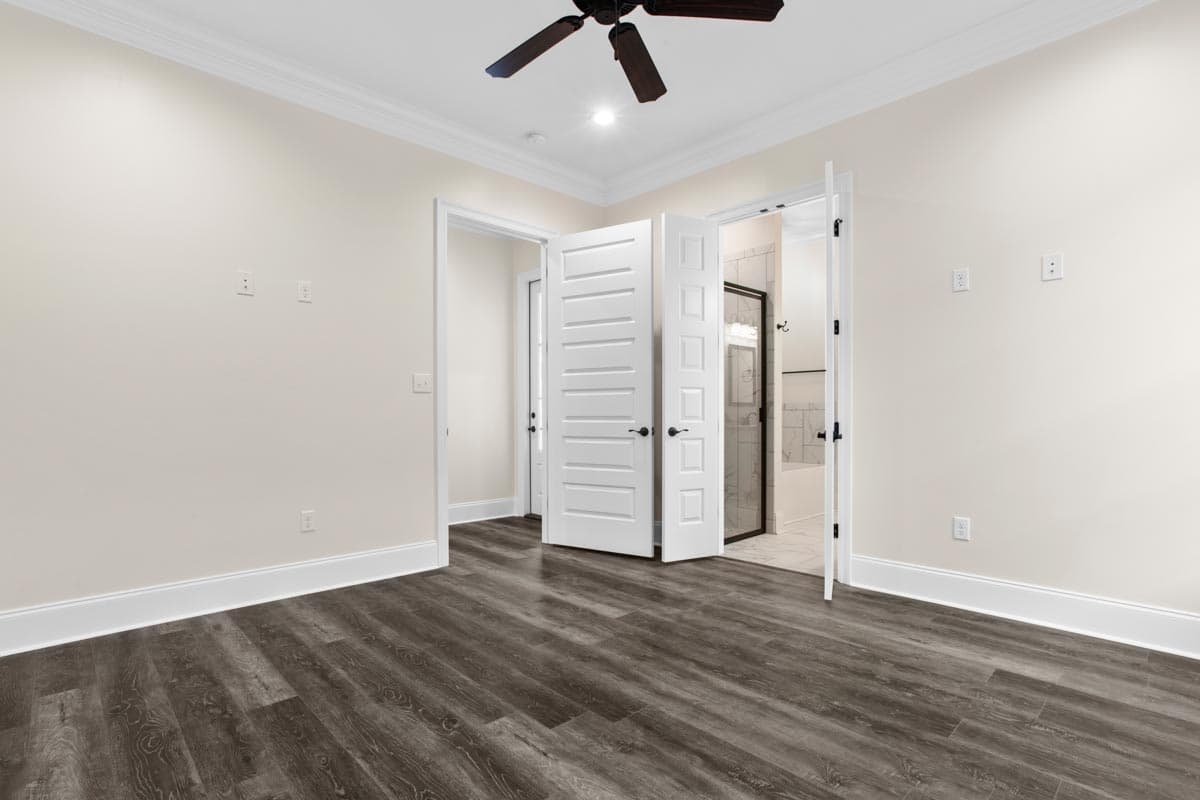

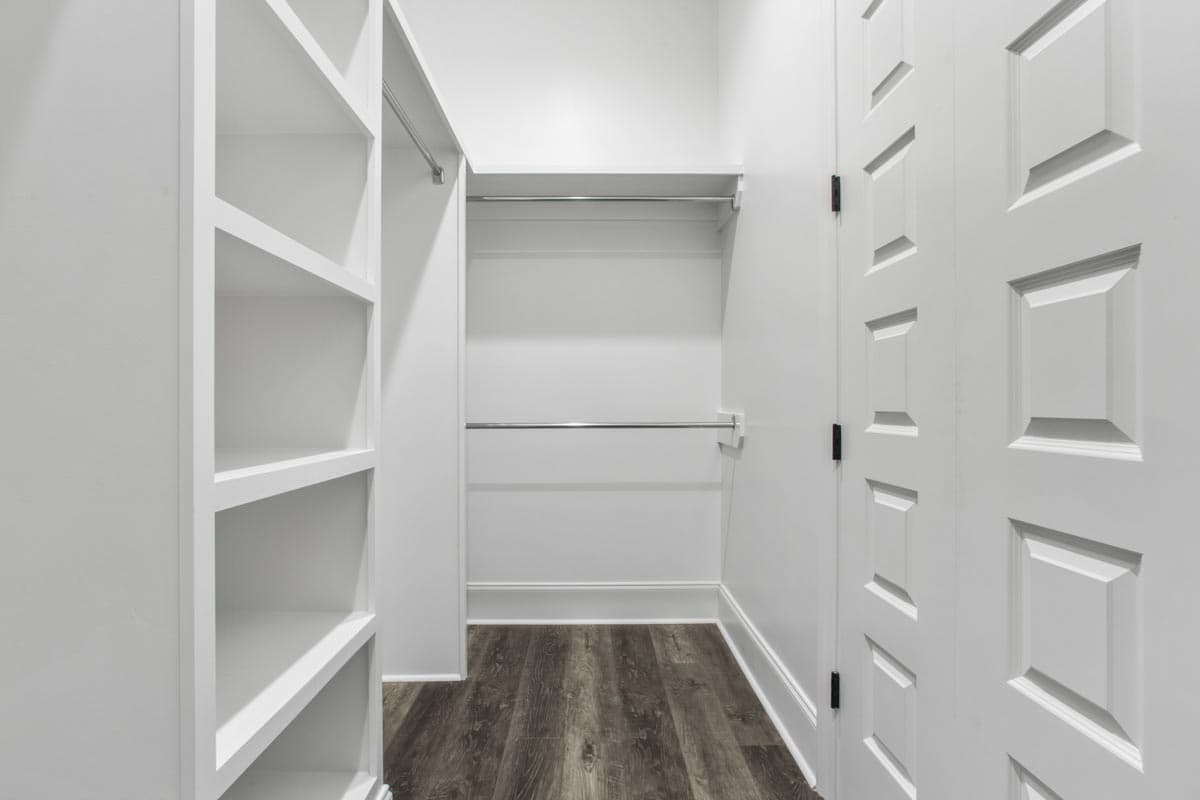

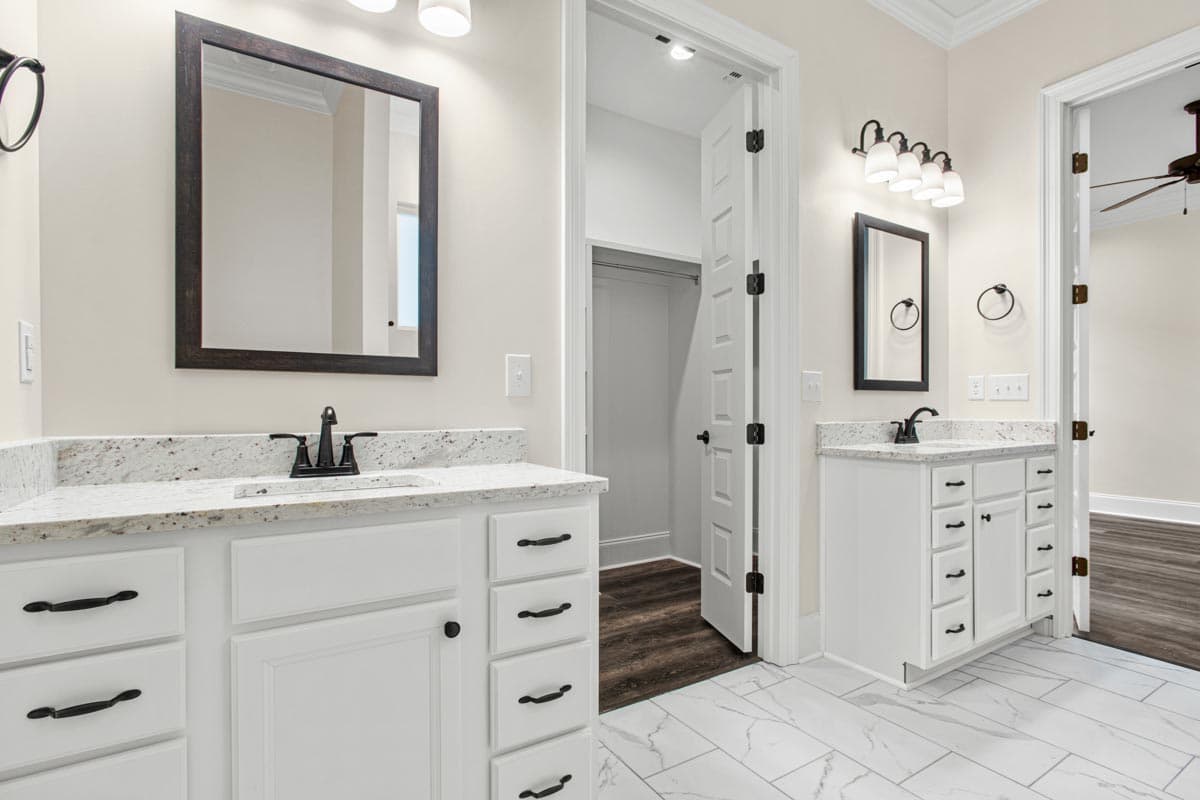

  • All three bedrooms are lined up on the right side of the home, including the master suite with a walk-in closet and a 5-fixture bath.

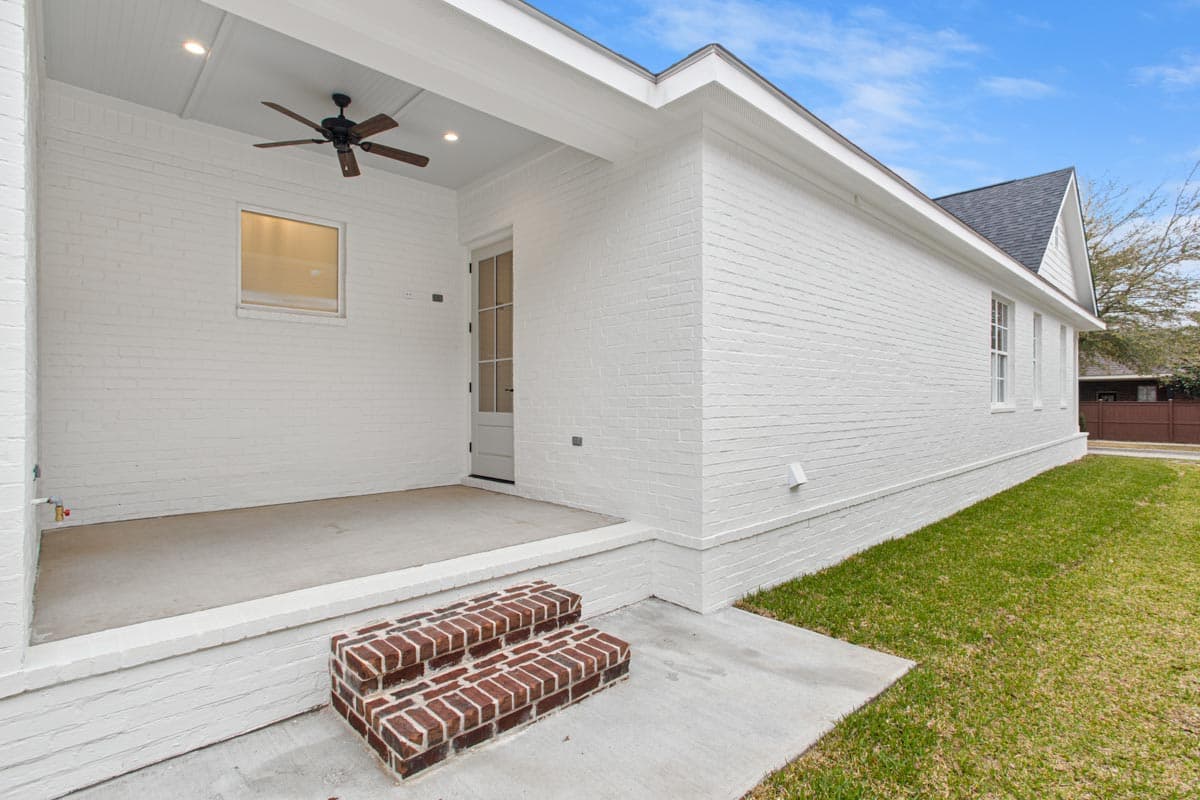

  • A side porch has access to the home and the garage.

  • Cover sheet
  • Foundation plan
  • Floor plan

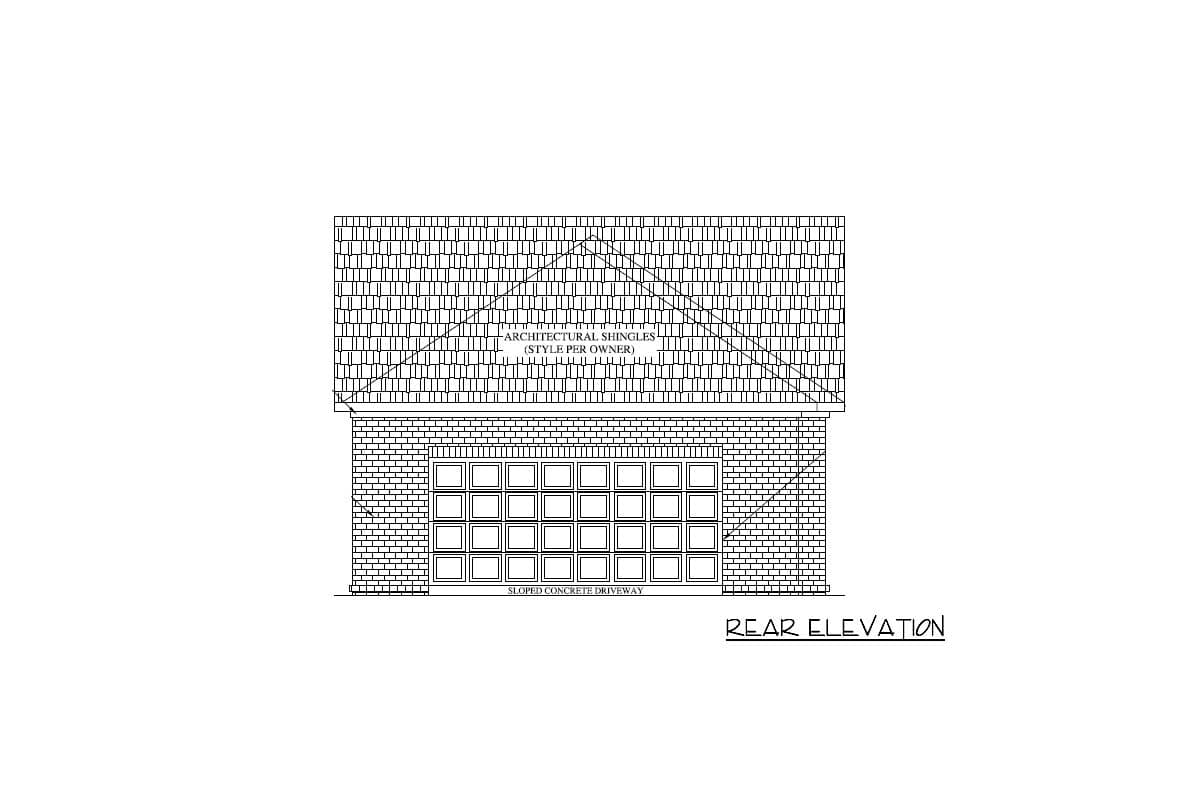

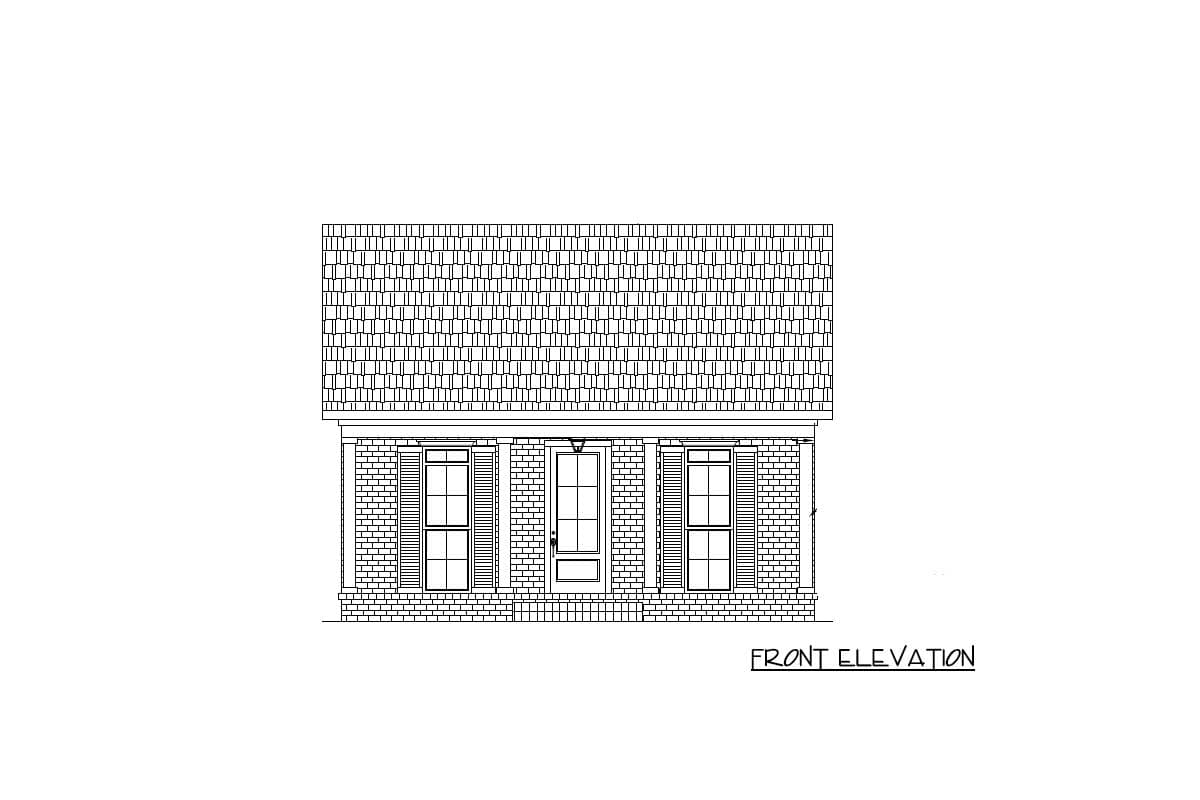

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

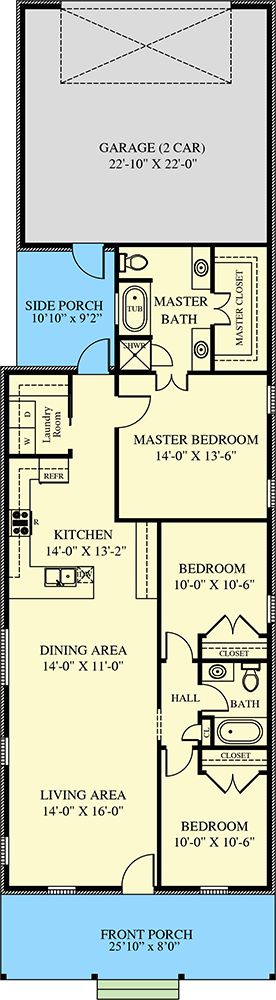

Narrow 3-Bed House Plan with a Rear-access Garage - 521000TTL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,452 sq. ft.
  • 1st Floor: 1,452 sq. ft.
  • Porch, Combined: 307 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 25' 10"
  • Depth: 91' 10"
  • Max ridge height: 21' 8"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Narrow 3-Bed House Plan with a Rear-access Garage

  • 1,452

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,950
  • CAD - Unlimited Build $2,250
  • View all purchase option online

About This Plan

  • Just 26'10" wide, this 3-bed narrow house plan is ideally suited for your narrow or in-fill lot. Being narrow doesn't mean you have to sacrifice a garage. There is a 2-car garage in back, perfect for alley access.
  • The left side of the home is open from the living area through the dining area to the kitchen. There, a peninsula gives you cook space as well as seating at the counter.
  • All three bedrooms are lined up on the right side of the home, including the master suite with a walk-in closet and a 5-fixture bath.
  • A side porch has access to the home and the garage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,452 sq. ft.
  • 1st Floor: 1,452 sq. ft.
  • Porch, Combined: 307 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 25' 10"
  • Depth: 91' 10"
  • Max ridge height: 21' 8"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick And Truss
