Plan 31583GF Narrow Cottage Plan with Main-Level Master Suite

1,683 4 2.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Narrow Cottage Plan with Main-Level Master Suite

Plan 31583GF

  • 1,683

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • With a width of 20 feet, this cottage plan is ideal for narrow plot lines. Three tapers columns with brick bases support the elongated front porch, which adds to the Craftsman appeal.
  • Step inside to find a sizable living room that opens to the kitchen. The stairwell lines the left wall with a convenient coat closet tucked underneath.
  • The kitchen island increases workspace and includes counter-height seating, and a nearby pocket door reveals the laundry room.
  • The master bedroom occupies the rear of the main level and provides a full bath, walk-in closet, and views onto the back porch.
  • Three family bedrooms are located upstairs, along with a 4-fixture bath to share.

This plan set has 4 pages as follows:

  1. Foundation page with general notes
  2. Detailed floor plans and roof plan

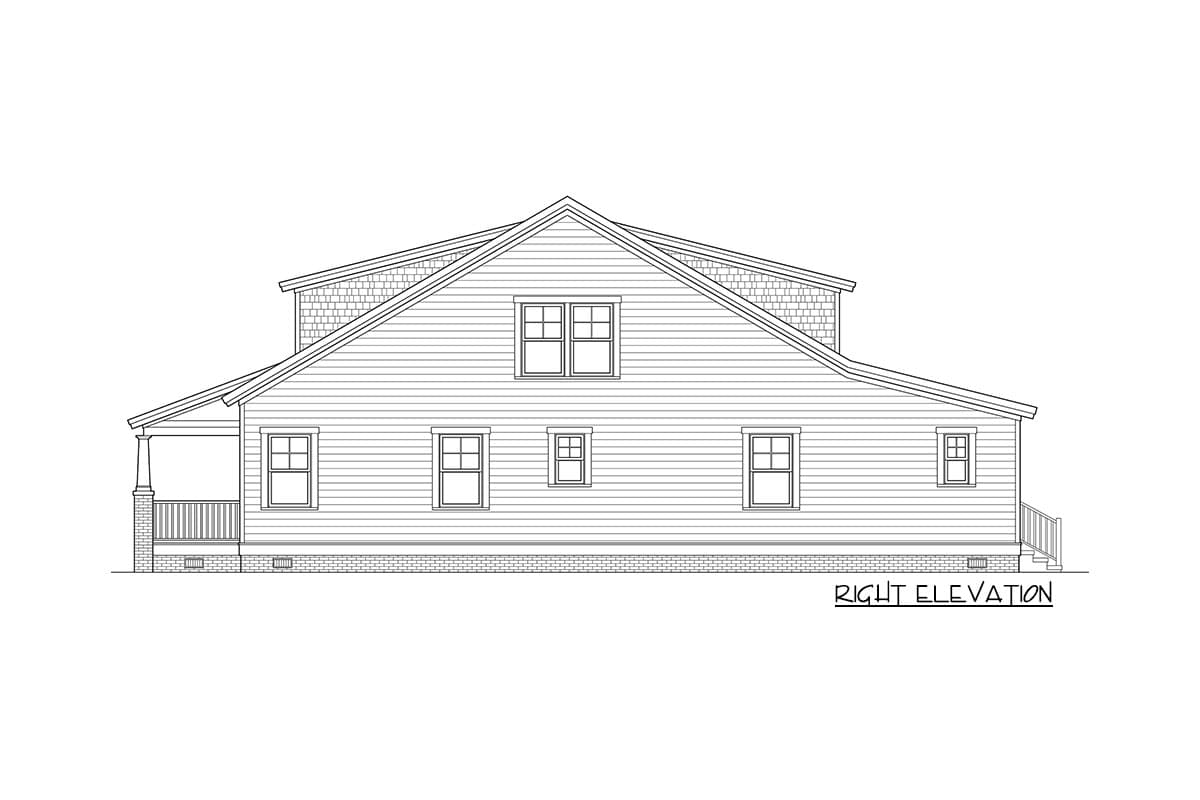

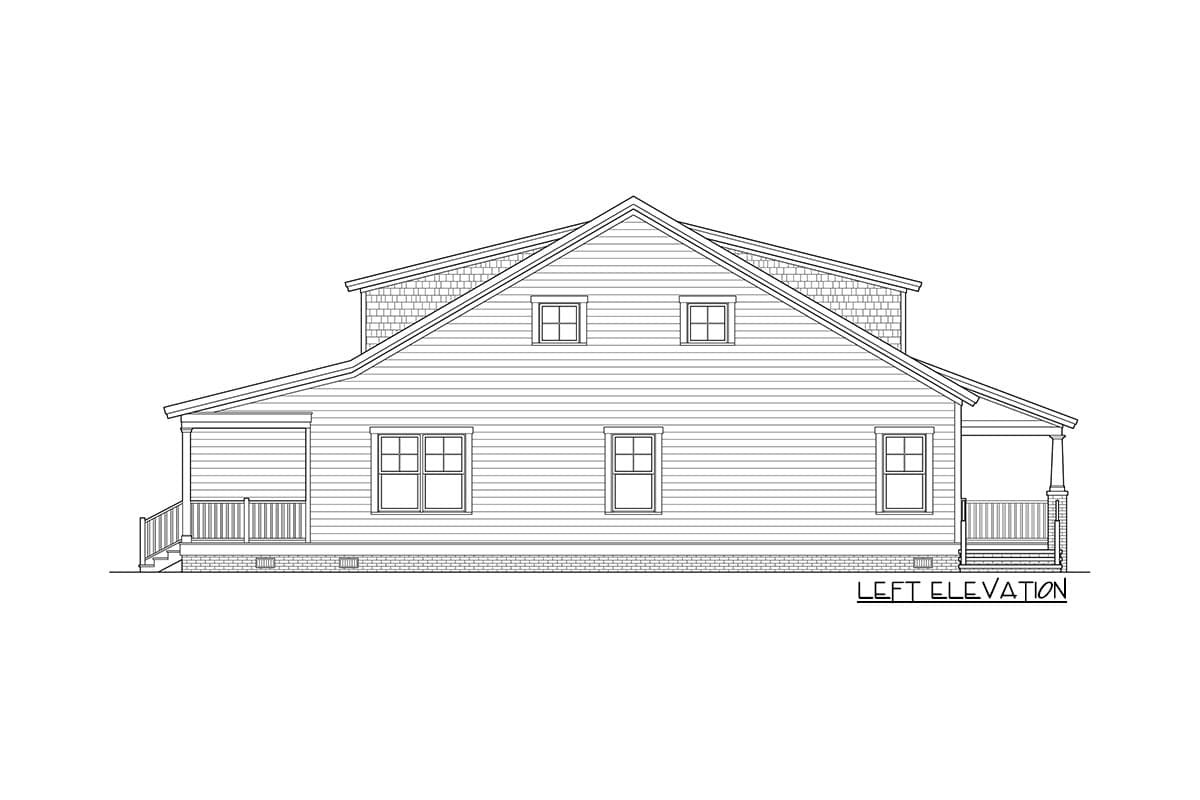

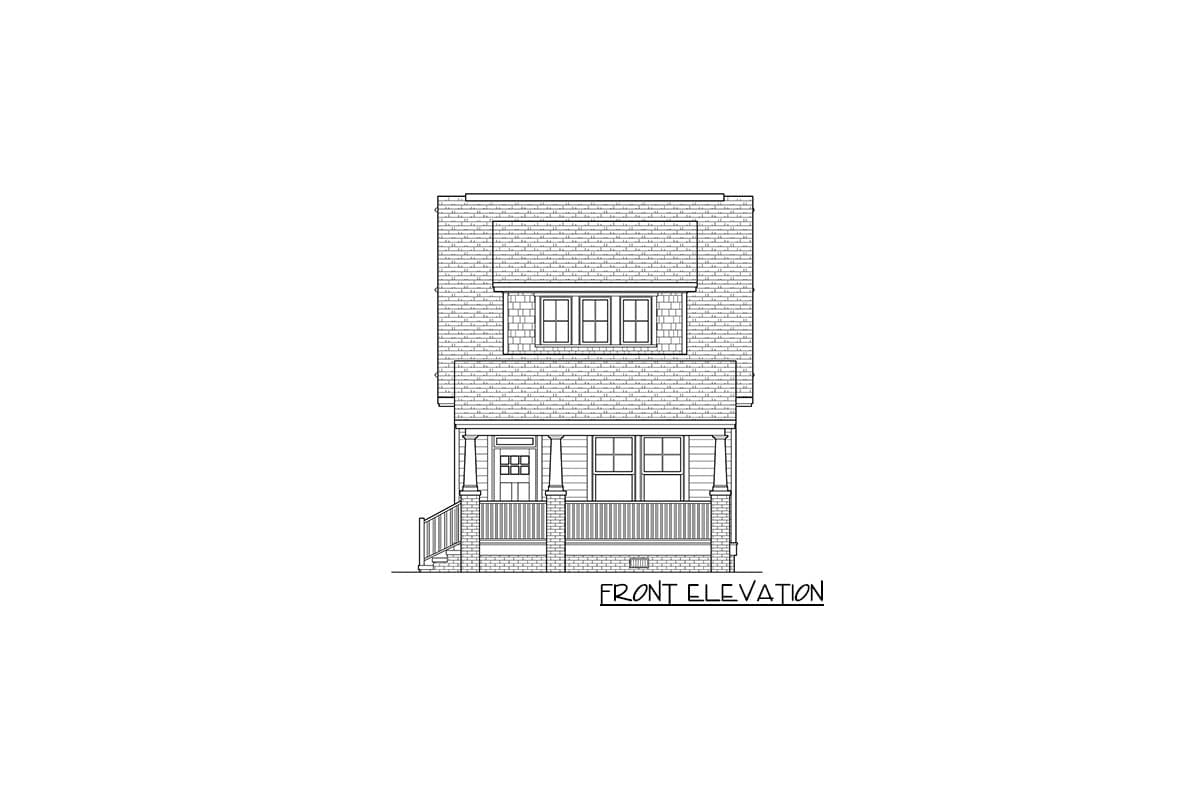

  3. Exterior elevations
  4. Sections and details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

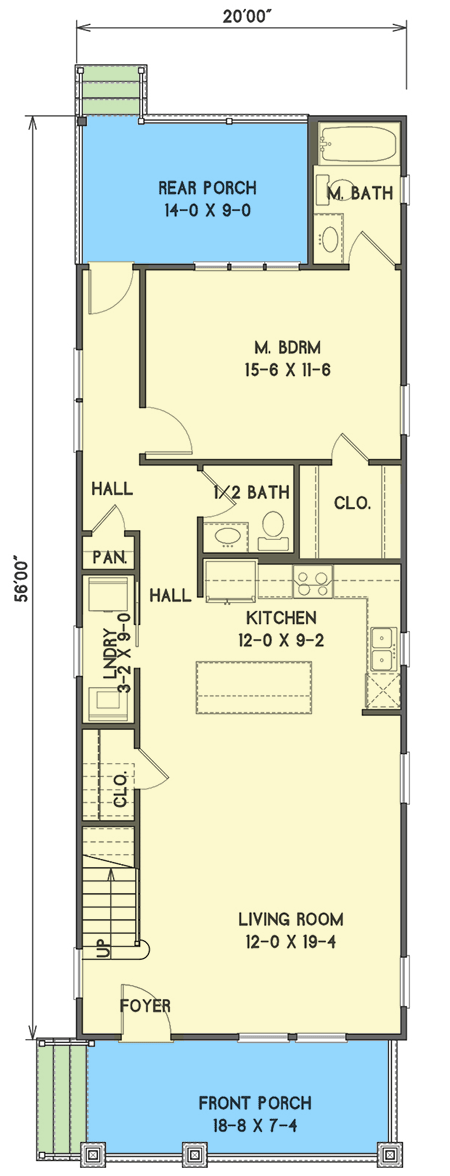

Narrow Cottage Plan with Main-Level Master Suite - 31583GF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

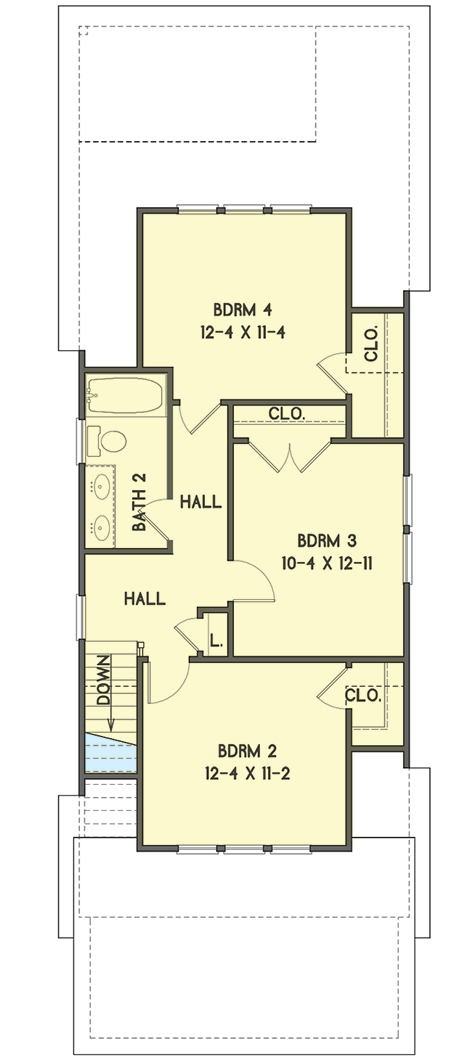

Narrow Cottage Plan with Main-Level Master Suite - 31583GF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,683 sq. ft.
  • 1st Floor: 994 sq. ft.
  • 2nd Floor: 689 sq. ft.
  • Porch, Rear: 126 sq. ft.
  • Porch, Front: 139 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 20' 0"
  • Depth: 56' 0"
  • Max ridge height: 27' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Narrow Cottage Plan with Main-Level Master Suite

  • 1,683

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $935
  • 5 Sets $1,035
  • 8 Sets $1,050
  • CAD + PDF - Unlimited Build $1,510
  • View all purchase option online

About This Plan

  • With a width of 20 feet, this cottage plan is ideal for narrow plot lines. Three tapers columns with brick bases support the elongated front porch, which adds to the Craftsman appeal.
  • Step inside to find a sizable living room that opens to the kitchen. The stairwell lines the left wall with a convenient coat closet tucked underneath.
  • The kitchen island increases workspace and includes counter-height seating, and a nearby pocket door reveals the laundry room.
  • The master bedroom occupies the rear of the main level and provides a full bath, walk-in closet, and views onto the back porch.
  • Three family bedrooms are located upstairs, along with a 4-fixture bath to share.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,683 sq. ft.
  • 1st Floor: 994 sq. ft.
  • 2nd Floor: 689 sq. ft.
  • Porch, Rear: 126 sq. ft.
  • Porch, Front: 139 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 20' 0"
  • Depth: 56' 0"
  • Max ridge height: 27' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
Plan 31583GF
View this and more for this plan by visiting www.architechtecturaldesigns.com/31583GF
|
