Plan 64414SC Narrow Lot Bungalow

1,470 3 2 1 2
Print
Compare
...

Narrow Lot Bungalow

Plan 64414SC

  • 1,470

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A deep front porch shelters your entry into this Bungalow house plan designed for a narrow lot.
  • The wide foyer leads back to the main living area where you pass by the large kitchen with its island.
  • From the island you can see all the way back through the dining area into the living room at the back of the house.
  • Sliding glass doors take you out to a patio.
  • The master bedroom has a quiet location in back while the two family bedrooms are closer to the front of the home.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

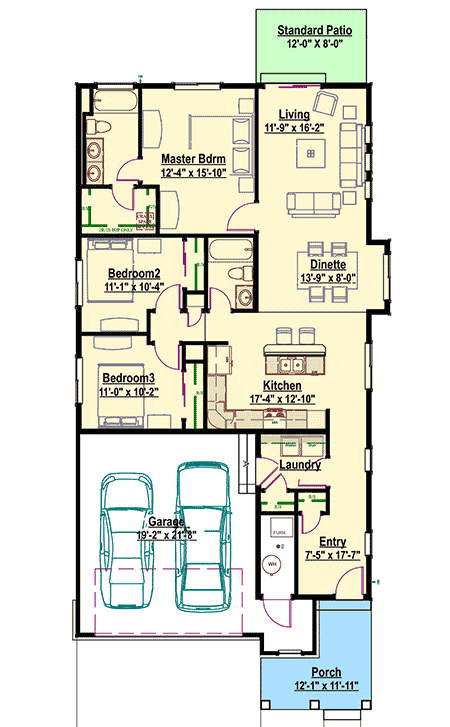

Narrow Lot Bungalow - 64414SC floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,470 sq. ft.
  • 1st Floor: 1,470 sq. ft.
  • Porch, Front: 108 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 68' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features



Narrow Lot Bungalow

  • 1,470

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $895
  • PDF - Unlimited Build $1,195
  • CAD - Single-Build $1,395
  • CAD - Unlimited Build $1,895
  • View all purchase option online

About This Plan

  • A deep front porch shelters your entry into this Bungalow house plan designed for a narrow lot.
  • The wide foyer leads back to the main living area where you pass by the large kitchen with its island.
  • From the island you can see all the way back through the dining area into the living room at the back of the house.
  • Sliding glass doors take you out to a patio.
  • The master bedroom has a quiet location in back while the two family bedrooms are closer to the front of the home.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,470 sq. ft.
  • 1st Floor: 1,470 sq. ft.
  • Porch, Front: 108 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 68' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Plan 64414SC
View this and more for this plan by visiting www.architechtecturaldesigns.com/64414SC
|
Need Help? 800-854-7852
|
